Description:

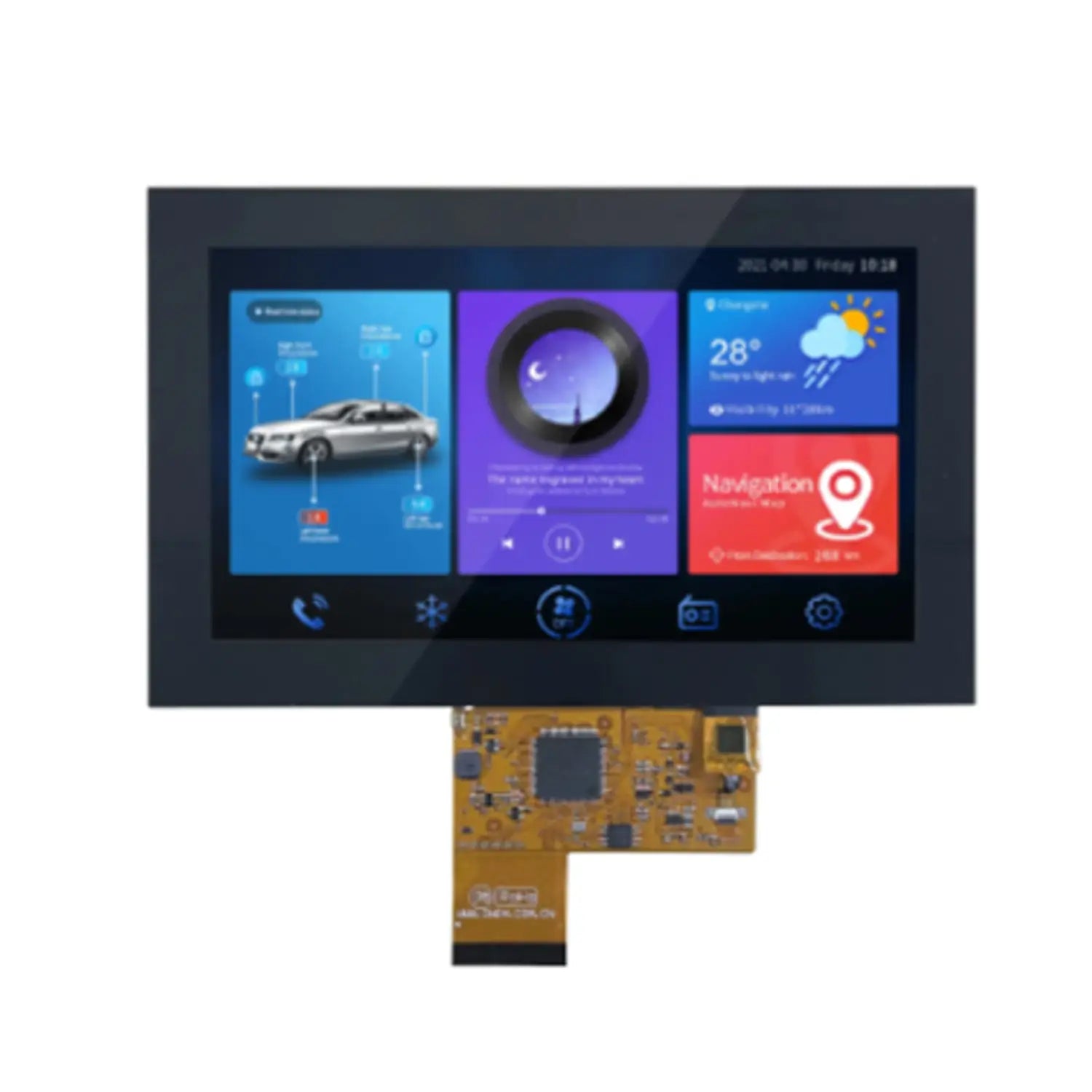

The DWIN 7-Inch COF Touch Screen (DMG80480F070_02W) is a high-performance display built on the T5L0 platform and powered by the DGUS II system, offering a seamless visual experience. Featuring a 7-inch TN TFT display with a sharp 800×480 resolution and 262K colors, this module ensures vibrant and precise visuals.

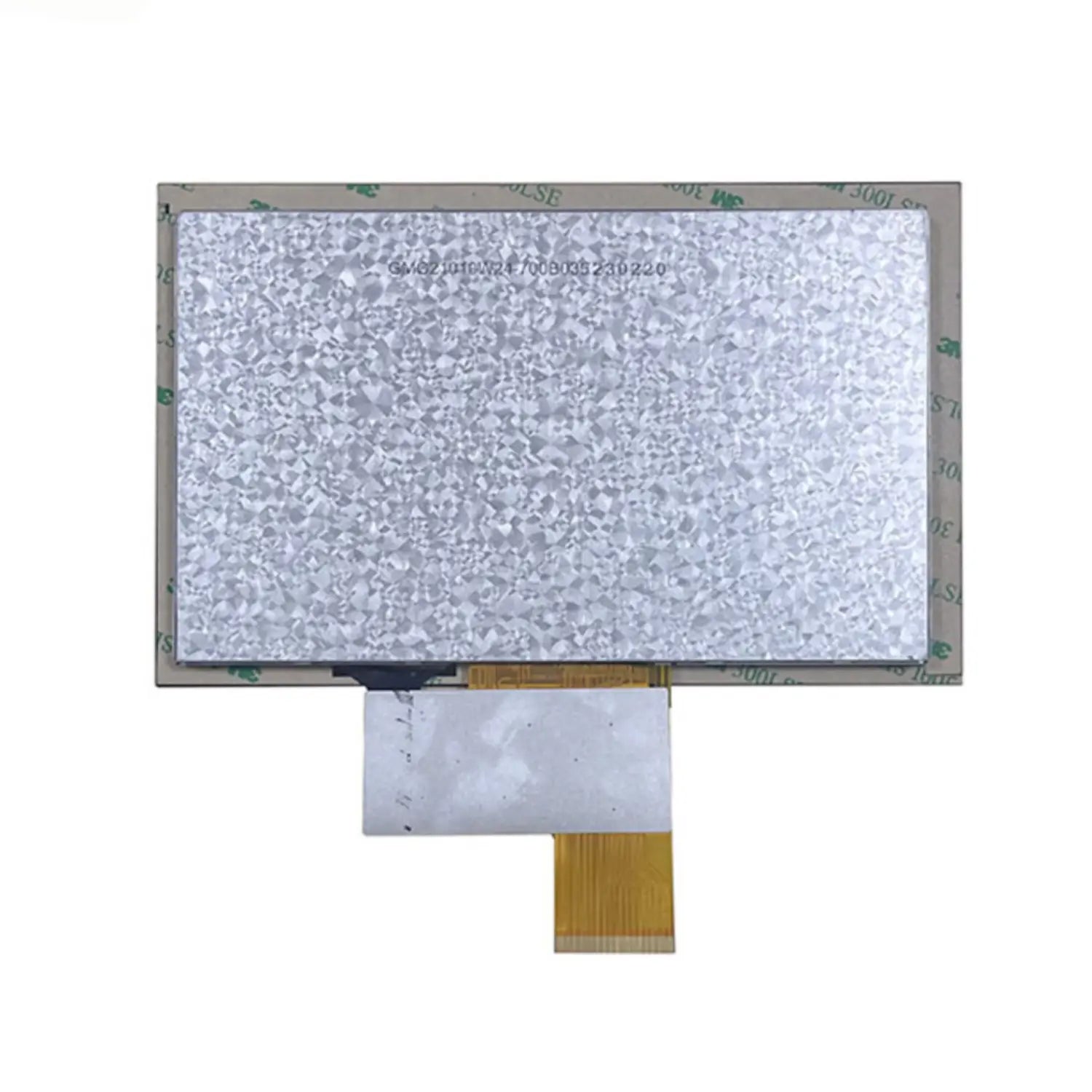

Its LCD and touch panel (TP) frame lamination guarantees reliable performance and durability. The innovative COF (Chip on Film) structure delivers a lightweight and slim design, reducing manufacturing costs and simplifying integration into projects.

Equipped with 50 pins supporting IO, UART, CAN, AD, and PWM, this touch screen module offers versatile connectivity and convenient options for secondary development. With an overall thickness of just 5.60mm, it’s ideal for industrial HMI, embedded systems, and smart device applications, combining compactness, efficiency, and advanced touch functionality.

Specification:

  • Display Size: 7.0 inch
  • Resolution: 800x480
  • Display Panel: TN, TFT LCD
  • Touch Type: Capacitive
  • View Angle: TV viewing angle, typical value of
  • 70Deg/70Deg/40Deg/30Deg(L/R/U/D)
  • Color: 262K colors
  • Display Area: 154.08mm (W) x 85.92 mm (H)
  • Power Supply: 4.5~5.5V
  • Brightness: 200nit
  • Interface: TTL
  • Working temperature: -10C~60C
  • Thickness: 5.60mm

Features:

  • Display Size: 7 inches
  • Resolution: 800x480 pixels
  • Colors: 262K colors (True Color)
  • Display Type: TN TFT
  • Operating System: DGUS II
  • Frame Lamination: LCD and TP
  • Structure: COF
  • Core Circuit Placement: Fixed on the FPC of LCM
  • Benefits: Light and thin design, Low cost, Easy production
  • Interface: 50 pins (IO, UART, CAN, AD, PWM)
  • Secondary Development: Supported for the user CPU core

Useful Link:

DWIN DMG80480F070_02WTC 7-Inch COF TFT LCD Display

Package Included:

1 x DWIN DMG80480F070_02WTC 7-Inch COF TFT LCD Display
