Description:

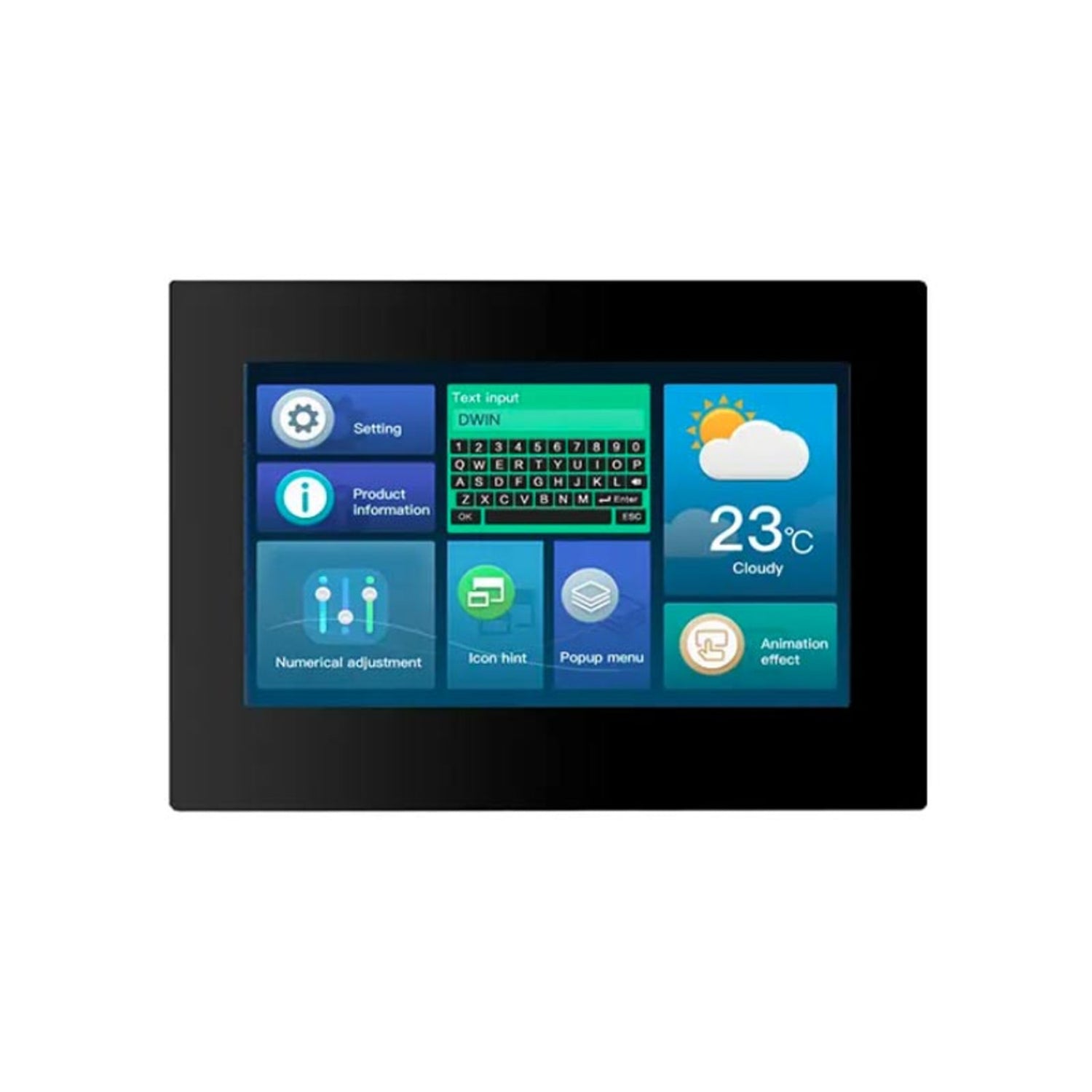

The DWIN DMG80480C070_15WTR is a powerful 7.0-inch HMI (Human-Machine Interface) LCD display designed for a wide range of applications. Featuring an 800x480 resolution and a resistive touch panel, it offers intuitive user interaction. This model comes pre-assembled with a protective shell, making integration into your projects easier.
At its core, this display runs on DWIN's DGUS II system and is powered by the T5L1 ASIC (Application-Specific Integrated Circuit), an efficient, low-power dual-core 8051 processor. This dedicated hardware and software combination allows for seamless GUI (Graphical User Interface) development.
With 8MB of NOR Flash memory onboard, you have ample space to store your user database and custom assets. The pre-installed UI development software lets you easily design and implement personalized features like buttons, text displays, graphs, sliders, and more. Communication is versatile with both RS232 and RS485 interfaces, and it includes a buzzer for audio feedback and an SD card interface for additional storage or data transfer.
Specifications:
- Display Size: 7.0 inch
- Resolution: 800x480
- Display Panel: TFT
- Touch Type: Resistive
- View Angle: TV viewing angle, 70/70/40/30 deg (L/R/U/D)
- Color: 18-bit 6R6G6B
- Display Area: 154.1mm (W)x85.9mm (H)
- Power Supply: 12V 1A DC
- LCM interface: FPC40_0.5mm, RGB interface
- Memory: 16MB
- Buzzer: 3V passive buzzer
- SD Interface: FAT32
- PGT05 Interface: When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
- Brightness: 200nit
- Reserved WiFi Interface: Connect to the cloud platform to update remotely
- Reserved USB Interface:Download files by USB flash disk
- RTC: Button cell for power supply
- User Interface: 8Pin_3.81mm socket for power supply and serial communication
- Interface: RS232/RS485
Features:
- 800x480 resolution, 262K colors, TV-TN-TFT-LCD
- Resistive touch screen
- RS232 and RS485 interface, 8Pin3.81mm socket connection wire
- Download via SD card or on-line serial port
- 8MBytes NOR Flash, for fonts, pictures and audio files
- Brightness is up to 200nit
- TV View Angle: 70/70/40/30 (L/R/U/D)

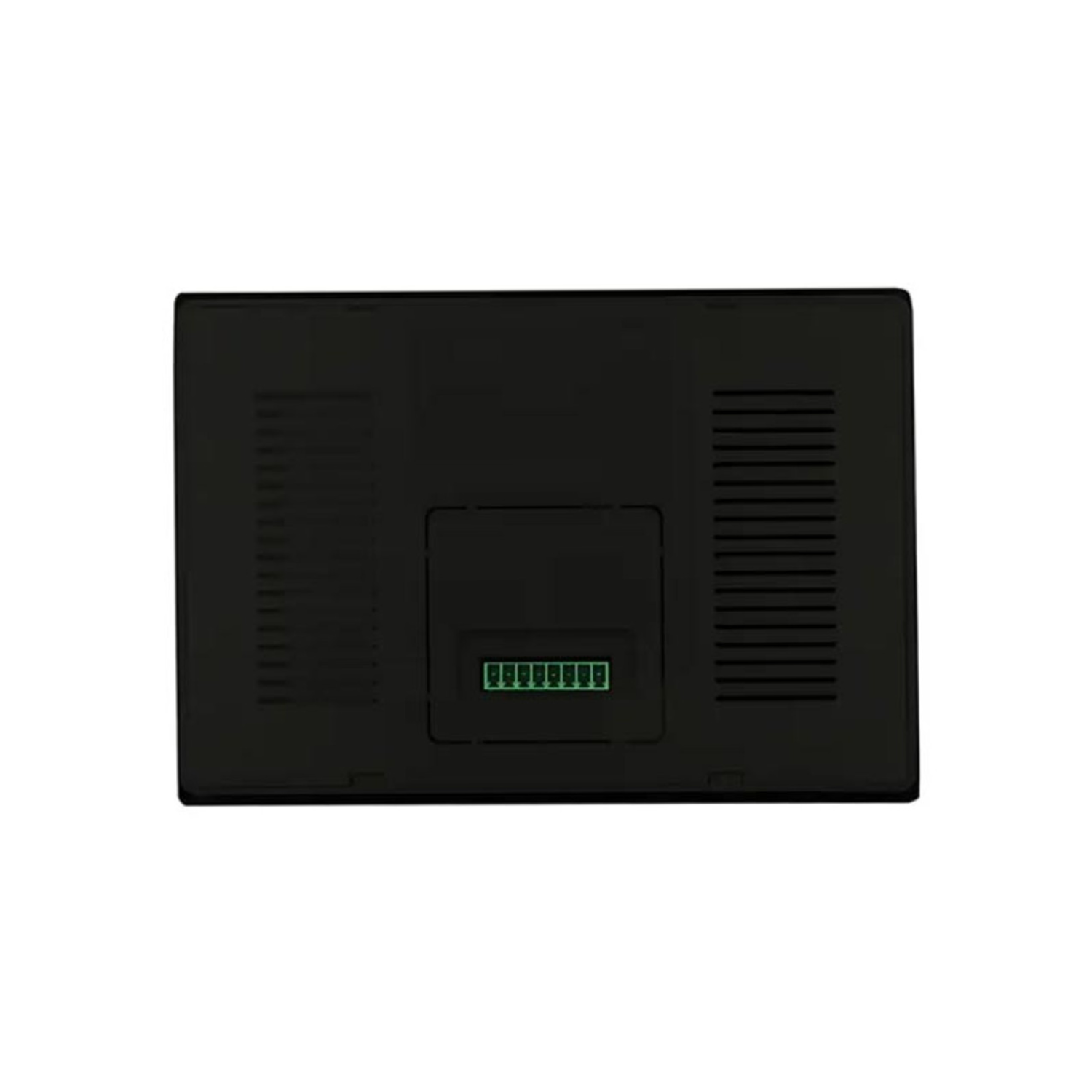

Product Interface:
Useful Link:
Package Included:
1 x DWIN DMG80480C070_15WTR HMI LCD Display WIth Protective Shell
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
