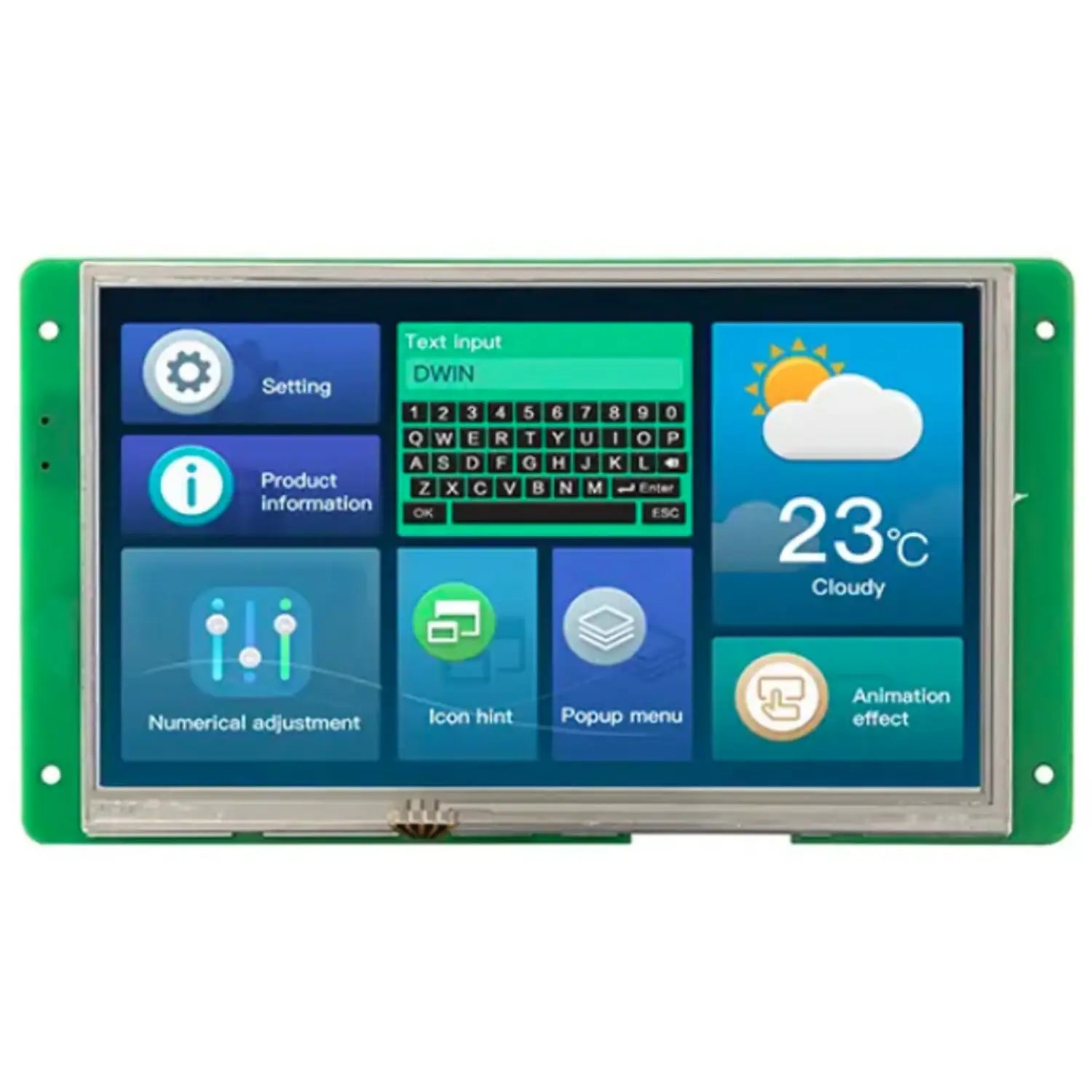

Dwin DMG80480C070_04WTR 7 Inch 800x480 RS232 HMI Display – Resistive Touchscreen with Flash Memory & SD Interface For Industrial Use

Dwin DMG80480C070_04WTR 7 Inch 800x480 RS232 HMI Display – Resistive Touchscreen with Flash Memory & SD Interface For Industrial Use

In stock

Rs. 1,745.00
Rs. 1,745.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Dwin DMG80480C070_04WTR is a 7.0-inch 800x480 RS232 HMI LCD Display featuring a resistive touch panel, 16MB Flash memory, SD interface, and an integrated buzzer — designed for industrial and embedded control applications.

This advanced display module comes equipped with NOR Flash memory, providing ample storage for user databases and interface resources. It runs on the DGUS II system, a powerful Graphical User Interface (GUI) development platform that enables users to easily create and customize interactive screens such as buttons, graphs, sliders, and text displays.

Powered by DWIN’s T5L1 HMI processor, a low-power and cost-effective dual-core 8051 chip, the display ensures high-speed performance and reliable operation. The T5L1 development environment is purpose-built for AIoT (Artificial Intelligence of Things) applications, making this module an ideal solution for smart automation, industrial equipment, and control systems requiring a professional and responsive user interface.

Specification:

  • Display Size: 7.0 inch
  • Resolution: 800x480
  • User Interface: 8Pin_2.0mm socket for power supply and serial communication
  • Interface: RS232
  • Display Panel: TFT
  • Touch Type: Resistive
  • View Angle: TV viewing angle, 70/70/40/30（L/R/U/D）
  • Color: 18-bit 6R6G6B
  • Display Area: 154.08mm (W)× 85.92mm (H)
  • Power Supply: 5V 1A DC
  • LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
  • Brightness: 200nit
  • Reserved WiFi Interface: connect to the cloud platform to update remotely
  • Reserved USB Interface: download files from a USB flash disk

Features:

  • Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 800x480 Pixel
  • Resistive touch screen
  • RS232 Interface, 10Pin1.0 mm socket
  • Download via SD card or online serial port
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
  • Dual Development System: DGUS II/ TA(Instruction set)
  • TV View Angle: 70/70/40/30 (L/R/U/D)
  • With a GUI OS, a GUI with rich controls. DWIN OS kernel is open to the
  • user for the second-development, via DWIN OS language or KEIL C51

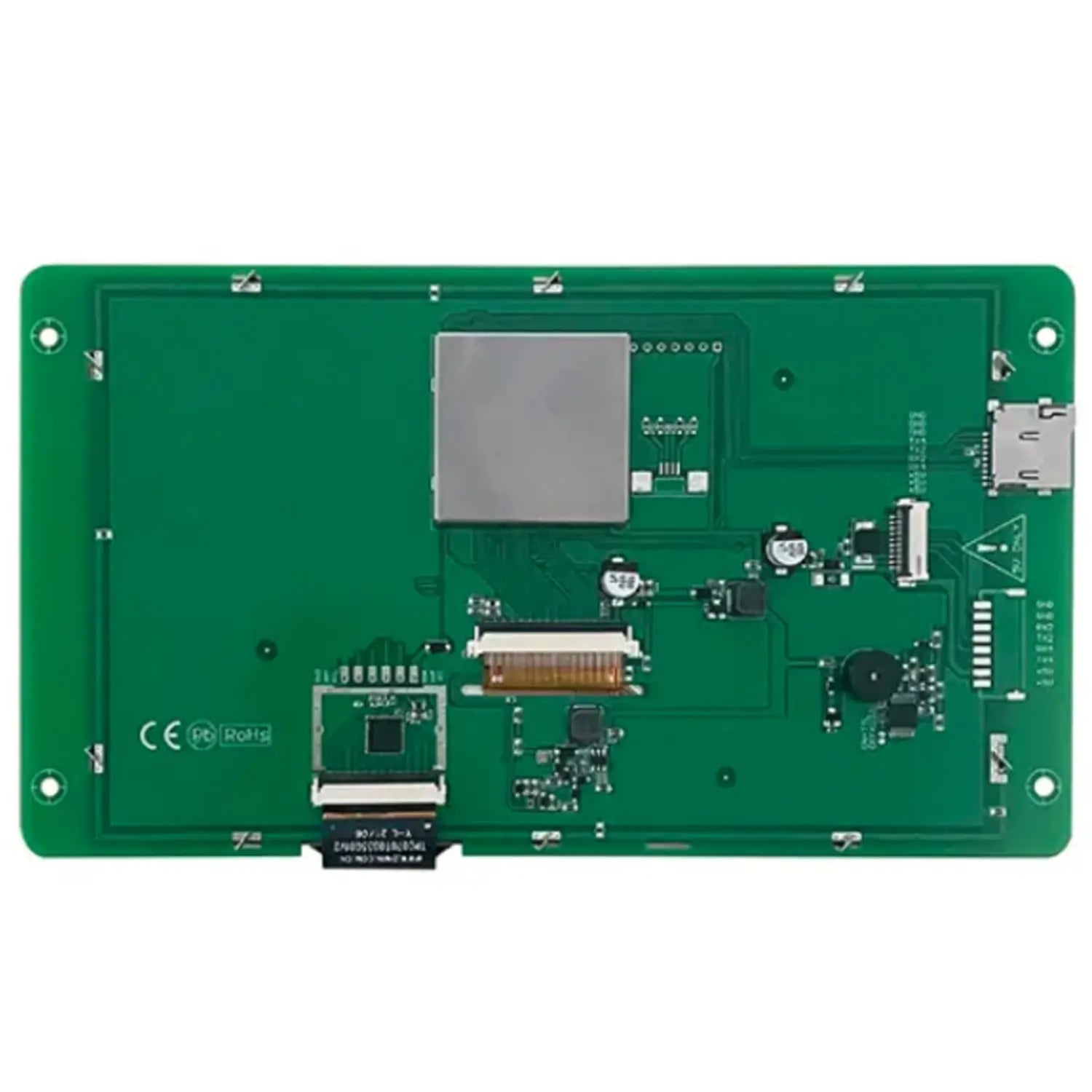

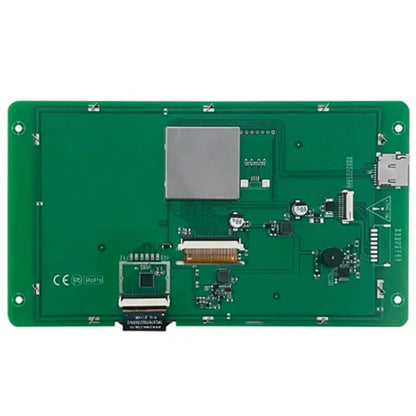

Product Interface:

Useful Link:

Dwin DMG80480C070_04WTR 7 Inch 800x480 RS232 HMI Display

Package Included:

1 x Dwin DMG80480C070_04WTR 7 Inch 800x480 RS232 HMI Display

DWIN Smart LCD Display Accessories (Need to purchase separately)

DWIN HDL662B USB To Serial FFC Adapter

DWIN HDLUSB USB Male A-A Cable

Dwin SD00116GB Micro SD Card with Adapter

Dwin FCC1015A Cable 10Pin 1.0mm Pitch 150mm Opposite Side Contact FFC Cable
