Description:

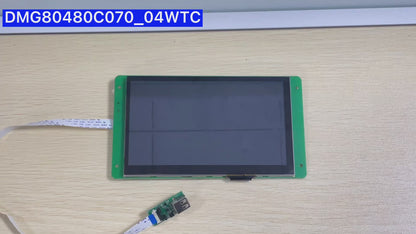

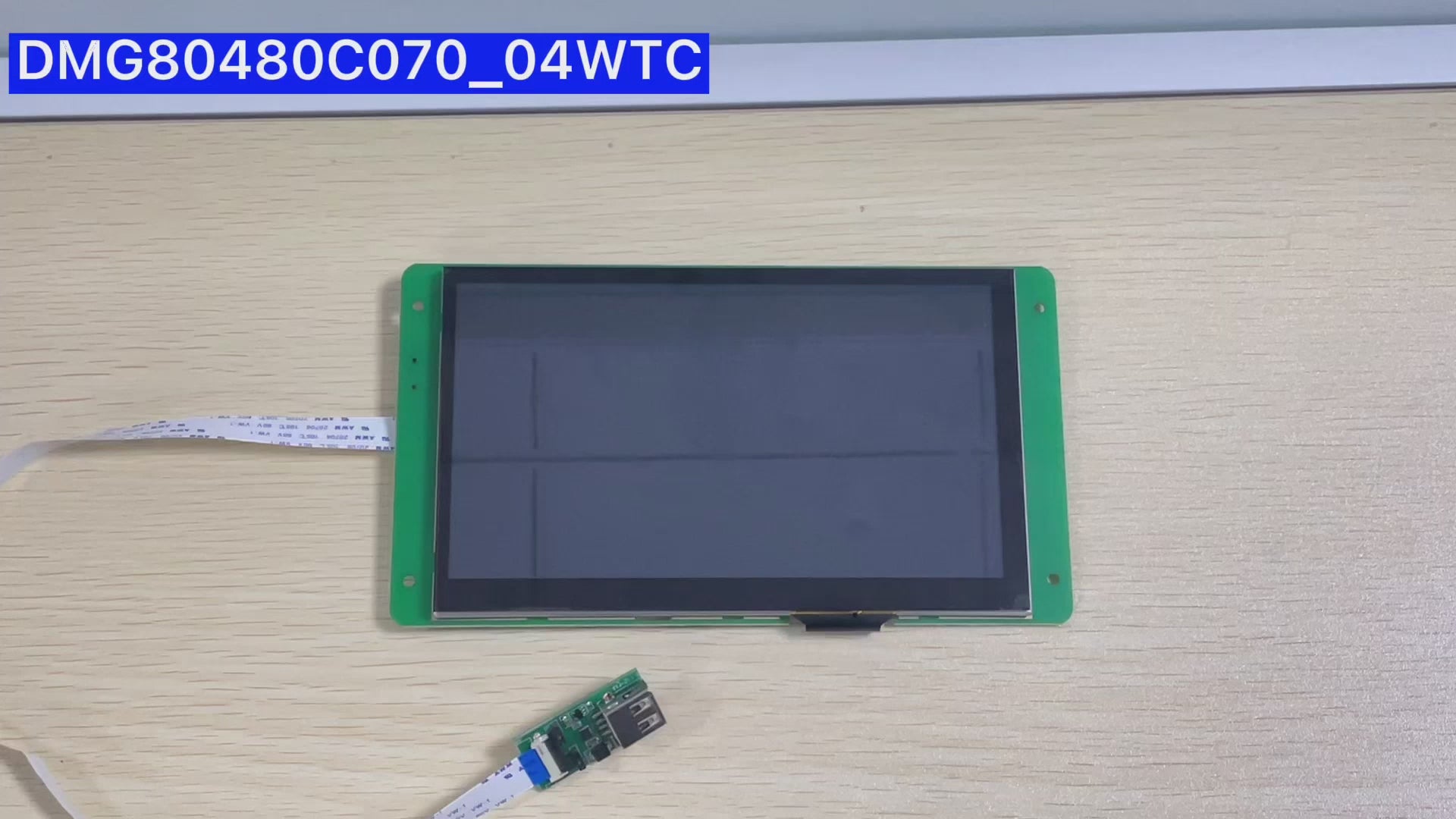

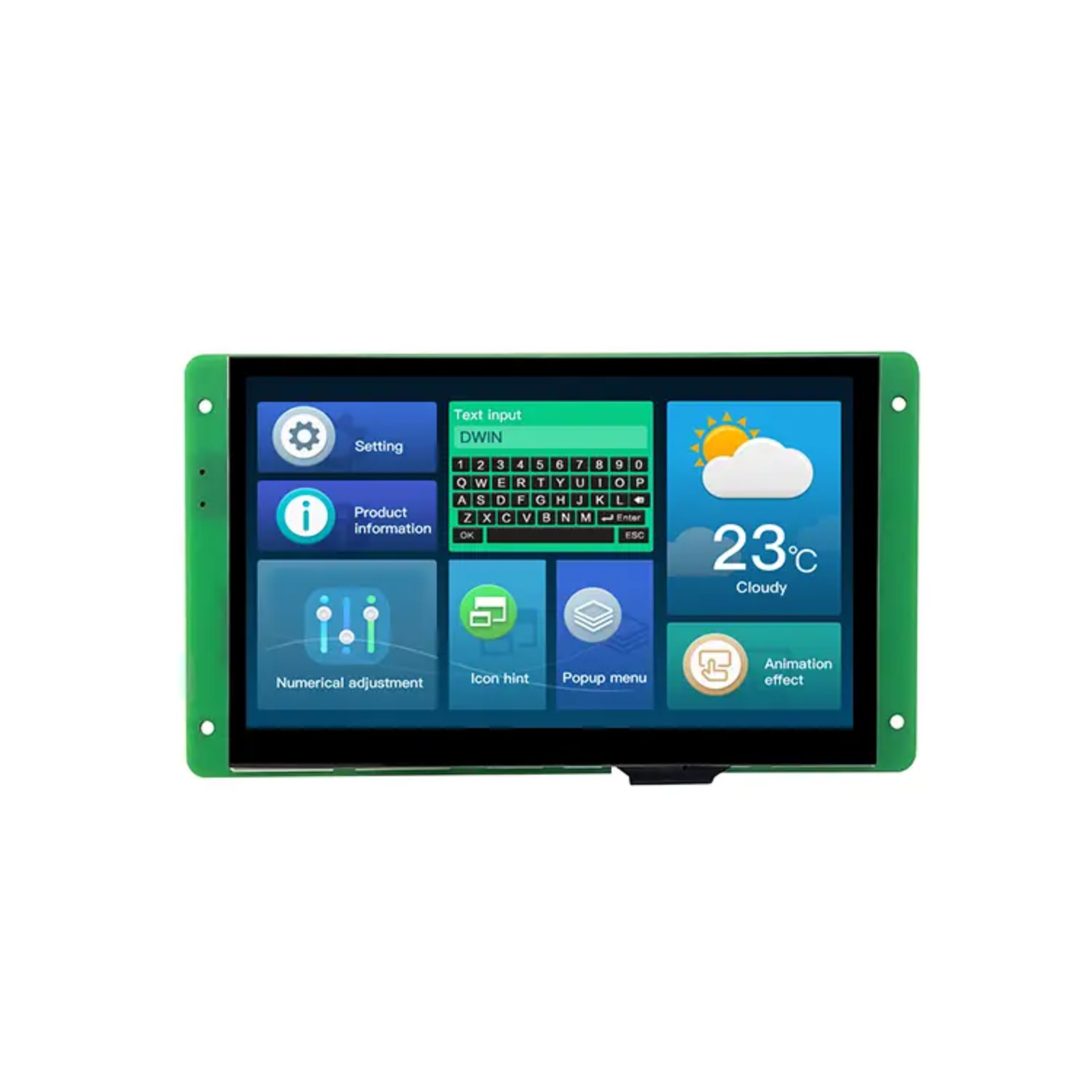

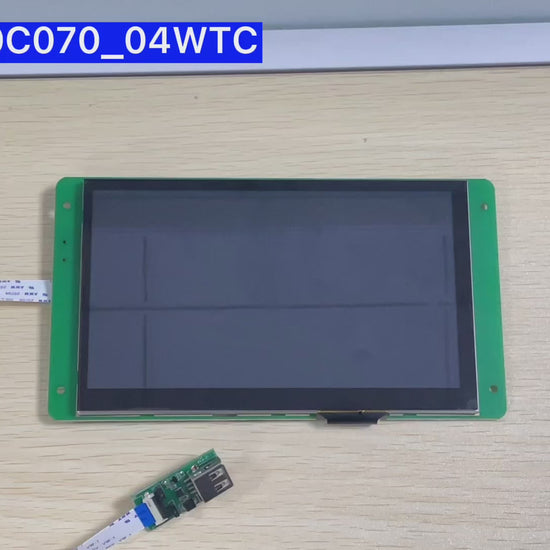

DWIN DMG80480C070_04WTC, a robust 7-inch HMI LCD display featuring a responsive touch panel, engineered for commercial applications (Model: DMG80480C070_04W). This meticulously designed unit from DWIN incorporates NOR Flash memory, providing ample space for storing crucial user databases.
The display's functionality is driven by the sophisticated DGUS II system, a user-friendly Graphical User Interface (GUI) development software. This pre-loaded software enables developers to craft bespoke user interfaces, complete with interactive components such as buttons, dynamic text displays, visual graphs, and intuitive sliders.
The core processing power comes from the T5L1 ASIC, a dedicated Human-Machine Interface chip innovated by DWIN Technology for Artificial Intelligence of Things (AIoT) applications, characterized by its low power consumption and cost-effectiveness, and built around a dual-core 8051 architecture.
Specifications:
- Model Type: HMI LCD Display
- Display Size: 7 inch
- Power Supply Voltage: 4.5~5.5V, typical value of 5V
- Display Module: 7.0-inch, 800×480 pixels resolution, 262K colors, TV-TN-TFT-LCD
- Interface: TTL/CMOS
- View Angle: TV 70/70/40/30, L/R/U/D
Features:
- Vibrant 262K color display with wide TV viewing angles.
- Responsive and intuitive user interaction.
- User-friendly GUI development, no coding required.
- DGUS II for easy GUIs & open DWIN OS/KEIL C51 for advanced control.
- TTL/CMOS via 10-pin connector.
- SD card or online serial port options.

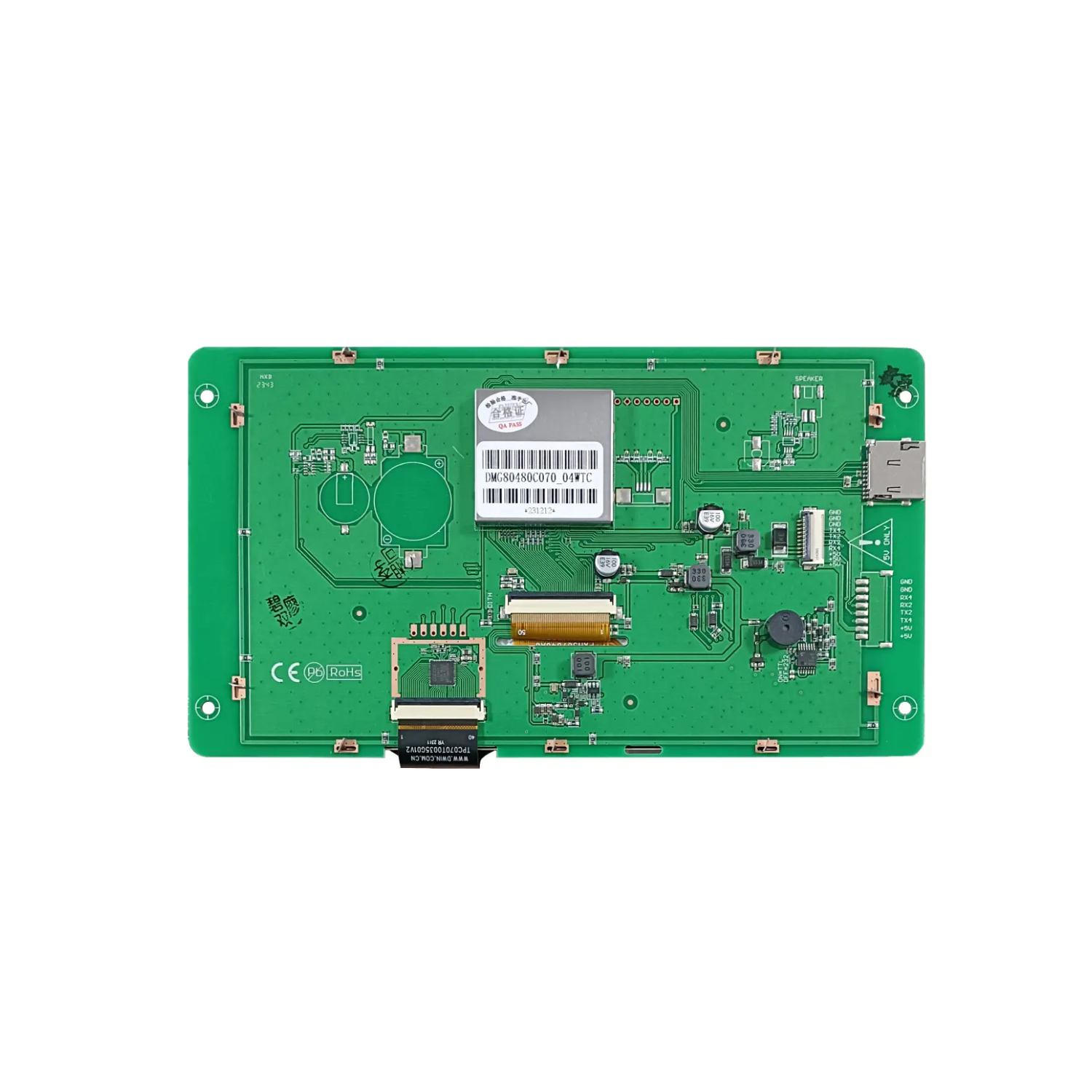

Product Interface:
Package Included:
1 x DWIN DMG80480C070_04WTC HMI LCD Display
