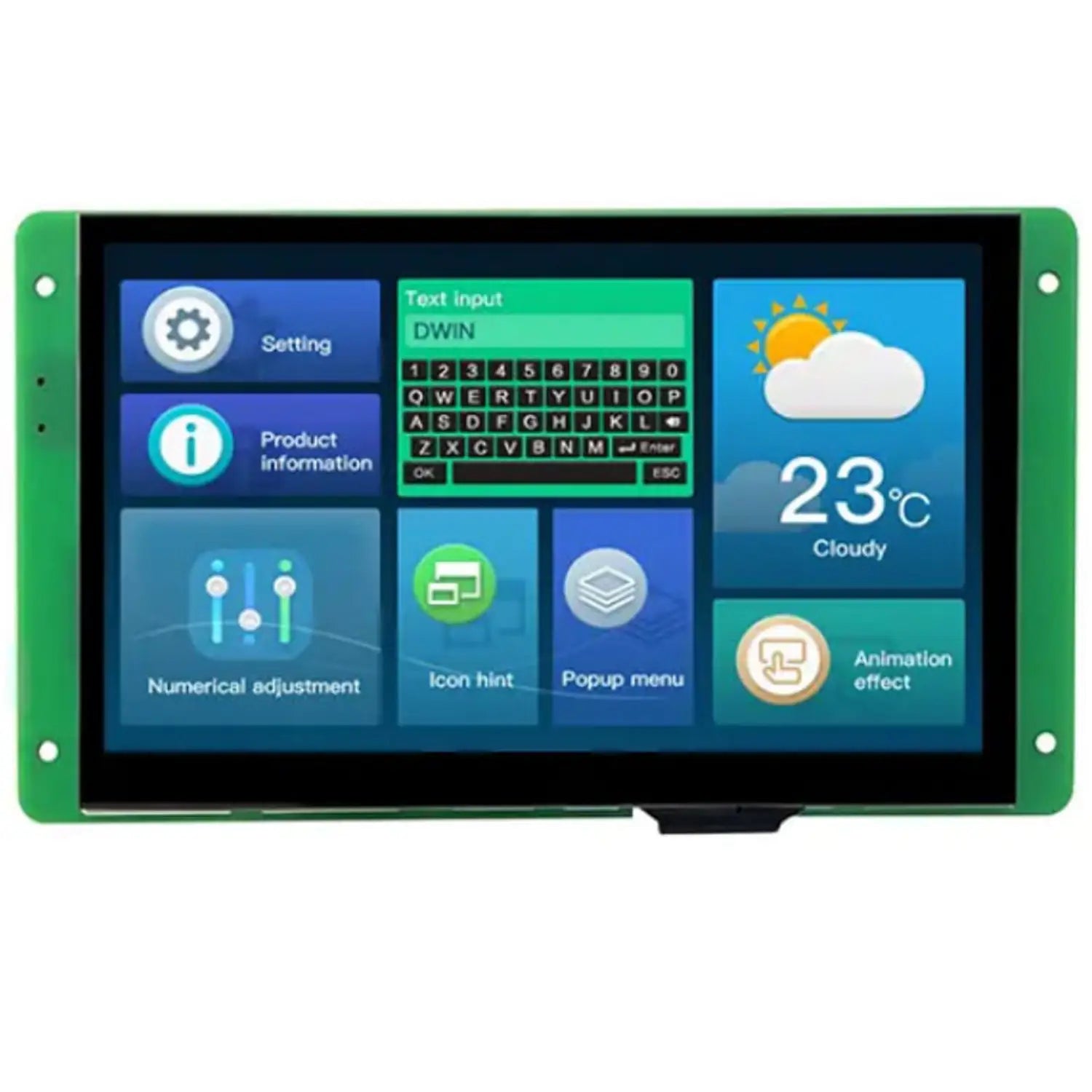

Dwin DMG80480C070_04WTC 7-inch 800x480 IPS Industrial LCD Display Capacitive Touch UART TTL/RS232 16MB Flash SD Interface with Buzzer

Dwin DMG80480C070_04WTC 7-inch 800x480 IPS Industrial LCD Display Capacitive Touch UART TTL/RS232 16MB Flash SD Interface with Buzzer

In stock

Rs. 1,985.00
Rs. 1,985.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Dwin DMG80480C070_04WTC is a 7.0-inch 800x480 IPS LCD display with capacitive touch, 16MB flash memory, buzzer, and SD interface, designed for industrial and AIoT applications. Equipped with NOR Flash memory, it allows secure storage of user databases and critical data.

This display integrates the DGUS II system, DWIN’s advanced GUI (Graphical User Interface) development platform, enabling easy creation of custom interfaces with buttons, text, graphs, sliders, and other interactive elements. The pre-installed T5L1 development software leverages a low-power, cost-effective dual-core 8051 T5L chip, providing a dedicated human-machine interface for AIoT applications.

Perfect for industrial automation, smart devices, and embedded projects, this LCD display combines high-quality visuals, responsive touch input, and versatile customization options for developers and engineers.

Specification:

  • Display Size:7.0 inch
  • Resolution: 800x480
  • User Interface: 10Pin_1.0mm socket for power supply and serial communication
  • Interface: TTL/RS232
  • Display Panel: TFT
  • Touch Type: Capacitive
  • View Angle: Normal viewing angle, 70/70/40/30 degree L/R/U/D）
  • Color: 18-bit 6R6G6B
  • Display Area: 154.08mm (W)x 85.92mm (H)
  • Power Supply: 5V 1A DC
  • LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
  • Brightness: 200nit

Features:

  • Based on T5L0, running the DGUS II system, commercial grade
  • 7.0-inch, 800x480 pixels resolution, 262K colors, TV-TN-TFT-LCD
  • Capacitive touch screen
  • TTL/CMOS interface; 10Pin_1.0mm connection wire
  • Download via SD card or online serial port
  • Easy-to-use DWIN DGUS V7.6 GUIs Development coding skills required
  • Dual Development System:DGUSⅡ/TA(Instruction set)
  • TV viewing angle, 70/70/40/30（L/R/U/D)
  • With a GUI OS dual-core, a GUI with rich controls, the DWIN OS kernel is open to the user for development, via the DWIN OS language or KELI C51

Package Interface:

Applications:

Package Included:

1 x Dwin DMG80480C070_04WTC 7-inch 800x480 IPS Industrial LCD Display
