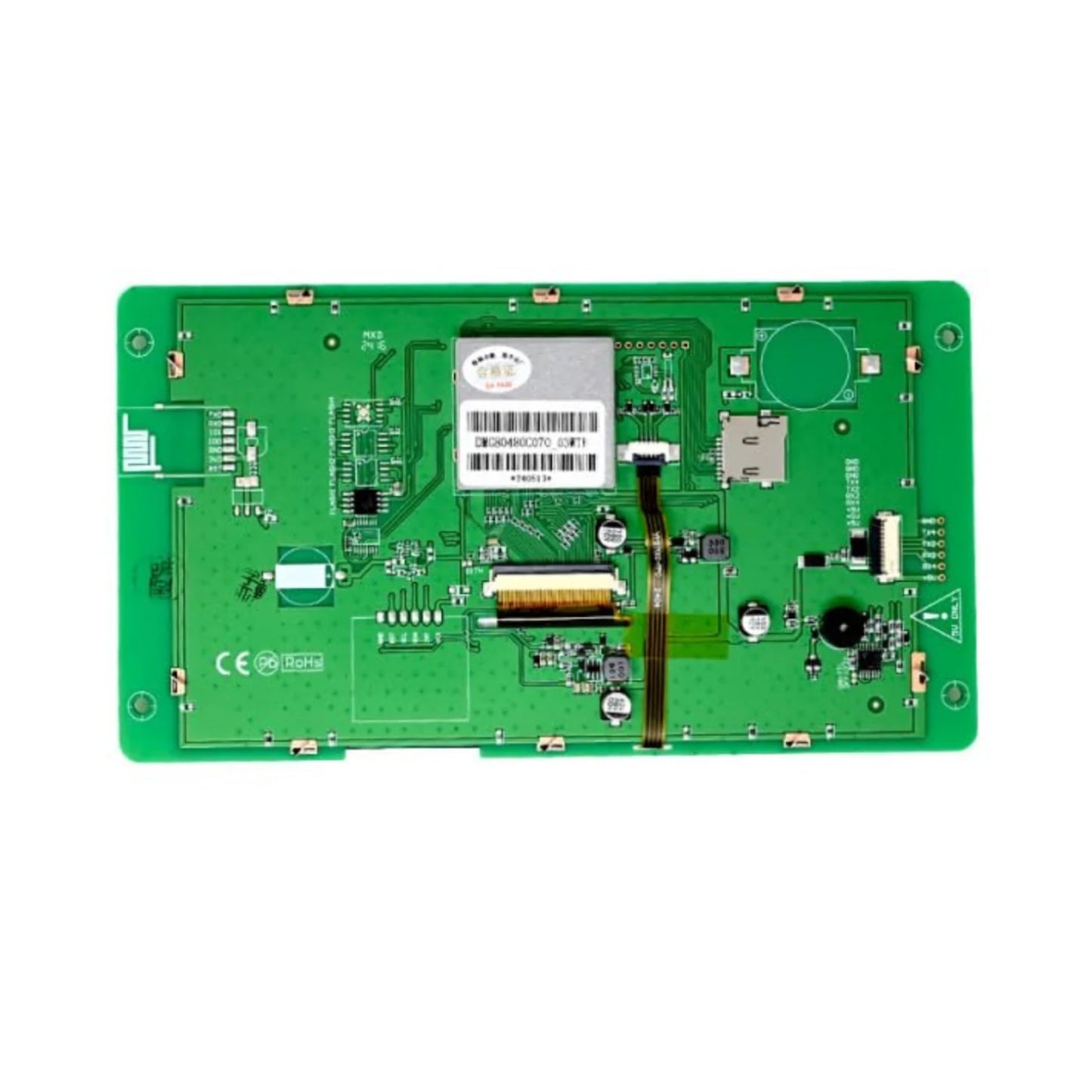

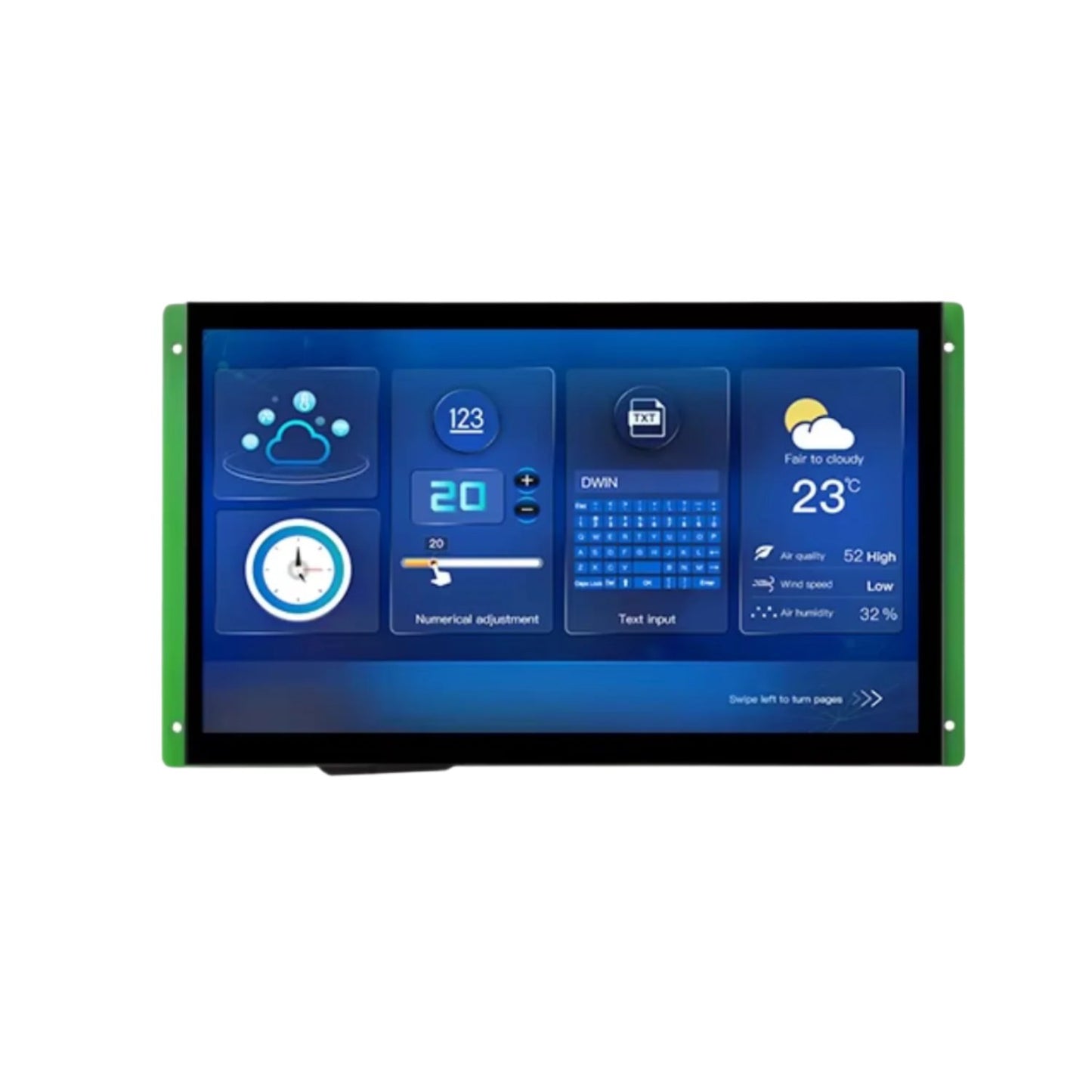

DWIN DMG80480C070_03WTC 7" Smart LCM LCD Display 800*480 Resolution LCM Touchscreen Panel Capacitive Touch 270nit Smart LCM LCD Display For Industrial Application - RS6992

DWIN DMG80480C070_03WTC 7" Smart LCM LCD Display 800*480 Resolution LCM Touchscreen Panel Capacitive Touch 270nit Smart LCM LCD Display For Industrial Application - RS6992

SKU:RS6992

Low stock: 2 left

Regular price Rs. 2,229.00
Regular price Sale price Rs. 2,229.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

This model is an intelligent LCD display module with a Capacitive touch screen for user interactivity.  It has onboard serial UART PORT which can be controlled by any microcontroller via a simple yet powerful command set. It can be used as a TFT Display & Touch controller in various electronic equipment such as vending machines, currency counting machines, washing machines, and many other similar appliances.

Enhance your machine or device with this robust 7-inch HMI display. Featuring UART communication, capacitive touch, and the advanced DWIN 800RGB480 controller, it simplifies the development of intuitive user interfaces.

Specifications:

LCD Type

TN, TFT LCD

Viewing Angle

Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)

Resolution

800x480Pixel

Colour

16.7M(16777216) colors

Backlight

LED

Brightness

270nit



Features:

  • Capacitive Touch
  • 7.0-inch, 800*480 pixels resolution, 16.7M colours, TN-TFT-LCD, normal viewing angle
  • Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required
  • Download via SD card or on-line serial port
  • Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)
  • With GUI&OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second development, via DWIN OS language or KELI C51.

Pin Description:

国际站PCB模板

•  LCM interface: FPC50_0.5mm, RGB interface
•  CTP interface: COB structure, IIC interface
•  Baudrate: 3150~3225600bps, typical value of 115200bps
•  Output Voltage: Output 1, Iout = 1mA;3.0~3.3V / Output 0, Iout =-1mA;0~0.3V
•  Input Voltage (RXD): Input 1, Iin = 1mA, 2.4~5.0V / Input 0, Iin = -1mA, 0~0.5V
•  User Interface: 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
•  Flash: 16MBytes NOR Flash, for fonts, pictures, and audio files. Rewrite cycle: over 100,000 times
•  Buzzer: 3V passive buzzer. Power: <1W
•  SD interface: FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
•  Reserved module interface: Wi-Fi module: connect to the cloud platform to update remotely / USB module: download files by USB flash disk
•  PGT05 interface: When a product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal

Package Included:

1 x DWIN DMG80480C070_03WTC 7" Smart LCM LCD Display 800*480
