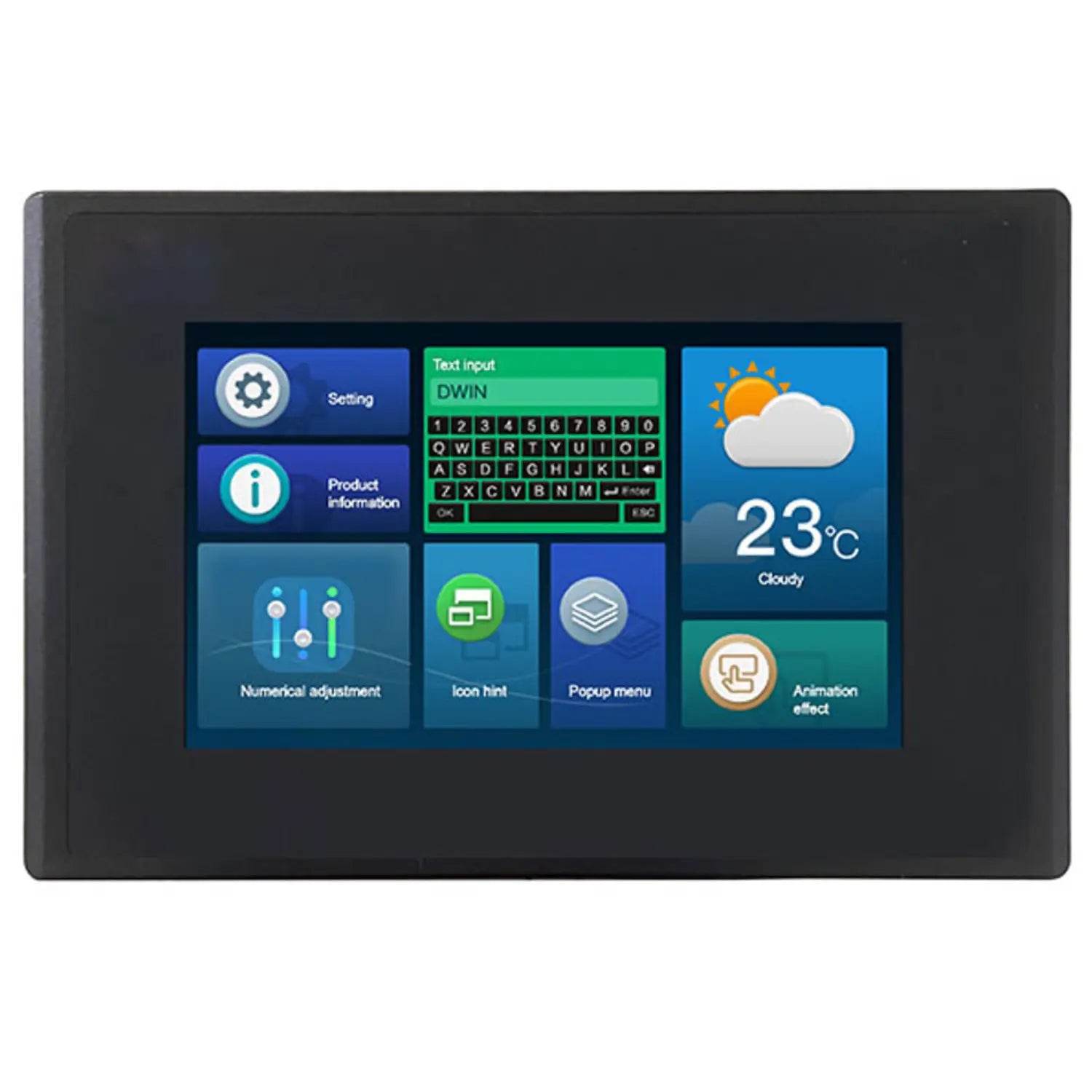

• Dwin DMG80480C050_15WTR 5 inch 800x480 LCD display

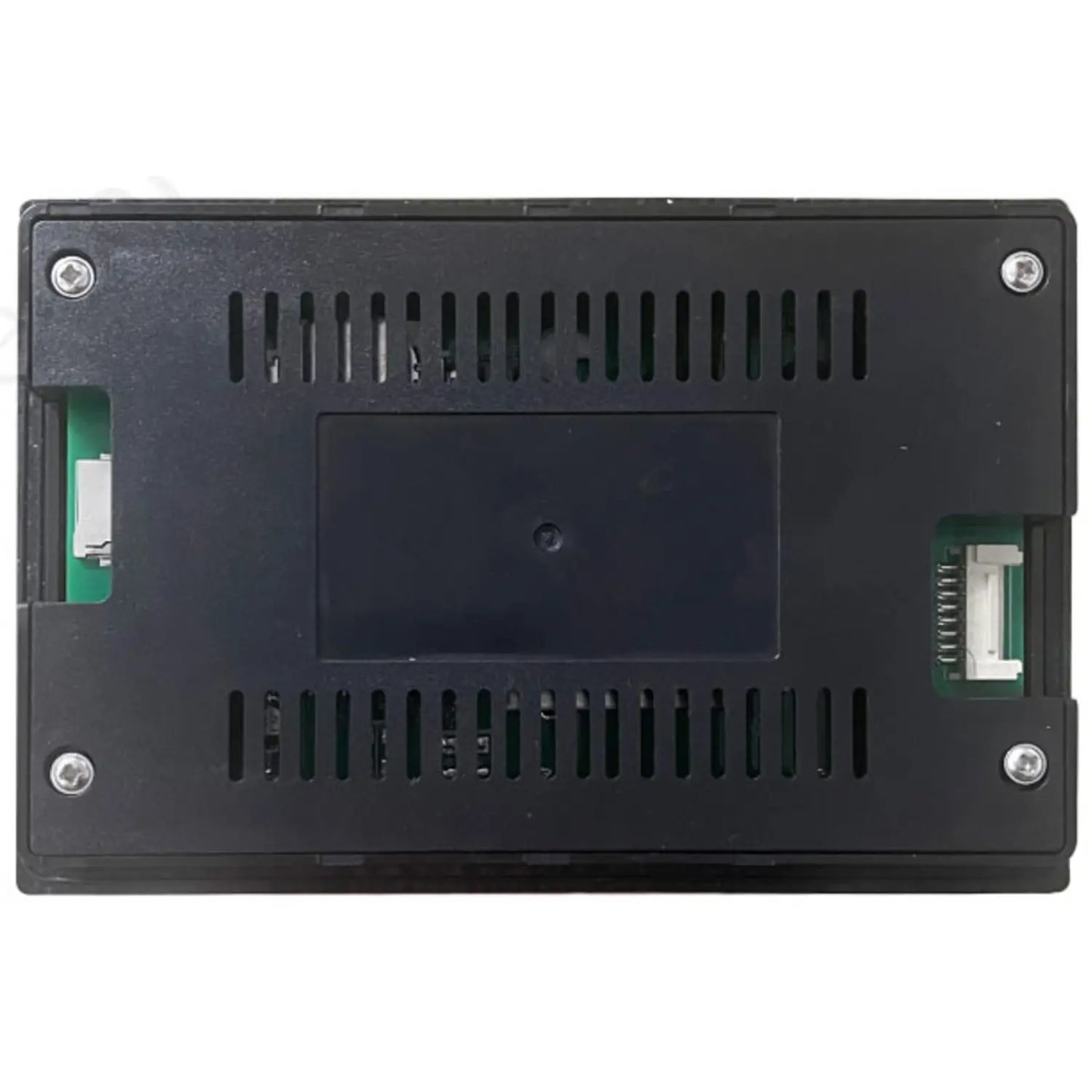

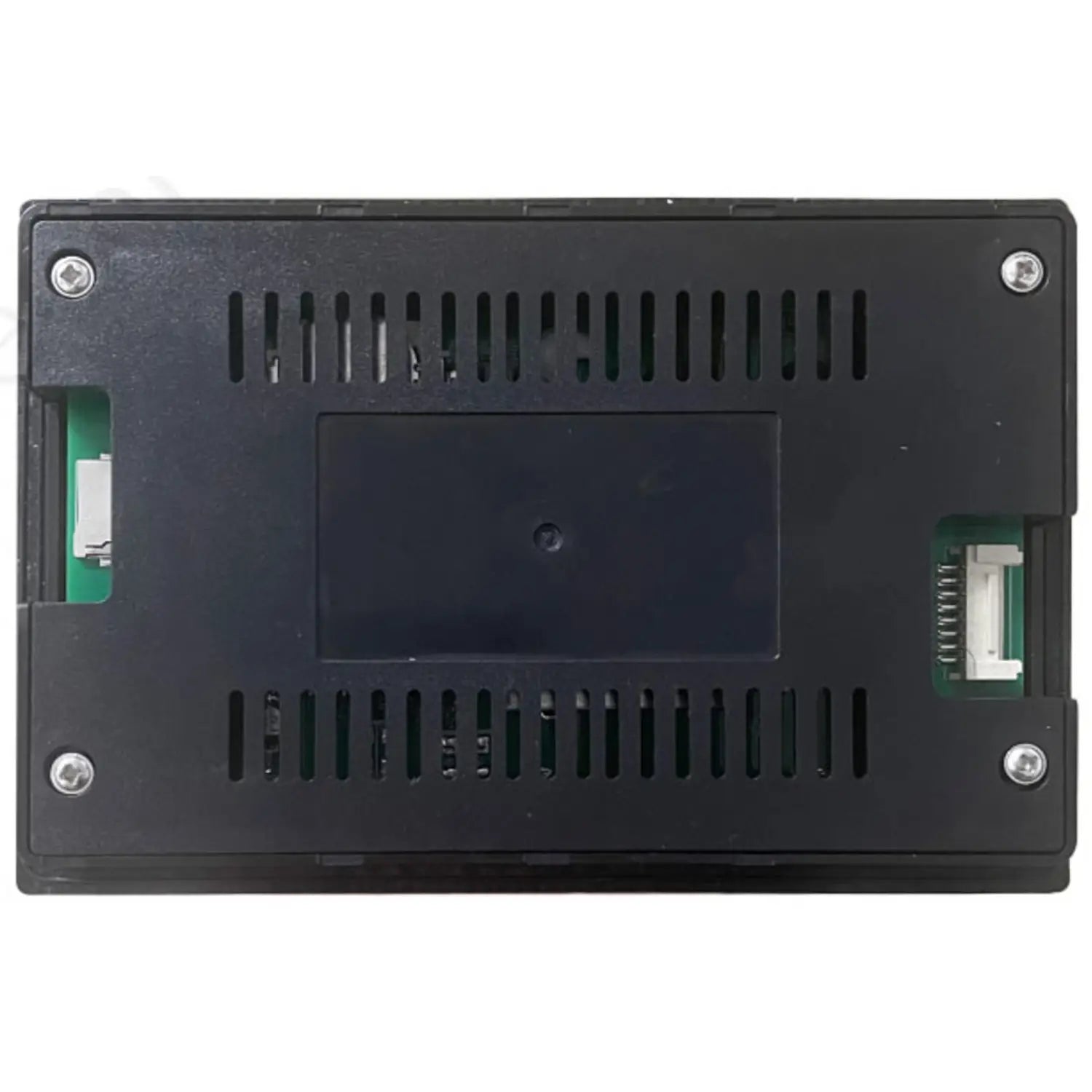

  • Dwin 800x480 HMI Display
1 2

DWIN

Dwin DMG80480C050_15WTR 5.0" HMI LCD Display – 800x480 Resistive Touch, 16MB Flash, RTC, Buzzer, SD, RS232/RS485 (Reliable Commercial Grade)

Dwin DMG80480C050_15WTR 5.0" HMI LCD Display – 800x480 Resistive Touch, 16MB Flash, RTC, Buzzer, SD, RS232/RS485 (Reliable Commercial Grade)

In stock

Rs. 2,442.00
Rs. 2,442.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Experience superior performance and reliability with the Dwin DMG80480C050_15WTR 5.0 Inch HMI LCD Display, designed to elevate your user interface to the next level. Engineered for commercial and industrial applications, this display delivers exceptional clarity, responsiveness, and durability, ensuring smooth operation even in demanding environments.

Featuring a vivid 800x480 resolution, this HMI screen offers sharp and vibrant visuals for intuitive system control. The resistive touch technology provides accurate and responsive interaction, making it perfect for machinery control panels, automation systems, and embedded applications.

With integrated RS232 and RS485 communication interfaces, the display ensures seamless data exchange and compatibility with a wide range of devices. Its 16MB NOR Flash memory allows ample storage for fonts, images, and sound files, supporting dynamic and customized UI designs.

Built-in features like a buzzer, Real-Time Clock (RTC), and SD card interface add extra functionality for advanced operations. The 200-nit brightness ensures excellent visibility under varying light conditions, making it ideal for both indoor and semi-outdoor applications.

Delivering a blend of power, precision, and professional-grade design, the Dwin DMG80480C050_15WTR is the perfect choice for developers and engineers seeking a reliable HMI solution.

Specification:

  • Display Size: 5.0 inch
  • Resolution: 800x480
  • Display Panel: IPS-TFT-LCD
  • Interface: TTL/RS232
  • User Interface: 8Pin_2.0mm socket for power supply and serial communication.
  • Download rate(typical value): 12KByte/s
  • Touch Type: Resistive
  • View Angle: Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
  • Color: 18-bit 6R6G6B
  • Display Area: 109.0mm (W)x 65.8mm (H)
  • Power Supply: 12V 1A DC
  • LCM interface: FPC40_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32. Files by the SD interface can be displayed in statistics.
  • Download rate: 4Mb/s
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
  • Brightness: 200nit
  • RTC: Yes
  • Reserved USB Interface: Horizontal USB interface, used for firmware burning

Features:

Superior Visual Quality:
  • 800x480 resolution with 262K colors for vibrant and detailed images.
  • TN-TFT-LCD technology for crisp and clear display.
Touchscreen Capability:
  • Resistive Touch Screen: Offers accurate and responsive touch control, perfect for industrial applications.
Enhanced Connectivity:
  • RS232 and RS485 Interface: Provides reliable communication channels for diverse devices.
  • 8Pin2.0mm Socket Connection: Easy and secure connection for various applications.
Extensive Storage:
  • 16MB NOR Flash Memory: Store and manage fonts, pictures, and audio files effortlessly.
High Brightness:
  • 200nit Brightness: Ensures excellent visibility even in bright environments.
Versatile Download Options:
  • SD Card and Online Serial Port: Convenient methods for downloading and updating content.
Optimal Viewing Angles:
  • Nominal View Angle: 70/70/50/70 (L/R/U/D) for consistent and clear viewing from different positions.

Product Interface:

Useful Link:

Dwin DMG80480C050_15WTR 5.0" HMI LCD Display

Package Included:

1 x Dwin DMG80480C050_15WTR 5.0" HMI LCD Display
