Description:

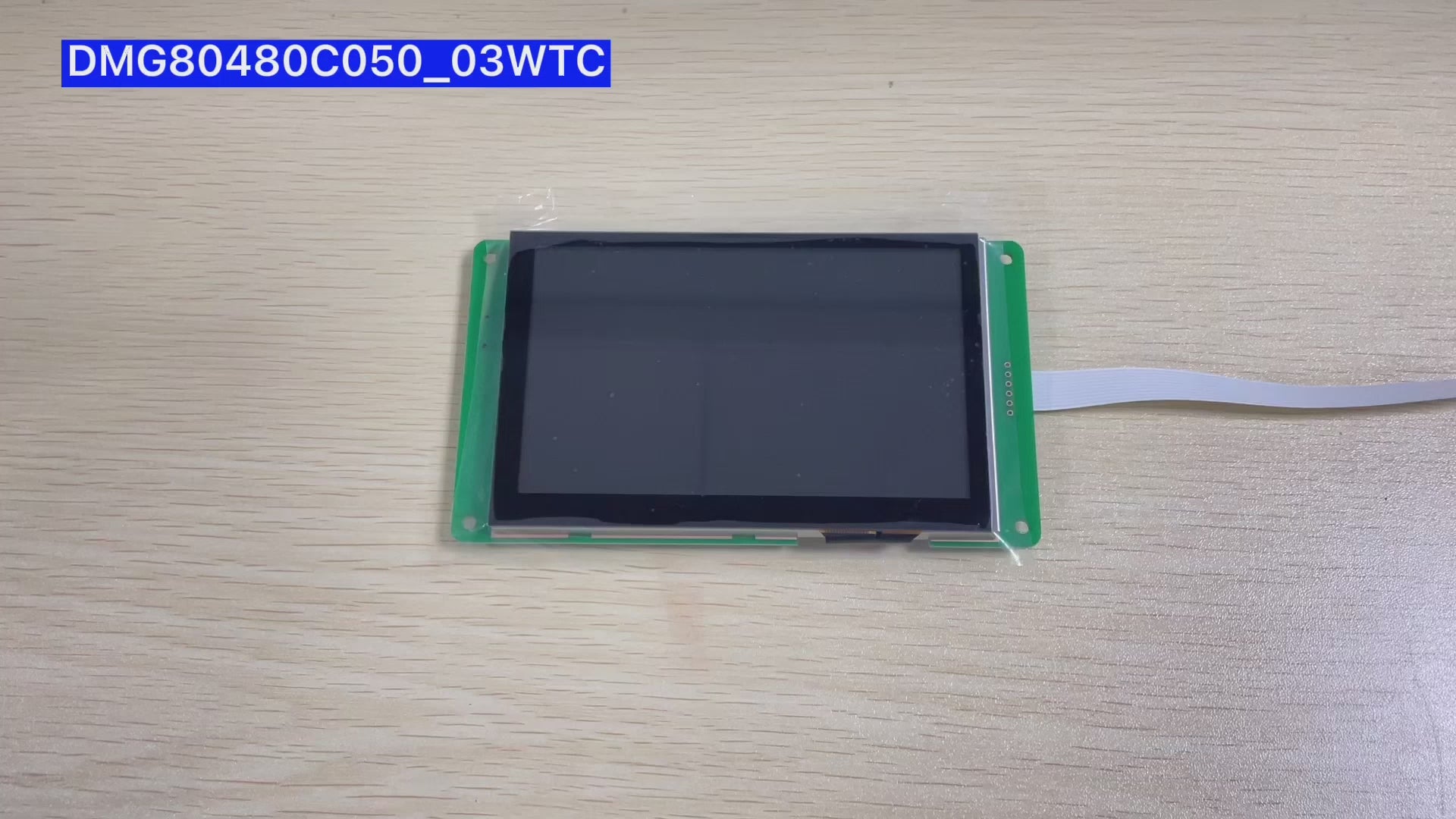

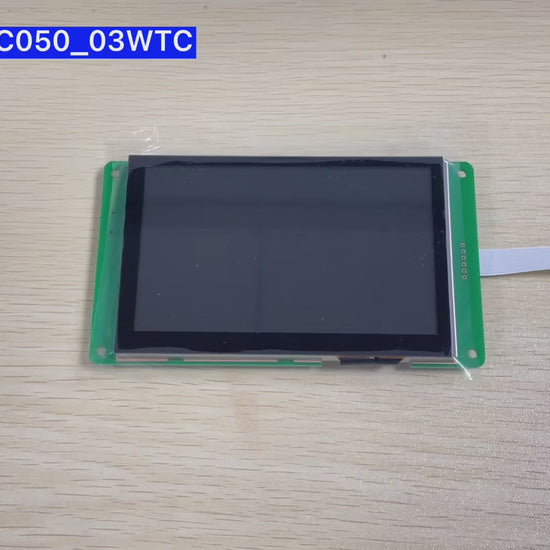

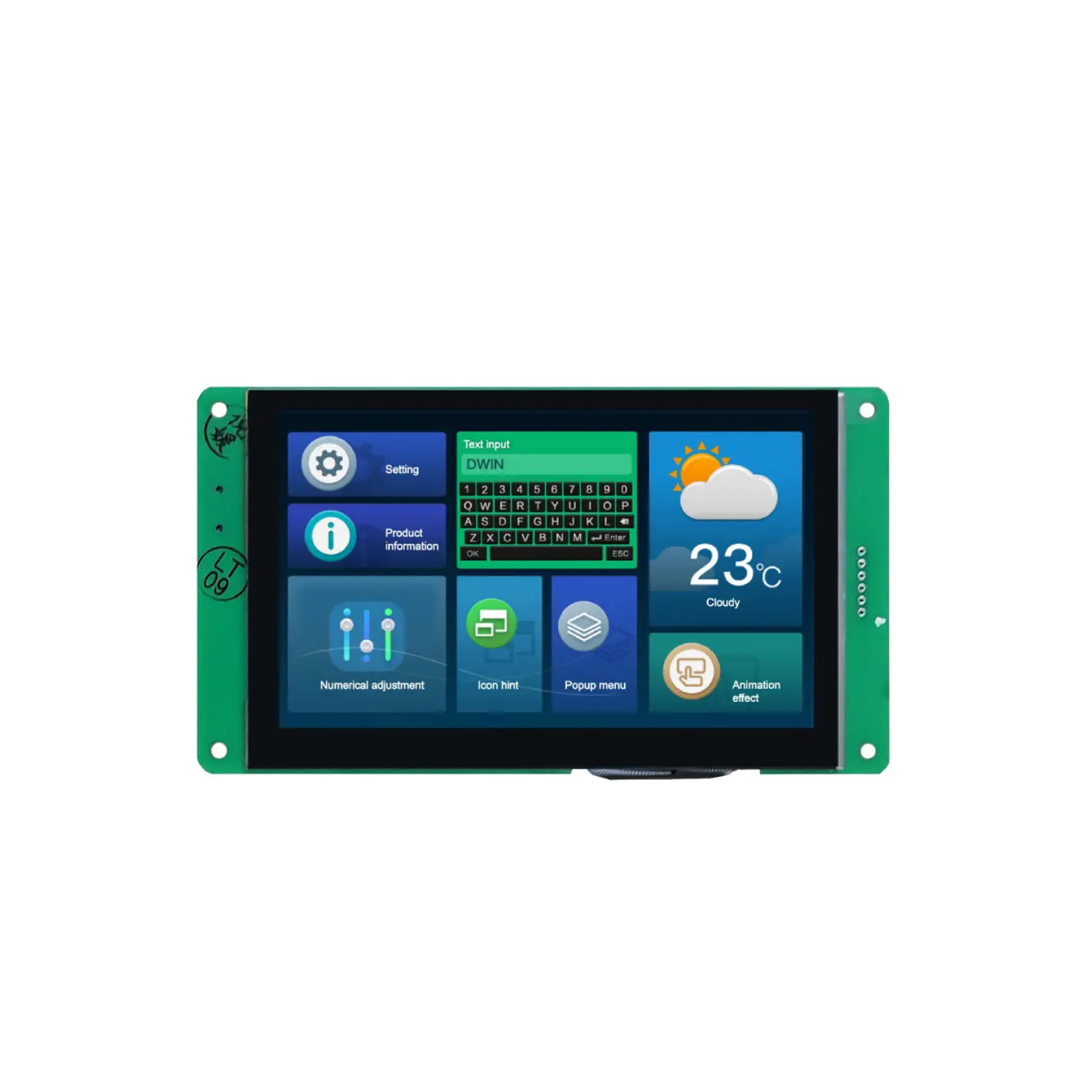

The DWIN DMG80480C050_03W is a 5-inch HMI LCD module incorporating capacitive touch and IPS display technology. It features an 800x480 resolution, 250 nits brightness, and serial UART communication for intelligent control. The IPS screen provides wide viewing angles and accurate color reproduction, ensuring optimal visual performance and user interaction in embedded applications.
Specifications:
- Display Size: 5"
- Display Resolution: 800 x 480
- LCD Type: TN, TFT LCD
- Viewing Angle: Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
- Item Type: Capacitive Touch Display Module
- Active Area: 108.0mm (W)×64.8mm (H)
- Color: 16.7M colors (24-bit 8R8G8B)
- Operating Voltage: 4.5~5.5V, typical value of 5V
- Baud Rate: 3150~3225600bps, typical value of 115200bps
- Operating Current: 240mA ( VCC=5V, max backlight ), 70mA ( VCC=5V, backlight off )
- Operating Temperature: -20℃~70℃ (5V @ 60% RH)
- Power Supply: 5V 1A DC
- Operating humidity: 10%~90%RH, typical value of 60% RH
Features:
- 16MB robust NOR Flash for multimedia assets (>100K rewrites).
- Triple flash expansion: up to 64MB NOR + 96MB NAND (512MB total).
- 10Pin_1.0mm socket for power and serial communication (12KB/s).
- Integrated 3V passive buzzer.
- Solder pads for optional Wi-Fi and USB download modules.
- SD card slot for UI, config, and firmware downloads (4 Mb/s, FAT32).
- PGT05 interface for DGUS firmware programming.

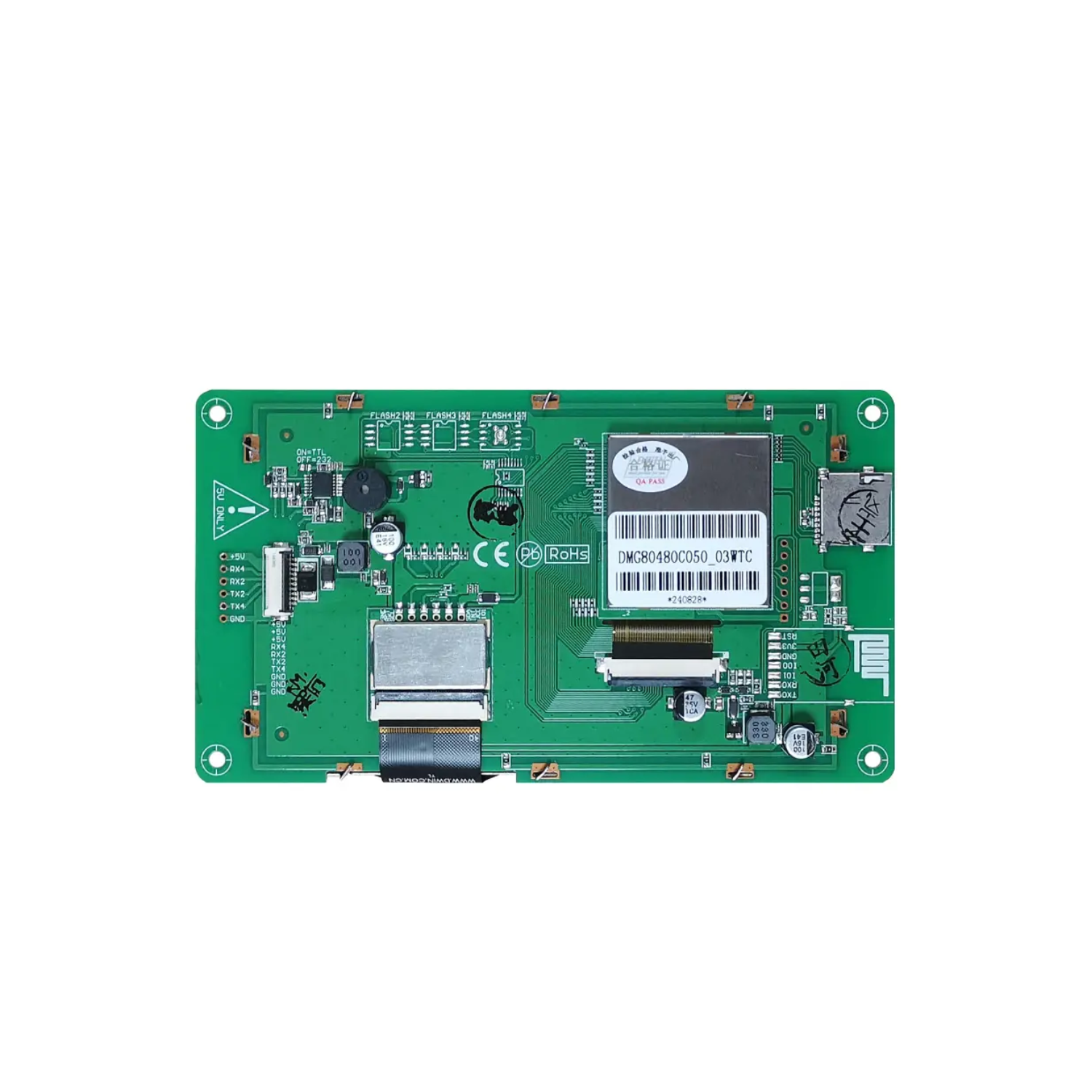

Product Interface:
Useful Link:
DWIN DMG80480C050_03WTC T5L HMI LCD
Package Included:
1 x DWIN DMG80480C050_03WTC T5L HMI LCD
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
