Dwin DMG80480C043_01WTC 4.3-Inch HMI LCD Display 480x800 Resolution with Capacitive Touch, UART TTL, 16MB Flash, Buzzer & SD Interface
Dwin DMG80480C043_01WTC 4.3-Inch HMI LCD Display 480x800 Resolution with Capacitive Touch, UART TTL, 16MB Flash, Buzzer & SD Interface
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

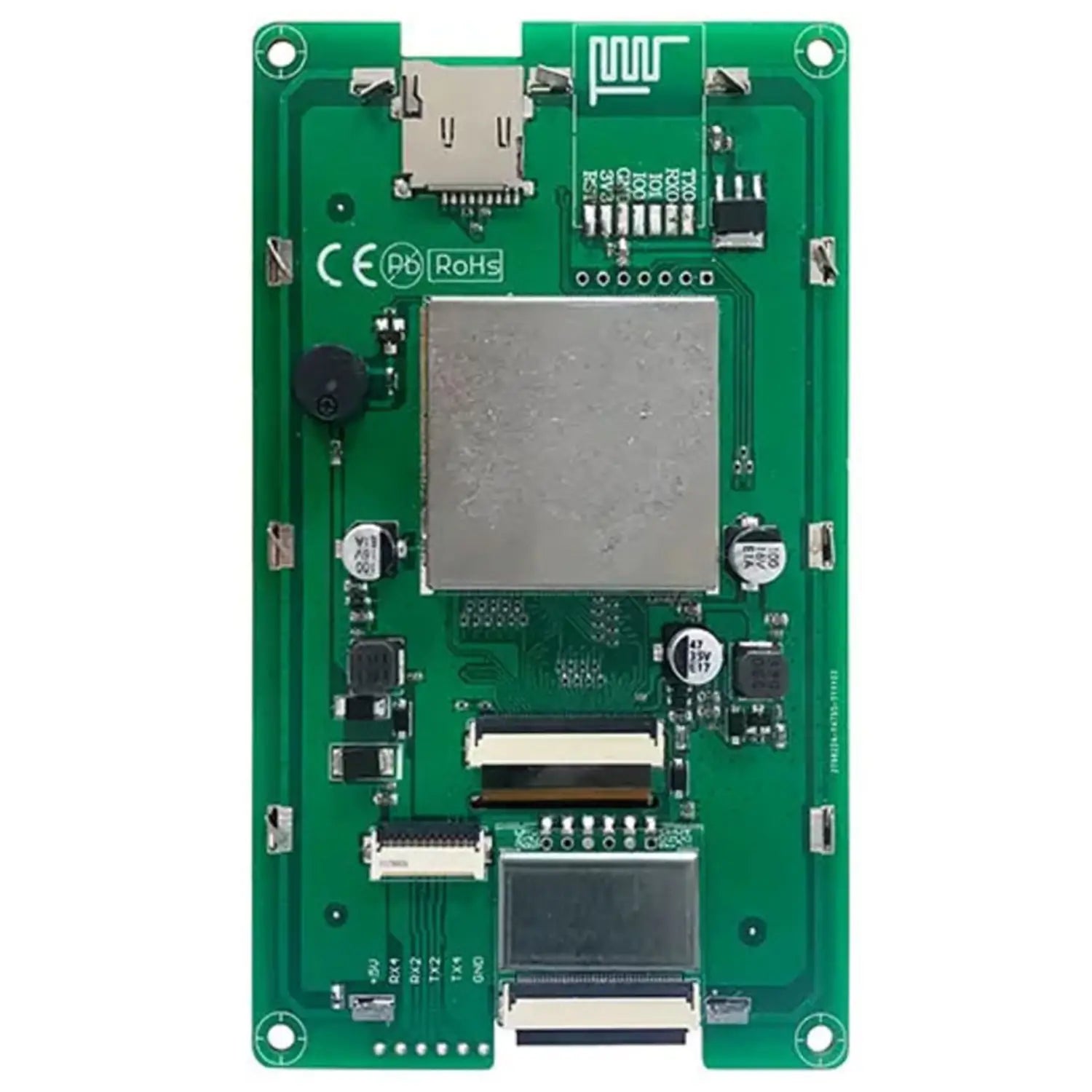

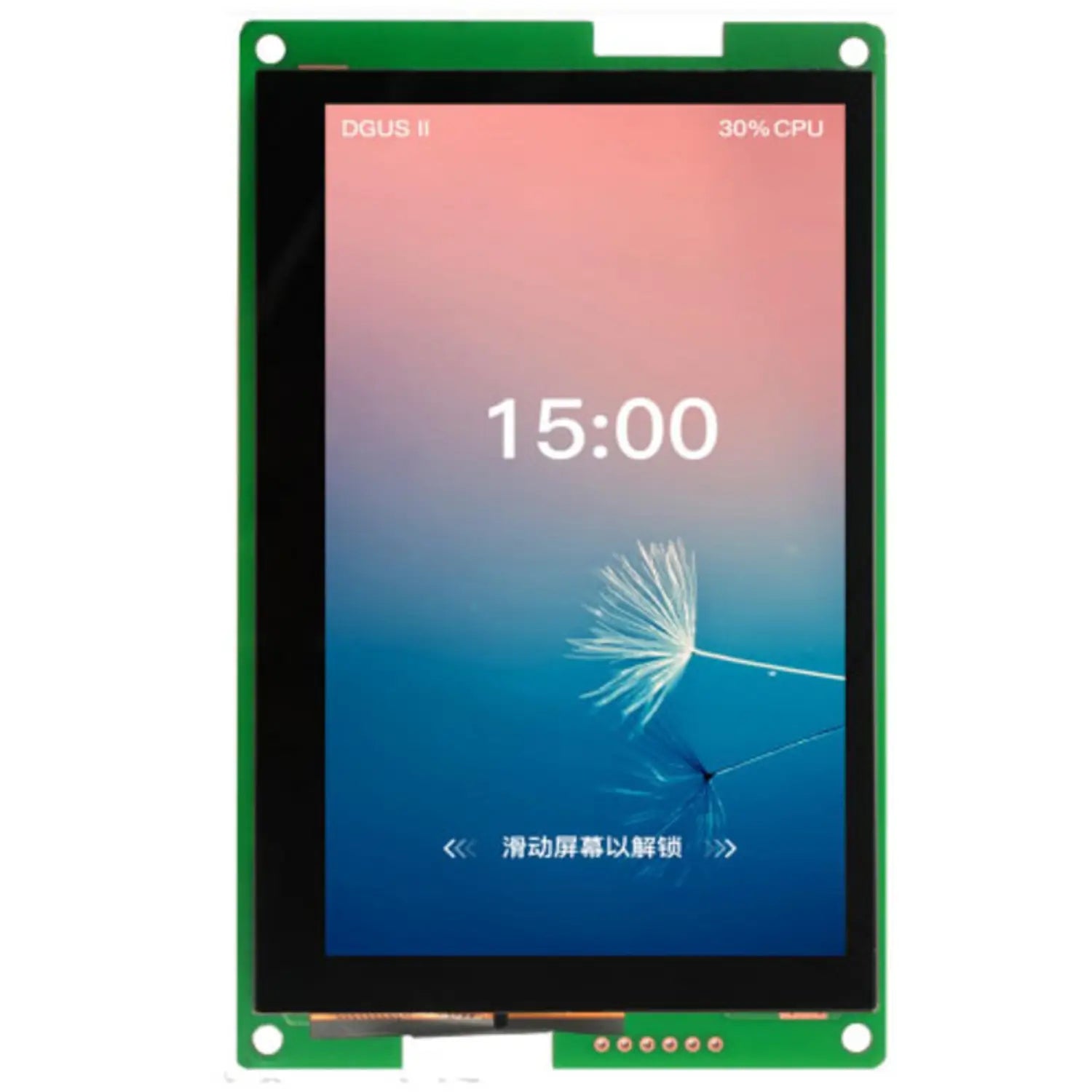

The DWIN DMG80480C043_01WTC is a 4.3-inch 480x800 IPS industrial HMI LCD featuring a capacitive touchscreen and versatile interfaces including UART LCD, 16MB NOR flash, SD card, and buzzer. The onboard NOR flash memory allows storage of user databases, making it ideal for industrial automation and embedded applications.
This display comes integrated with the DGUS II system, a powerful GUI (Graphical User Interface) development platform, enabling users to design custom interfaces with buttons, text, graphs, sliders, and more. The T5L1 DWIN development software supports AIoT applications and runs on a low-power, cost-effective dual-core 8051 T5L chip, providing efficient and responsive performance for human-machine interface projects. Developed by DWIN Technology, this HMI LCD is perfect for professional, industrial, and DIY applications requiring reliable visual and interactive control.
Specification:
- Display Size: 4.3 inch
- Resolution: 800x480
- Display Panel: IPS
- Touch Type: Capacitive
- View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
- Color: 24-bit 8R8G8B
- Display Area: 93.6mm (H)x56.16mm (W)
- Power Supply: 5V 1A DC
- LCM interface: FPC40_0.5mm, RGB interface
- Memory: 16MB
- Buzzer: 3V passive buzzer
- SD Interface: FAT32
- PGT05 Interface: When the product crashes by accident, you can use PGT05 to update
- DGUS kernel and make the product return to normal
- Brightness: 270nit
- Reserved WiFi Interface: connect to the cloud platform to update remotely
- User Interface: 10Pin_1.0mm latching socket for power supply and serial communication
- Interface: TTL
Features:
- T5L1 ASIC, 16.7M Colors running DGUS II system, commercial grade
- 4.3-inch 480x800 Pixels resolution, 24bit Colors
- Capacitive touch screen
- 10Pin1.0mm FCC connection wire, TTL Interface UART communication
- Easy to design powerful DWIN design software tools, HMI Intelligent Display
- High-standard TFT LCD module with IPS screen
- DWIN OS kernel is open to the user for development, via DWIN OS language or KEIL C51
Package Included:
1 x Dwin DMG80480C043_01WTC 4.3-Inch HMI LCD Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DB9 8Pin 2.0mm Pitch Cable with Power Connector 20cm for DWIN Smart LCD Display
- Dual 8Pin 2.0mm Pitch Female Connector Cable Length 20cm for DWIN Smart LCD Display
- 16GB SD Card Adapter High-Speed Memory Card for DWIN Smart Screen
- 10Pin 1.0mm Pitch 150mm FFC Cable for DWIN Smart LCD TFT LCM
- USB 2.0 Type-A Dual Male USB Cable for DWIN Smart LCD Display
- USB to FCC 10Pin 1.0mm Adapter Board HDL662B for DWIN Smart LCD Display TFT LCM
- HDL662S Adapter Board Debugging Interface For Smart COF Displays
