Description:

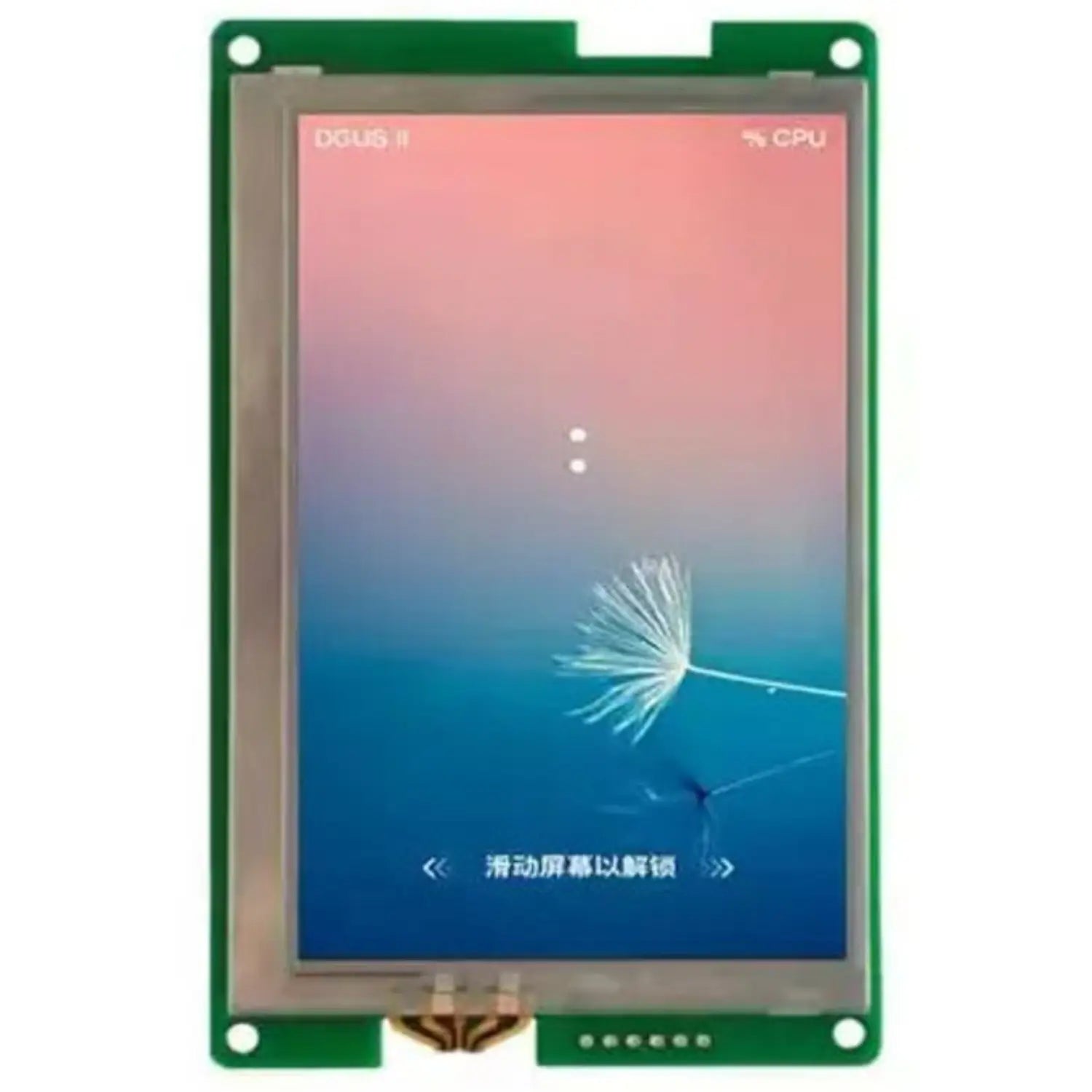

The DWIN DMG80480C043_01WTC is a versatile 4.3-inch Human-Machine Interface (HMI) display designed for industrial applications. It features a crisp 480x800 IPS LCD with capacitive touch for intuitive user interaction. This display offers UART TTL communication, a 16MB NOR Flash memory for storing user databases, an integrated buzzer, and an SD card interface.
At its core, the DMG80480C043_01WTC runs on the DGUS II system, DWIN's proprietary Graphical User Interface (GUI) development software. This pre-installed software, powered by the T5L1 ASIC (Application-Specific Integrated Circuit), empowers users to create customized interfaces with ease. You can design and implement various features like buttons, text displays, graphs, and sliders, tailoring the HMI to your specific needs. The T5L1 chip itself is a low-power, cost-effective dual-core 8051 processor, making it ideal for AIoT (Artificial Intelligence of Things) applications.
Specification:
- Display Size: 4.3 inch
- Resolution: 800x480
- Display Panel: IPS
- Touch Type: Capacitive
- Color: 24-Bit 8R8G8B
- Display Area: 93.6mm(H)x56.16mm(W)
- Power Supply: 5V 1A DC
- LCM interface: FPC40_0.5mm, RGB interface
- Memory: 16MB
- Buzzer: 3V passive Buzzer
- SD Interface: FAT32
- Brightness: 270nit
- Interface: TTL
Features:
- T5L1 ASIC, 16.7M Colors running DGUS II system, commercial grade
- 4.3-inch 480x800 Pixels resolution, 24bit Colors
- Capacitive touch screen
- 10Pin1.0mm FCC connection wire, TTL Interface, UART communication
- Easy to design powerful DWIN design software tools, HMI Intelligent Display
- High-standard TFT LCD module with IPS screen
- DWIN OS kernel is open to the user for development, via DWIN OS language or KEIL C51

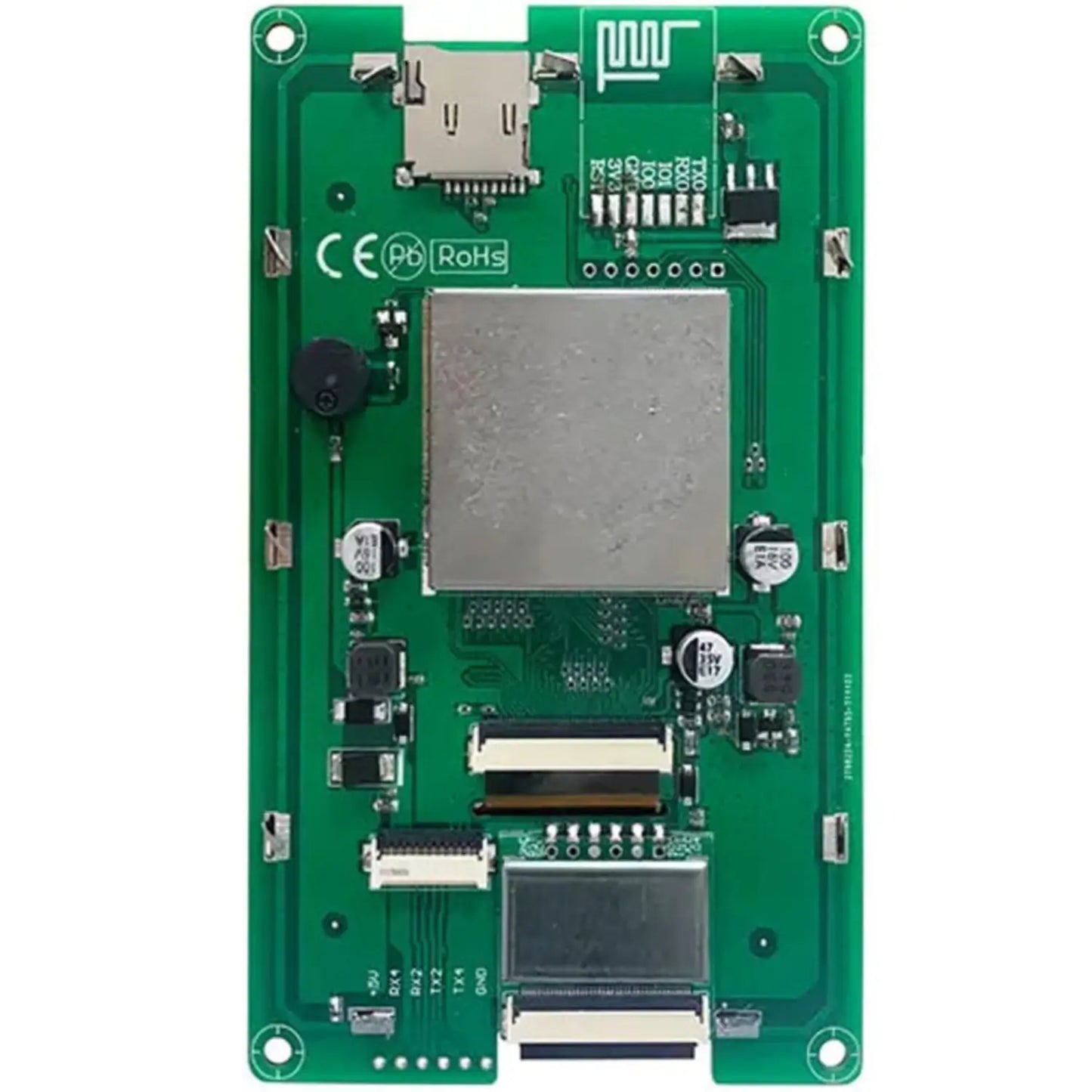

Product Interface:
Pin Description:
Package Included:
1 x DWIN DMG80480C043 4.3" Industrial HMI: 480x800 IPS LCD Display
