Description:

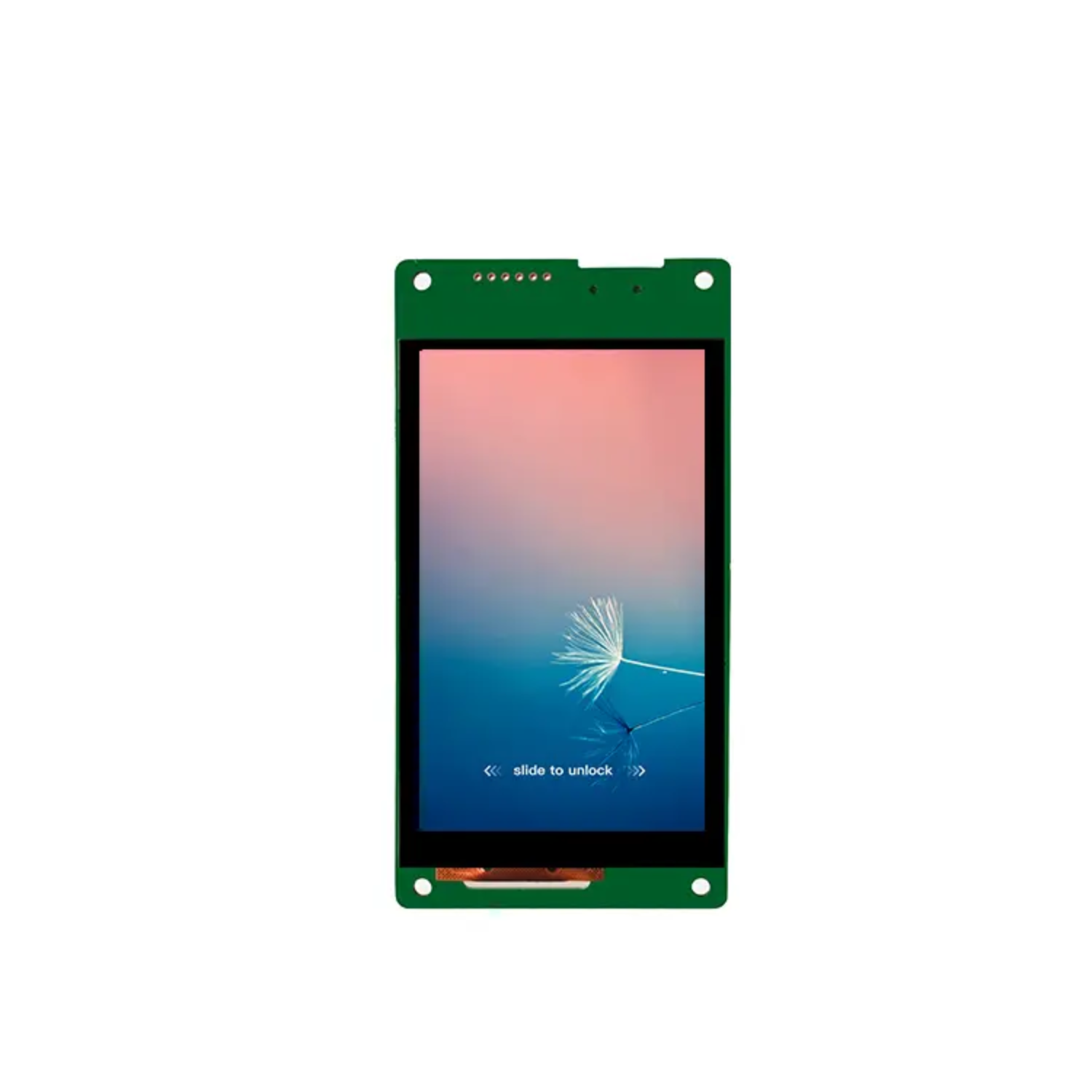

The DWIN DMG80480C040_03WTC is a 4-inch IPS LCD Human Machine Interface (HMI) featuring 480x800 resolution, capacitive touch, and intelligent Serial UART communication. Driven by the T5L DGUSII LCM and offering a 320-nit brightness, this compact module provides high visual fidelity for integration into portable and handheld devices where space is at a premium.
Specifications:
- Model Type: LCD Display
- LCD Display: TN, TFT LCD
- Display Size: 4"
- Viewing Angle: 85°/85°/85°/85°(L/R/U/D)
- Color: 24-bit 8R8G8B
- Resolution: 800×480 Pixels
- Brightness: 320 nit
- Active Area: 51.4mm (W)×86.0mm (H)
Features;
- Powered by T5L1 with User-Friendly DGUS II: Commercial-grade performance with an intuitive visual interface.
- Vibrant 4" IPS Display (480x800): Wide viewing angles and rich 16.7M color visuals on a high-resolution LCD.
- Responsive Capacitive Touch: Enables smooth and intuitive interaction.

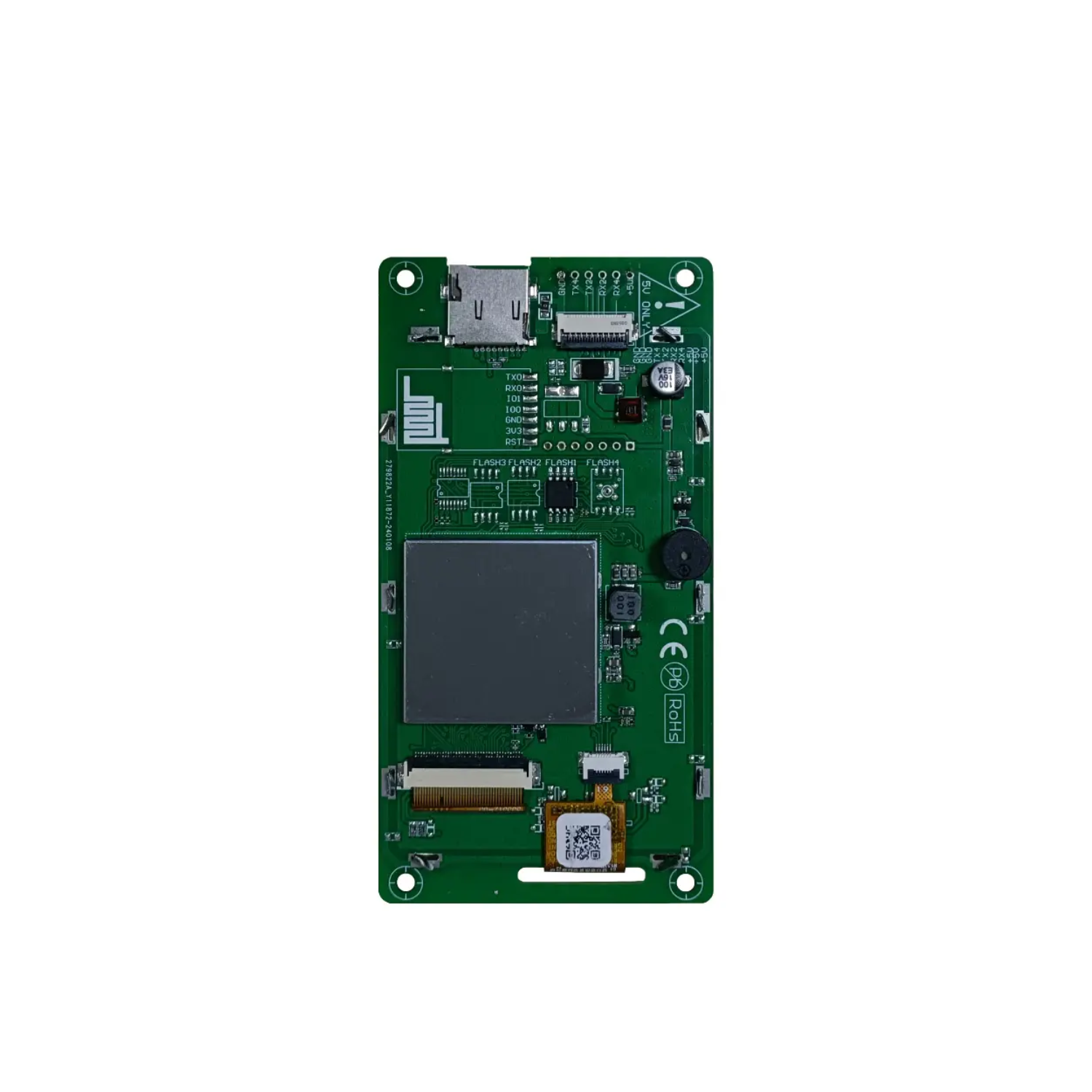

Product Interface:
Useful Links:
DWIN DMG80480C040_03WTC IPS LCD HMI Display
Package Included:
1 x DWIN DMG80480C040_03WTC IPS LCD HMI Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
