Dwin DMG64480T035_01WTC 3.5” 640x480 HMI LCD Display – Capacitive Touch, 16MB Flash, RTC, SD, Buzzer, TTL/RS232 Industrial Grade
Dwin DMG64480T035_01WTC 3.5” 640x480 HMI LCD Display – Capacitive Touch, 16MB Flash, RTC, SD, Buzzer, TTL/RS232 Industrial Grade
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

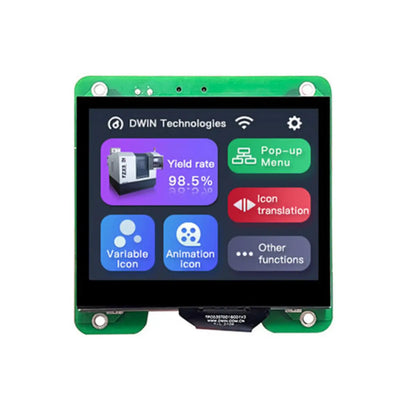

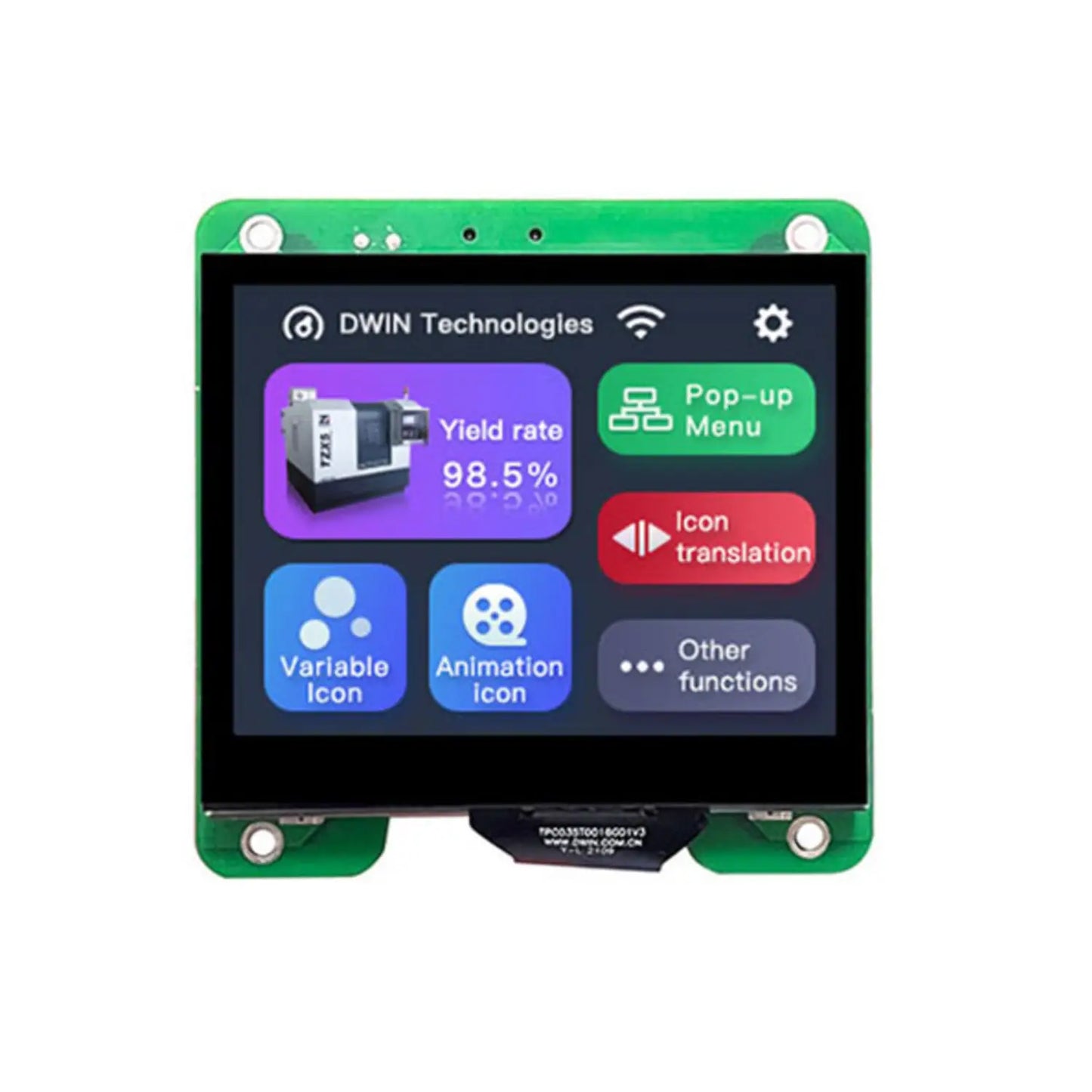

3.5" Industrial Grade HMI LCD Display with Capacitive Touch – Precision, Durability Clarity, Upgrade your industrial control systems and HMI projects with the DWIN DMG64480T035_01WTC 3.5-inch LCD display. Designed for industrial-grade reliability, this display delivers a crisp 640x480 resolution with 262K vibrant colors using advanced IPS-TFT-LCD technology, ensuring clear visuals from any viewing angle.
Featuring capacitive touch input, 16MB flash memory, RTC functionality, buzzer alerts, and an SD interface, it provides versatile options for data storage, notifications, and interactive control. Compatible with TTL/RS232 interfaces, this display integrates seamlessly into industrial automation, machinery control, and smart HMI applications, empowering your projects with precision, responsiveness, and durability.
Specification:
- Display Size: 3.5 inch
- Resolution: 640x480
- Display Panel: IPS-TFT-LCD
- Touch Type: Capacitive
- View Angle: Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
- Color: 18-bit 6R6G6B
- Display Area: 70.1mm (W)x52.6mm (H)
- Power Supply: 5V 1A DC
- LCM interface: FPC40_0.5mm, RGB interface
- Memory: 16MB
- Buzzer: 3V passive buzzer
- Brightness: 280nit
- Reserved USB Interface: Horizontal USB interface, Used for firmware burning
- User Interface: 10Pin_1.0mm latching socket for power supply and serial
- communication. Download rate(typical value): 12KByte/s
- Interface: RS232
Features:
-
Intuitive Capacitive Touch Interface: Seamlessly navigate and interact with your applications using the responsive capacitive touch HMI.
-
Advanced T5L0 Chipset DGUS II System: Experience smooth and efficient operation thanks to the powerful T5L0 chipset and the intuitive DGUS II GUI development platform.
-
Wide Viewing Angle: Ensure clear visibility from all directions with the 85°/85°/85°/85° (L/R/U/D) wide viewing angle IPS-TFT-LCD technology.
-
Industrial-Strength Reliability: Built with conformal coating to withstand harsh conditions and ensure long-lasting performance.
-
Versatile Connectivity: Connect to your devices effortlessly with TTL/RS232 signal compatibility.
-
Convenient Data Storage: Easily transfer and display files using the built-in SD interface.
-
Ideal for Industrial Applications: Perfect for factory automation, process control, machine monitoring, and more.
Product Interface:
Package Included:
1 x Dwin DMG64480T035_01WTC 3.5” 640x480 HMI LCD Display
