Description:

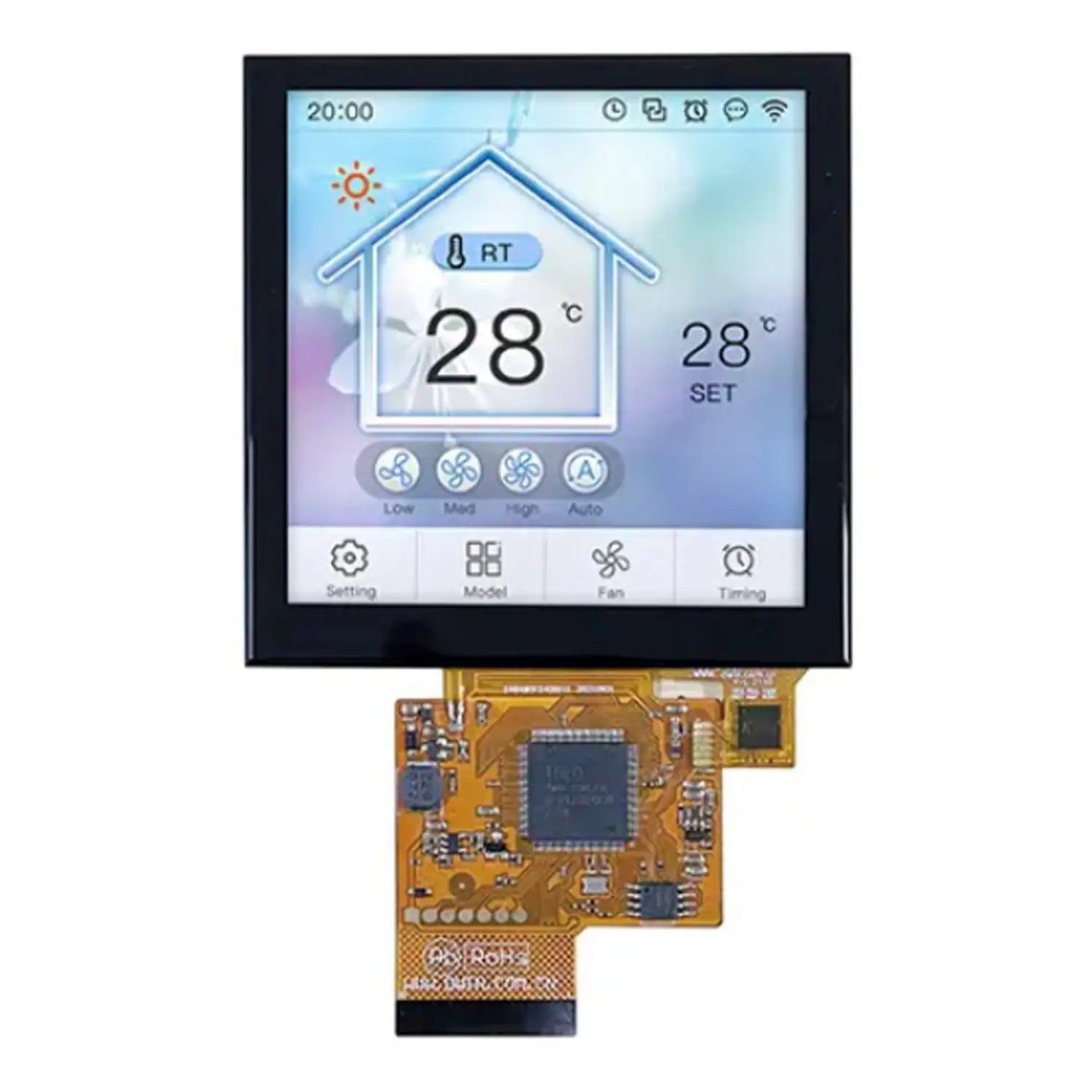

The DMG48480F040_01WTC is a 4.0-inch 480×480 COF TTL LCD display with capacitive touch and 8MB NOR Flash memory, developed by DWIN. This high-performance display allows users to store and manage data directly on the device.

Equipped with DWIN’s DGUS II system, it provides an integrated Graphical User Interface (GUI) development environment. The pre-installed UI software enables the creation of custom designs and interactive elements such as buttons, text displays, sliders, and graphs with ease.

Powered by the T5L1 chip, a low-power, dual-core 8051 processor, the display leverages T5L1 DWIN development software, specifically designed for AIoT applications and human-machine interface (HMI) solutions. This makes the DMG48480F040_01WTC an ideal choice for building responsive, feature-rich interfaces in industrial and smart device projects.

Specification:

  • Display Size: 4.0 inch
  • Resolution: 480x480
  • Display Panel: IPS
  • Touch Type: Capacitive
  • View Angle: Wide viewing angle, typical value of 85/85/85/85 (L/R/U/D)
  • Color: 18-bit 6R6G6B
  • Display Area: 71.86mm (W)x 70.18mm (H)
  • Power Supply: 5V 1A DC
  • Brightness: 200nit
  • Interface: TTL
  • Memory: 8MB

Features:

  • Based on T5L0, running the DGUS II system.
  • 4.0 inch, 480x480 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
  • Intelligent LCD, with a product thickness of only 2.8mm.
  • COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, characterized by a light and thin structure, low cost, and easy production.
  • 50 pins, including IO, UART, CAN, AD, and PWM from the user CPU core for easy secondary development.

Product Interface:

Package Included:

1 x DWIN DMG48480F040_01WTC 4.0-inch 480x480 COF TTL LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
