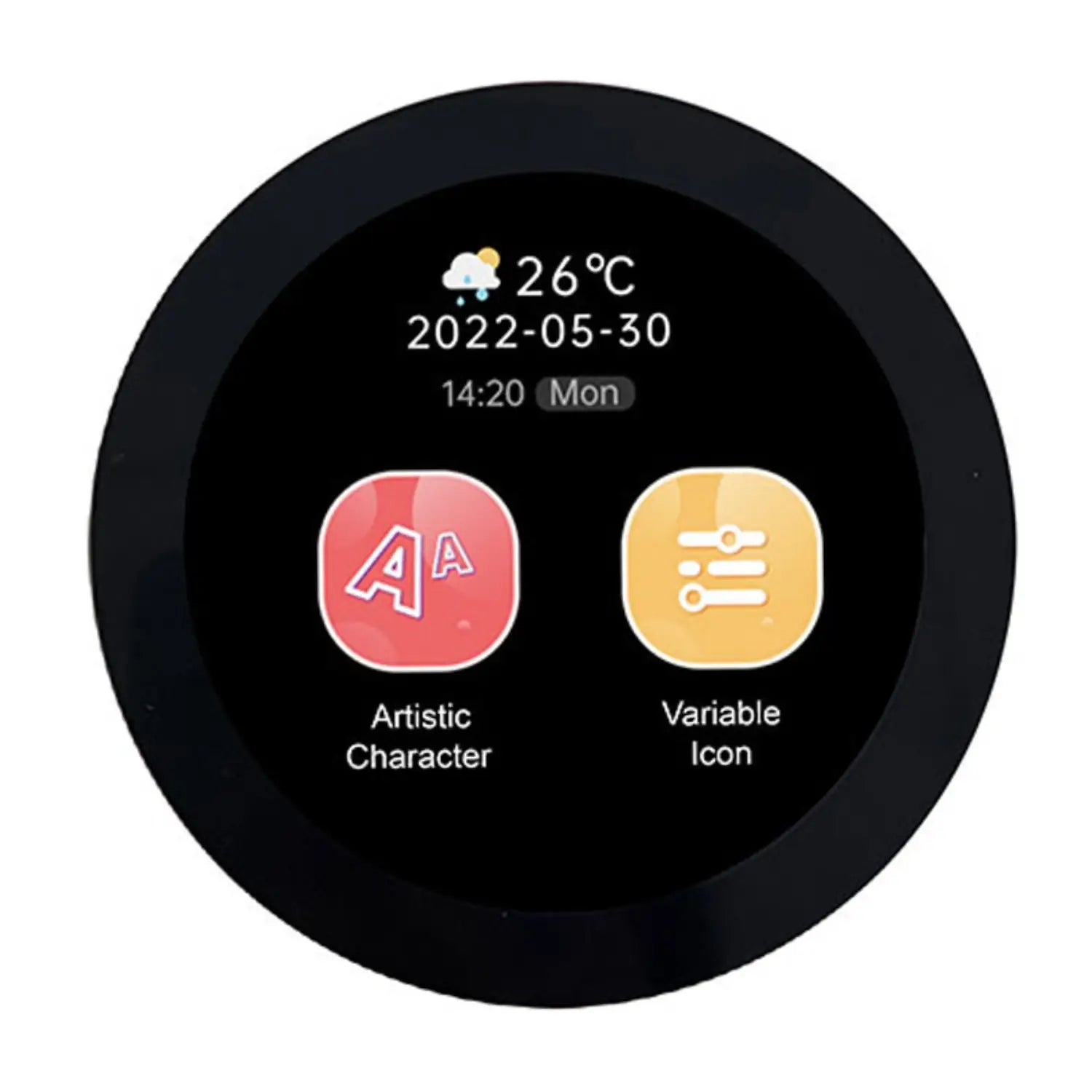

DWIN DMG48480C028_03WTC 2.8-Inch Circular HMI LCD Display – 480x480 Resolution, Capacitive Touch, UART, Commercial Grade

DWIN DMG48480C028_03WTC 2.8-Inch Circular HMI LCD Display – 480x480 Resolution, Capacitive Touch, UART, Commercial Grade

In stock

Rs. 3,580.00
Rs. 3,580.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DWIN 2.8-Inch Circular Smart Screen DMG48480C028_03W is a high-performance, commercial-grade display designed for advanced HMI applications. Powered by the T5L1 chip and running the DGUS II system, it delivers a crisp 480x480 resolution on a circular IPS TFT LCD panel with 16.7 million colors and wide viewing angles.

This smart screen features a 10-pin 1.0mm socket for easy power supply and serial communication integration. With a long-lasting backlight rated over 20,000 hours, it ensures reliable performance, maintaining up to 50% brightness even during continuous operation at maximum brightness.

Developed using DWIN DGUS II V7.6 GUI software, the DMG48480C028_03W offers seamless customization, making it ideal for industrial, commercial, and embedded system applications.

Specification:

  • Display Size: 2.8 inch
  • Resolution: 480x480
  • Display Panel: IPS, TFT LCD
  • Touch Type: Capacitive
  • View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Ddeg (L/R/U/D)
  • Color: 24-bit 8R8G8B
  • Display Area: D=70.1mm
  • Power Supply: 4.5~5.5V
  • LCM interface: FPC40_0.5mm, RGB interface
  • SD Interface: FAT32. Files by the SD interface can be displayed in statistics.
  • Download rate: 4Mb/s
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to
  • Update the DGUS kernel and make the product return to normal
  • Brightness: 300nit
  • Interface: RS232
  • Working temperature: -20~70C(5V @ 60percent RH)

Features:

  • Based on T5L1, running the DGUS II system, commercial grade.
  • 2.8-inch circular LCD with 480x480 pixels resolution.
  • 16.7M colors, IPS-TFT-LCD, providing a wide viewing angle.
  • 10-Pin 1.0mm socket for power supply and serial communication.
  • Backlight Service Life: 20000 hours (Time of the brightness decaying to 50percent under continuous working with the maximum brightness).
  • Use DWIN DGUS II V7.6GUIs software development.

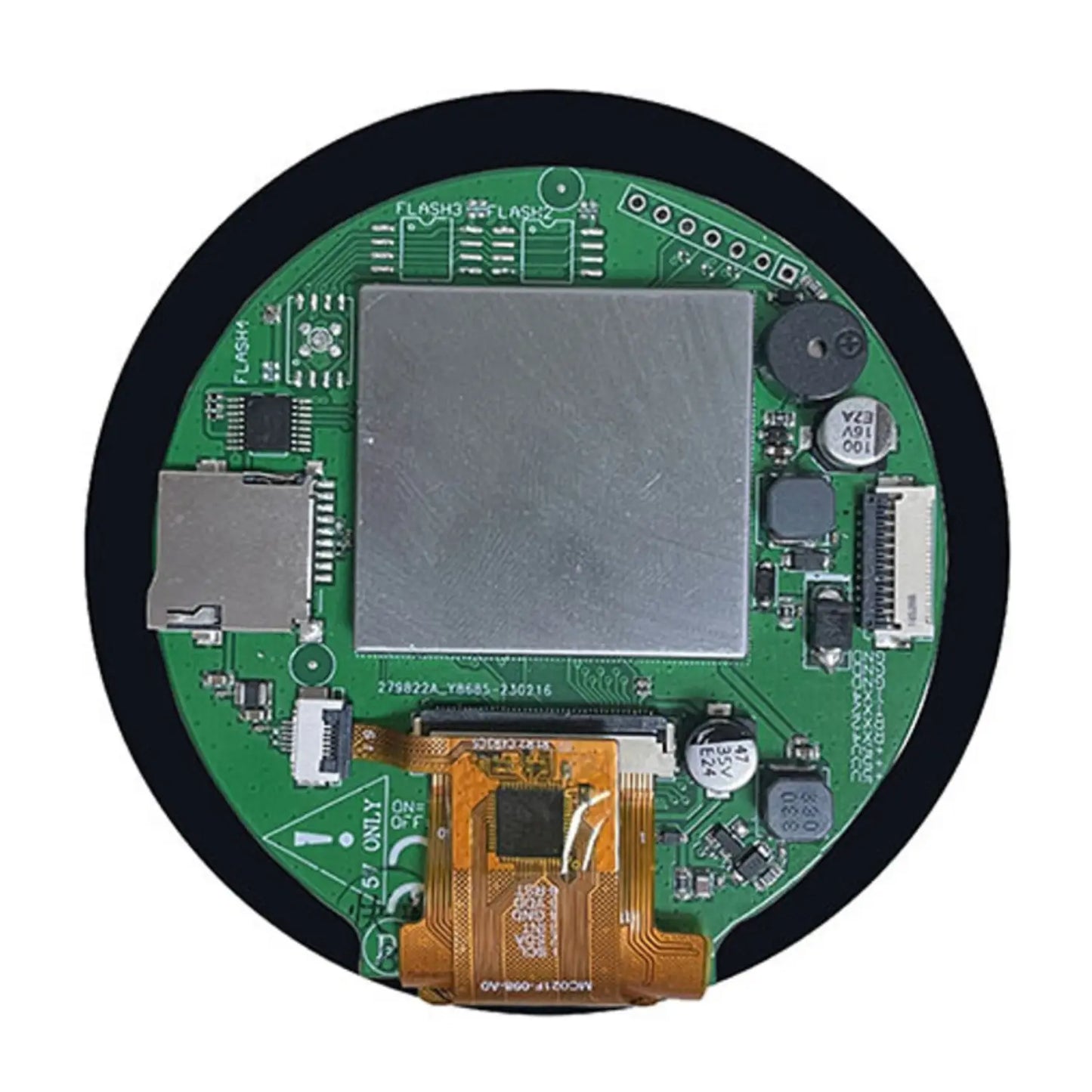

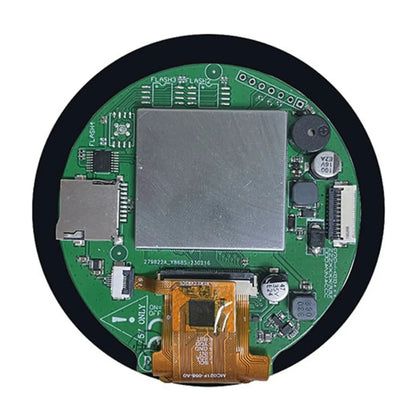

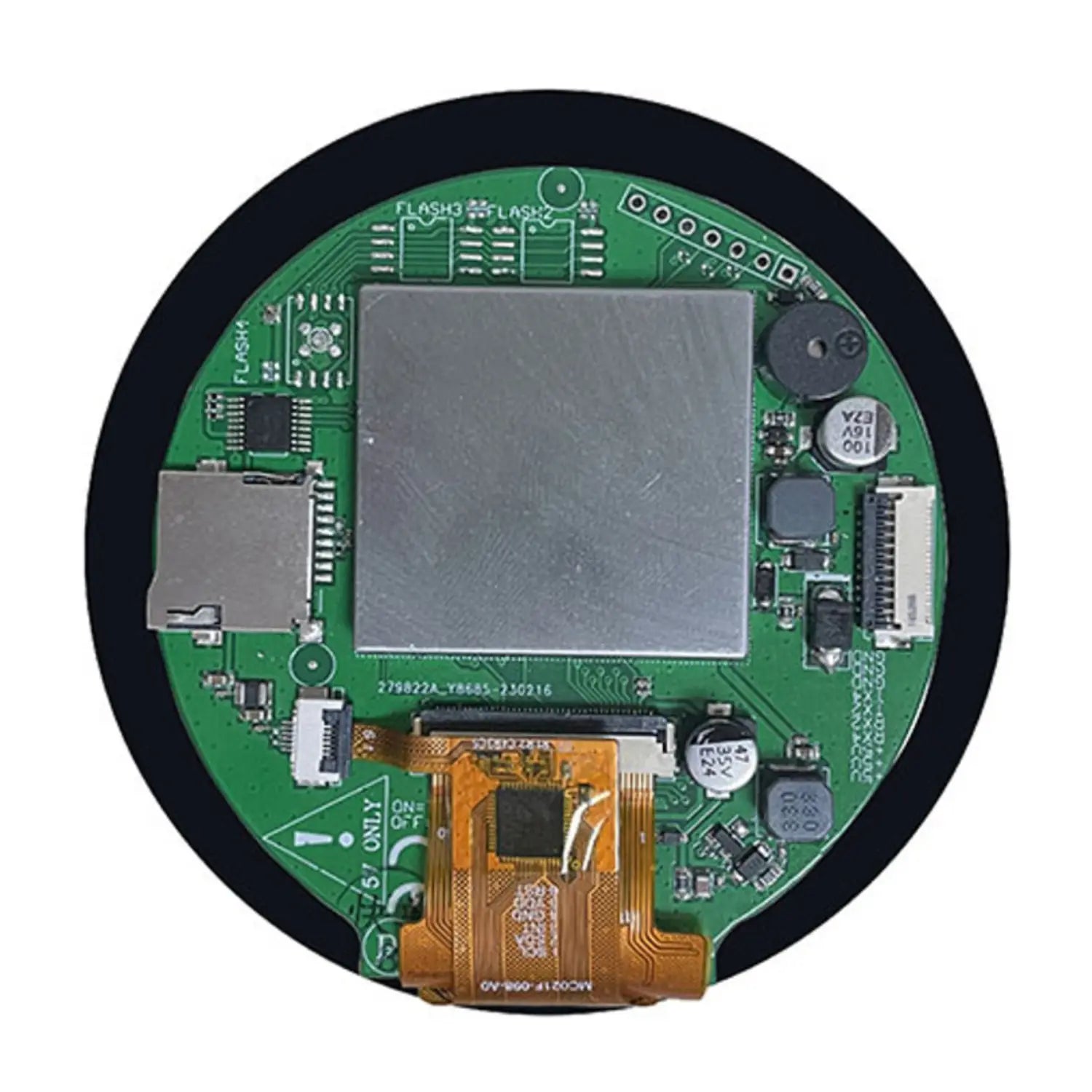

Product Interface:

Package Included:

1 x DWIN DMG48480C028_03WTC 2.8-Inch Circular HMI LCD Display
