DWIN DMG48320C035_03WTR 3.5-Inch HMI LCD Display Module 320x480 Resolution Capacitive Touch Screen UART TTL Serial, 16MB Flash, SD Slot & Buzzer

DWIN DMG48320C035_03WTR 3.5-Inch HMI LCD Display Module 320x480 Resolution Capacitive Touch Screen UART TTL Serial, 16MB Flash, SD Slot & Buzzer

In stock

Rs. 1,550.00
Rs. 1,550.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

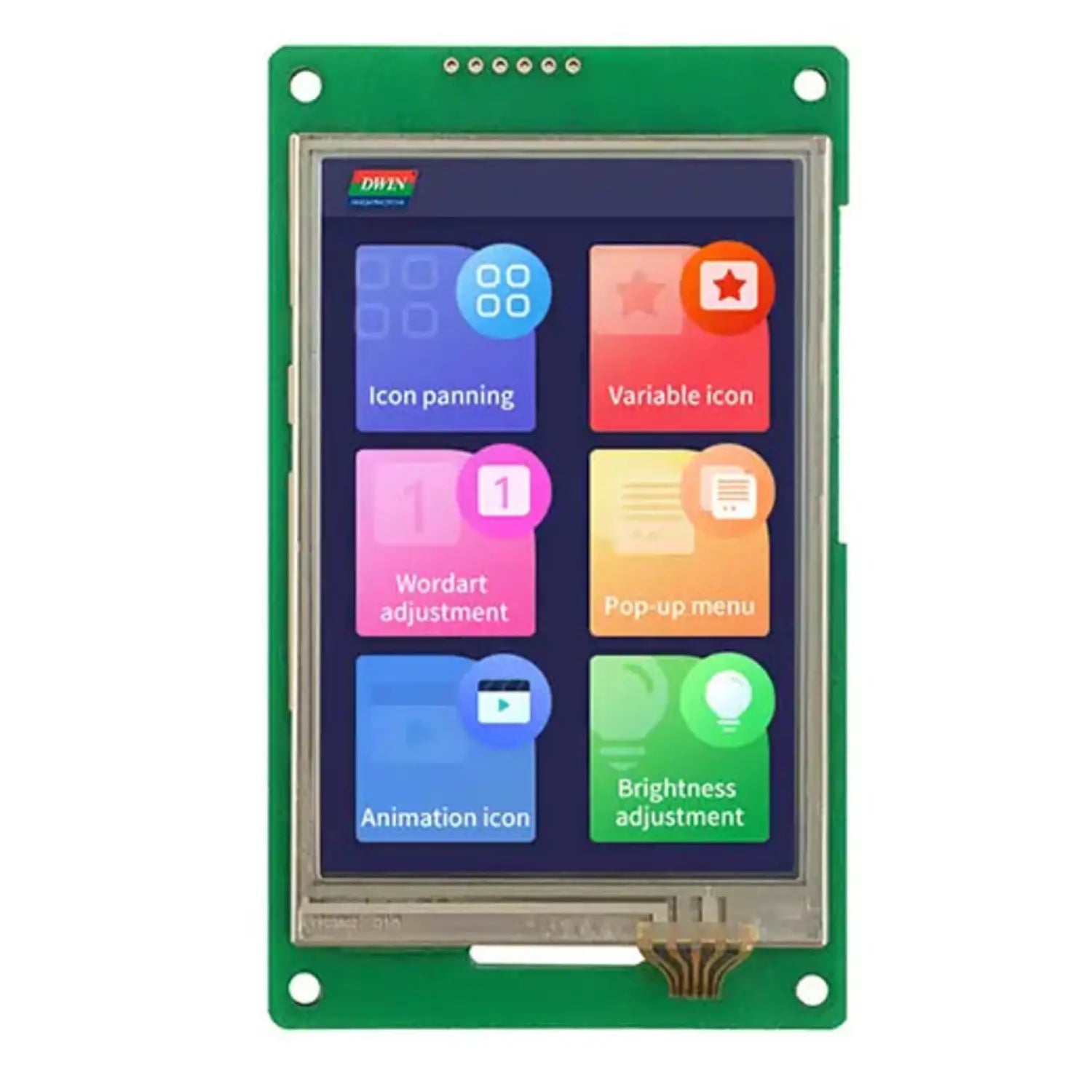

The DWIN DMG48320C035_03WTR is a 3.5-inch industrial HMI LCD display featuring a 320x480 IPS panel with resistive touch. Designed for reliable performance, it includes a UART TTL interface, 16MB NOR Flash memory for user data, a buzzer, and an SD card interface.

This display runs on the DGUS II system, a powerful GUI development software that allows you to easily create and customize user interfaces with features like buttons, text displays, graphs, and sliders. At its core is DWIN's T5L1 ASIC, a low-power, cost-effective dual-core 8051 processor specifically engineered for AIoT applications.

Specification:

  • Display Size: 3.5 Inch
  • Resolution: 320 x 480
  • Display Panel: IPS
  • Touch Type: Resistive
  • Color: 24-bit 8R8G8B
  • Display Area: 49.00mm(W)x73.40mm(H)
  • Power Supply: 5V 1A DC
  • LCM interface: FPC40_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive Buzzer
  • SD Interface: FAT32
  • Brightness: 220nit
  • Interface: TTL

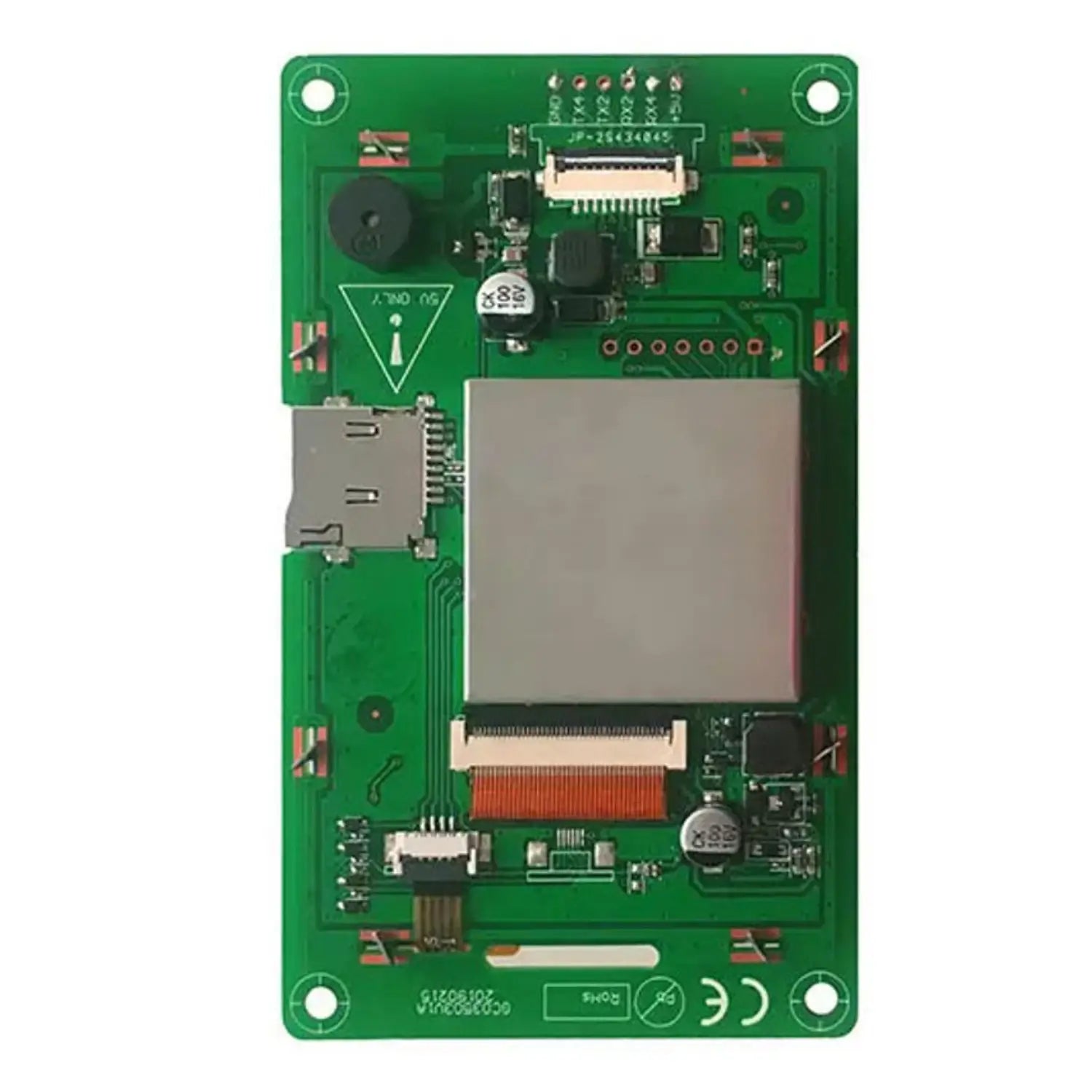

Product Interface:

Features:

  • Self-designed T5L ASIC, 16.7M Colors, 24bit 320x480 Pixel, G+G structure
  • Resistive touch screen
  • TTL/CMOS, 10Pin_1.0mm
  • Download via SD card or online serial port
  • It is very easy to use the DWIN DGUS V7.6 GUIs Development, no coding skills required
  • Two Development System: DGUS II/ TA(Instruction set)
  • IPS wide viewing angle: 85/85/85/85 degrees (L/R/U/D)

Package Included:

1 x DWIN DMG48320C035_03WTR: 3.5" 320x480 IPS Industrial HMI Display
