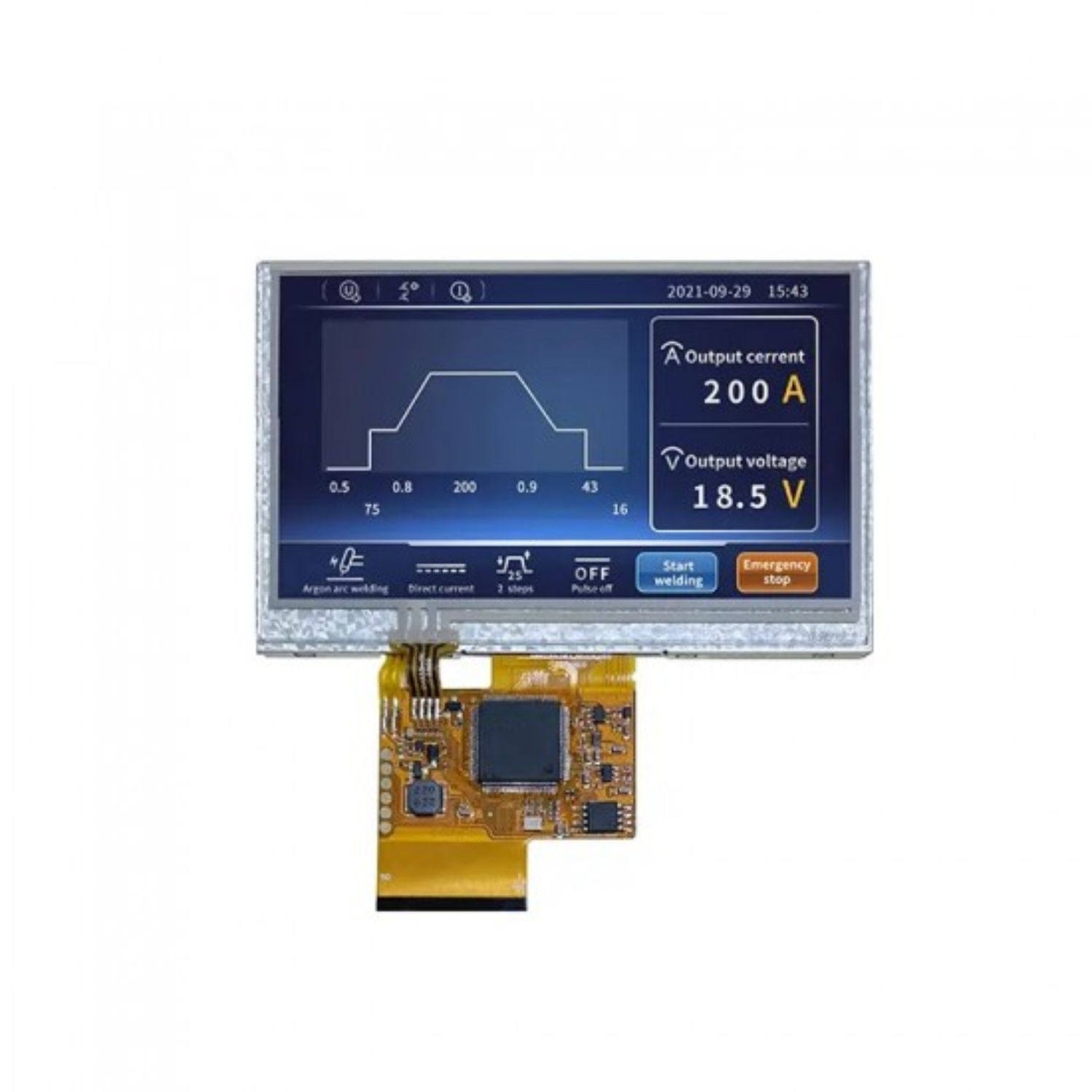

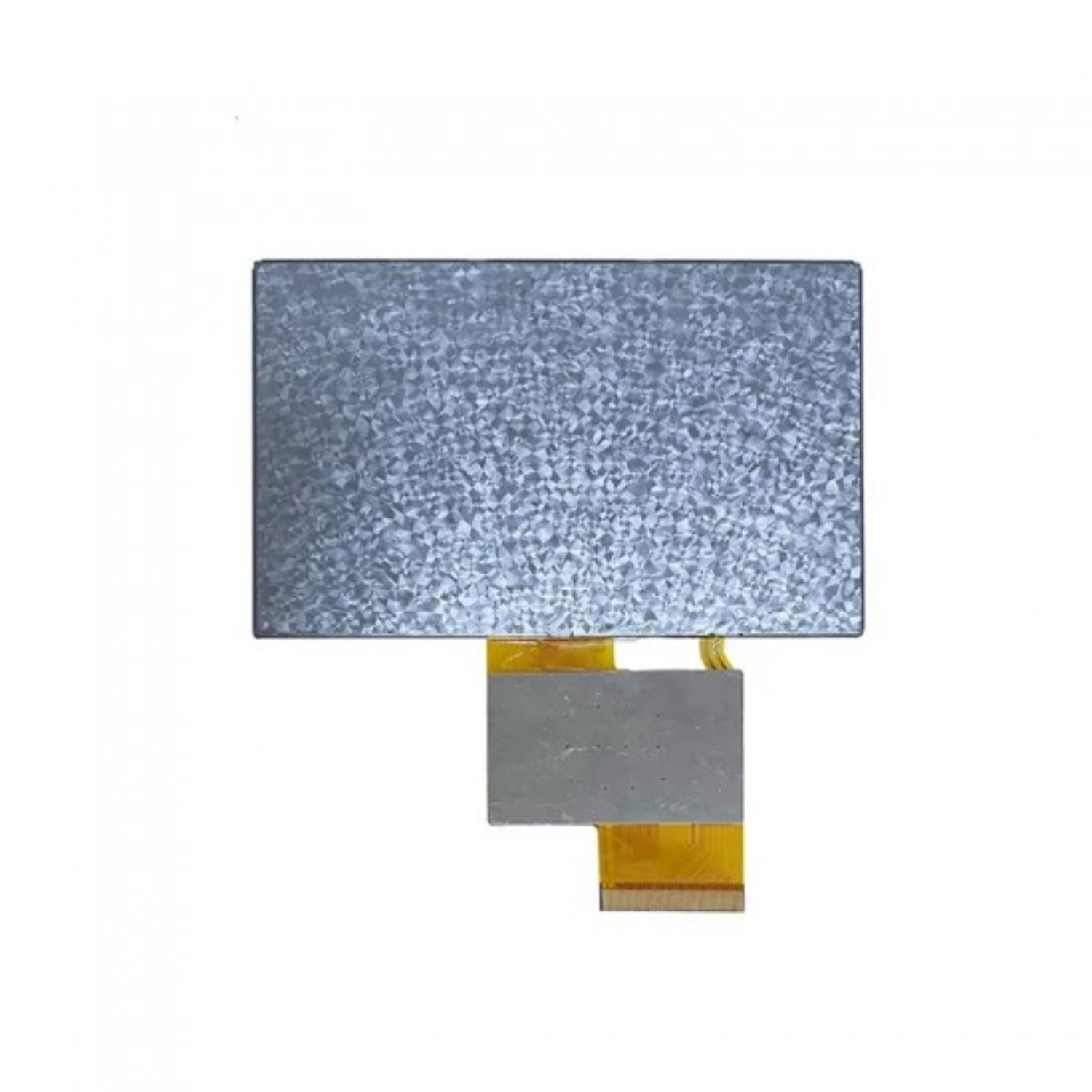

DWIN DMG48270F043_01WTR 4.3-inch Smart HMI LCD with Responsive COF Resistive Touch TN TFT Display 480x272 200nit Brightness

DWIN DMG48270F043_01WTR 4.3-inch Smart HMI LCD with Responsive COF Resistive Touch TN TFT Display 480x272 200nit Brightness

In stock

Rs. 955.00
Rs. 955.00
Sale Sold out
Shipping calculated at checkout.
Touch Fuction

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DWIN 4.3-inch COF SMART Screen offers a powerful and user-friendly HMI solution, featuring integrated TA/DGUS II software for designing custom UIs with ease. Create interactive elements and enjoy a vibrant 16.7M RGB color display with 200nit brightness for good visibility. Seamlessly connect to various microcontrollers like Arduino and Raspberry Pi using the I2C interface.

Specifications:

  • Model No.: DMG48270F043
  • Touch Type: Resistive & Non-Touch
  • Display Resolution: 480 × 272
  • Color: 262K colors
  • LCD Type: TN-TFT-LCD
  • Viewing Angle: Normal viewing angle, typical value of 70°/70°/30°/40°(L/R/U/D)
  • Display area: 95.04mm (W)×53.86mm (H)
  • Backlight mode: LED
  • Brightness: DMG48270F043_01WN:250nit, DMG48270F043_01WTR:200nit
  • Operating Current: 220mA, VCC=5V, max backlight,78mA, VCC=5V, backlight off,
  • UART Baud Rate: 3150~3225600bps

Features:

  • Displays vibrant 262K colors with a standard viewing angle.
  • Sleek and compact smart screen without a touch panel.
  • Lightweight, thin, and easy to manufacture.
  • Provides easy access to IO, UART, CAN, AD, and PWM for custom development.
  • Suited for cost-sensitive, less demanding environments with high volume.

Package Included:

1 x DWIN DMG48270F043_01WTR 4.3-inch Smart HMI LCD with Responsive COF Resistive Touch TN TFT Display
