DWIN DMG48270C043_15WTR 4.3" Intelligent HMI LCD Display Module with Resistive Touchscreen & Protective Shell for Industrial & Smart Home Applications

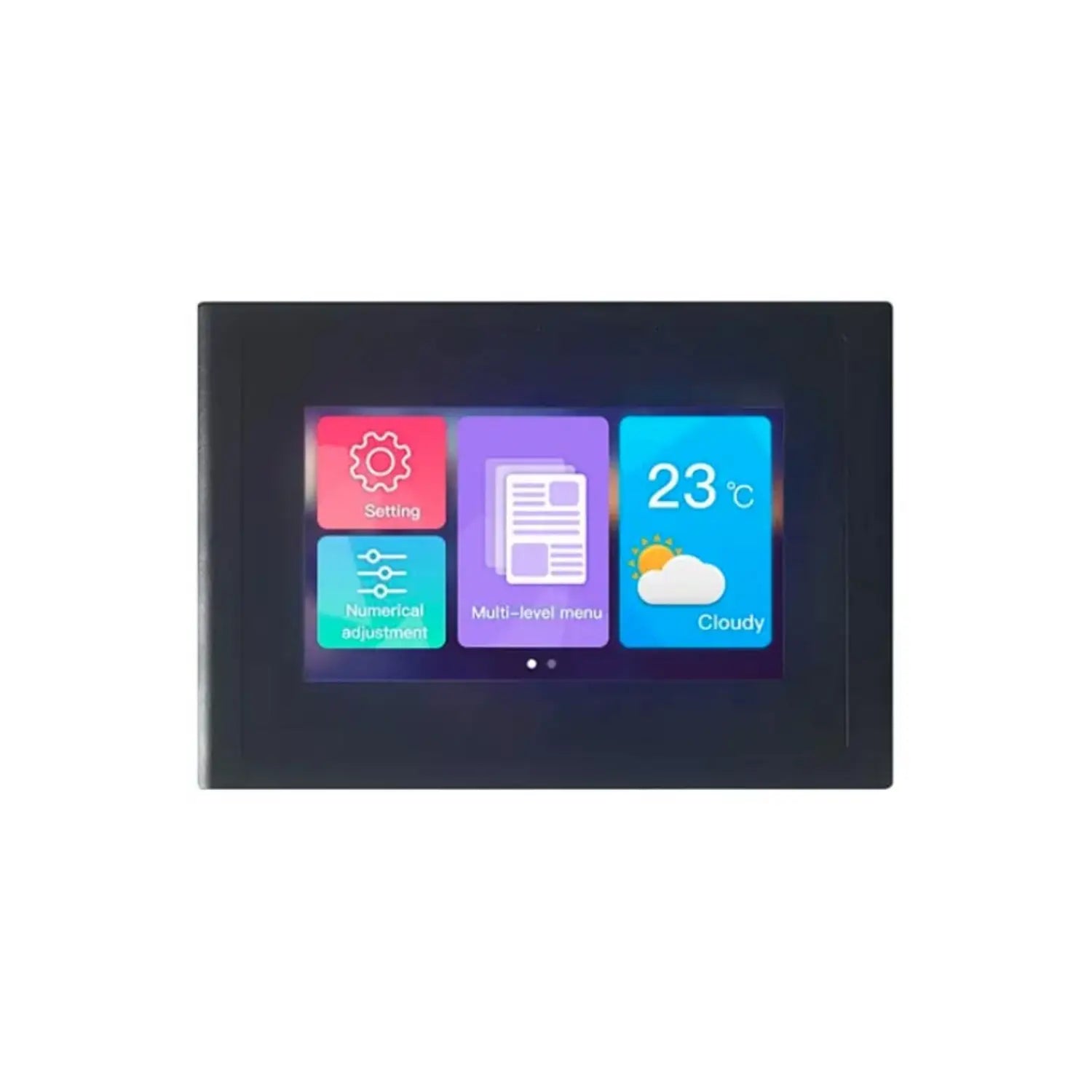

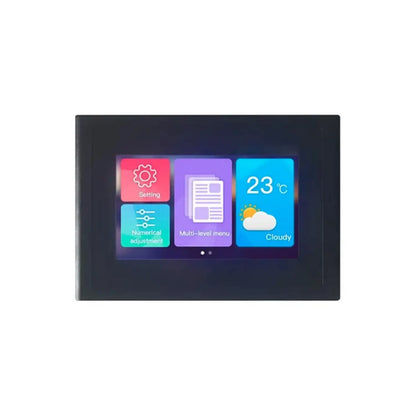

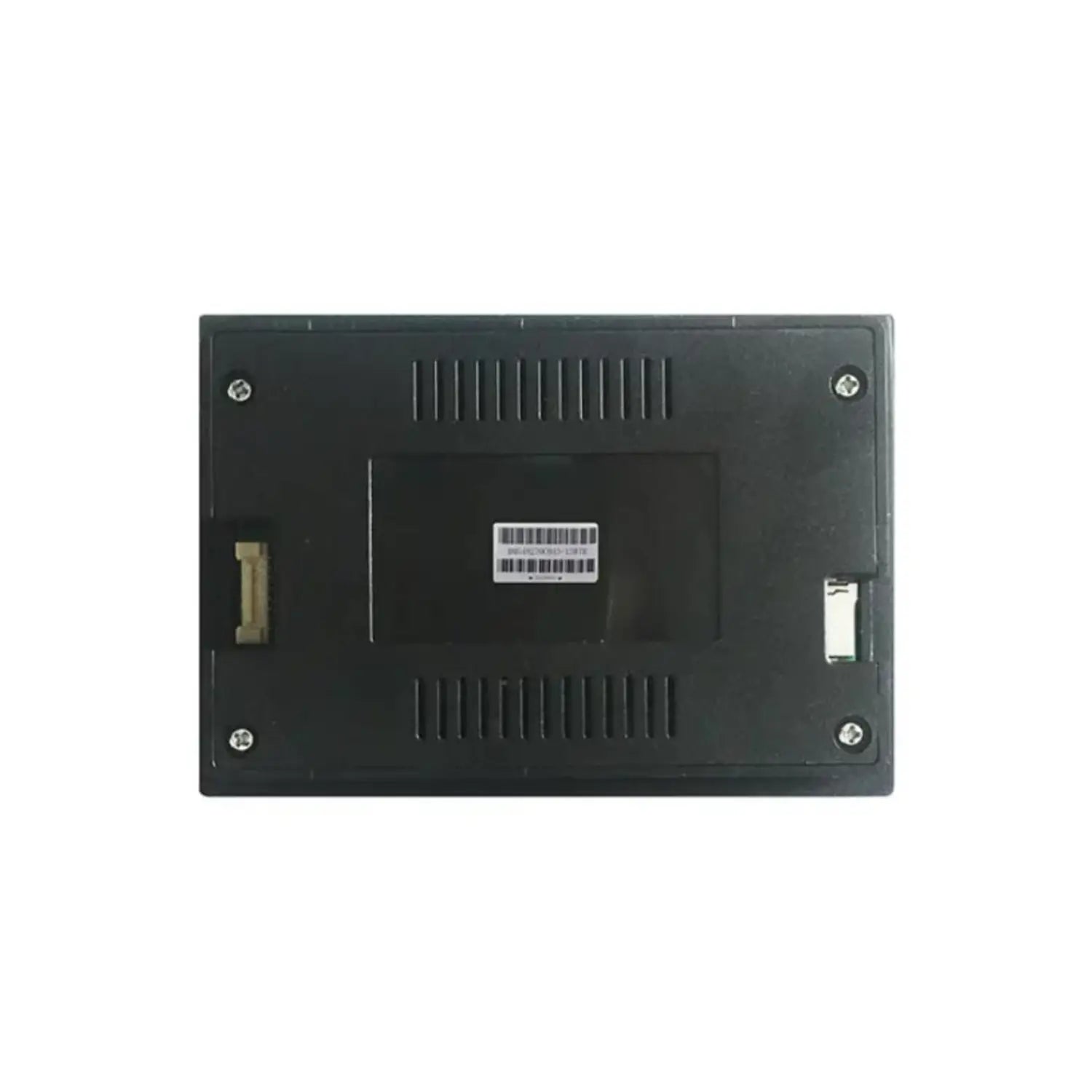

The DWIN DMG48270C043_15WTR is a robust and versatile 4.3-inch Human Machine Interface (HMI) LCD display, designed for a wide array of industrial and IoT applications. This complete module comes integrated with a protective shell and features a clear 480x272 resolution screen with resistive touch functionality for intuitive user interaction.

Equipped with a generous 8MB NOR Flash memory, this display provides ample space to store your user database and project configurations. It offers flexible connectivity through both RS232 and RS485 interfaces, ensuring seamless integration into various communication networks. Additional built-in features like a buzzer provide audio feedback, while an SD card interface allows for convenient data transfer and expanded storage.

At its core, the DMG48270C043_15WTR runs on DWIN's efficient DGUS II system and is powered by the T5L1 DWIN development software. This powerful combination allows users to easily develop custom Graphical User Interfaces (GUIs) with features like buttons, text displays, graphs, and sliders. The underlying T5L chip, a low-power, cost-effective dual-core 8051 processor, ensures reliable and high-performance operation for AIoT applications.
