Description:

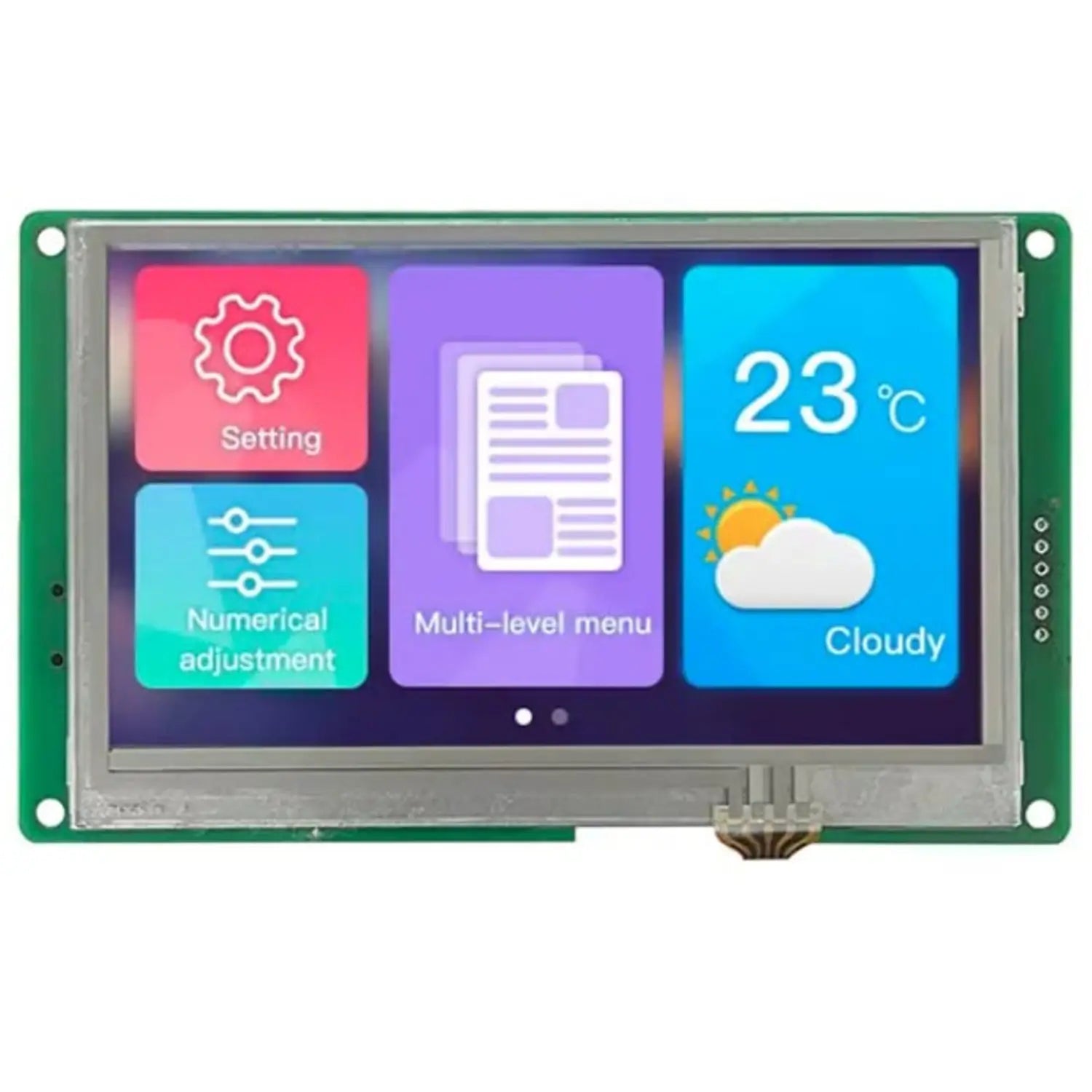

The Dwin DMG48270C043_05WTR 4.3 Inch HMI LCD Display features a 480x272 resolution with resistive touch, TTL/RS232 communication, 8MB Flash memory, SD interface, and an integrated buzzer, making it ideal for embedded and AIoT applications.

Equipped with NOR Flash memory, this display can store your user database and other important data. It comes with the DGUS II system, a powerful GUI (Graphical User Interface) development platform, allowing you to create customized interfaces with buttons, text displays, graphs, sliders, and more.

The pre-installed T5L1 DWIN development software is designed for AIoT applications and works seamlessly with the T5L chip, a low-power, cost-effective dual-core 8051 processor. This combination ensures smooth performance, ease of customization, and reliable operation for a wide range of embedded projects.

Specification:

Display Size: 4.3 inch
Interface: TTL/RS232
User Interface: 10Pin_1.0mm latching socket for power supply and serial communication
Resolution: 480x272
Display Panel: TFT
Touch Type: Resistive
View Angle: Normal viewing angle, 70/70/50/70 deg(L/R/U/D)
Color: 18-bit 6R6G6B
Display Area: 95.04mm (W)x 53.86mm (H)
Power Supply: 5V 1A DC
LCM interface: FPC40_0.5mm, RGB interface
Memory: 8MB
Buzzer: 3V passive buzzer
SD Interface: FAT32
Brightness: 250nit

Features:

Based on T5L0, running the DGUS II system, commercial grade.
4.3-inch, 480x272 Pixels resolution, 262K Colors, TN-TFT-LCD, normal viewing angle
Resistive touch screen
8MB memory, cost-effective
10Pin1.0mm FCC connection wire, RS232 Interface
HMI intelligent display for commercial-grade application
With a GUI OS, a GUI with rich controls
