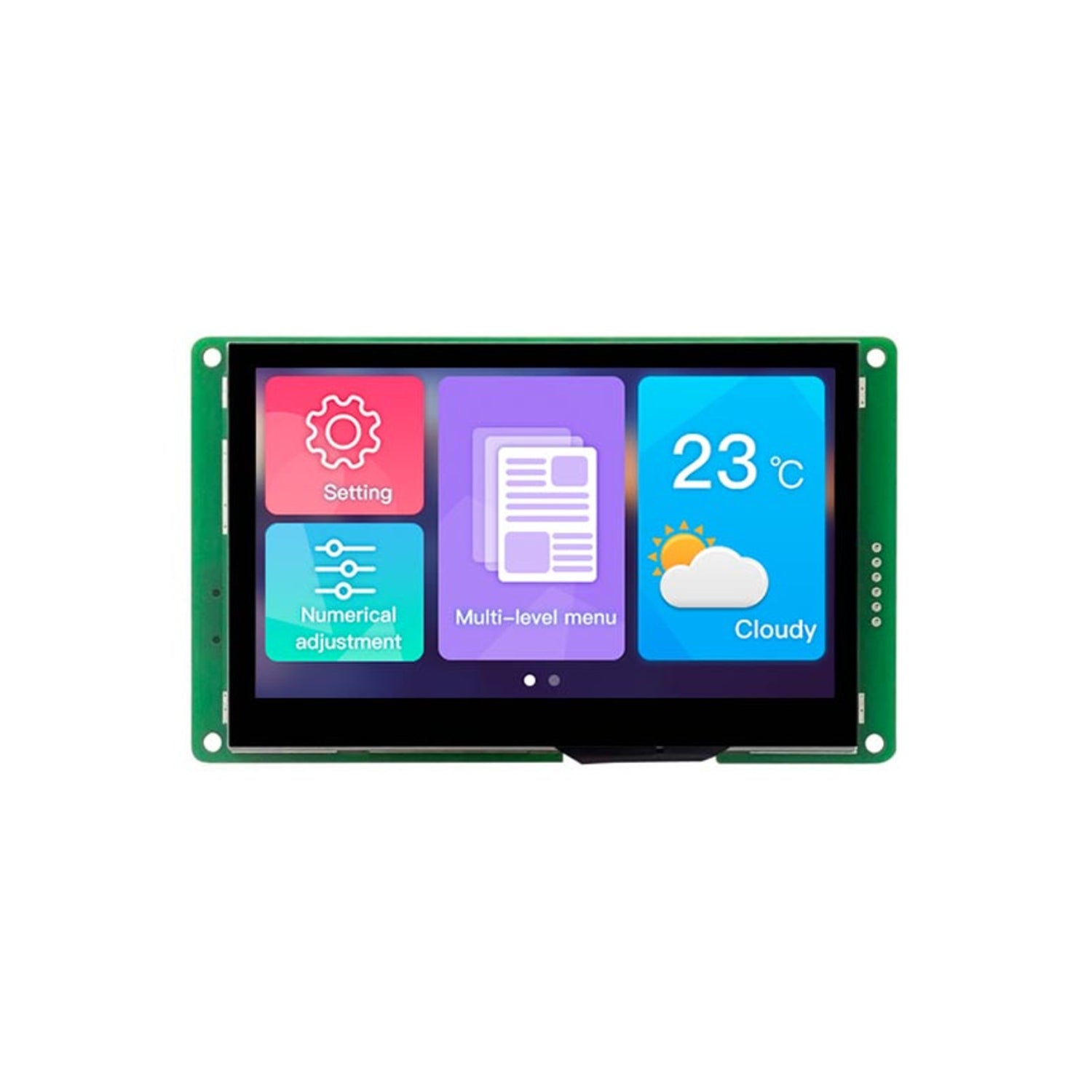

DWIN DMG48270C043_04WTC HMI LCD Display 4.3-inch 480x272 Capacitive Touch Screen with TTL/RS232 Interface For Industrial Uses-RS9464

DWIN DMG48270C043_04WTC HMI LCD Display 4.3-inch 480x272 Capacitive Touch Screen with TTL/RS232 Interface For Industrial Uses-RS9464

SKU:

Low stock: 3 left

Regular price Rs. 1,495.00
Sale price Rs. 1,495.00 Regular price
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

Cash on Delivery is currently unavailable for new orders

Existing COD Orders Only

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

The DWIN DMG48270C043_04WTC is a compact yet powerful 4.3-inch HMI (Human-Machine Interface) LCD display, designed by DWIN to bring intuitive control to your projects. With a crisp 480x272 resolution and a highly responsive capacitive touch panel, it offers a modern user experience.

This display features a generous 16MB of NOR Flash memory for storing your user database and custom assets. It runs on DWIN's efficient DGUS II system, a comprehensive GUI (Graphical User Interface) development software. The pre-installed UI development tools empower you to design and implement your own custom interfaces with ease, including buttons, text displays, graphs, sliders, and more.

At its core, the DMG48270C043_04WTC is powered by the T5L1 ASIC, a dedicated human-machine interface chip from DWIN Technology. This low-power, cost-effective dual-core 8051 processor ensures smooth performance for AIoT applications. Connectivity options include TTL and RS232 interfaces, along with a built-in buzzer for audio feedback and an SD card interface for additional storage flexibility.

Specifications:

  • Display Size: 4.3"
  • Resolution: 480x272
  • Display Panel: TFT
  • Touch Type: Capacitive
  • View Angle: TV viewing angle, 70/70/40/30 deg (L/R/U/D)
  • Color: 18-bit 6R6G6B
  • Display Area: 95.04mm (W)x53.86mm (H)
  • Power Supply: 5V 1A DC
  • LCM interface: FPC40_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • Brightness: 330nit
  • User Interface: 10Pin_1.0mm latching socket for power supply and serial communication
  • Interface: TTL/RS232

Features:

  • Based on self-designed T5L0, 16.7M Color, 18bit, 480x272, Cheap TV-TN-TFT-LCD
  • Capacitive touch screen
  • RS232 Interface,10Pin1.0mm FCC connection wire
  • Download via SD card or on-line serial port
  • Easy-to-use DWIN DGUS V7.624 GUIs Development, no coding skills required
  • Dual Development System: DGUS II/ TA(Instruction set);
  • Cost-Effective TN screen

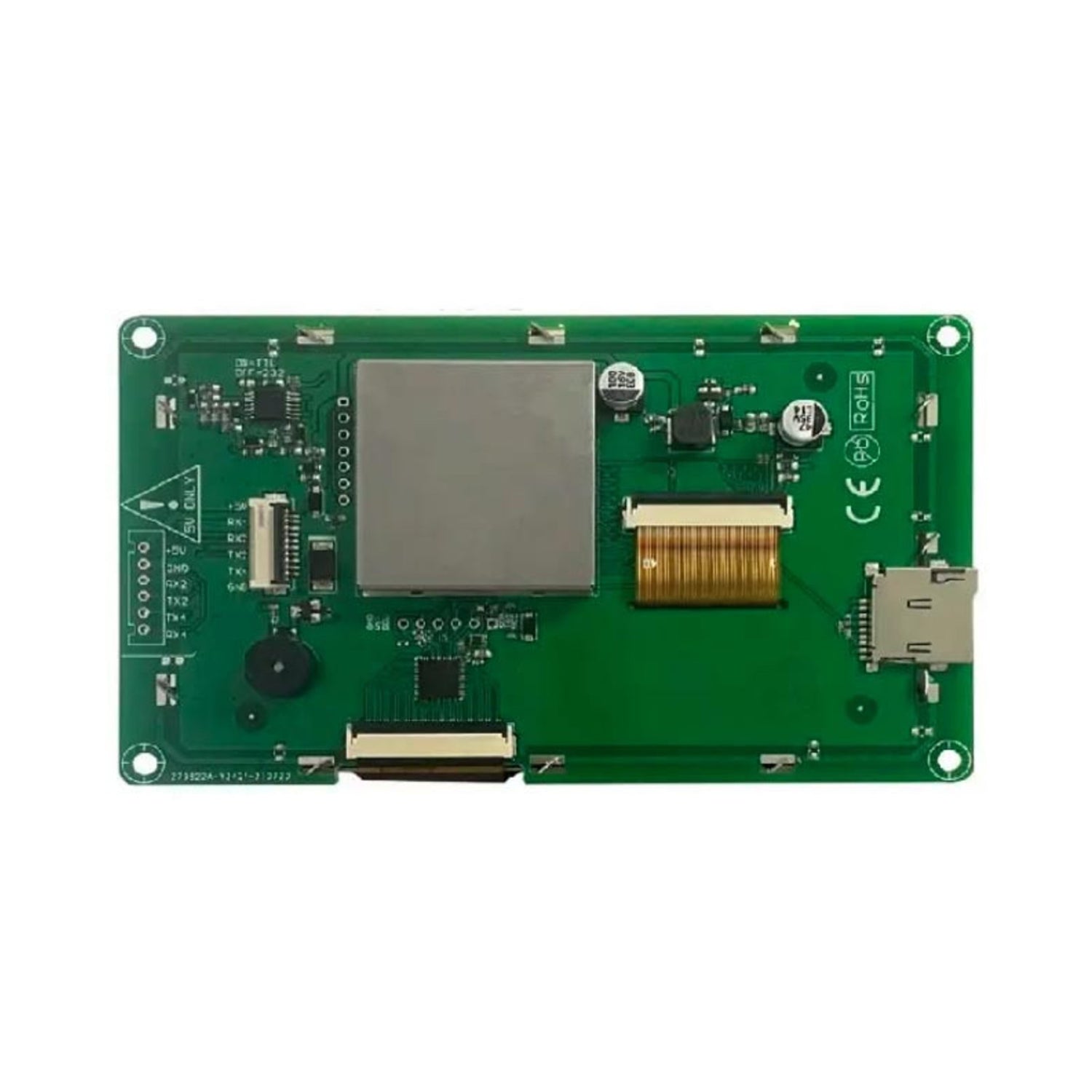

Product Interface:


Useful Link:

Package Included:

1 x DWIN DMG48270C043_04WTC HMI LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
