Description:
DWIN HMI 4.3-inch TN LCD Resistive Touch Display, a truly intelligent and feature-rich SMART screen. This isn't just a display; it's a canvas for your creativity, empowered by the manufacturer's intuitive UI development software. Unleash your design potential and craft bespoke user interfaces brimming with functionality. Imagine seamlessly integrating interactive buttons, smooth sliders, dynamic graphs, and clear text displays, all tailored to your exact needs.
The power to personalize lies within the pre-installed TA/DGUS II software, a dedicated tool that transforms your visions into tangible interfaces. Experience vibrant visuals rendered in rich RGB color, boasting a spectrum of 16.7 million hues that bring your designs to life. Even under the bright Indian sun, the display remains remarkably clear, thanks to its 200-nit brightness.
Versatility is at its core, as this SMART screen effortlessly interfaces with all major microcontroller boards through efficient I2C communication. Whether you're a seasoned engineer or a passionate hobbyist in Delhi, this DWIN HMI display offers a powerful and user-friendly gateway to bring your embedded projects to life with captivating and interactive visual experiences.
Specifications:
- Model No.: DMG48270C043
- Touch Type: Resistive
- Operating Voltage: 4.5 ~ 5.5V
- RAM: 128KB
- Flash Memory: 16MB
- Interface: UART, I2C
- LED Brightness: 200 nit
- Colour – 24-bit colour 8R8G8B
- Active Area – 56.16mm (W) ×93.6mm (H)
- Display Format - 480×272 Pixel Matrix
- Size -4.3″
Features:
- UI Version: TA / DGUS II ( DGUS II pre-installed)
- Built-in DGUS II intelligent software
- Capacitance touch panel, Buzzer, and WIFI module interface
- Powerful data management
Interface
- UART2 : N81 , 3.3V TTL/CMOS
- UART4 : Optional N81/E81/O81/N82 four mode , 3.3V TTL/CMOS

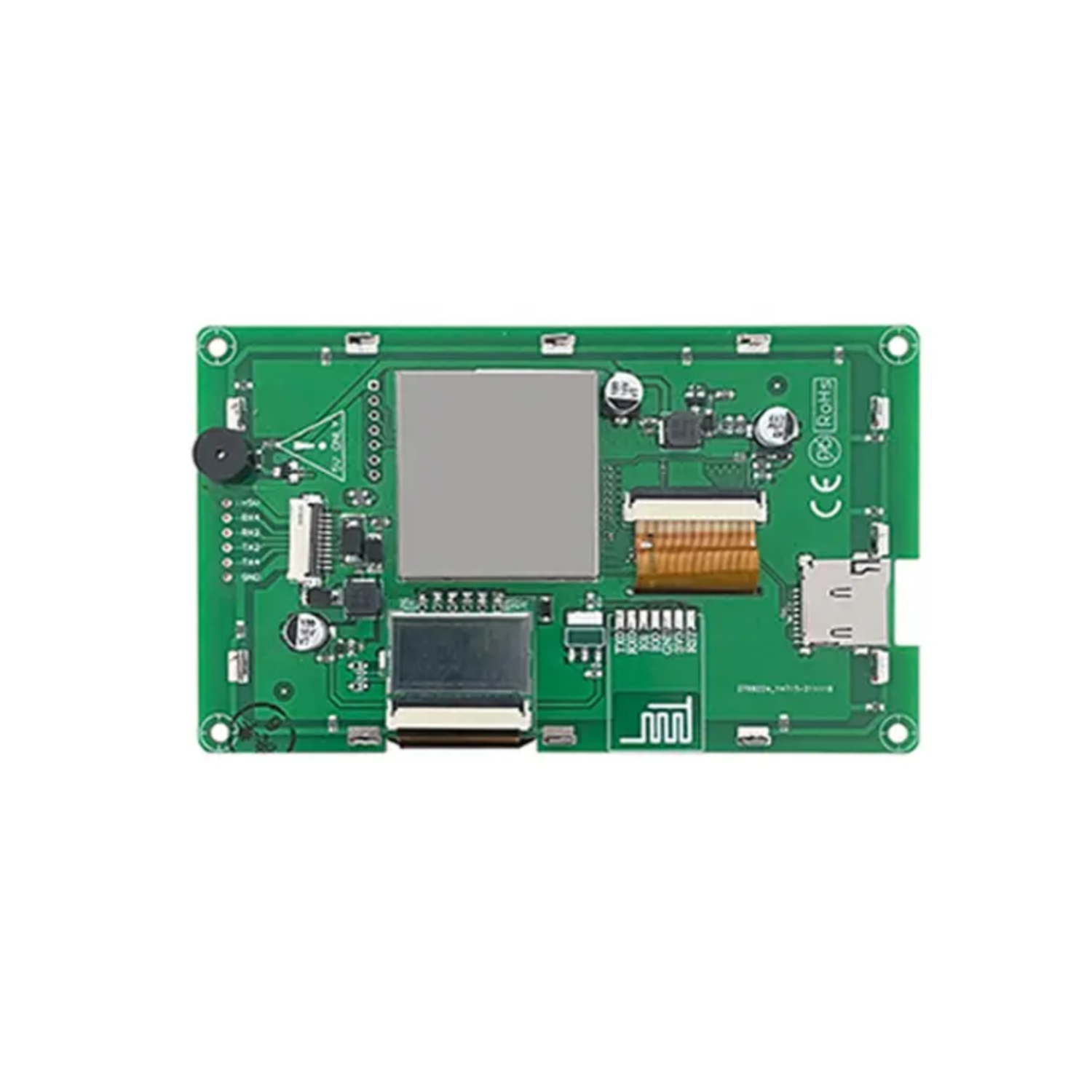

Product Interface:
Package Included:

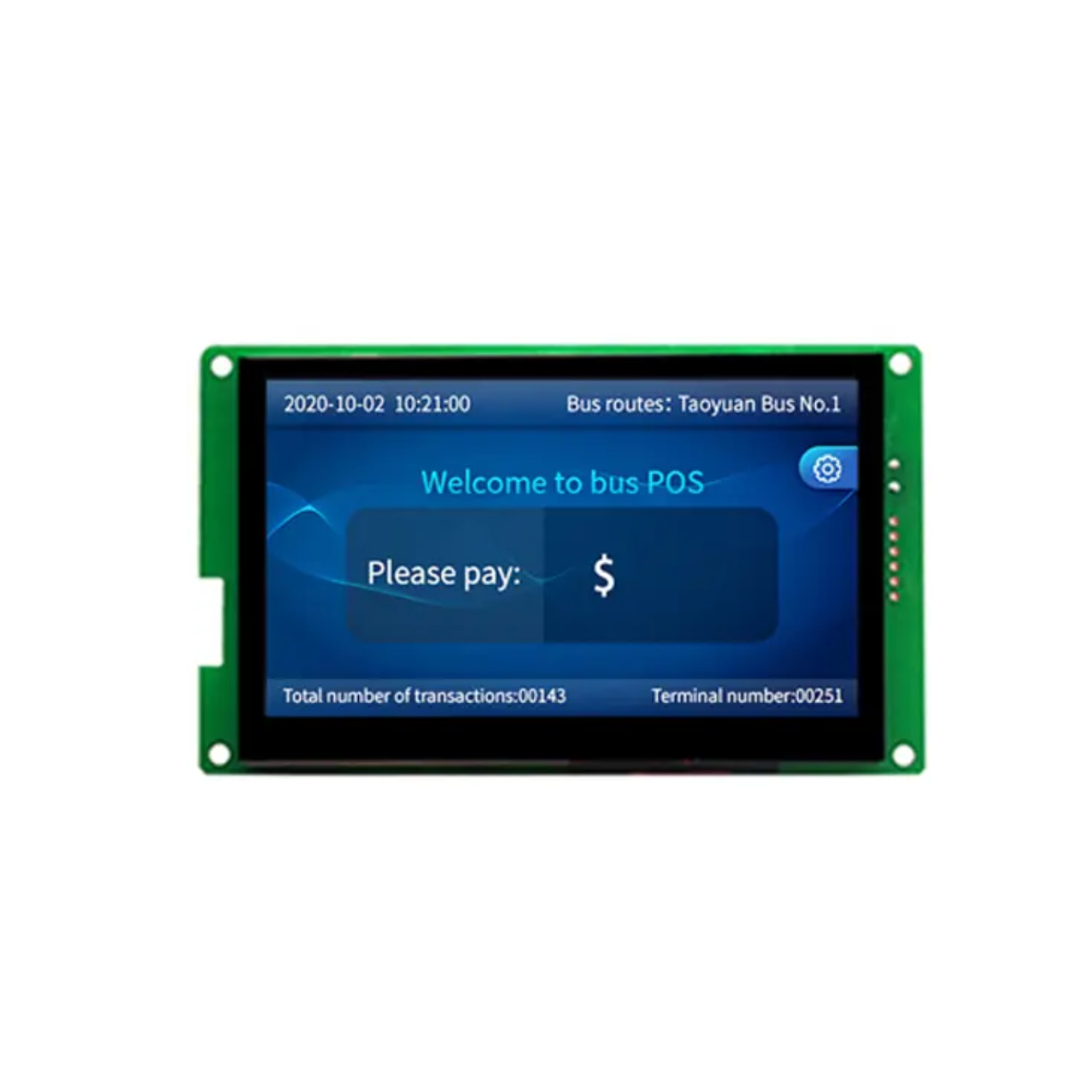

1 x DWIN DMG48270C043_03WTR LCD Display
