Description:

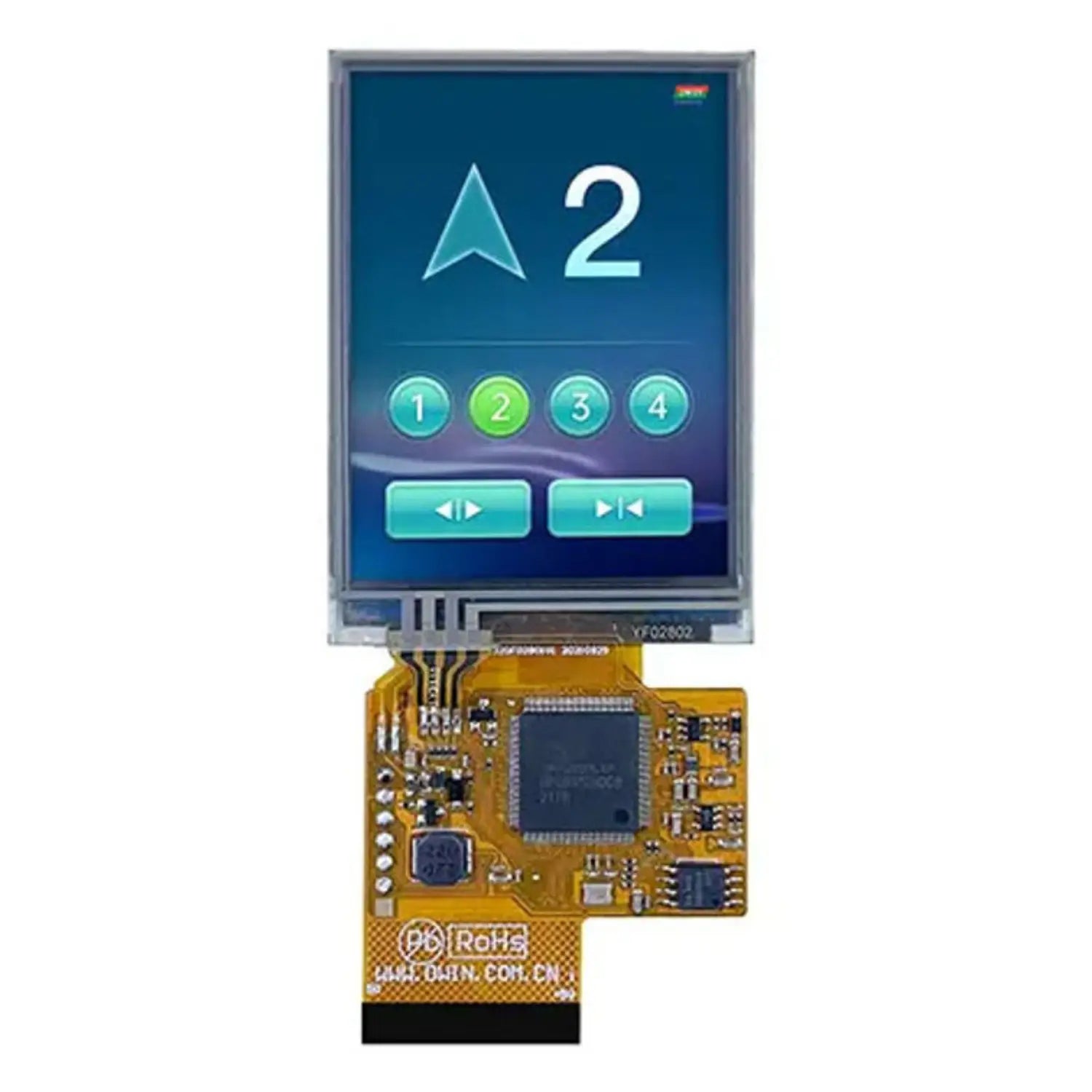

The DWIN DMG32240F028_01WTR 2.8 Inch 320×240 COF TTL LCD Display is a high-quality embedded display module designed for smooth and interactive user interfaces. Equipped with 8MB NOR Flash memory, it allows you to conveniently store and manage user data and custom UI elements.
This module comes pre-installed with DGUS II, DWIN’s advanced GUI development system, making it easy to create your own interface with buttons, text, sliders, graphs, and other interactive components—without complex coding.
At its core, the display runs on the T5L1 DWIN development platform, a powerful and energy-efficient dual-core 8051 processor designed specifically for AIoT and HMI applications. Its resistive touch panel ensures accurate and reliable touch response, ideal for a wide range of industrial, commercial, and DIY projects.
Whether you’re developing a custom control panel, a smart device interface, or a compact embedded display, this DWIN module offers excellent performance, flexibility, and ease of integration.
Specification:
- Display Size: 2.8 inch
- Interface: TTL
- Resolution: 320x240
- Display Panel: TFT
- Touch Type: Resistive
- View Angle: Normal viewing angle, typical value of 70/70/50/70 deg (L/R/U/D)
- Color: 18-bit 6R6G6B
- Display Area: 43.2(W)x57.6(H)
- Power Supply: 5V 1A DC
- LCM interface: None
- Memory: 8MB
- Brightness: 300nit
Features:
- Based on T5L0, running DGUS II system.
- 2.8 inch, 320x240 pixels resolution, 262K colors, TN-TFT-LCD, normal viewing angle.
- Smart screen without TP, product thickness of only 2.8mm, with low-cost
- COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, characterized by a light and thin structure, low cost, and easy production.
- 50 pins interfaces, including IO, UART, CAN, AD, and PWM from the user CPU core for easy secondary development.
Package Included:
1 x DWIN DMG32240F028_01WTR 2.8” 320x240 COF TTL LCD Display
