Description:

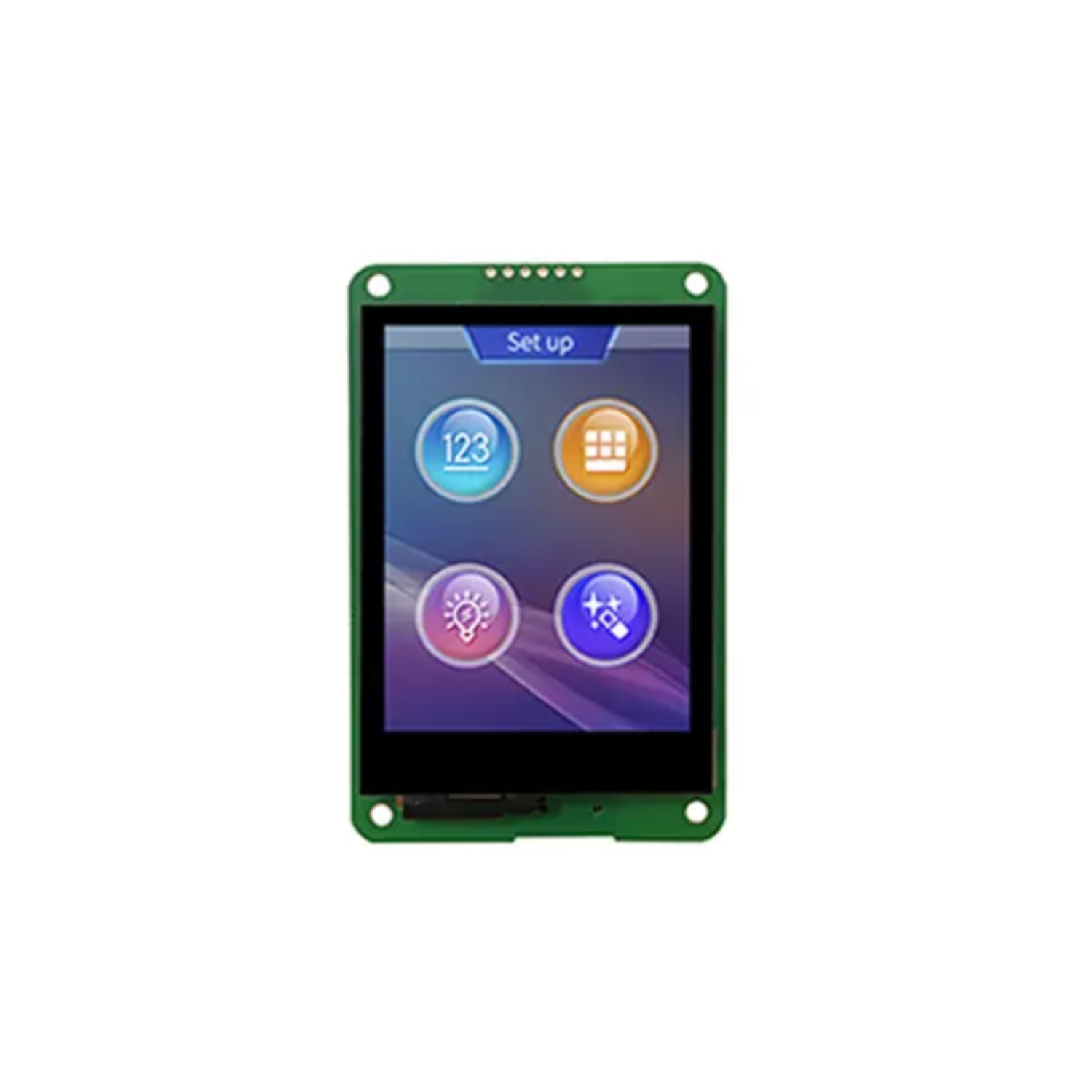

The DWIN DMG32240C028_03WTC offers a compact yet vibrant 2.8-inch IPS LCD with responsive capacitive touch. It's 320x240 resolution delivers crisp visuals, complemented by an integrated buzzer for interactive audio feedback. Benefiting from wide viewing angles and superior color accuracy, this TFT screen is an ideal, reliable display solution for embedded systems and industrial control panels.
Specifications:
- Model No.: DMG32240C028_03W
- LCD Type: TN, TFT LCD
- Display Size: 2.8-inch
- Display Resolution: 320*240
- Viewing Angle: Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
- Resolution: 240×320 pixels (0°/90°/180°/270°
- Active Area: 58.30mm (W)×44.20mm (H)
- Operating Temperature: -20℃~70℃
- Color: 18-bit 6R6G6B
- Operating Voltage: 4.5~5.5V, typical value of 5V
- Baud Rate: 3150~3225600bps, typical value of 115200bps
- Operating humidity: 10%~90%RH, typical value of 60% RH
Features:
- LCM Interface: FPC40_0.5mm, RGB interface.
- Touch Panel Interface:
- Capacitive: COB structure, IIC interface.
- Resistive: FPC4_1.0mm.
- User Interface: 10Pin_1.0mm latching socket for power and serial communication, 12KB/s download rate.
- Flash Memory: 16MB NOR Flash for fonts, images, and audio, with over 100,000 rewrite cycles.
- Buzzer: 3V passive, <1W power consumption.
- SD Card Interface: FAT32 compatible, 4Mb/s download rate.
- FSK Camera Interface: RCA-AV or 2Pin_5.08mm socket.
- PGT05 Interface: Supports DGUS kernel updates to restore functionality after crashes.

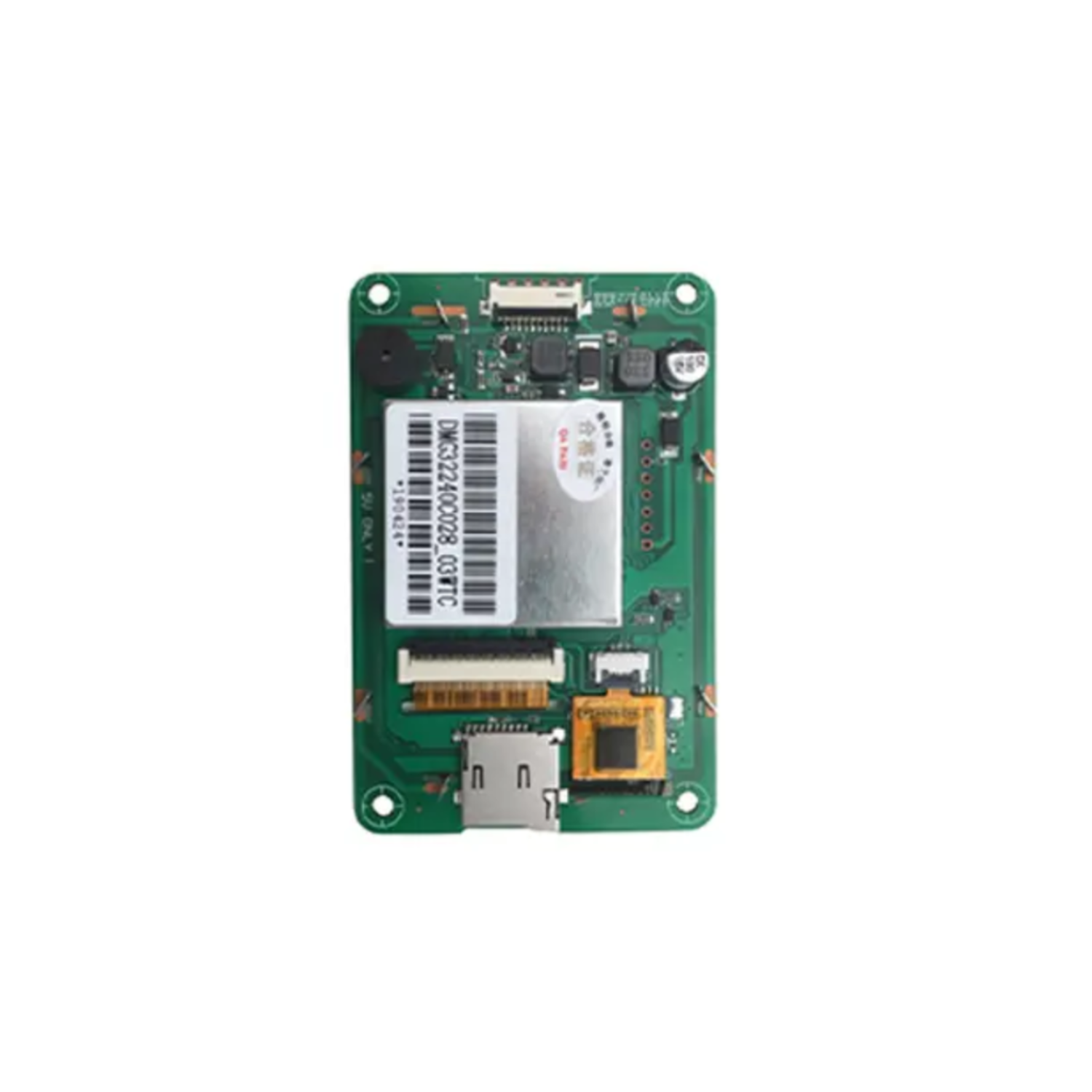

Product Interface:
Package Included:
1 x DWIN DMG32240C028_03WTC IPS LCD
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
