Description:

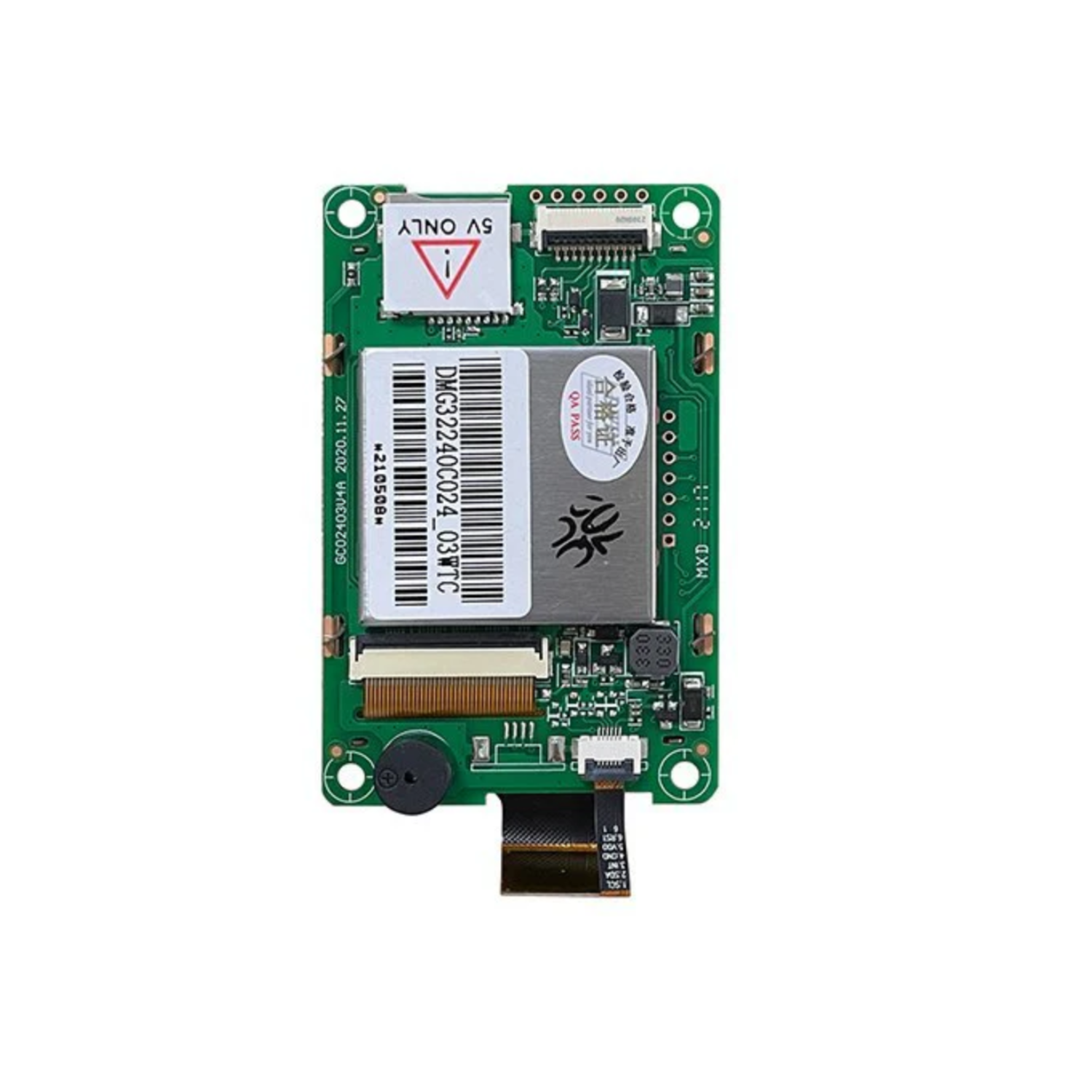

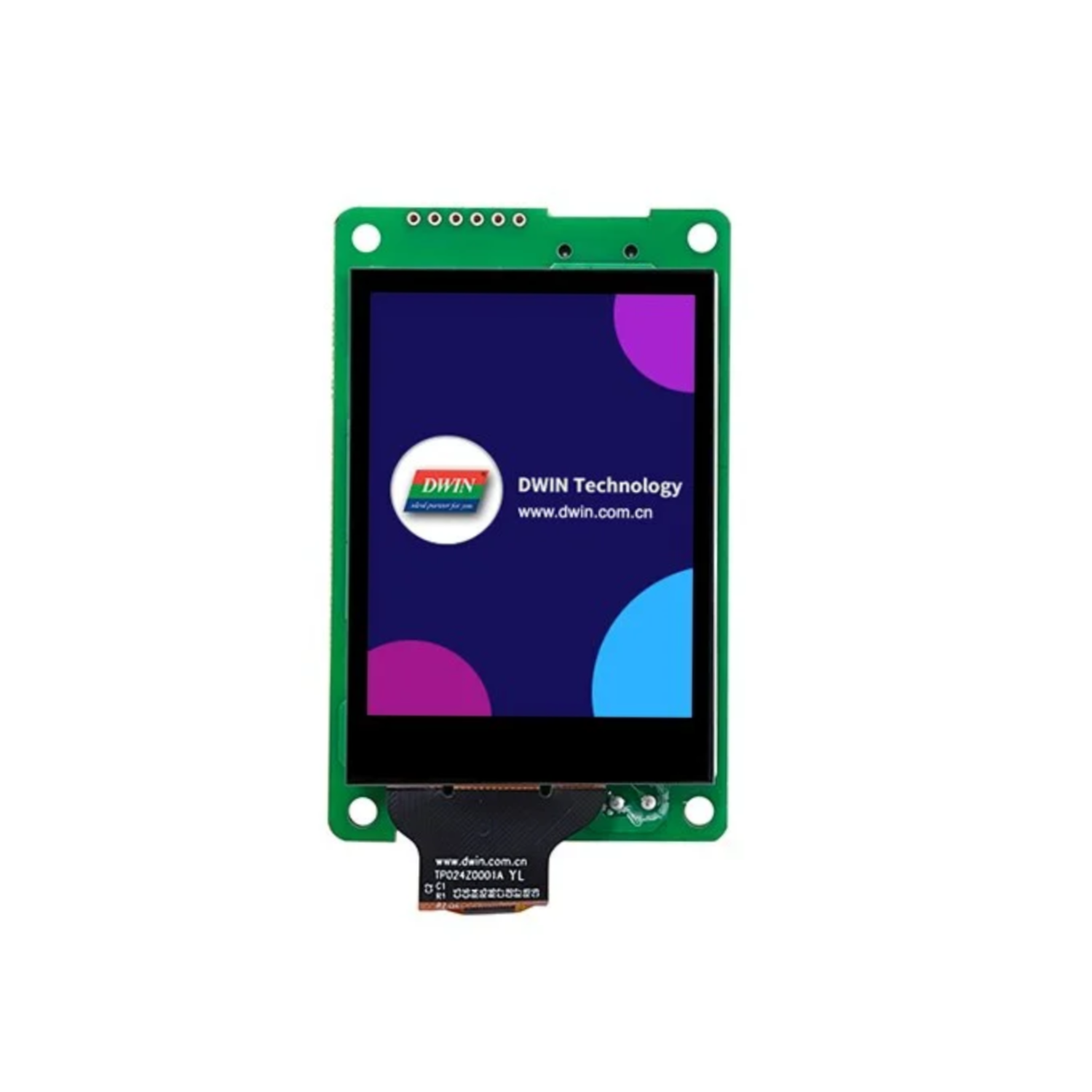

The DWIN 2.4 inch HMI LCD Module. Featuring an IPS display for wider viewing angles and better color reproduction than traditional TFT, coupled with a robust resistive touchscreen that supports diverse input methods. This module offers audible touch indication, UART serial communication, and dedicated GUI design software, making it a cost-effective and reliable solution for interactive systems in industrial and commercial environments like vending machines and more.
Specifications:
- Model Type: DWIN HMI Display
- Model No.: DMG32240C024
- Touch Type: Resistive
- Display Resolution: 320 × 240
- Color: 18-bit 6R6G6B
- Voltage: 4.5~5.5V, typical value of 5V
- Operating Current: VCC=5V, backlight off,110mA, VCC=5V, max backlight, 240mA
- Operating Temperature: -20~70℃
Features:
- Clear visuals with wide viewing angles and 262K colors powered by a custom DWIN T5L ASIC.
- Choose between non-touch, responsive Resistive, or intuitive Capacitive touchscreens.
- Easy and reliable connection with a standard 1.0mm pitch FCC cable.
- Select the ideal development approach with either visual GUI design (DGUS II) or instruction set control (TA).
- Update and program via SD card or direct serial connection using the DGUS TOOL
- Easy to integrate into various applications without adding significant bulk.
- Effortlessly create interactive interfaces with the user-friendly DWIN DGUS V7.6 software, no programming needed.
Package Included:
1 x DWIN 2.4 Inch Smart HMI LCD, Resistive Touch
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
