• DWIN DMG32240C024_03WTC HMI Touchscreen
  • 2.4 inch Capacitive Touch TFT LCD Display
1 2

DWIN

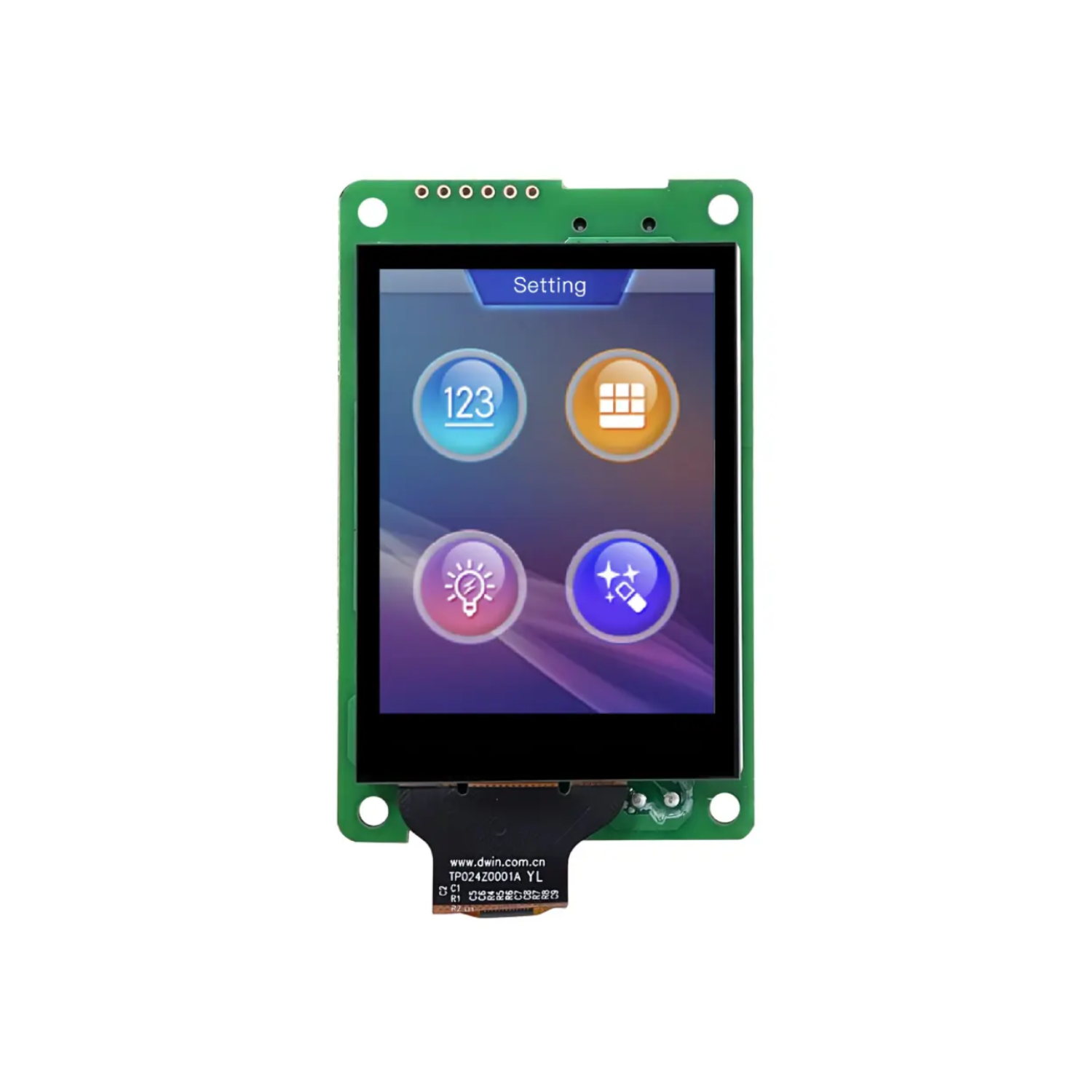

DWIN DMG32240C024_03WTC HMI Touchscreen LCD 2.4 inch Capacitive Touch TFT LCD Display For Embedded Systems

DWIN DMG32240C024_03WTC HMI Touchscreen LCD 2.4 inch Capacitive Touch TFT LCD Display For Embedded Systems

In stock

Rs. 1,465.00
Rs. 1,465.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DWIN DMG32240C024_03W is a 2.4-inch LCD module featuring a 320x240 resolution for sharp image and text rendering. Its compact size makes it well-suited for integration into portable devices, handheld instruments, and space-limited embedded systems, offering a reliable and durable visual interface.

Specifications:

  • Display Size: 2.4"
  • LCD Type: TN, TFT LCD
  • Viewing Angle: 70°/70°/50°/70°（L/R/U/DViewing Angle)
  • Color: 18-bit 6R6G6B
  • Active Area: 36.7mm (W)×49.0mm (H)
  • Resolution: 240×320 pixels
  • Brightness: 250ncd/m2

Features:

  • Driven by T5L0 and DGUS II for reliable operation.
  • 2.4-inch TN-TFT-LCD with 240x320 resolution and vibrant 262K colors.
  • Seamless interaction with the capacitive touch screen.
  • Fine-tune brightness levels from 0-100 (note potential flicker at very low settings).
  • Ensures long-term visibility with over 20,000 hours of operation.

Product Interface:

Package Included:

1 x DWIN DMG32240C024_03WTC HMI Touchscreen LCD

DWIN Smart LCD Display Accessories (Need to purchase separately)
