Dwin DMG19108C116_05WTR 11.6 Inch Full HD 2K HMI LCD Display with 1920x1080 Resistive Touch and UART Interface for Industrial Applications
Dwin DMG19108C116_05WTR 11.6 Inch Full HD 2K HMI LCD Display with 1920x1080 Resistive Touch and UART Interface for Industrial Applications
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

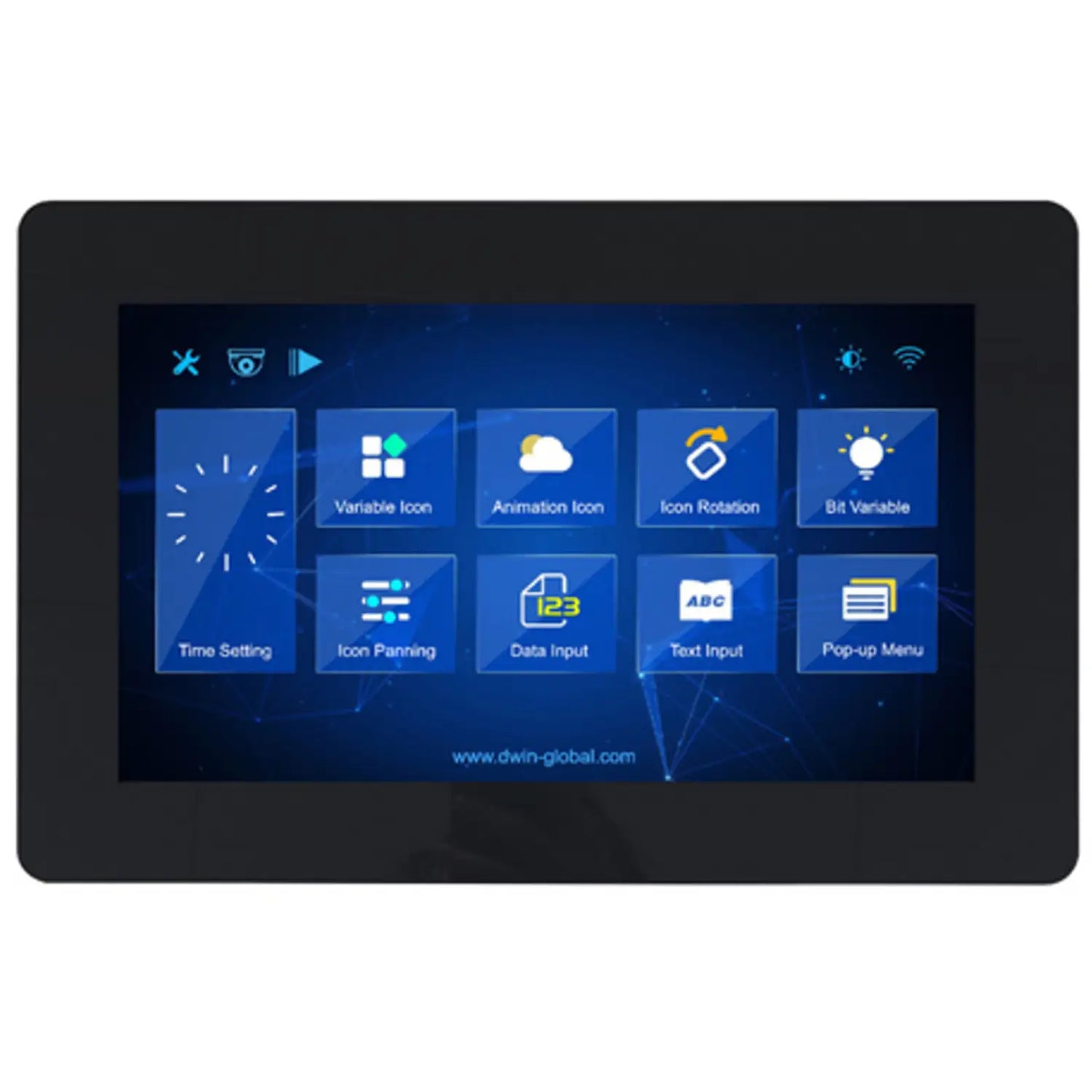

The Dwin DMG19108C116_05WTC 11.6 Inch 2K HD Smart Screen is a high-resolution HMI display designed for advanced industrial and commercial applications. Powered by three T5L2 chips running on the DGUS II system, this smart screen offers smooth performance and responsive touch control.
It features a large 11.6-inch IPS display with 1920×1080 2K HD resolution, delivering crisp visuals and a wide viewing angle for comfortable monitoring from any position. Enhanced functionality comes from its onboard buzzer, RTC (Real-Time Clock), and speaker interface, making it suitable for interactive applications.
The screen supports UART2 communication, providing flexible integration options. When set to ON, it operates in TTL/CMOS mode, and when OFF, it works as RS232, enabling easy connectivity with various devices and systems. This combination of high resolution, versatile communication, and robust features makes the DMG19108C116_05WTC an ideal choice for smart industrial interfaces.
Specification:
- Display Size: 11.6 inch
- Resolution: 1920x1080
- Display Panel: IPS, TFT LCD
- Touch Type: Resistive
- View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Deg (L/R/U/D)
- Color: 24-bit 8R8G8B
- Display Area: 257.3mm (W) x 145.2mm (H)
- Power Supply: 12~36V
- Brightness: 150nit
- Interface: TTL
- Working temperature: -10~60 °C
Features:
- Based on three T5L2 chips, running the DGUS II system
- With onboard buzzer, RTC, and speaker interface
- 11.6-inch, 1920*1080 pixels, IPS wide viewing angle, 2K HD smart screen
- UART2: ON=TTL/CMOS; OFF=RS232
- Support FSK camera function (Without FSK camera interface at the factory, only reserve its circuit, need to customize to add FSK camera interface)
- Support audio and video playback
Package Included:
1 x Dwin DMG19108C116_05WTR 11.6 Inch Full HD 2K HMI LCD Display
