DWIN

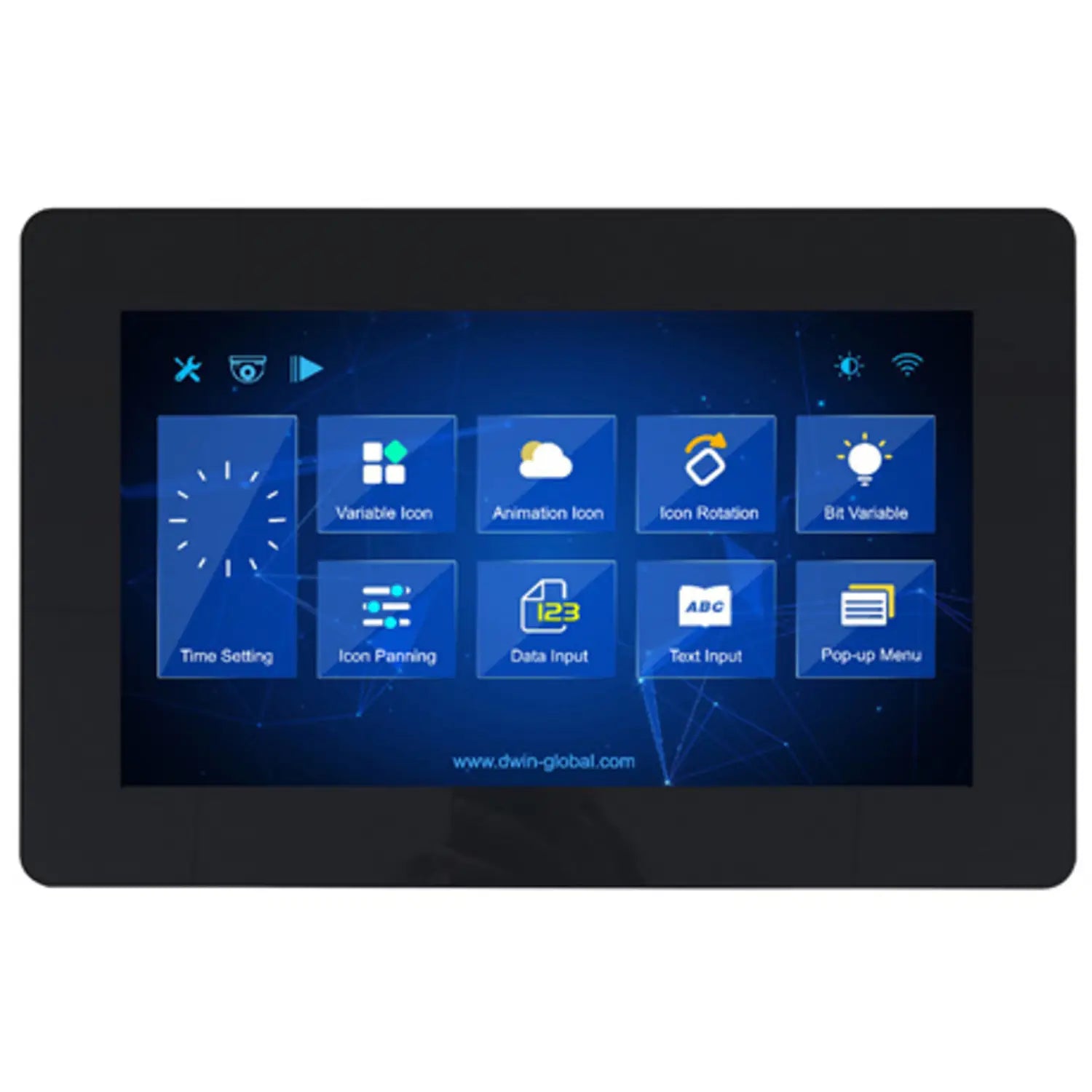

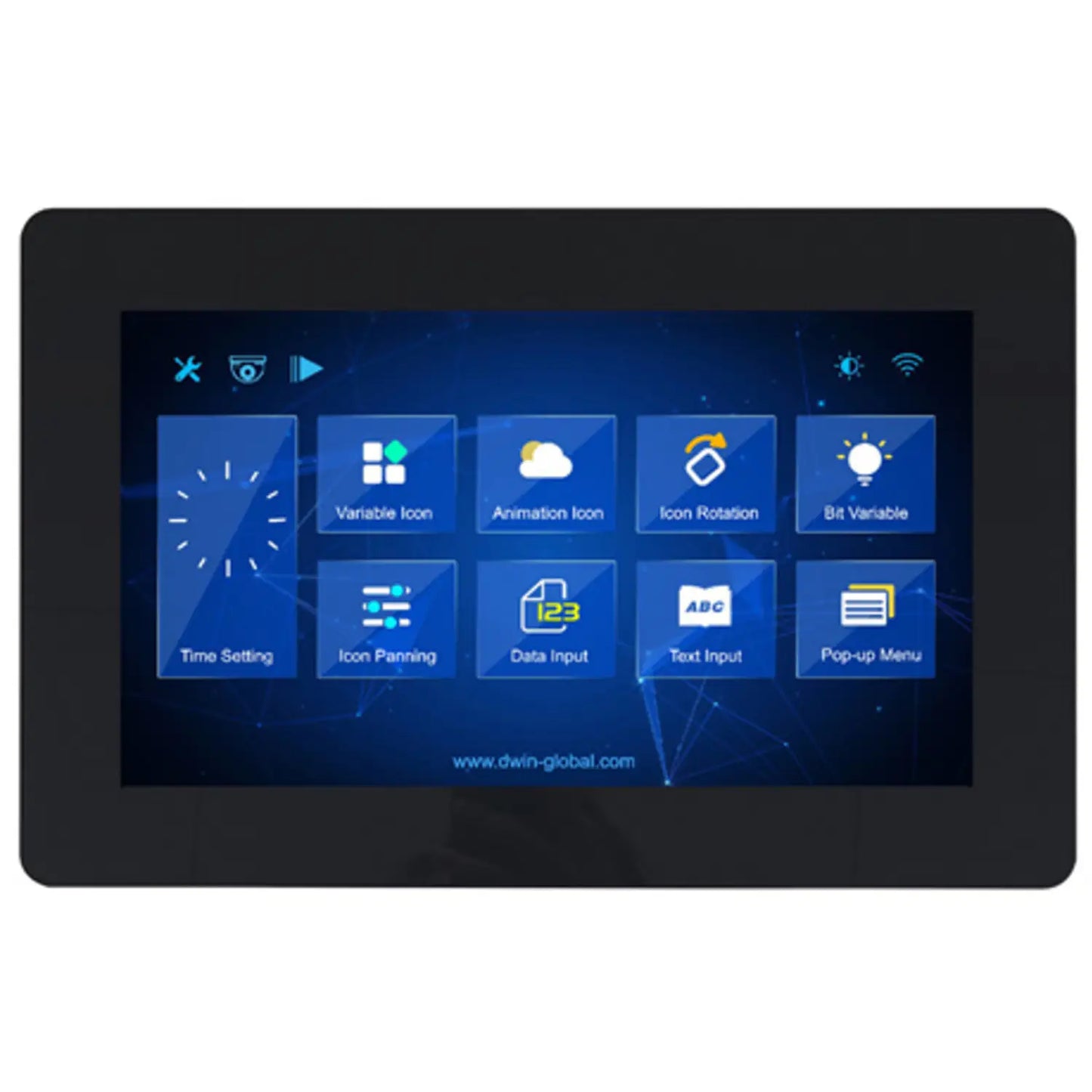

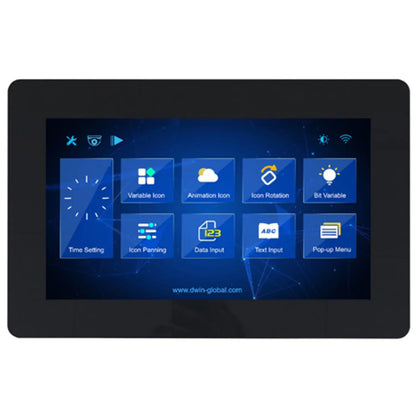

Dwin DMG19108C116_05WTC 11.6 Inch 1920x1080 Full HD HMI LCD Display – Premium Capacitive Touchscreen with UART for Reliable Industrial Use
Dwin DMG19108C116_05WTC 11.6 Inch 1920x1080 Full HD HMI LCD Display – Premium Capacitive Touchscreen with UART for Reliable Industrial Use
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The Dwin DMG19108C116_05WTC 11.6 Inch High-Resolution 2K HD Smart Screen is engineered for superior performance and versatility. Powered by three T5L2 chips and running on the DGUS II system, this smart screen delivers fast and reliable operation for industrial and professional applications.
Featuring a vivid 11.6-inch IPS display with 1920×1080 Full HD resolution, it ensures crisp visuals and a wide viewing angle, allowing users to see content clearly from multiple perspectives. The screen also includes an onboard buzzer, RTC (Real-Time Clock), and speaker interface, enhancing its functionality for a variety of applications.
With its flexible UART2 communication, the screen can be configured to TTL/CMOS mode when ON or RS232 mode when OFF, enabling seamless integration with diverse devices and systems. The combination of high-resolution visuals, versatile connectivity, and smart features makes this display ideal for industrial, HMI, and professional touchscreen applications.
Specification:
- Display Size: 11.6 inch
- Resolution: 1920x1080
- Display Panel: IPS, TFT LCD
- Touch Type: Capacitive
- View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Deg (L/R/U/D)
- Color: 24-bit 8R8G8B
- Display Area: 257.3mm (W) x 145.2mm (H)
- Power Supply: 12~36V
- Brightness: 200nit
- User Interface: 8Pin_2.0mm socket for power supply and serial communication.
- Download rate(typical value): 12KByte/s
- Working temperature: -10~60 °C
- Structure: G+FF structure with surface cover of tempered glass
- Surface Hardness: 6H
Features:
- Based on three T5L2 chips, running the DGUS II system
- With onboard buzzer, RTC, and speaker interface
- 11.6-inch, 1920*1080 pixels, IPS wide viewing angle, 2K HD smart screen
- UART2: ON=TTL/CMOS; OFF=RS232
- Support FSK camera function (Without FSK camera interface at the factory, only
- reserved its circuit, need to customize to add FSK camera interface)
- Support audio and video playback
Useful Link:
Dwin DMG19108C116_05WTC 11.6 Inch 1920x1080 Full HD HMI LCD Display
Package Included:
1 x Dwin DMG19108C116_05WTC 11.6 Inch 1920x1080 Full HD HMI LCD Display
