Dwin DMG19108C116_05WN 11.6 Inch 1920x1080 2K Full HD HMI LCD Display Non-Touch with UART Interface for Industrial and Embedded Applications
Dwin DMG19108C116_05WN 11.6 Inch 1920x1080 2K Full HD HMI LCD Display Non-Touch with UART Interface for Industrial and Embedded Applications
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

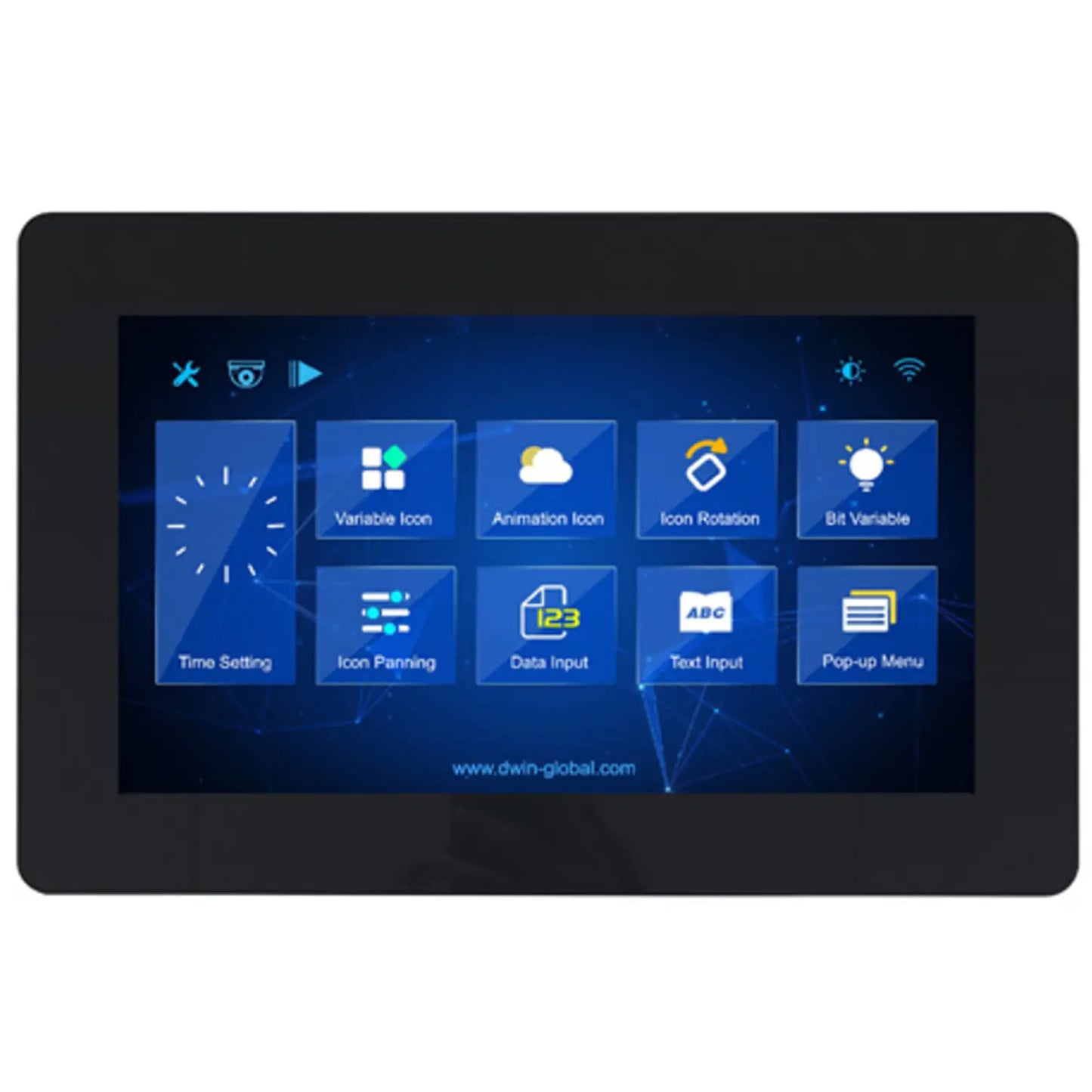

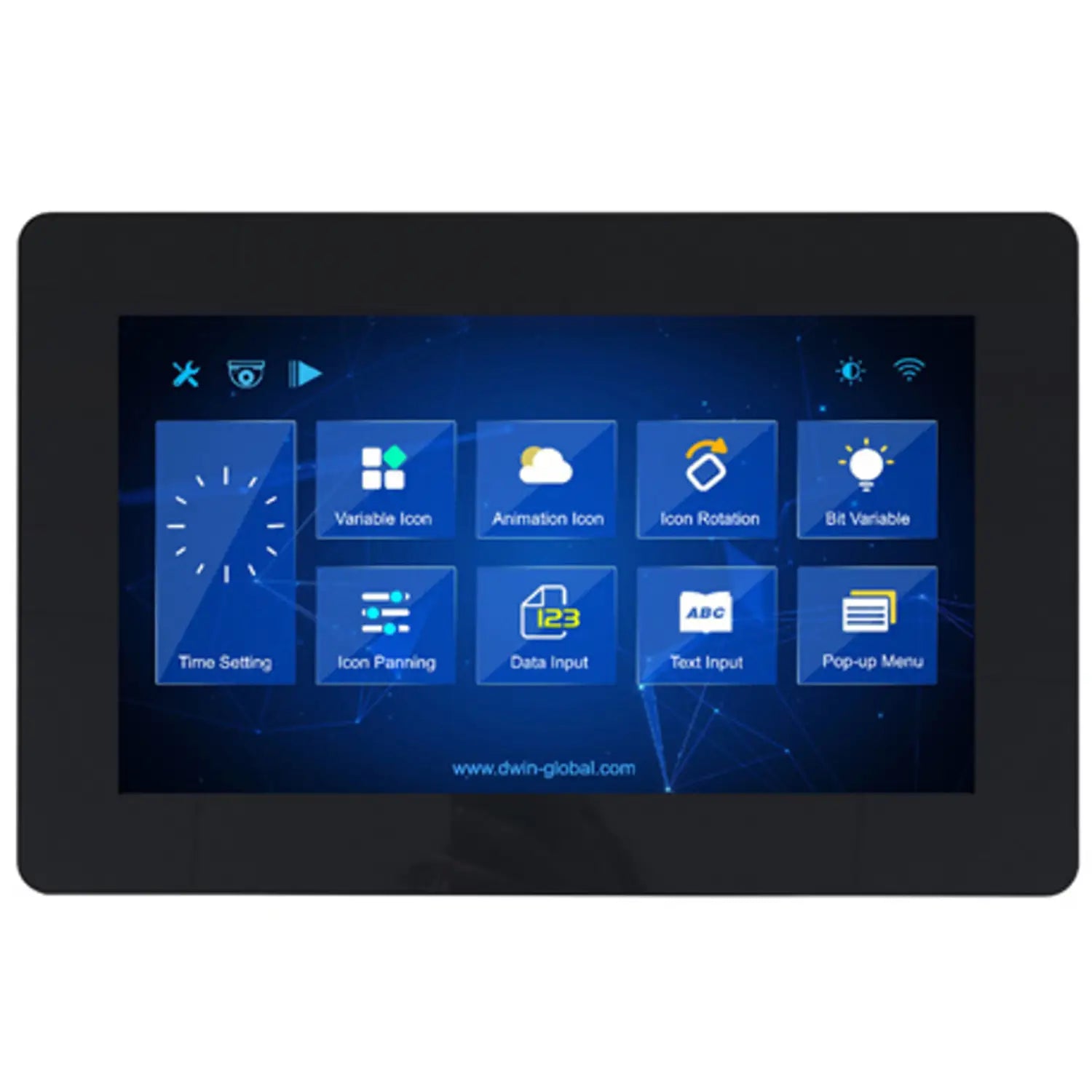

The Dwin DMG19108C116_05WTC 11.6-Inch Smart Screen is a high-performance display designed for advanced HMI applications. Featuring a 1920×1080 Full HD IPS panel, it delivers crisp visuals, vibrant colors, and wide viewing angles for an exceptional user experience. Powered by three T5L2 chips and running on the DGUS II system, this smart screen ensures smooth performance and reliable operation.
Built-in features include an onboard buzzer, RTC (Real-Time Clock), and speaker interface, enhancing its functionality for a wide range of industrial and commercial applications. The UART2 communication interface provides flexible connectivity—set to TTL/CMOS when ON or RS232 when OFF—making it highly adaptable for seamless integration with various systems.
Ideal for professional and embedded display solutions, this 11.6-inch 2K HD smart screen combines cutting-edge performance with versatile communication options.
Specification:
- Display Size: 11.6 inch
- Resolution: 1920x1080
- Display Panel: IPS, TFT LCD
- Touch Type: Non-Touch
- View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Deg (L/R/U/D)
- Color: 24-bit 8R8G8B
- Display Area: 257.3mm (W) x 145.2mm (H)
- Power Supply: 12~36V
- Brightness: 250nit
- Interface: TTL
- Working temperature: -10~60C
Features:
- Based on three T5L2 chips, running DGUS II system
- With onboard buzzer, RTC, and speaker interface
- 11.6-inch, 1920*1080 pixels, IPS wide viewing angle, 2K HD smart screen
- UART2: ON=TTL/CMOS; OFF=RS232
- Support FSK camera function (Without FSK camera interface at the factory, only reserved its circuit, need to customize to add FSK camera interface)
- Support audio and video playback
Package Included:
1 x Dwin DMG19108C116_05WN 11.6 Inch 1920x1080 2K Full HD HMI LCD Display Non-Touch
