Description:

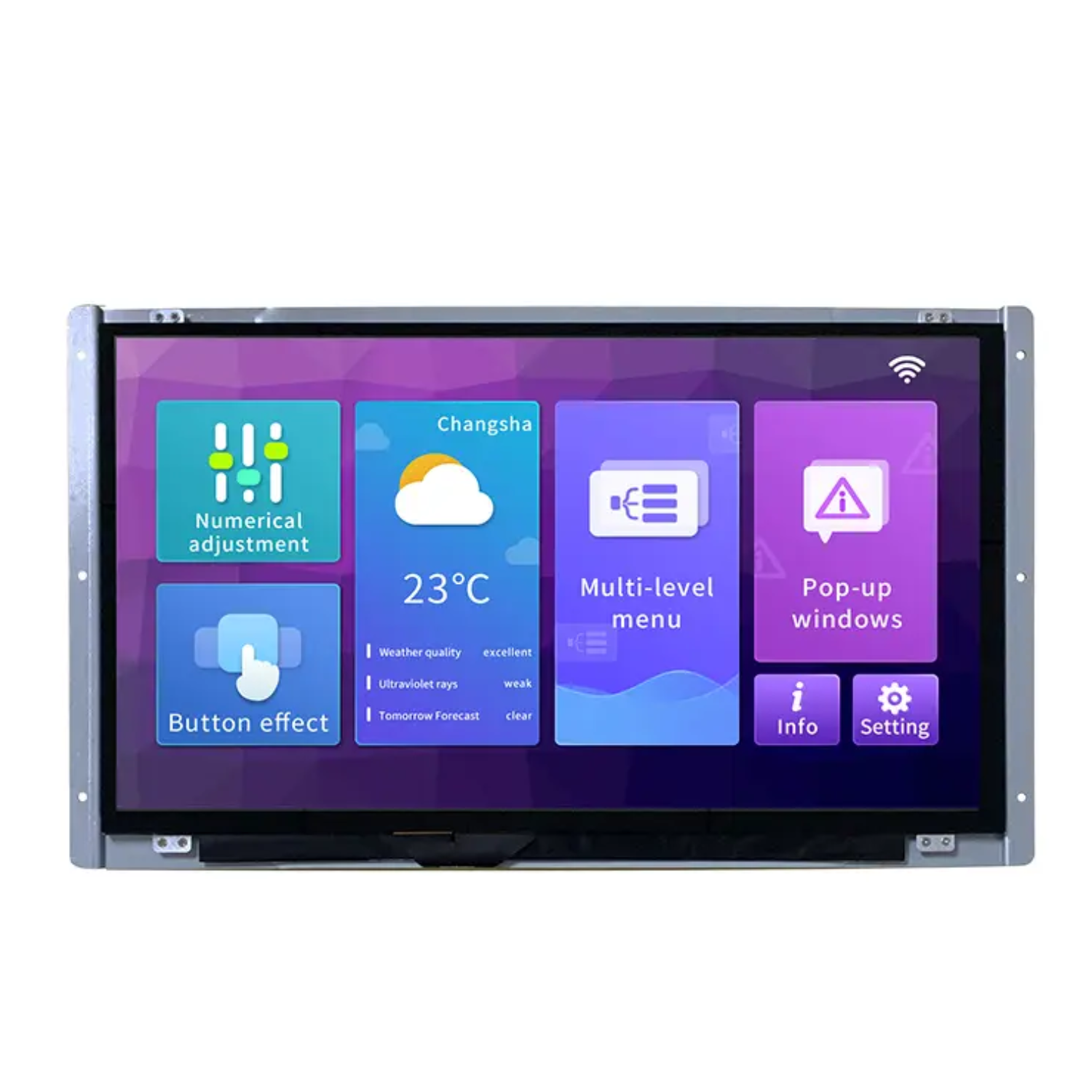

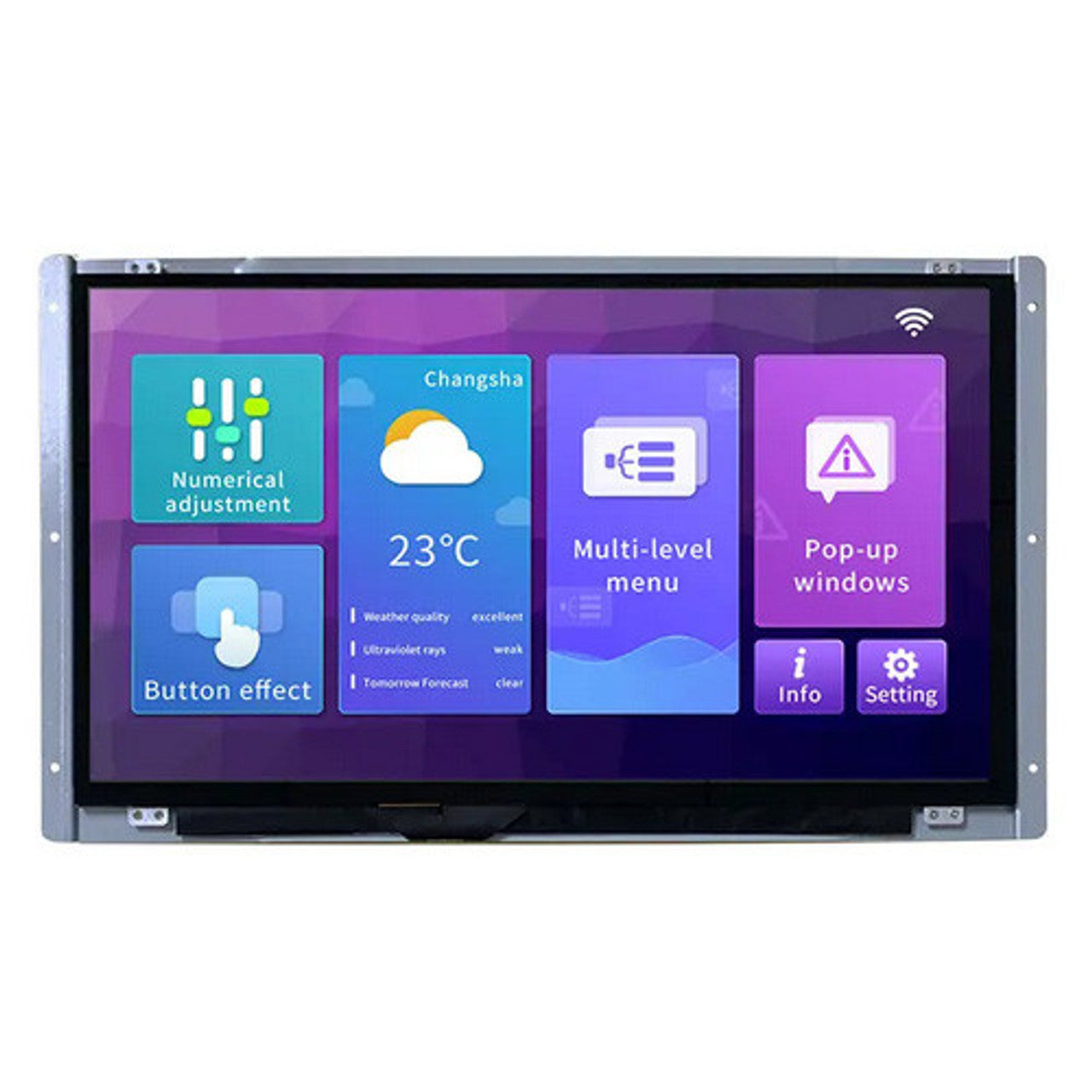

The DWIN 15.6" HMI LCD display integrates a capacitive touch interface and UART connectivity, built upon the robust T5L ASIC. This commercial-grade unit displays 262K colors on an 18-bit TFT LCD with a 1366x768 resolution and a typical viewing angle, supporting both single-point and drag touch operations.
Firmware and GUI updates are facilitated through an SD card or an online serial port. The DWIN DGUS V7.6 development environment allows for rapid GUI creation without coding, leveraging a dual system architecture that supports DGUS II and TA instruction sets.
Specifications:
- Model Type: HMI LCD Display
- Display Size: 15.6"
- Resolution: 1366×768 Pixels
- Touch Type: Capacitive
- Model No.: DMG13768C156_03W
- Viewing Angle: Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
- Color: 262K(262144) colors
- Display Area: 343.2mm (W) ×192.5mm (H)
- LCD Type: TFT
- Output Voltage: Output 0, Iout =-1mA;0~0.4 V, Output 1, Iout = 1mA;4.78~5.0 V
- Input Voltage: Input 0, Iin = -1mA;0~1.0V, Input 1, Iin = 1mA;2.5~5.0V
Features:
- Large 15.6-inch Display: Provides ample screen real estate for comfortable operation.
- Clear 1366x768 Resolution: Offers good visual detail for various applications.
- Responsive Capacitive Touchscreen: Delivers a smooth and intuitive user experience.
- Flexible UART Connectivity: Enables easy integration with external systems.
- Reliable Performance (DWIN T5L): Ensures stable and efficient display operation.
- Rich Color Output (262K): Displays vibrant and lifelike visuals.
- Standard Viewing Comfort: Designed for comfortable viewing from typical angles.
- Comprehensive Touch Support: Handles both precise selections and fluid dragging actions.

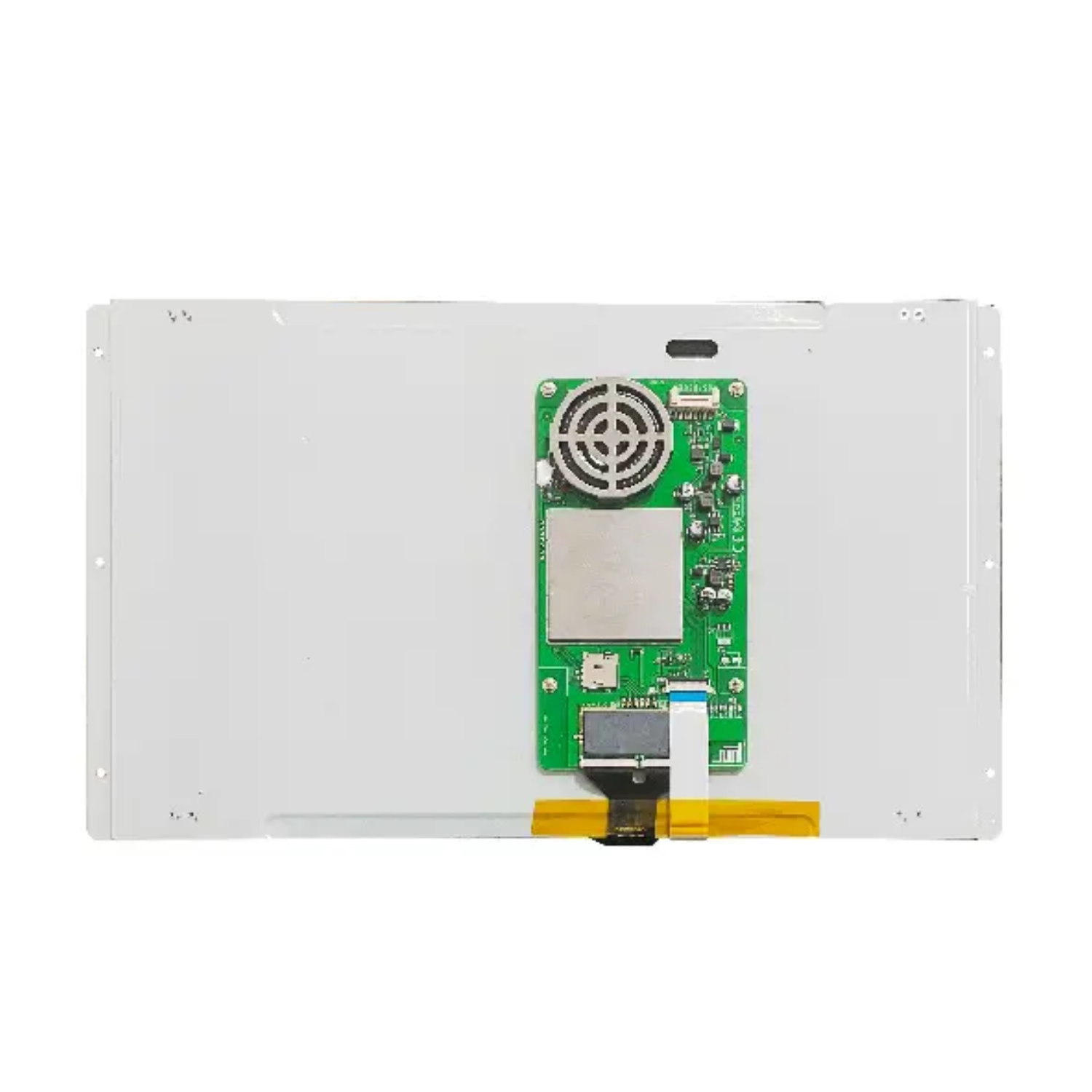

Product Interface:
Useful Link:

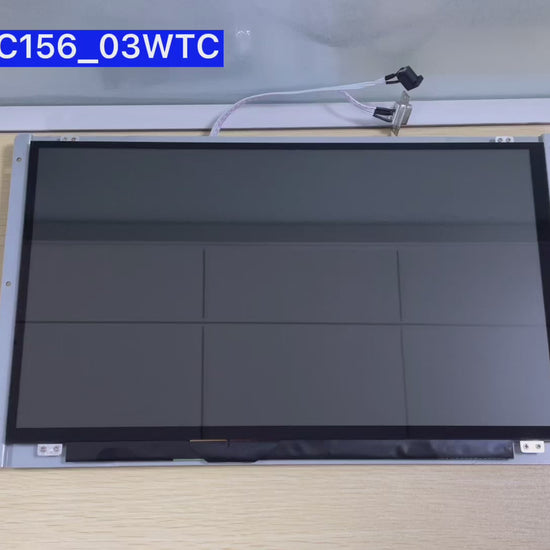

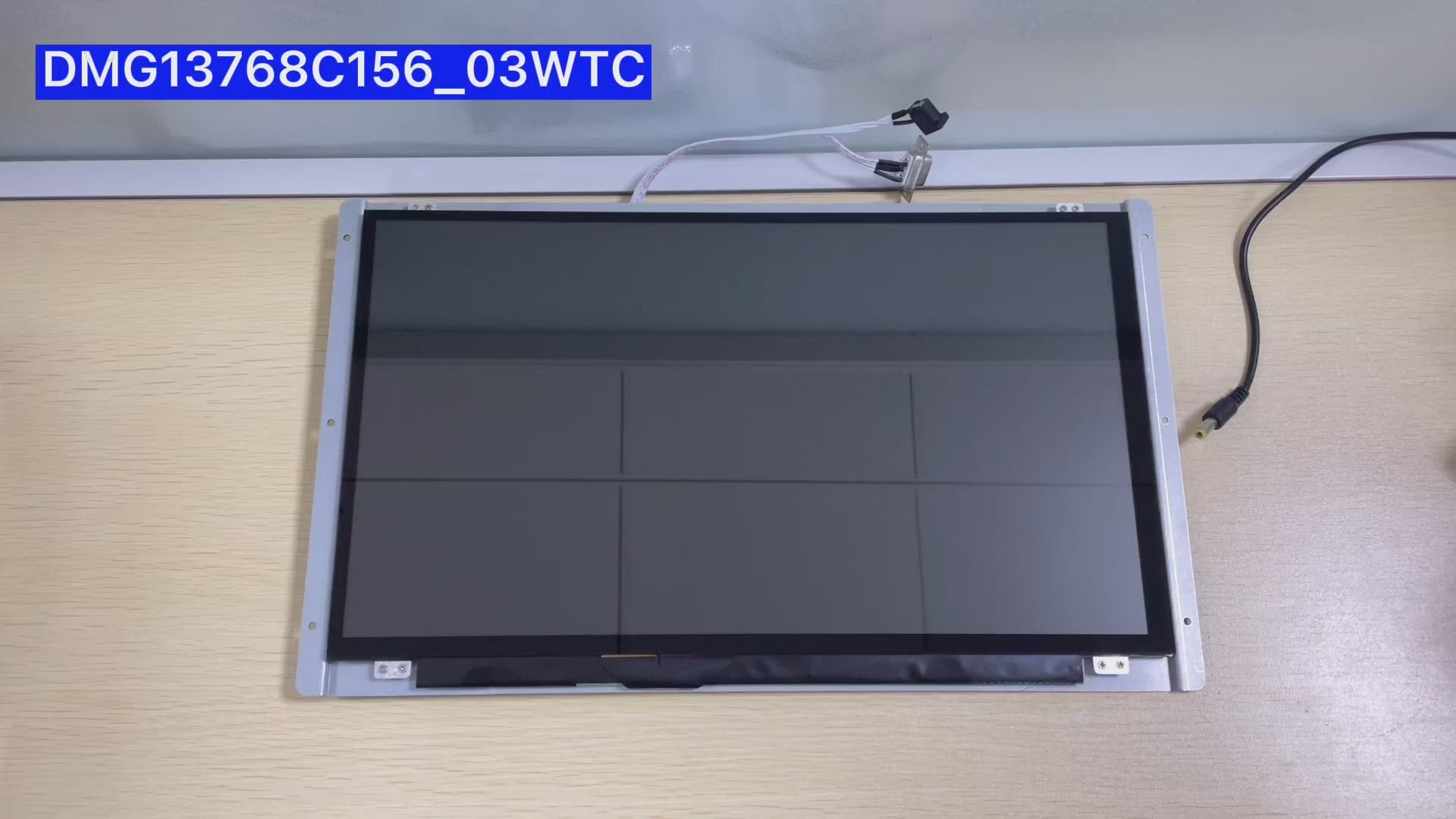

DWIN DMG13768C156_03WTC HMI LCD Display
Package Included:
1 x DWIN DMG13768C156_03WTC HMI LCD Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
