Description:

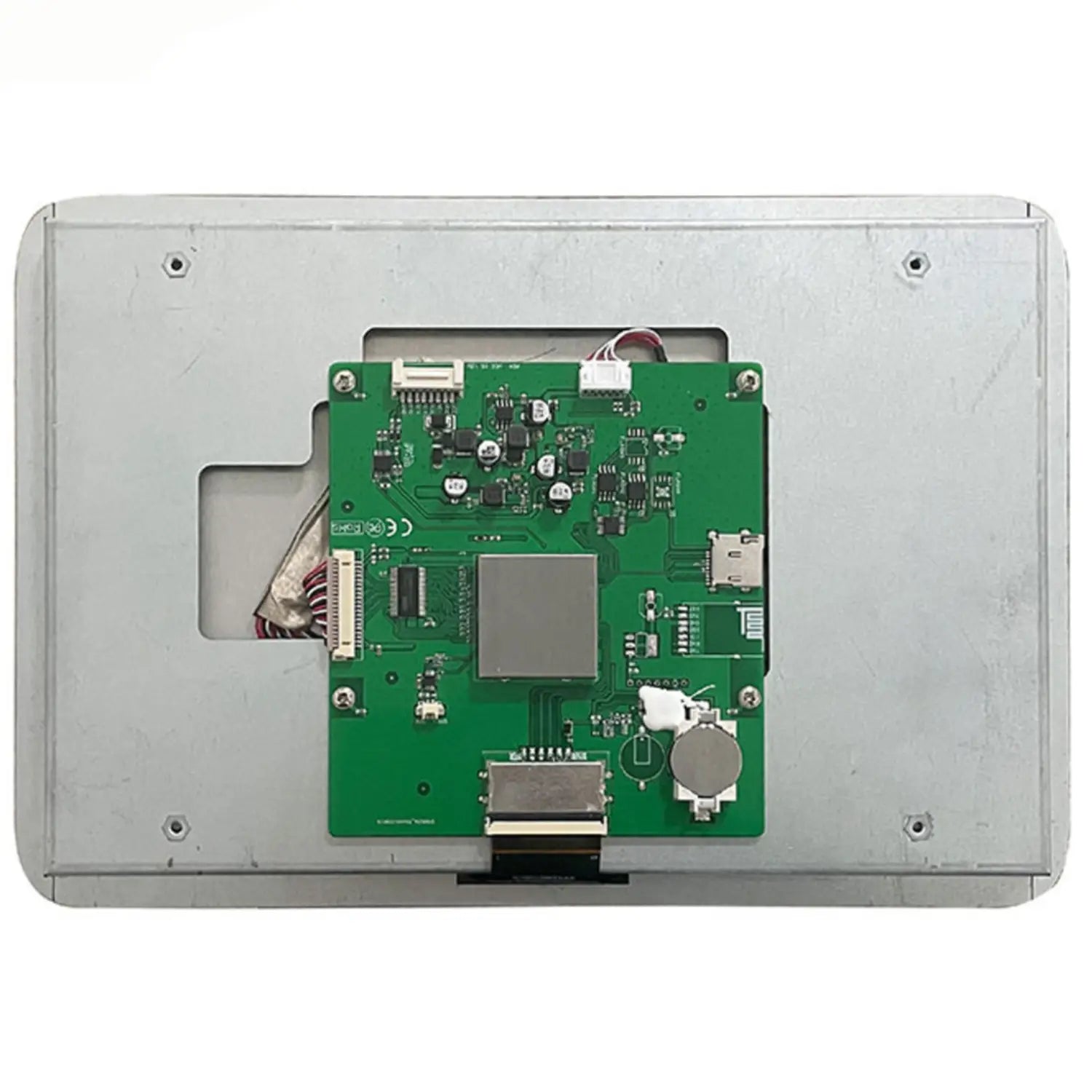

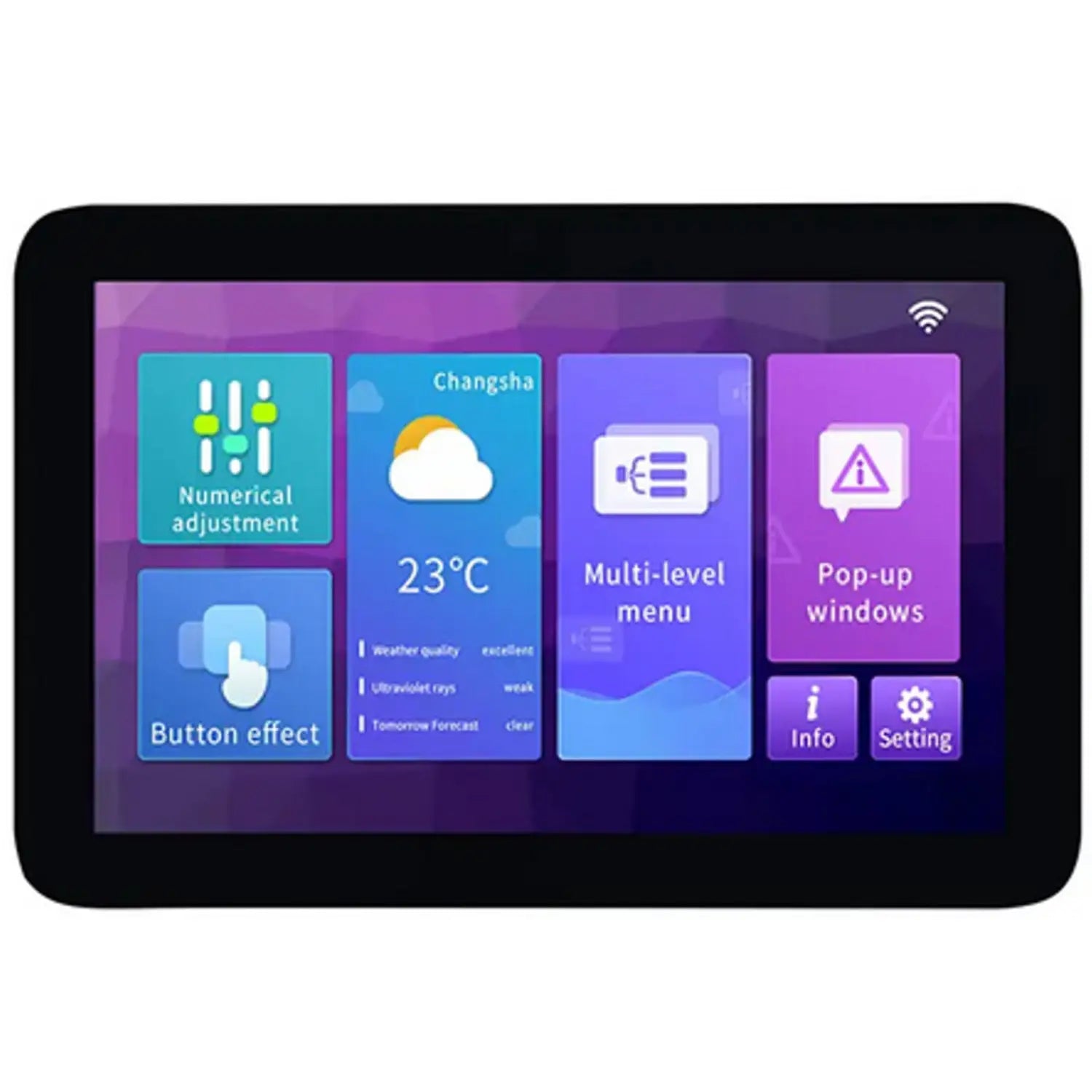

The Dwin DMG12800C121_02WTC 12.1-Inch TFT LCD Display is a commercial-grade smart HMI module designed for high-performance industrial and commercial applications. Powered by a self-developed T5L ASIC chip, it delivers vivid visuals with 16.7 million colors and 24-bit color depth, ensuring sharp and lifelike images.
With a 1280×800 resolution TFT TN LCD panel and an integrated capacitive touch screen, it offers smooth interactive input and a reliable user experience. The display uses a TTL interface with an 8-pin 2.0mm connection for seamless integration.
For data transfer, the module supports SD card download and online serial port communication, making updates simple and efficient. It is fully compatible with DWIN DGUS V7.6 GUI development software, which allows easy interface design without requiring coding skills. Additionally, the module supports a dual development system (DGUS II / TA instruction sets) for flexible application development.
This robust HMI display is an excellent choice for industrial equipment, automation systems, kiosks, medical devices, and other commercial applications requiring durability, performance, and ease of use.
Specification:
- Display Size: 12.1 inch
- Resolution: 1280x800
- Display Panel: TN, TFT LCD
- Touch Type: Capacitive
- View Angle: Viewing Angle is 70/70/50/70 degrees (L/R/U/D)
- Color: 16.7M colors
- Display Area: 261.12mm (W) ×163.20mm (H)
- Power Supply: 12~36V
- Interface: TTL
- Working temperature: -20C~70C
- Structure: G+G structure with Asahi tempered glass surface cover
- Surface Hardness: 6H
- Brightness: 400nit
Features:
- Self-designed T5L ASIC
- 16.7M Color, 24-bit
- Resolution: 1280*800 pixels
- TFT TN LCD
- Capacitive touch panel
- TTL interface with 8Pin_2.0mm connection wire
- Download the SD card or the online serial port
- PC software: DWIN DGUS V7.6 GUIs Development (No coding skills required)
- Dual Development System: DGUS II/TA (Instruction Set)
- View Angle: 70/70/50/70 (L/R/U/D)
- GUI OS dual-core
- Open kernel for second development via DWIN OS Language or C51
Package Included:
1 x Dwin DMG12800C121_02WTC 12.1 Inch HMI LCD Display
