Description:

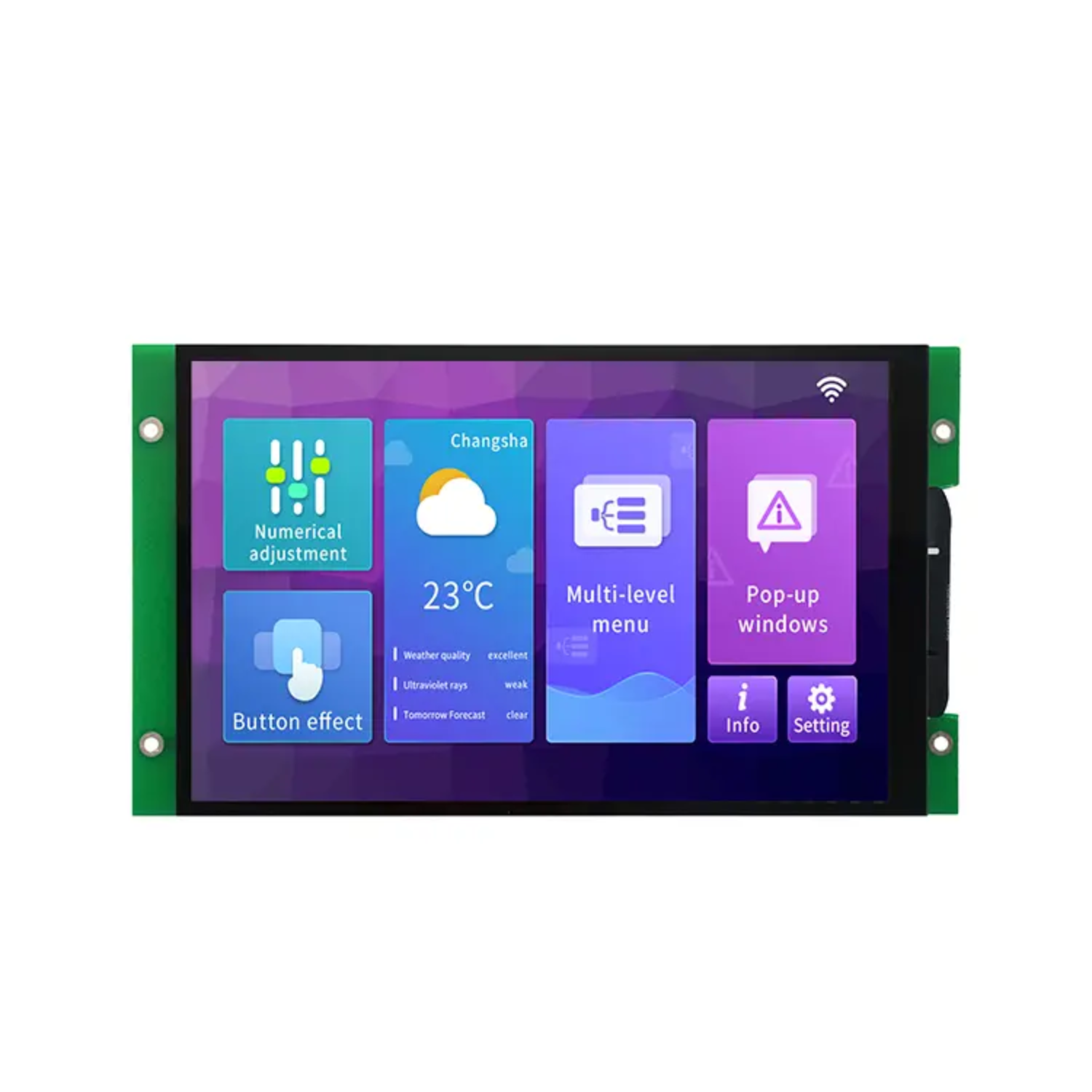

The DWIN DMG12800C080_03WTC 8-inch HMI LCD Display delivers sharp 1280x800 visuals and intuitive capacitive touch for seamless user interaction. Designed for commercial-grade reliability, its UART connectivity ensures easy integration, making it ideal for industrial automation, smart devices, and robust control systems.
Specifications:
- Model No.: DMG12800C080_03W
- LCD Type: TN, TFT LCD
- Touch Type: Capacitive
- Display Resolution: 1280 x 800
- Display Size: 8"
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Color: 24-bit 8R8G8B
- Input Voltage: Input 0, Iin = 4mA;0~1.0V, Input 1, Iin = 4mA;2.4~5.5V
- Output Voltage: Output 0, Iout =4mA;0.1~0.4 V, Output 1, Iout = -4mA; 2.7~3.2V
- Display Area: 172.22mm (W) ×107.64 mm (H)
- Storage Temperature: -20~60°C
- Operating Temperature: -10~50℃
Features:
- 8.0" IPS Display: Vibrant 1280x800 resolution with 16.7M colors and wide viewing angles.
- Flexible Touch: Choose from No, Resistive, or Capacitive touch.
- Versatile Connectivity: Dual UART (TTL/CMOS or RS232) for broad compatibility.
- No-Code Development: Easy GUIs with DWIN DGUS V7.6, no coding needed.
- Expandable Storage: Up to 64MB NOR Flash, optional 512MB NAND.
- Onboard Audio: Integrated 2W speaker.
- SD Card Support: Simple file downloads (4MB/s).

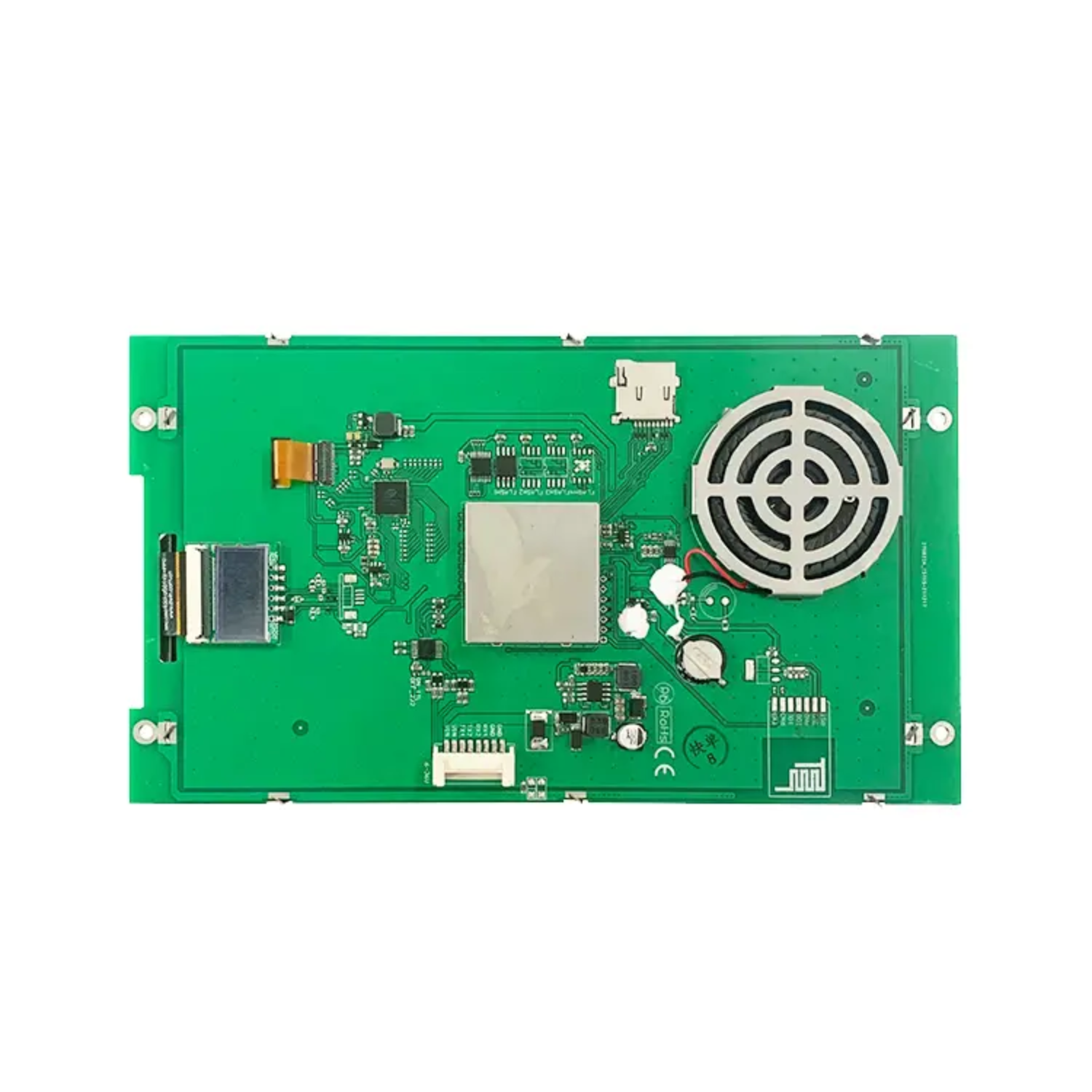

Product Interface:
Useful Link:
DWIN DMG12800C080_03WTC HMI LCD Display
Package Included:
1 x DWIN DMG12800C080_03WTC HMI LCD Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
