Description:

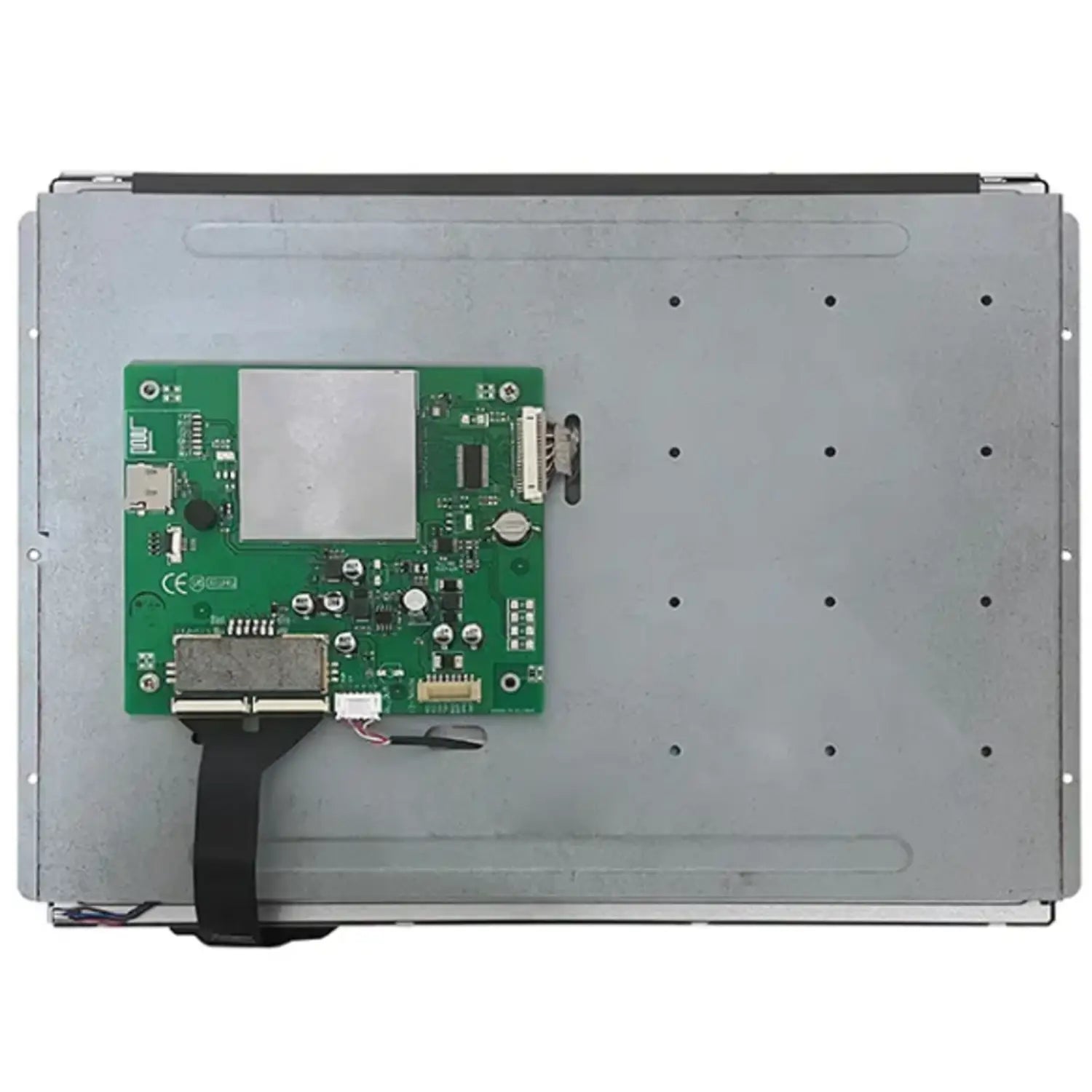

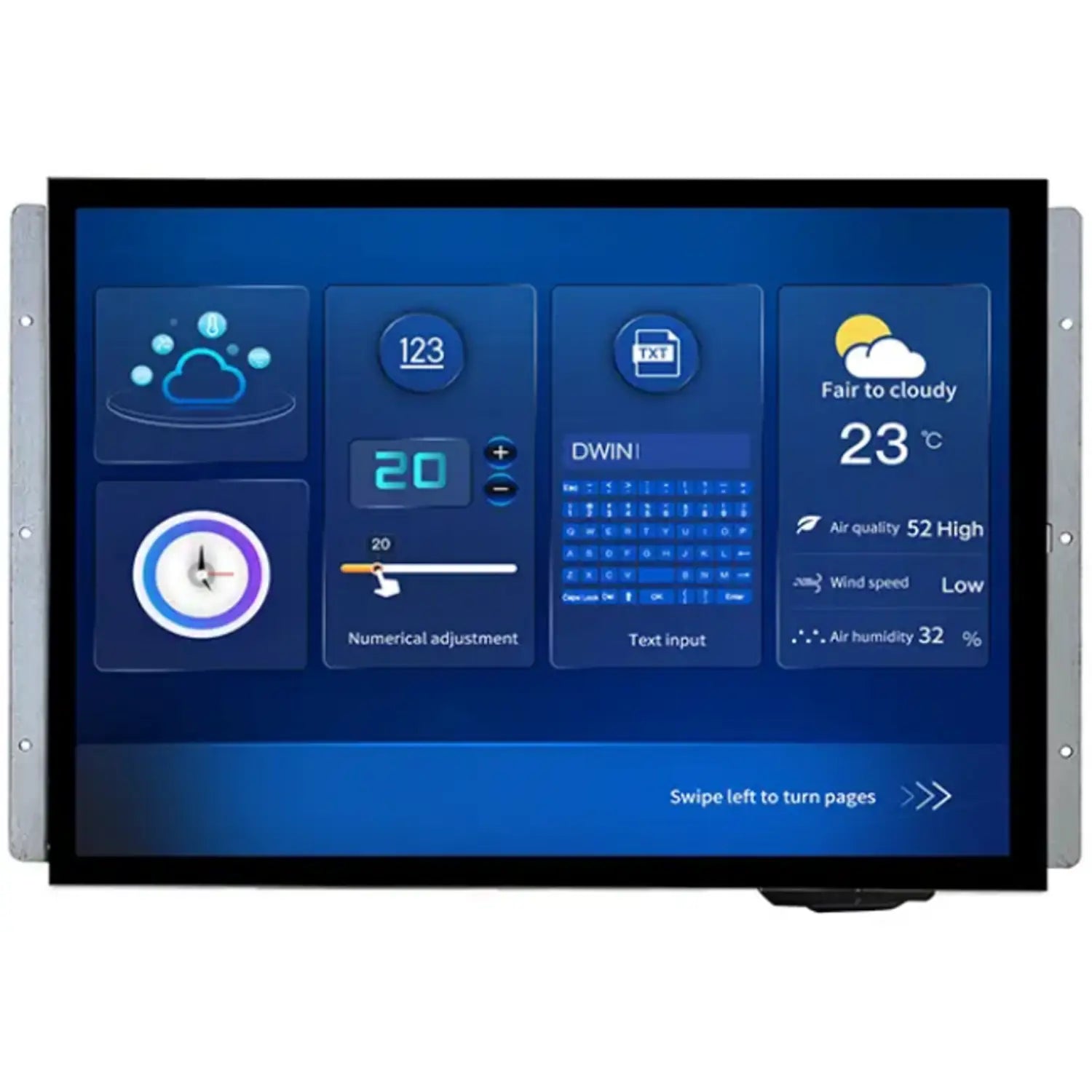

Dwin 15 Inch Industrial Touch Monitor DMG10768T150_01WTR – High-Resolution 1024x768 Resistive Touch LCD with UART & DGUS II System
The Dwin 15” DMG10768T150_01WTR Industrial Touch Monitor is engineered for professional industrial applications, offering a high-resolution 1024x768 IPS-TFT-LCD display with vibrant 16.7M colors and wide viewing angles. Its resistive touch screen ensures intuitive and precise user interaction, making it ideal for industrial control, automation, and interface projects.
Powered by the T5L2 ASIC, this monitor supports TTL and RS232 interfaces with UART2 control, allowing seamless online serial port downloading or SD card operation. The monitor is fully editable using the DGUS V7.6 software tool, enabling easy configuration without any coding skills.
Running on the DGUS II system, it delivers a smooth and efficient user interface, conformal coating for durability, and reliable performance even in demanding industrial environments. Key features include data/string display, page switching, animation playback, and a real-time clock, providing flexibility to create dynamic and interactive HMIs for industrial operations.
Specification:
- Display Size: 15.0 inch
- Resolution: 1024x768
- Display Panel: IPS, TFT LCD
- Touch Type: Resistive
- View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Ddeg (L/R/U/D)
- Color: 16.7M colors
- Display Area: 304.13(W) x 228.10mm (H)
- Power Supply: 12~36V
- LCM interface: Connector 20Pin_1.25mm, LVDS interface
- Speaker: Onboard speaker, Power 2W
- SD Interface: FAT32. Files downloaded by the SD interface can be displayed in
- statistics. Download rate: 4Mb/s
- Brightness: 300nit
- User Interface: 8Pin_3.81mm socket for power supply and serial communication
- Interface: RS232
- Working temperature: -20~70 °C
Features:
- Based on T5L2 ASIC, 16.7M color, with conformal coating
- Touch Screen: Resistive/Capacitance
- Interface: TTL / RS232
- GUI project via UART 2 online serial port downloading or SD card
- Edit under the newest DGUS V7.6 software tool, no coding skills required
- Running the DGUS II system
- IPS-TFT-LCD, wide viewing angle
- Support data/string display, page changing, animation play, real-time clock, and many other features.
Useful Link:
Dwin DMG10768T150_01WTR 15” Industrial HMI LCD Display
Package Included:
1 x Dwin DMG10768T150_01WTR 15” Industrial HMI LCD Display
