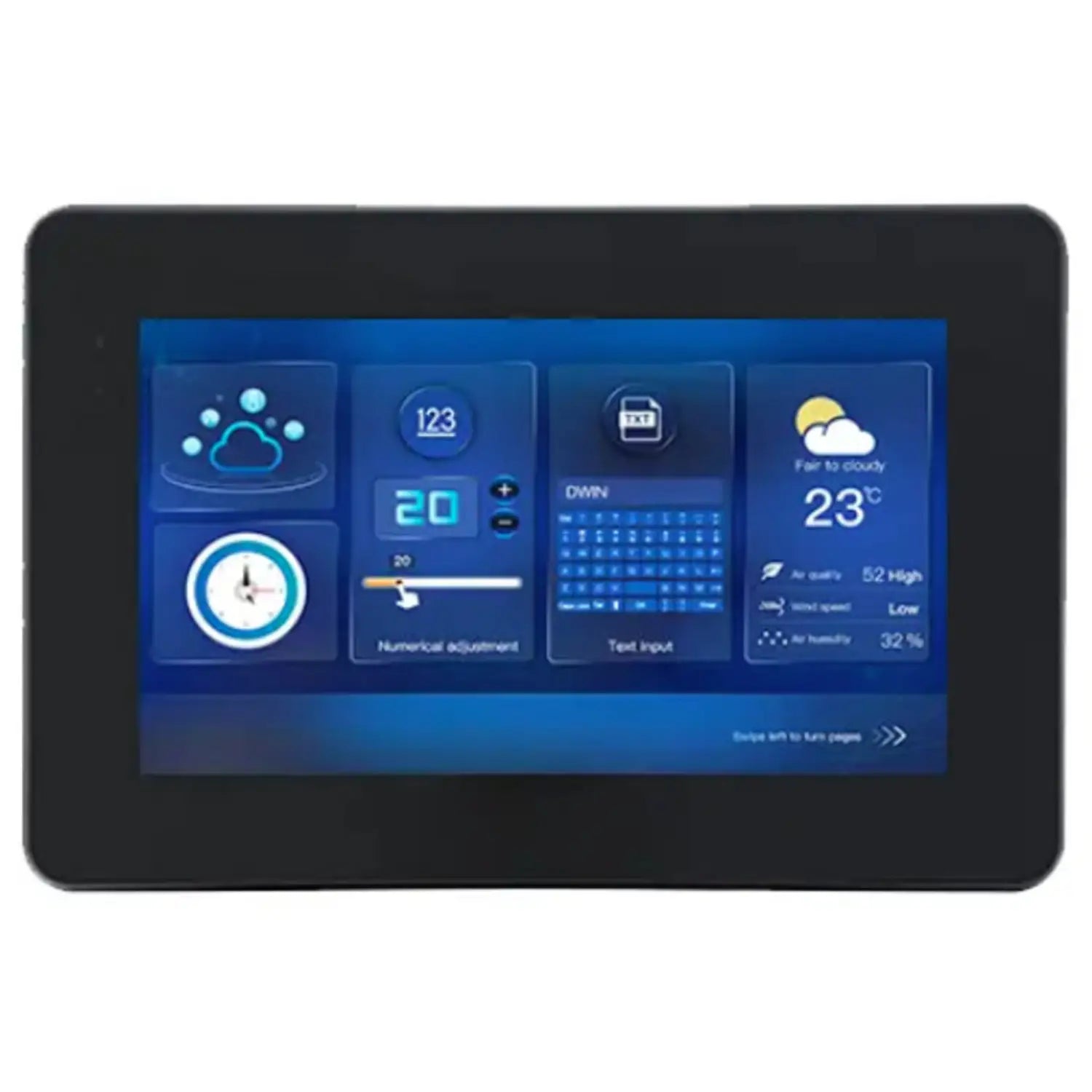

Dwin DMG10600T101_A5WTC 10.1" Industrial HMI LCD with Shell 1024x600 Capacitive Touch Display RS232/RS485 32MB Flash

Dwin DMG10600T101_A5WTC 10.1" Industrial HMI LCD with Shell 1024x600 Capacitive Touch Display RS232/RS485 32MB Flash

SKU:

In stock

Regular price Rs. 7,995.00
Regular price Sale price Rs. 7,995.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DWIN DMG10600T101_A5WTC 10.1-inch HMI LCD Display. This industrial-grade unit features a crisp 1024x600 resolution, a responsive capacitive touch screen, and comes pre-integrated with a protective shell for enhanced durability.

Developed by DWIN, this display boasts 32MB of NOR Flash memory for storing user databases and project assets. It runs on the efficient DGUS II system and includes the pre-installed GUI development software, allowing you to easily design and customize user interfaces with features like buttons, text displays, graphs, and sliders.

At its core is the T5L1 DWIN development software, powered by a low-power, cost-effective dual-core 8051 processor. This ASIC, specifically designed by DWIN Technology for AIoT applications, ensures robust and reliable performance. Connectivity is versatile with both RS232 and RS485 interfaces, along with an SD card interface for extended functionality.

Specification:

  • Display Size: 10.1 inch
  • Resolution: 1024x600
  • Display Panel: TFT
  • Touch Type: Capacitive
  • Color: 18-bit 6R6G6B
  • Display Area: 223.2mm(W)x125.8mm(H)
  • Power Supply: 12V 1A DC
  • LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 32GB
  • Buzzer: 3V passive Buzzer
  • SD Interface: FAT32
  • Brightness: 250nit
  • Interface: RS232/RS485

Features:

  • Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024x600 Pixel
  • Capacitive touch screen

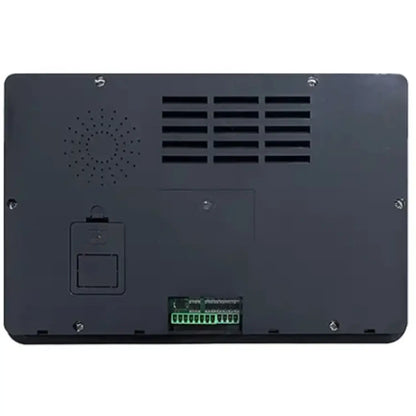

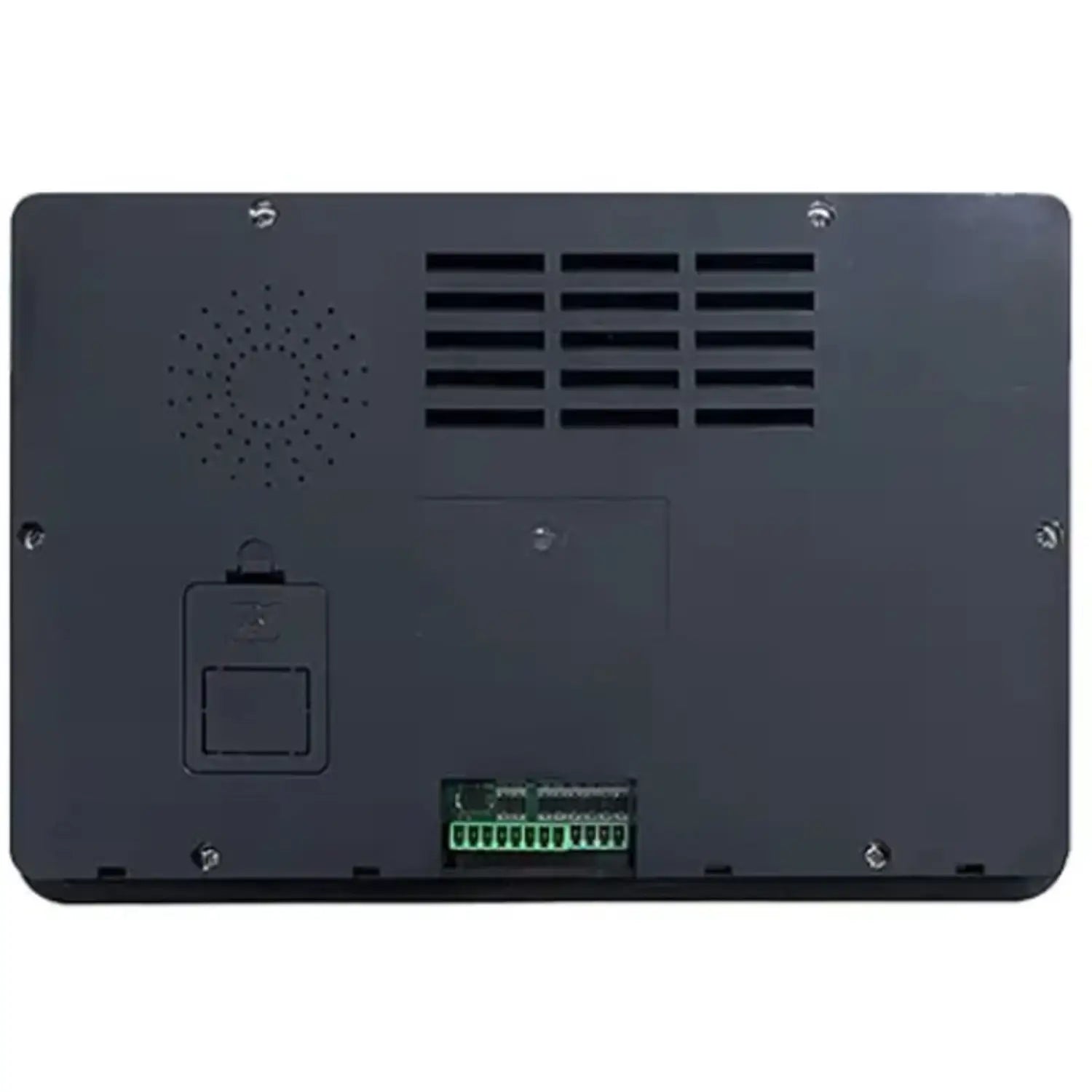

  • RS232 RS485 Interface, 8Pin3.81mm socket
  • Download via SD card or online serial port
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
  • Dual Development System: DGUS II/ TA(Instruction set)
  • TV View Angle: 70/70/40/30 (L/R/U/D)
  • With a GUI OS, a GUI with rich controls. DWIN OS kernel is open to the user for development, via DWIN OS language or KEIL C51

Product Interface:


Package Included:

1 x DWIN DMG10600T101_A5WTC 10.1" HMI LCD With Shell
