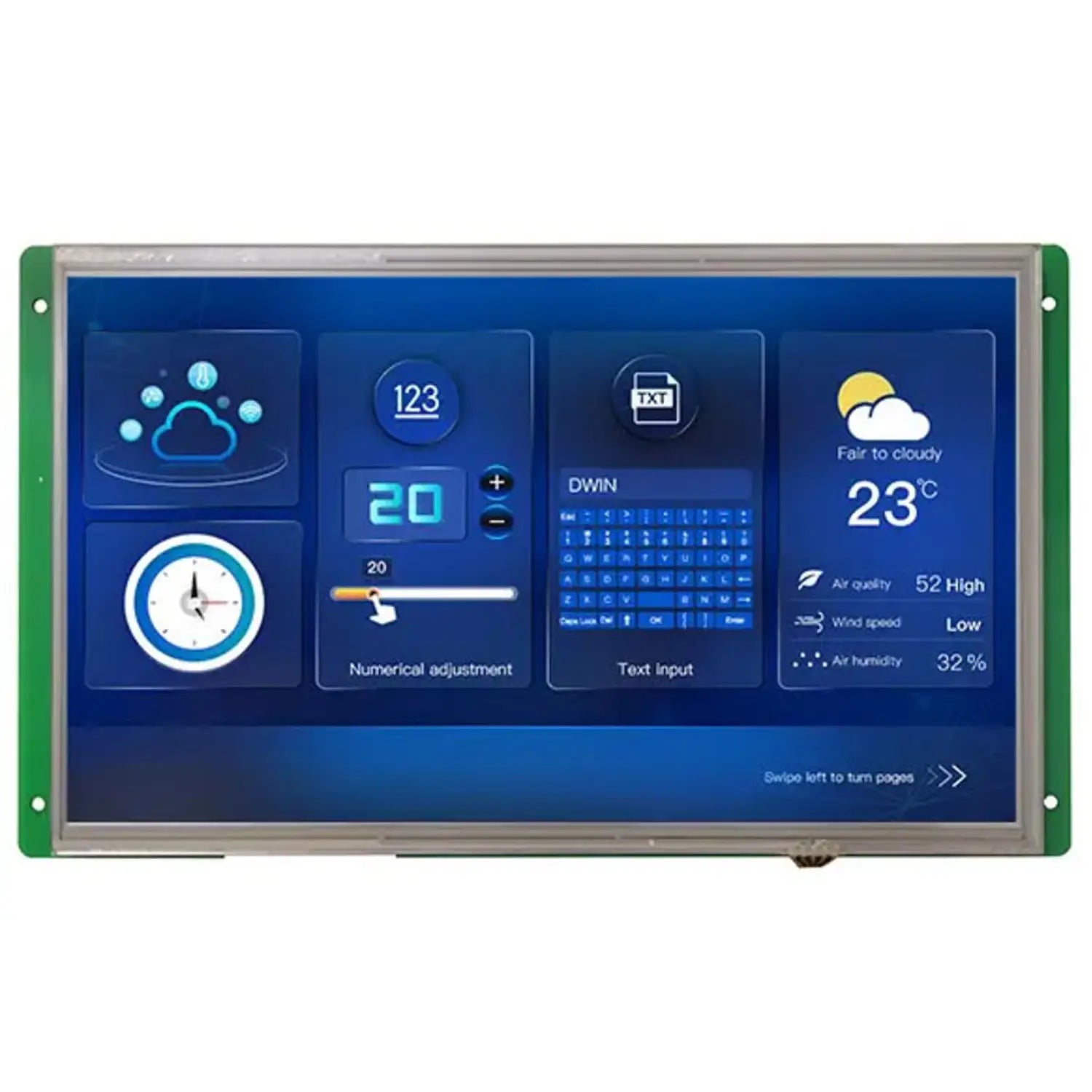

Dwin DMG10600T101_01WTR 10.1-inch 1024x600 Industrial HMI LCD Display – IPS, Resistive Touch, UART/RS232, 16MB Flash, Buzzer & SD Interface

Dwin DMG10600T101_01WTR 10.1-inch 1024x600 Industrial HMI LCD Display – IPS, Resistive Touch, UART/RS232, 16MB Flash, Buzzer & SD Interface

In stock

Rs. 10,210.00
Rs. 10,210.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Dwin DMG10600T101_01WTR is a 10.1-inch IPS Industrial HMI LCD Display featuring capacitive touch, UART/RS232 connectivity, 16MB flash memory, buzzer, and SD interface. Designed for industrial and AIoT applications, this display integrates NOR Flash memory to store user data efficiently.

It comes preloaded with the DGUS II system, a powerful Graphical User Interface (GUI) development software, allowing users to create customized interfaces with buttons, text, graphs, sliders, and more. The display is fully compatible with DWIN’s T5L1 development software, specifically built for ASIC-based HMI solutions, powered by a low-power, cost-effective dual-core 8051 T5L processor.

This combination of robust hardware and versatile software makes the DMG10600T101_01WTR ideal for creating interactive, high-performance industrial control panels and AIoT devices with ease and efficiency.

Specification:

  • Display Size: 10.1 inch
  • Interface: TTL/RS232
  • User Interface: 8Pin_2.0mm socket for power supply and serial communication.
  • Download rate(typical value): 12KByte/s
  • Resolution: 1024x600
  • Display Panel: IPS
  • Touch Type: Resistive
  • View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
  • Color: 24-bit 8R8G8B
  • Display Area: 222.72mm (W)x125.28mm (H)
  • Power Supply: 12V 1A DC
  • LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
    Brightness: 220nit

Features:

  • Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*600 Pixel
  • Resistive touch screen
  • TTL and RS232 double UART port, classic 8Pin2.0mm connection wire
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no need to be skilled in coding
  • More than 30000 hours of backlight service life
  • IPS Panel, View Angle: 85/85/85/85 (L/R/U/D)
  • Super-capacitor for power supply, last 30 days after power off
  • Support image animation, data window, slide icon, text show, etc

Product Interface:

Applications:

Package Included:

1 x Dwin DMG10600T101_01WTR 10.1-inch 1024x600 Industrial HMI LCD Display
