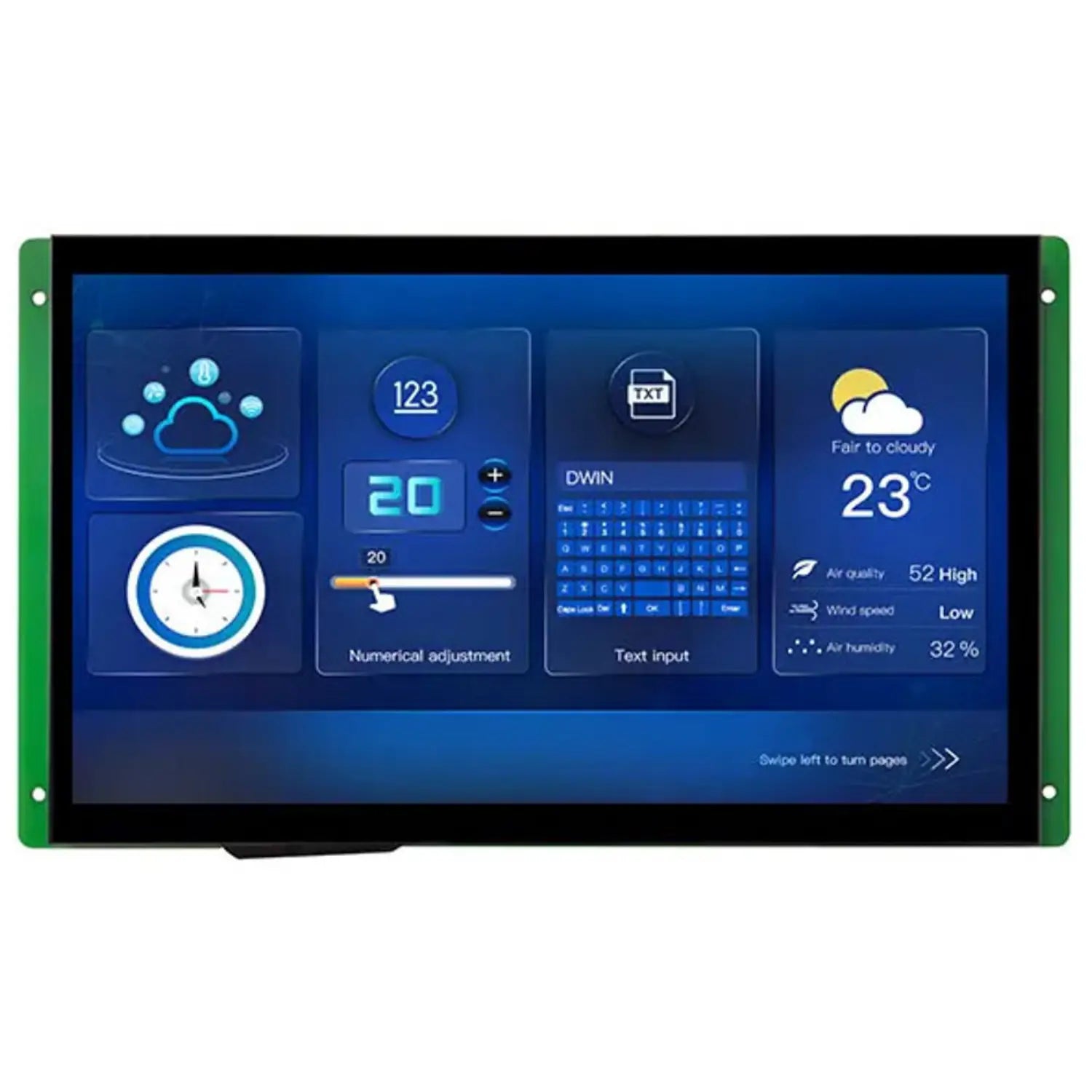

Dwin DMG10600T101_01WTC 10.1" IPS Industrial HMI LCD Display with 1024x600 Resolution, Capacitive Touch, Multi-UART (TTL/RS232) Connectivity, 16MB Flash & SD Interface

Dwin DMG10600T101_01WTC 10.1" IPS Industrial HMI LCD Display with 1024x600 Resolution, Capacitive Touch, Multi-UART (TTL/RS232) Connectivity, 16MB Flash & SD Interface

In stock

Rs. 9,533.00
Rs. 9,533.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DMG10600T101_01WTC is a 10.1-inch, 1024x600 IPS Industrial HMI LCD UART Display with capacitive touch, developed by DWIN. It features 16MB of Flash memory for storing user databases, a buzzer, and an SD card interface.

This LCD is integrated with the DGUS II system, DWIN's GUI (Graphical User Interface) development software. The pre-installed UI development software allows users to create their own designs and customize features such as buttons, text displays, graphs, and sliders. The underlying T5L1 DWIN development software is a human-machine interface dedicated to ASICs, designed by DWIN Technology for AIoT applications. This software is powered by a T5L chip, a low-power, cost-effective dual-core 8051 processor.

Specification:

  • Display Size: 10.1 Inches
  • Resolution: 1024x600
  • Display Panel: IPS
  • Touch Type: Capacitive
  • View Angle: Wide Viewing Angle 85/85/85/85/85 degrees (L/R/U/D)
  • Color: 24-bit 8R8G8B
  • Display Area: 222.72mm(W)x125.28mm(H2)
  • Power Supply: 12V 1A DC
  • LCM Interface: FPC50_0.5mm, RGB Interface
  • Memory: 16GB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • Brightness: 250nit
  • Interface: TTL/RS232

Features:

  • Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*600 Pixel
  • Capacitive touch screen
  • TTL and RS232 double UART port, classic 8Pin2.0mm connection wire
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no need to be skilled in coding
  • More than 30000 hours of backlight service life
  • IPS Panel, View Angle: 85/85/85/85 (L/R/U/D)
  • Super-capacitor for power supply, lasts 30 days after power off
  • Support image animation, data window, slide icon, text show, etc

Package Included:

1 x DWIN DMG10600T101_01WTC 10.1" IPS Industrial HMI LCD Display
