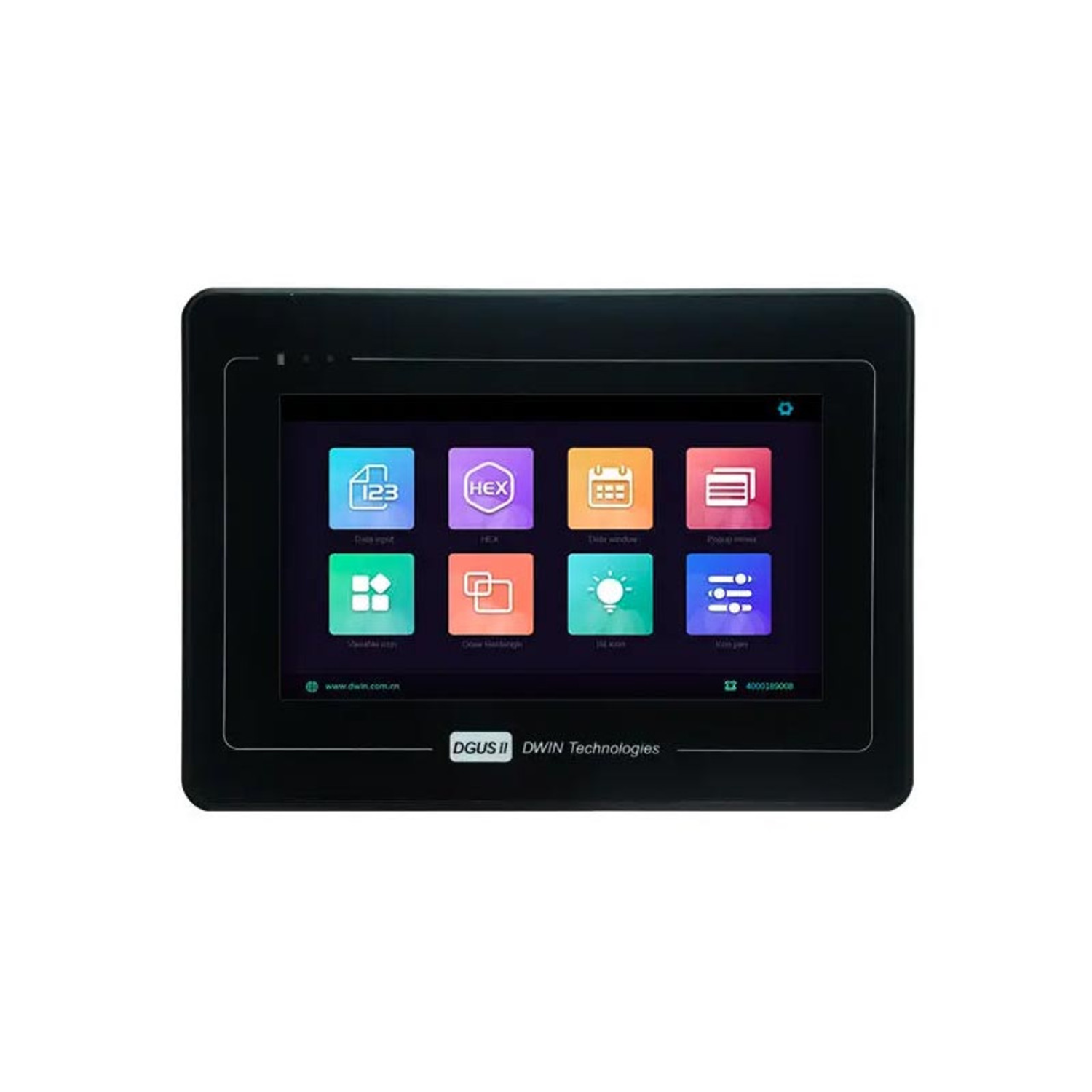

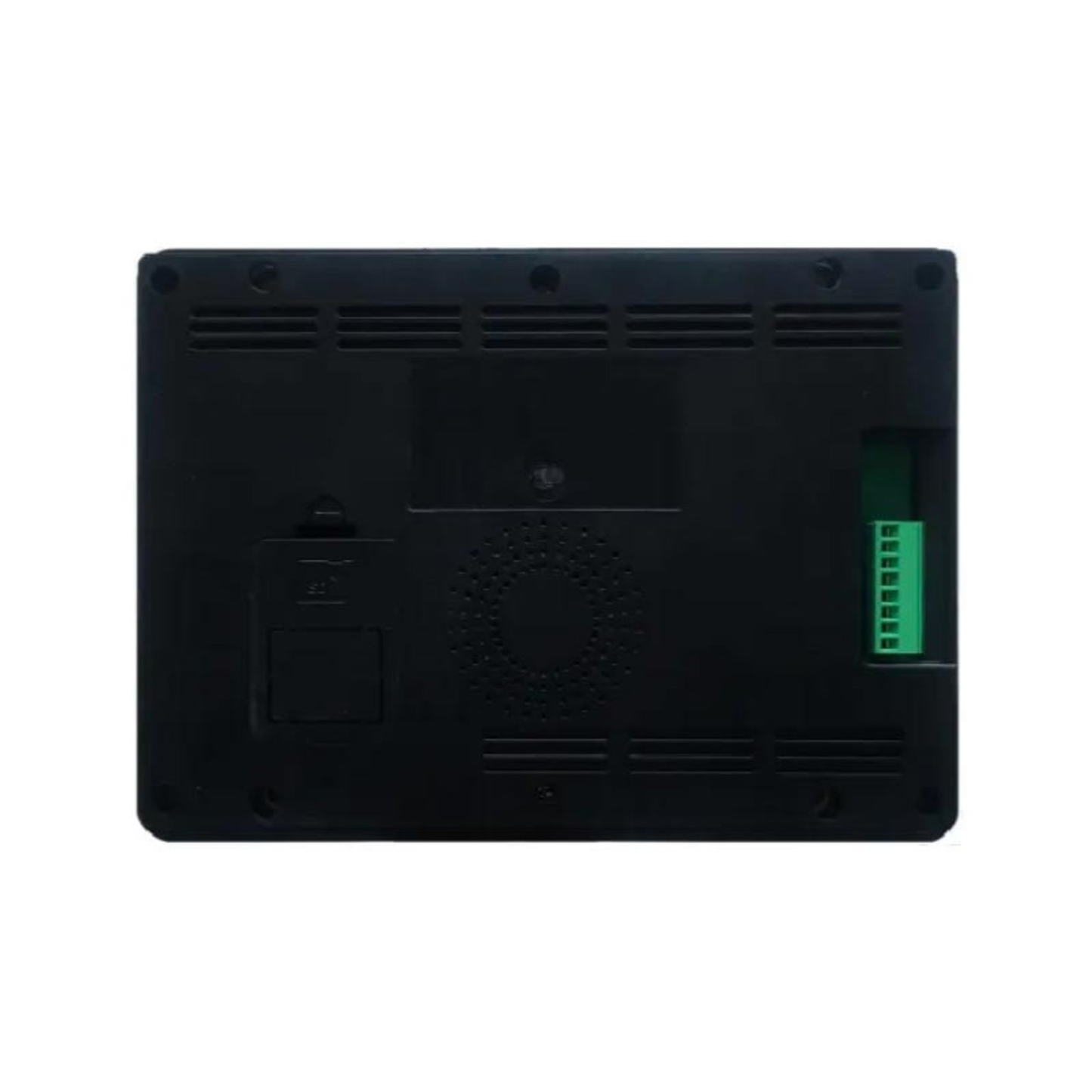

DWIN DMG10600T070_A5WTC HMI LCD Display with Shell 7.0-inch Capacitive Touchscreen With RS232/RS485 Interface

DWIN DMG10600T070_A5WTC HMI LCD Display with Shell 7.0-inch Capacitive Touchscreen With RS232/RS485 Interface

SKU:

In stock

Regular price Rs. 4,225.00
Regular price Sale price Rs. 4,225.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Experience advanced human-machine interface development with the DWIN DMG10600T070_A5WTC HMI LCD Display. This 7.0-inch, 1024x600 capacitive touch display comes with a shell and features RS232/RS485 interfaces and 16MB NOR Flash for user data.

Powered by DWIN's DGUS II system and T5L1 ASIC, this display integrates with the powerful DGUS II GUI development software. Easily create custom user interfaces with features like buttons, text displays, graphs, and sliders, leveraging the low-power, cost-effective dual-core 8051 processor for your AIoT applications.

Specifications:

  • Display Size: 7"
  • Resolution: 1024x600
  • Display Panel: TFT
  • Touch Type: Capacitive
  • View Angle: Wide viewing angle, 85/85/85/85 (L/R/U/D)
  • Color: 24 bit color 8R8G8B
  • Display Area: 154.20mm (W)x85.88mm (H)
  • Power Supply: 12V 1A DC
  • LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 32MB
  • Buzzer: Onboard speaker
  • SD Interface: FAT32
  • PGT05 Interface: When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
  • Brightness: 250nit
  • Reserved WiFi Interface: connect to the cloud platform to update remotely
  • Reserved USB Interface: download files by USB flash disk
  • RTC: Super-capacitor for power supply
  • User Interface: 8Pin_2.0mm socket for power supply and serial communication
  • Interface: RS232/RS485

Features:

  • Based on T5L2, running DGUS II system, industrial grade
  • 7.0-inch, 1024x600 pixels resolution, 16.7M Colors, IPS-TFT-LCD, wide viewing angle
  • RS232/RS485 Interface,8Pin_3.81mm Socket x1CAN bus interface x1;
  • Capacitive Touch
  • 32MBytes NOR Flash, expandable to 64Mbytes NOR Flash
  • Onboard speaker. Power: 2W
  • Support peripherals: Build-in speaker, Build-in RTC
  • Protective Level: IP65(front)

Product Interface:

Useful Link:

Package Included:

1 x DWIN DMG10600T070_A5WTC HMI LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
