DWIN DMG10600T070_01WTC 7" LCD Tactus Touch Display High-Resolution LCD Tactus Screen For Industrial and Embedded Applications

DWIN DMG10600T070_01WTC 7" LCD Tactus Touch Display High-Resolution LCD Tactus Screen For Industrial and Embedded Applications

In stock

Rs. 3,889.00
Rs. 3,889.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

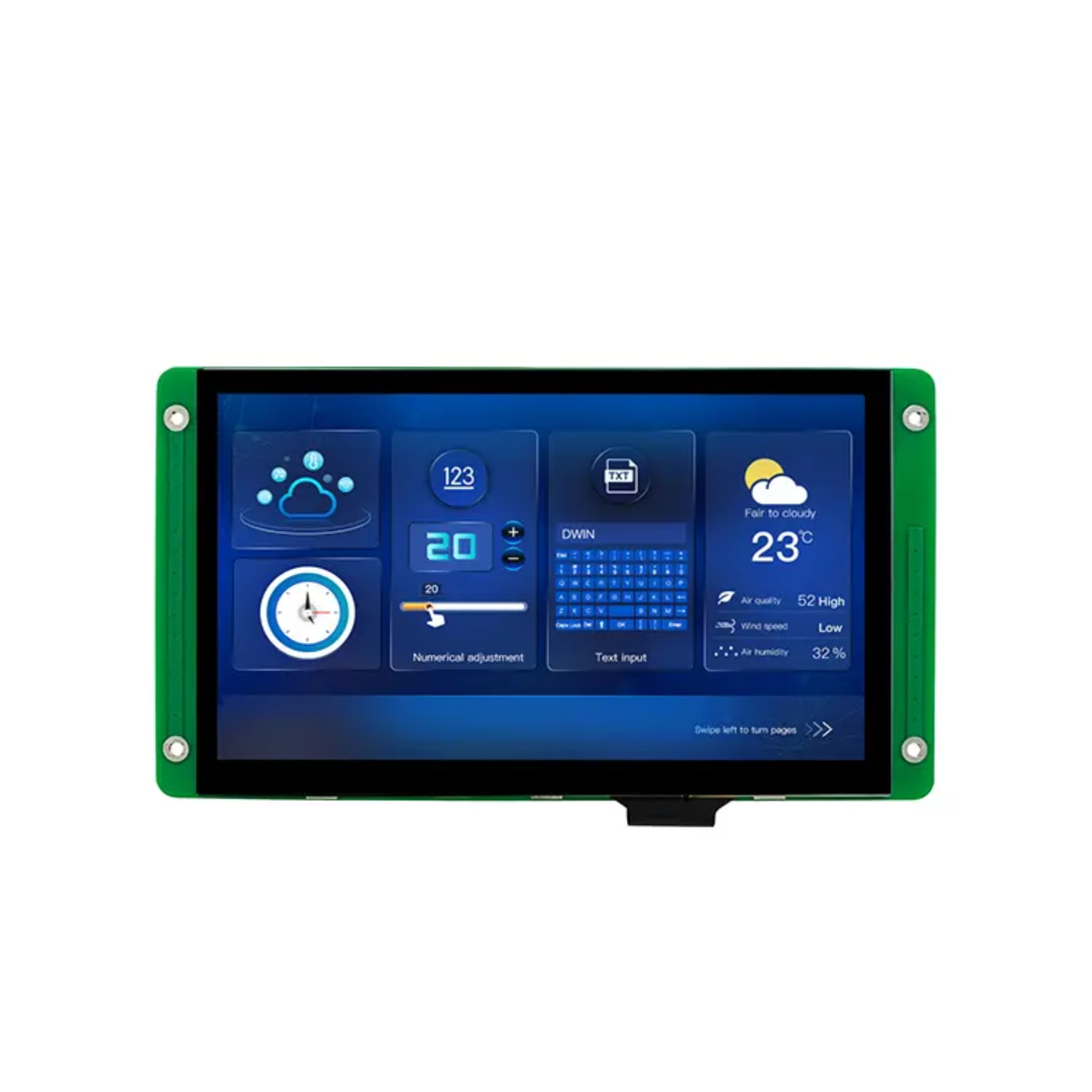

The DWIN DMG10600T070_01WTC is a robust 7.0-inch Industrial Grade LCD Touchscreen, featuring a high-resolution 1024xRGBx600 IPS display with 16.7M colors. Built on the powerful T5L ASIC and T5L2 processor running the DGUS II system, this DWIN-engineered module provides a dependable and visually rich human-machine interface for industrial applications.

Specifications:

  • Display Size: 7"
  • LCD Type: IPS, TFT LCD
  • Display Module: 1024xRGBx600,16.7M Colors
  • View angle: 85/85/85/85(L/R/U/D)
  • Operating Voltage: 6~36V, typical value of 12
  • Active Area: 154.21mm (W)×85.92mm (H)

Features:

  • Interactive Capacitive Touchscreen Display
  • Convenient TTL Communication via an 8-Pin, 2.0mm Connection Wire
  • Flexible Download Options: SD Card or Online Serial Port
  • Exceptional IPS Visuals with Ultra-Wide 85° Viewing Angles (Left/Right/Up/Down)
  • Intuitive GUI Design with DWIN DGUS V7.6 Software – No Advanced Technical Skills Required
  • Powered by DGUSⅡ/TA Instruction Set
  • Dual-Core Architecture Featuring a Rich GUI with Diverse Controls and an Open DWIN OS Kernel for Secondary Development Using DWIN OS Language or Keil C51
  • Enhanced Reliability with Conformal Coating

Product Interface:

Useful Link:

DWIN DMG10600T070_01WTC 7" LCD Tactus Touch Display

Package Included:

1 x DWIN DMG10600T070_01WTC 7" LCD Tactus Touch Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
