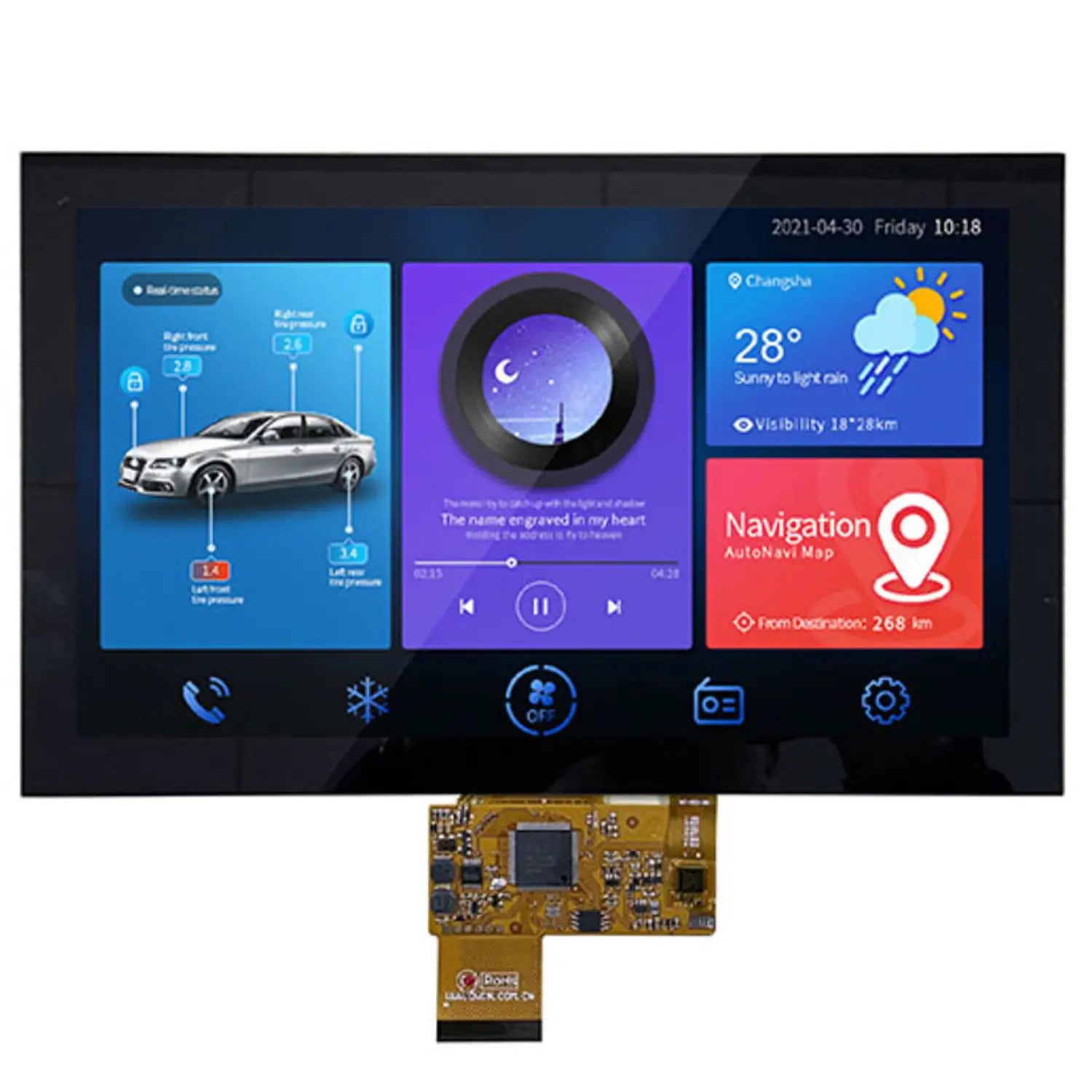

• Dwin DMG10600F101_01WTR 1024x600 resistive touch screen

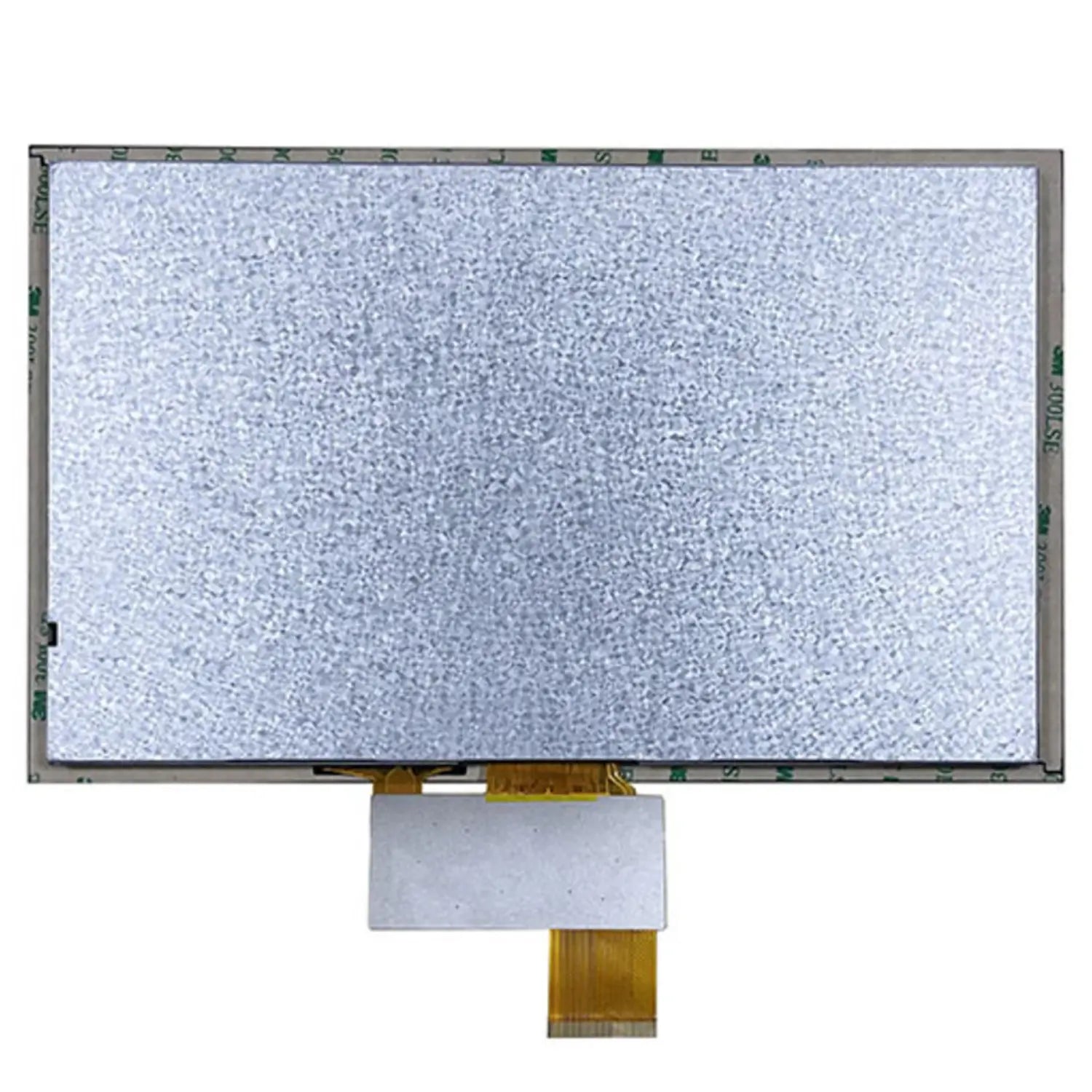

  • Dwin 10.1 inch COF display
1 2

DWIN

Dwin DMG10600F101_01WTR 10.1 Inch 1024x600 COF HMI Display Resistive Touch Screen with UART Interface For Industrial Use

Dwin DMG10600F101_01WTR 10.1 Inch 1024x600 COF HMI Display Resistive Touch Screen with UART Interface For Industrial Use

In stock

Rs. 2,900.00
Rs. 2,900.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DWIN DMG10600F101_01WTR 10.1 Inch COF Display is a high-performance HMI module featuring a 1024x600 IPS-TFT-LCD screen with 16.7 million colors and a wide viewing angle for superior visual clarity. Built on advanced COF (Chip-on-Film) technology, this display integrates the core circuit of the smart screen directly onto the Flexible Printed Circuit (FPC) of the Liquid Crystal Module (LCM). This innovative structure ensures a lightweight, slim design (only 5.9mm thick), lower production costs, and an efficient manufacturing process.

Powered by the T5L2 processor and running on the DGUS II system, it provides a stable and flexible platform for custom UI and logic development. The 50-pin interface includes IO, UART, CAN, AD, and PWM connections, giving developers extensive options for secondary development and system integration. With its resistive touch panel and robust COF construction, this model is ideal for industrial, embedded, and automation applications requiring reliable HMI performance.

Specification:

  • Display Size: 10.1 inch
  • Resolution: 1024x600
  • Display Panel: IPS, TFT LCD
  • Touch Type: Resistive
  • View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85deg (L/R/U/D)
  • Color: 16.7M colors
  • Display Area: 222.72mm (W)x125.28mm (H)
  • Power Supply: 4.5~5.5V
  • Brightness: 150nit
  • Interface: TTL
  • Working temperature:-10C~60C
  • Thickness: 5.90mm

Features:

  • Based on T5L2, running DGUS II system.
  • 10.1 inch, 1024x600 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
  • LCD and TP frame lamination process.
  • COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost, and easy production.
  • 50 pins, including IO, UART, CAN, AD, and PWM from the user CPU core for easy secondary development.

Useful Link:

Dwin DMG10600F101_01WTR 10.1 Inch 1024x600 COF HMI Display

Package Included:

1 x Dwin DMG10600F101_01WTR 10.1 Inch 1024x600 COF HMI Display
