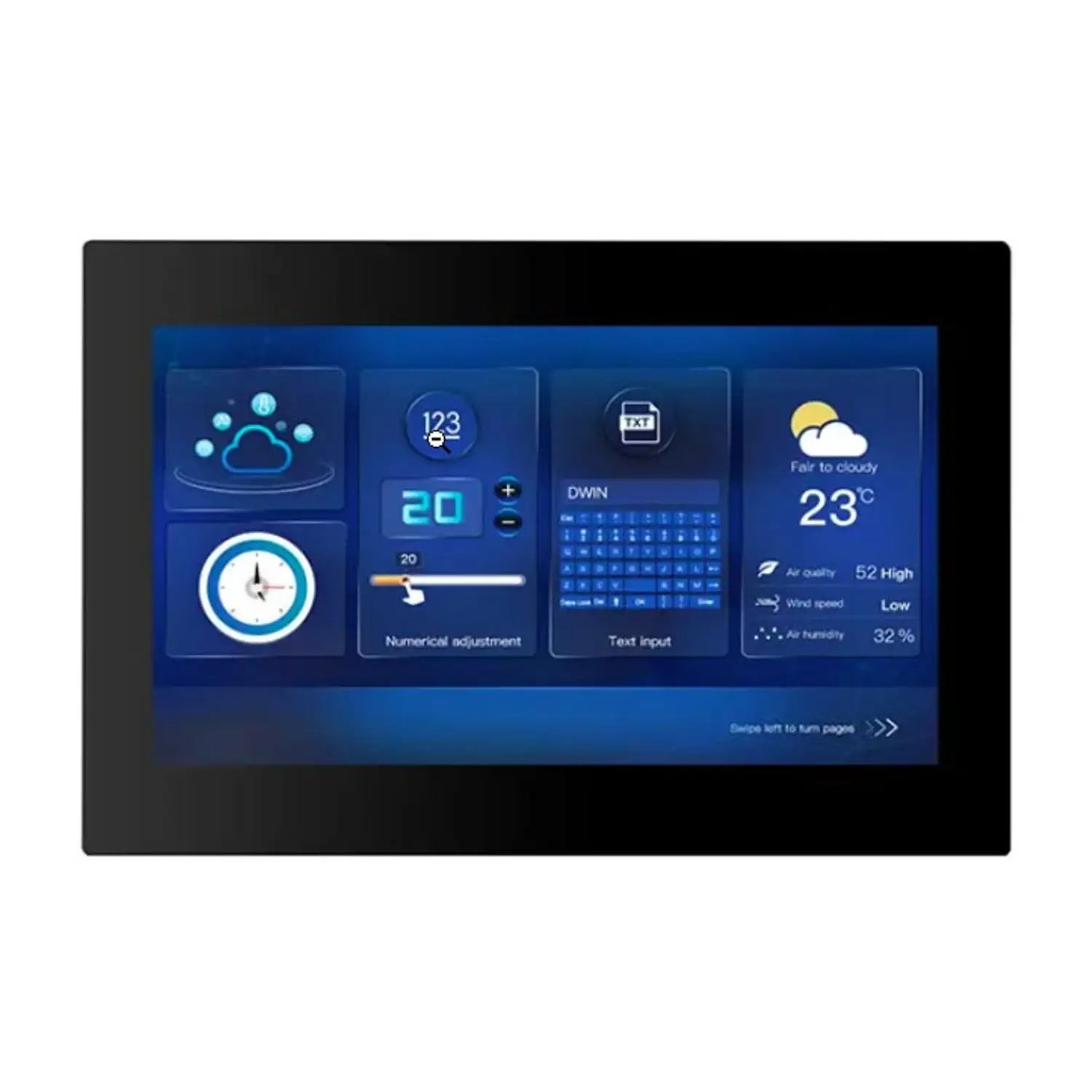

DWIN DMG10600C101_15WTR 10.1 Inch HMI LCD Display with Shell 1024x600 Resolution, RS232/RS485, Resistive Touch, 16MB Flash, Buzzer & SD Interface

Description:

The DWIN DMG10600C101_15WTR is a 10.1-inch HMI LCD Display with a shell, offering a 1024x600 resolution and resistive touch functionality for reliable human–machine interaction. Designed for industrial and embedded applications, this display supports RS232/RS485 communication, making it highly versatile for various automation and control systems.

Equipped with 16MB NOR Flash memory, the display allows users to store and manage databases efficiently. It comes integrated with the DGUS II system, a powerful GUI (Graphical User Interface) development software that enables users to create customized designs with interactive elements such as buttons, text displays, sliders, and graphs.

Powered by the T5L1 DWIN development platform, this HMI display is built on a low-power, cost-effective dual-core 8051 processor, specifically optimized for AIoT (Artificial Intelligence of Things) applications. With its buzzer and SD card interface, the DMG10600C101_15WTR ensures flexibility, enhanced user interaction, and ease of customization for diverse industrial use cases.

Specification:

• Display Size: 10.1 inch

• Resolution: 1024x600

• Display Panel: TFT

• Touch Type: Resistive

• View Angle: TV viewing angle, 70/70/40/30 deg (L/R/U/D)

• Color: 18-bit 6R6G6B

• Display Area: 223.2mm (W)x 125.8mm (H)

• Power Supply: 12V 1A DC

• LCM interface: FPC50_0.5mm, RGB interface

• Memory: 16MB

• Buzzer: 3V passive buzzer

• SD Interface: FAT32

• PGT05 Interface: When the product crashes by accident, you can use PGT05 to update
• The kernel and make the product return to normal

• Brightness: 235nit

• Reserved WiFi Interface: connect to the cloud platform to update remotely

• Reserved USB Interface: download files from a USB flash disk

• RTC: Button cell for power supply

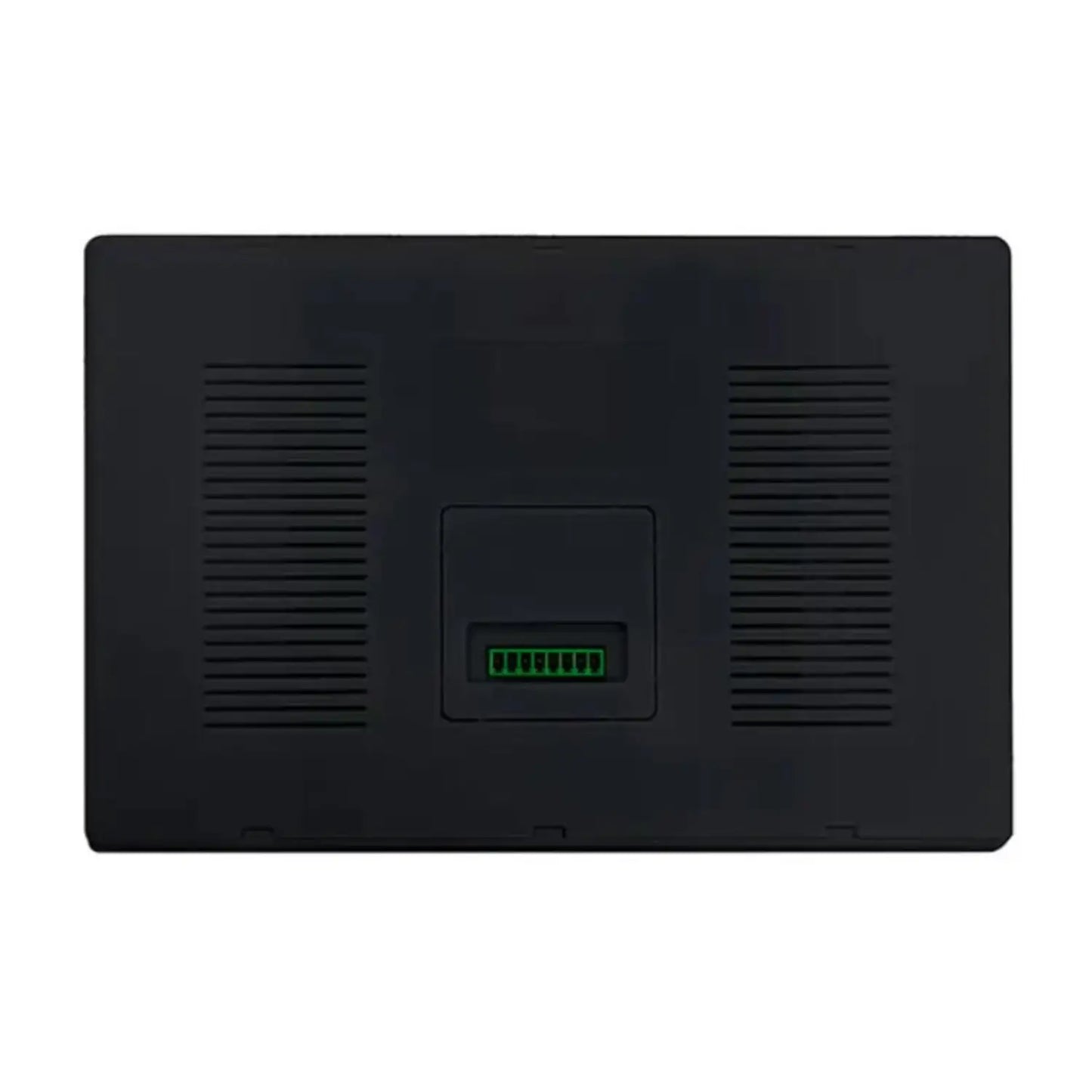

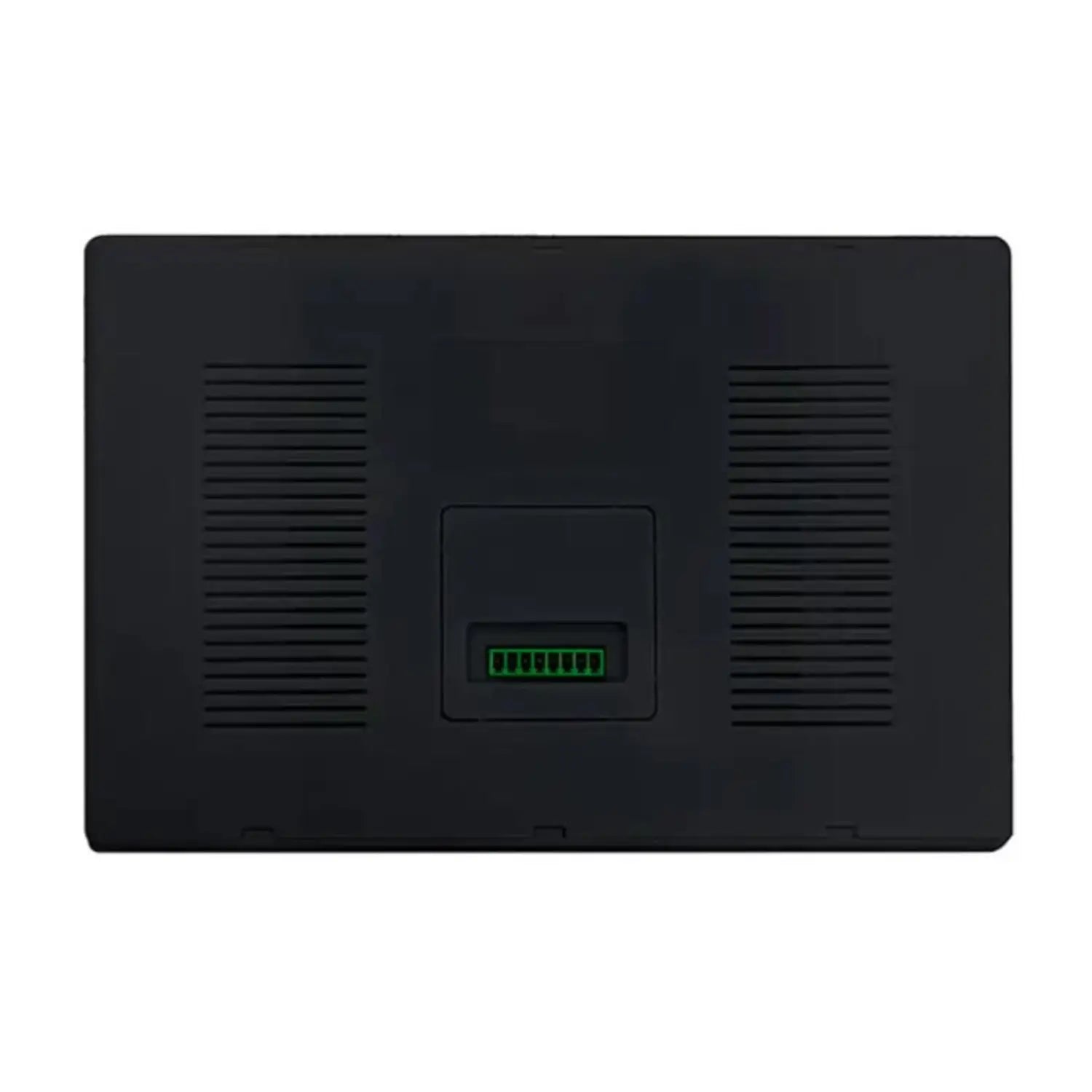

• User Interface: 8Pin_2.0mm socket for power supply and serial communication

• Interface: RS232/RS485

Features:

• Based on a self-designed T5L2 ASIC, 16.7M Color, 24-bit, 1024x600 Pixel
• Resistive touch screen
• RS232 RS485 Interface,8Pin3.81mm socket
• Download via SD card or online serial port
• Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
• Dual Development System: DGUS II/ TA(Instruction set)
• TV View Angle: 70/70/40/30 (L/R/U/D)
• With an OS dual-core GUI with rich controls. DWIN OS kernel is open to the user for the second development, via DWIN OS language or KEIL C51

Package Included:

1 x DWIN DMG10600C101_15WTR 10.1 Inch HMI LCD Display with Shell
