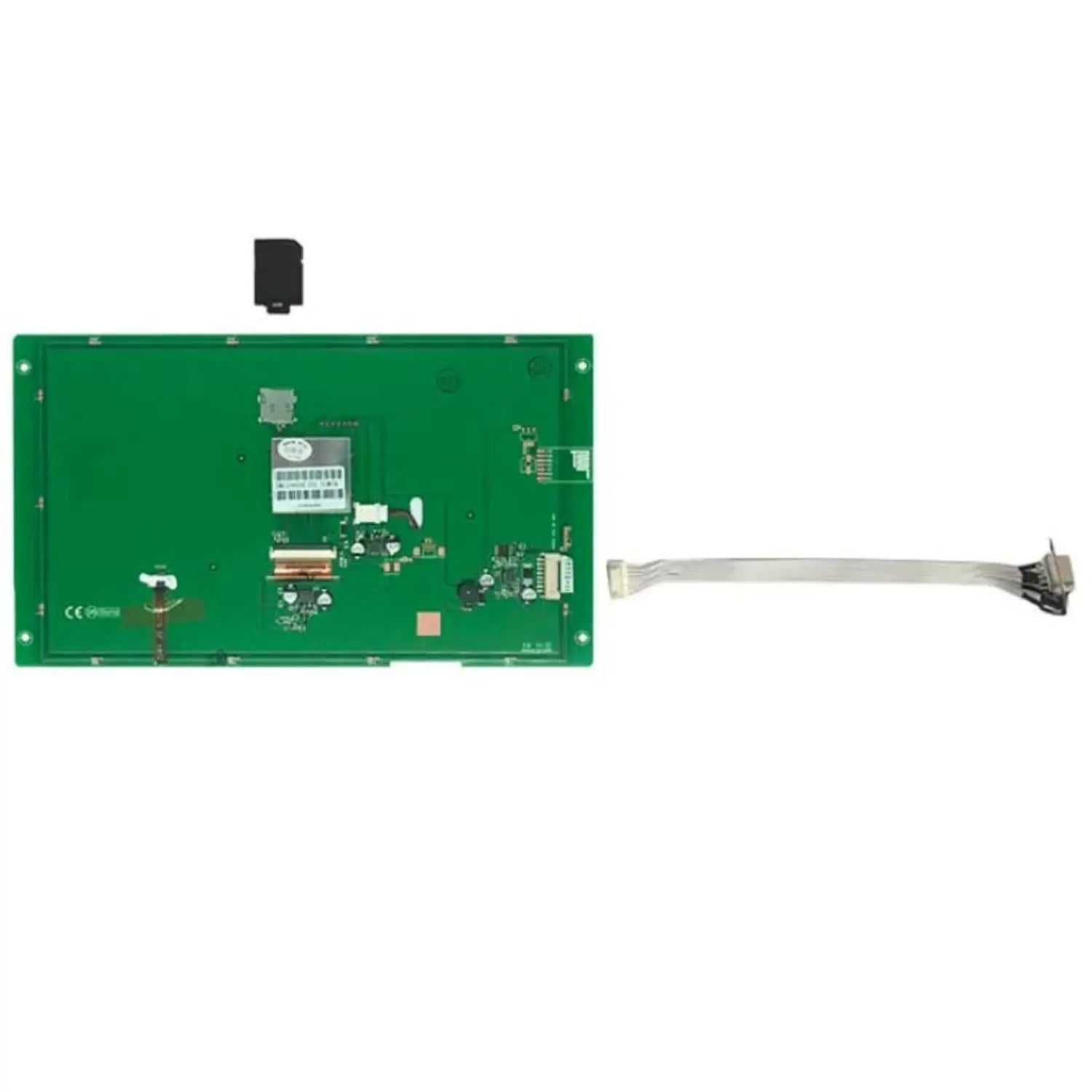

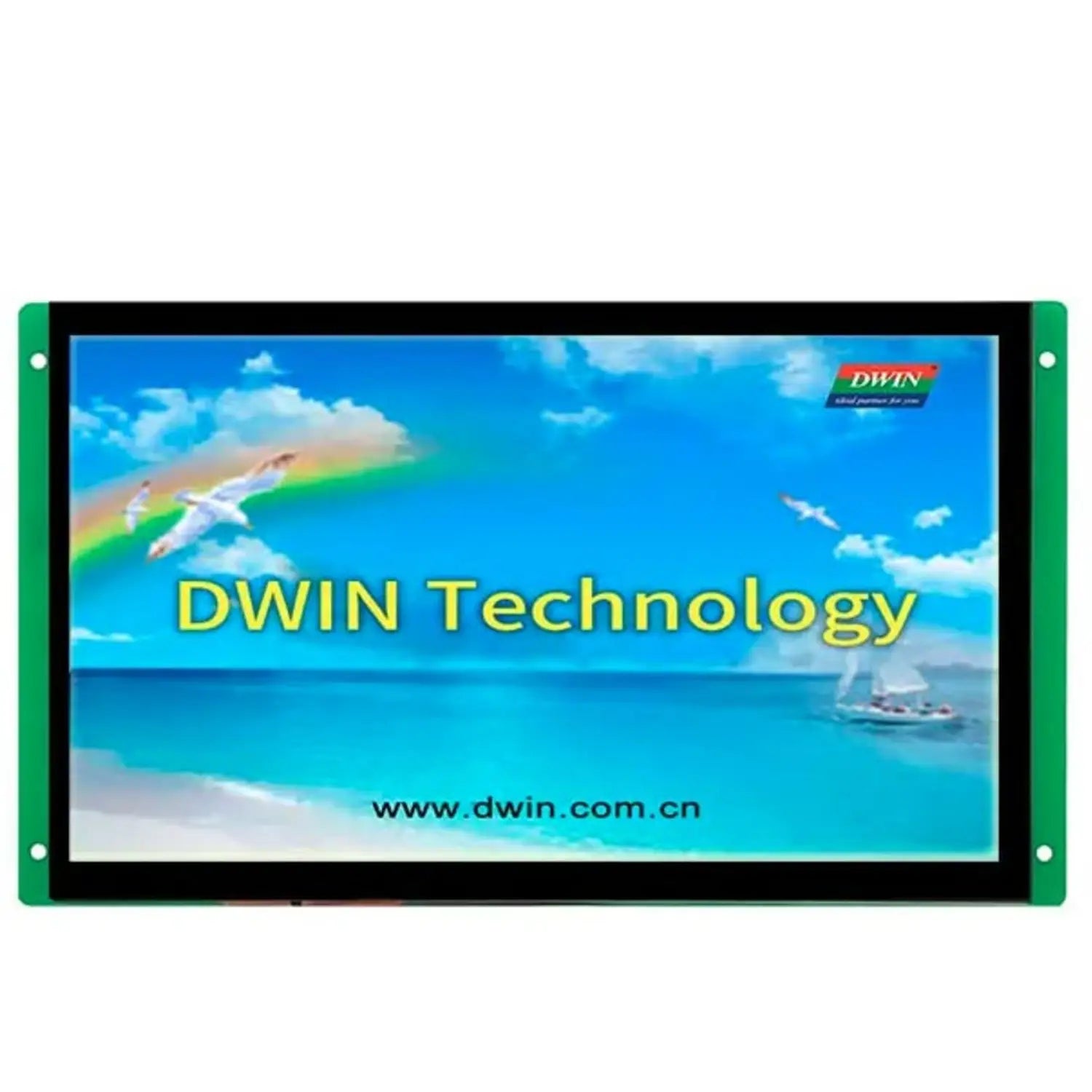

Dwin DMG10600C101_03WTC 10.1 Inch Capacitive Touch HMI Display 1024x600 IPS Screen with TTL/RS232 Interface for Industrials Use

Name: Dwin DMG10600C101_03WTC 10.1 Inch Capacitive Touch HMI Display 1024x600 IPS Screen with TTL/RS232 Interface for Industrials Use
Brand: DWIN
Price: 4450.00 INR
Availability: InStock

Dwin DMG10600C101_03WTC 10.1 Inch Capacitive Touch HMI Display 1024x600 IPS Screen with TTL/RS232 Interface for Industrials Use

SKU:

In stock

Rs. 4,450.00

Sale Sold out

Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

The Dwin DMG10600C101_03WTC 10.1-Inch 1024x600 IPS HMI LCD Display is a high-quality capacitive touch module designed for industrial and embedded applications. Developed by DWIN Technology, this smart display integrates a vibrant 10.1-inch IPS screen with a 1024x600 resolution, ensuring excellent color accuracy and wide viewing angles.

Equipped with TTL/RS232 communication, 16MB Flash memory, a buzzer, and an SD interface, the module provides powerful performance and flexibility for interactive system designs. The built-in DGUS II software platform allows users to easily design and customize graphical interfaces such as buttons, sliders, text boxes, and dynamic graphs without complex programming.

Powered by the T5L1 dual-core 8051 processor, the display offers a low-power, cost-effective, and stable solution tailored for AIoT and HMI applications. Its integrated NOR Flash supports user data storage, making it ideal for projects requiring real-time monitoring, control panels, and automation interfaces.

Specification:

Display Size: 10.1 inch
Resolution: 1024x600
Display Panel: IPS
Touch Type: Capacitive
View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
Color: 24-bit 8R8G8B
Display Area: 222.7mm (W)x 125.3mm (H)
Power Supply: 12V 1A DC
LCM interface: FPC50_0.5mm, RGB interface
Memory: 16MB
Buzzer: 3V passive buzzer
SD Interface: FAT32
PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
Brightness: 220nit
Reserved WiFi Interface: connect to the cloud platform to update remotely
RTC: NA

Features:

Capacitive touch screen
Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024x600 Pixel TFT LCD
8Pin_2.0mm connection wire, TTL/COMS available
Download via SD card or online serial port
Dual Development System: DGUS II/ TA (Instruction set)
No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development
Net Weight: 545g
Widely used with Arduino, STM32, Microchip, ESP8266, and so on.
