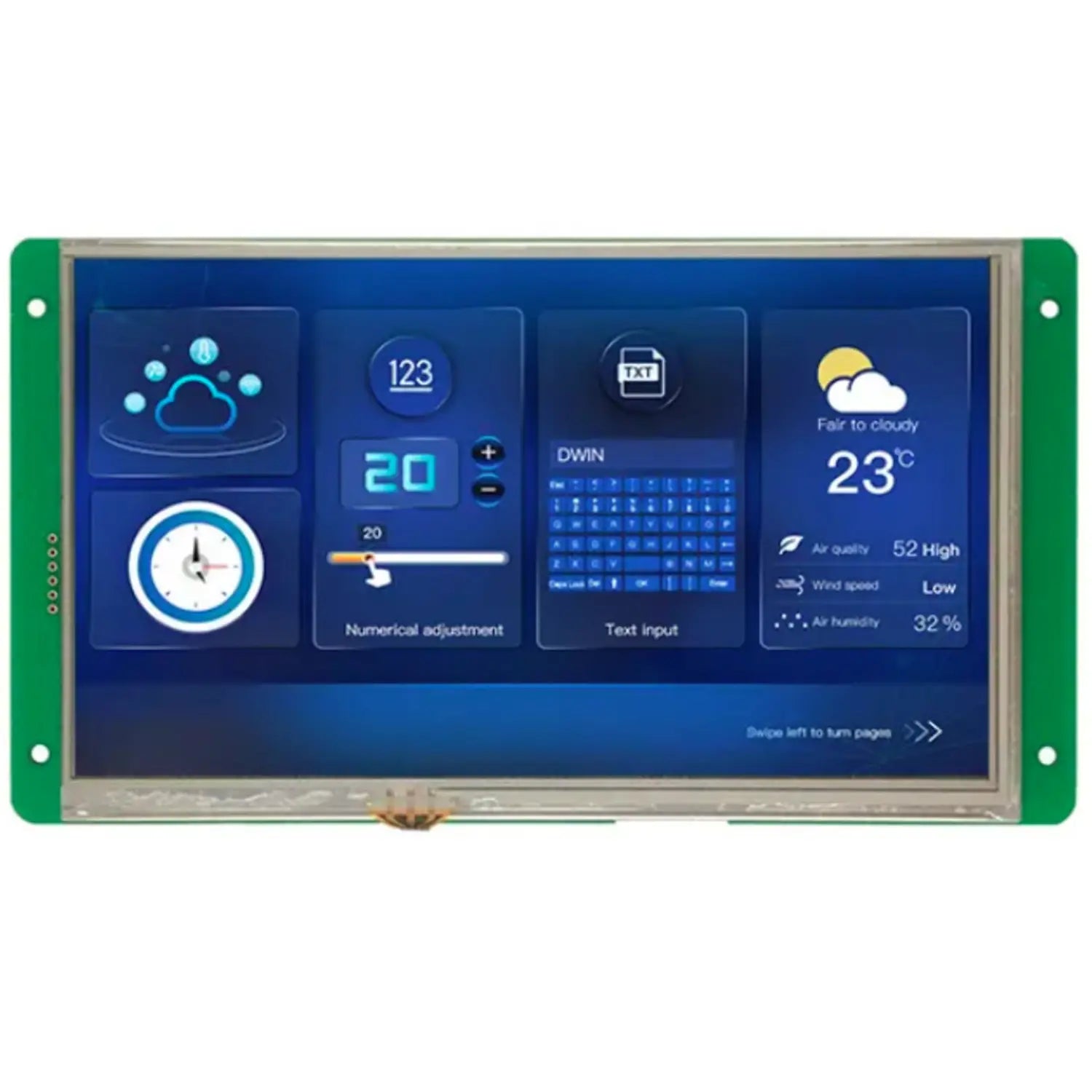

• Dwin 7.0 inch HMI LCD

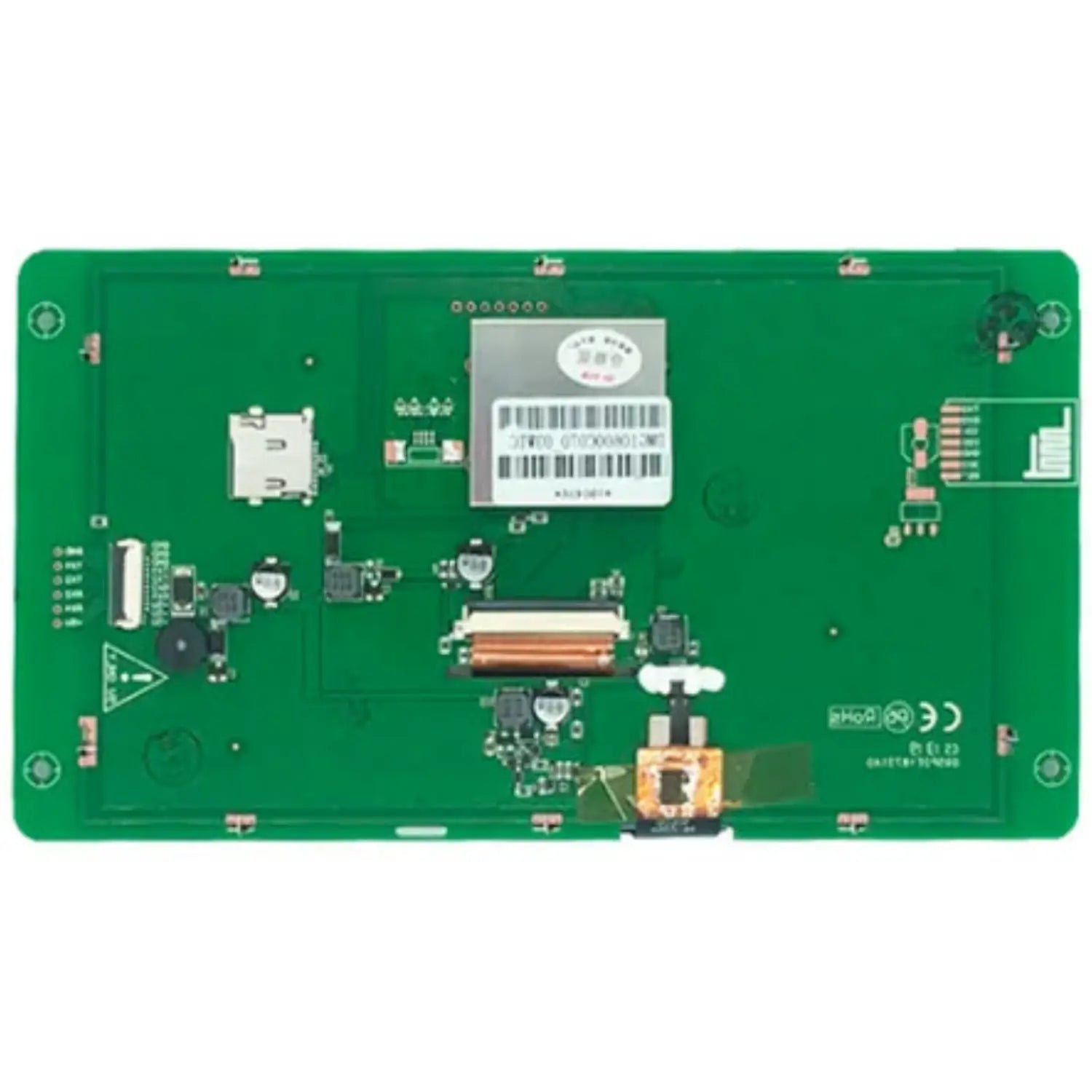

  • Dwin DMG10600C070_03WTR display
1 2

DWIN

Dwin DMG10600C070_03WTR 7.0 Inch 1024x600 HMI LCD Display – RS232 Resistive Touch, 16MB Flash, SD Interface & Buzzer For Industrial Use

Dwin DMG10600C070_03WTR 7.0 Inch 1024x600 HMI LCD Display – RS232 Resistive Touch, 16MB Flash, SD Interface & Buzzer For Industrial Use

In stock

Rs. 2,395.00
Rs. 2,395.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Dwin 7.0 Inch HMI LCD Display combines high-resolution visuals with advanced human-machine interface functionality. Featuring a 1024x600 resolution and resistive touch, this display allows precise and responsive interaction for industrial and AIoT applications.

Equipped with 16MB NOR Flash memory, the display can store user databases and system configurations directly on the device. It comes integrated with the DGUS II system, a robust GUI (Graphical User Interface) development platform, enabling you to design customized interfaces with buttons, text displays, sliders, and graphs effortlessly.

The pre-installed T5L1 DWIN development software is specifically tailored for DWIN’s ASIC and T5L dual-core 8051 processor, offering a low-power, cost-effective solution for building interactive HMI applications. Additional features include an SD interface for data expansion and a buzzer for audible alerts, making it ideal for versatile AIoT and industrial control systems.

Specification:

  • Display Size: 7.0 inch
  • Resolution: 1024x600
  • Display Panel: IPS
  • Touch Type: Resistive
  • View Angle: IPS View Angle:85/85/85/85(L/R/U/D)
  • Color: 24-bit 8R8G8B
  • Display Area: 156.00mm (W)x 88.20mm (H)
  • Power Supply: 5V 1A DC
    LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
  • Brightness: 250nit
  • Reserved WiFi Interface: connect to the cloud platform to update remotely
  • Reserved USB Interface: download files from a USB flash disk
  • User Interface: 8Pin_2.0mm socket for power supply and serial communication
  • Interface: RS232

Features:

  • Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 800x480 Pixel
  • Resistive touch screen
  • RS232 Interface, 10Pin1.0 mm socket
  • Download via SD card or online serial port
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
  • Dual Development System: DGUS II/ TA(Instruction set)
  • LCD:IPS View Angle:85/85/85/85(L/R/U/D)
  • With GUI OS, a GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51

Product Interface:

Applications:

Package Included:

1 x Dwin DMG10600C070_03WTR 7.0 Inch 1024x600 HMI LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)

DWIN HDL662B USB To Serial FFC Adapter

DWIN HDLUSB USB Male A-A Cable

Dwin SD00116GB Micro SD Card with Adapter

Dwin FCC1015A Cable 10Pin 1.0mm Pitch 150mm Opposite Side Contact FFC Cable
