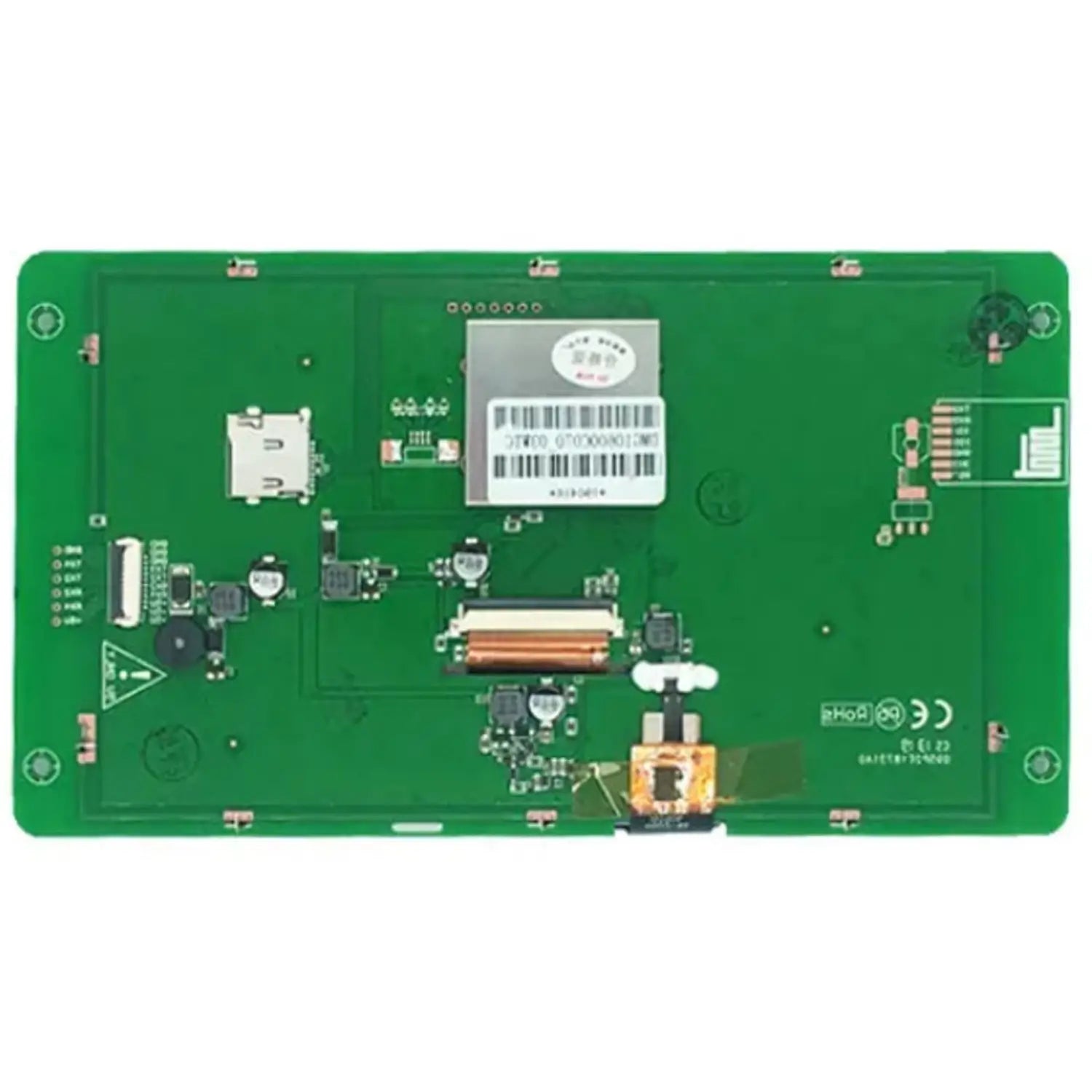

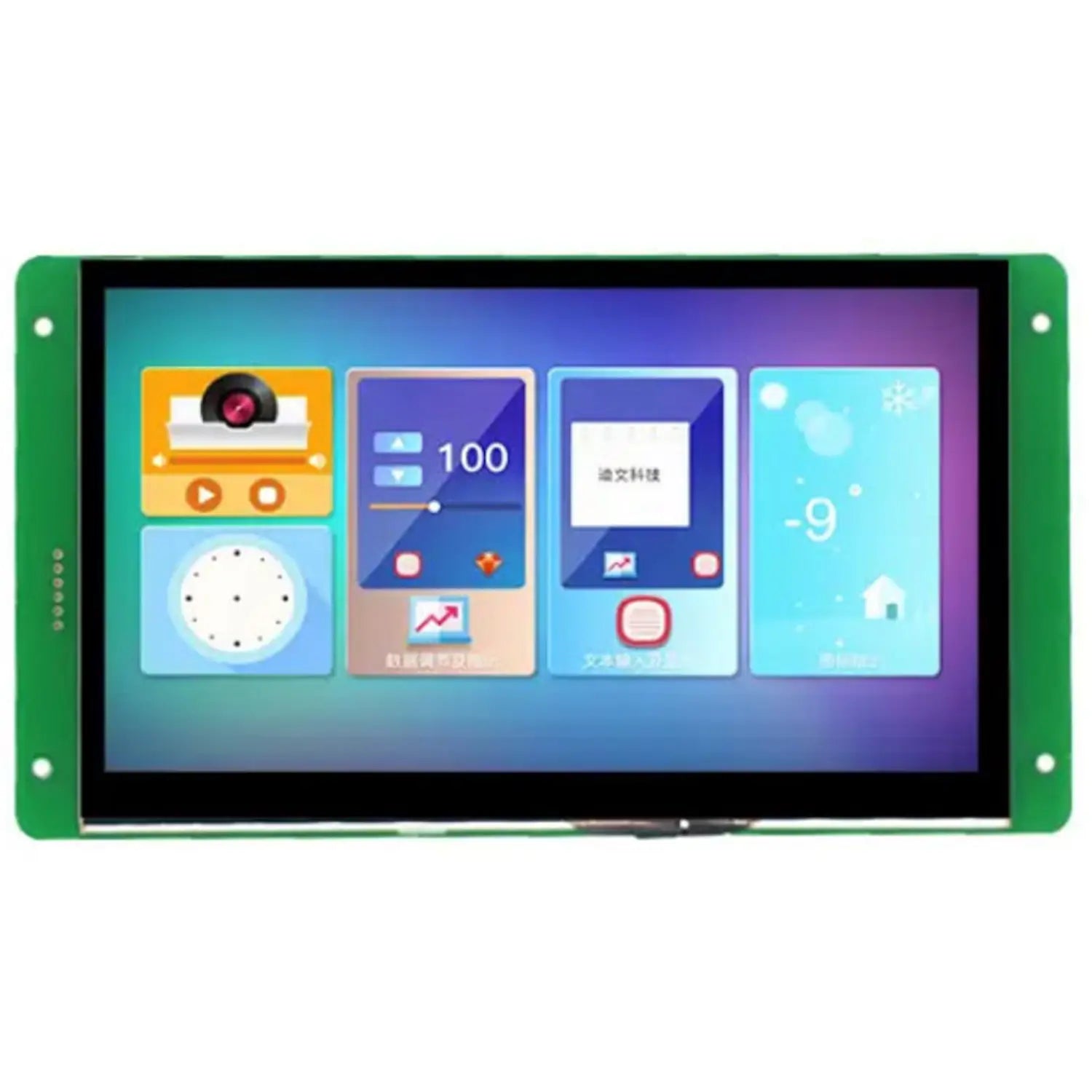

DWIN DMG10600C070_03WTC 7-inch IPS LCD Display 1024x600 Capacitive Touch Display With UART TTL & Dual RS232 16MB Flash Buzzer SD Card Interface
DWIN DMG10600C070_03WTC 7-inch IPS LCD Display 1024x600 Capacitive Touch Display With UART TTL & Dual RS232 16MB Flash Buzzer SD Card Interface
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The DWIN DMG10600C070_03WTC is a 7.0-inch 1024×600 IPS LCD display with capacitive touch technology, designed for high-quality visuals and responsive interaction. It supports UART TTL and dual RS232 communication, and features 16MB NOR Flash memory for storing user databases, along with a buzzer and SD card interface for extended functionality.
Preloaded with the DGUS II system—DWIN’s intuitive GUI development platform—this display allows users to easily create custom interfaces with interactive elements such as buttons, text fields, graphs, and sliders. Powered by the T5L1 DWIN ASIC, a low-power, cost-effective dual-core 8051 processor, it is purpose-built for AIoT applications requiring efficient human–machine interaction.
Specification
- Display Size: 7.0 inch
- Resolution: 1024x600
- Display Panel: IPS
- Touch Type: Capacitive
- View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
- Color: 24-bit 8R8G8B
- Display Area: 154.2mm (W) x 85.9mm (H)
- Power Supply: 5V 1A DC
- LCM interface: FPC50_0.5mm, RGB interface
- Memory: 16MB
- Buzzer: 3V passive buzzer
- SD Interface: FAT32
Features:
- Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen
- Non-touch; Resistive /Capacitive touch panel
- UART2: ON=TTL/CMOS; OFF=RS232; UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket
- Download methods: via SD card or online serial port
- Easy-to-use DWIN DGUS V7.6 GUIs Development coding skills required
- Dual Development System: DGUSⅡ/TA(Instruction set)
- LCD: IPS View Angle:85/85/85/85(L/R/U/D)
- With a GUI OS, a GUI with rich controls. DWIN OS kernel is open to the user for development, via DWIN OS language or KEIL C51
Package Included:
1 x DWIN DMG10600C070_03WTC 7-inch IPS LCD Display
