• DWIN DMG10600C070-03WTC HMI LCD Display With Capacitive Touch
  • 7 Inch IPS LCD HMI Display
1 2

DWIN

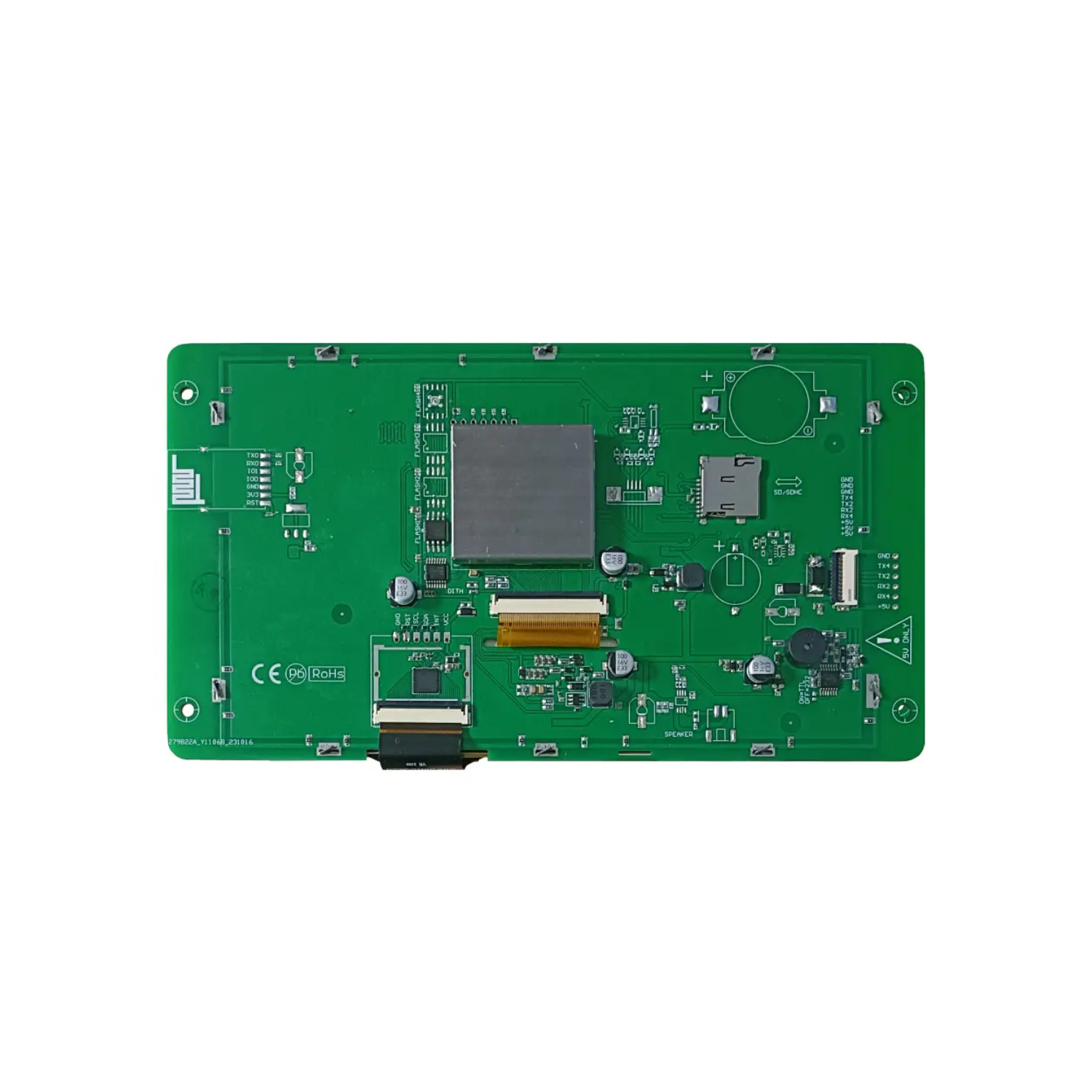

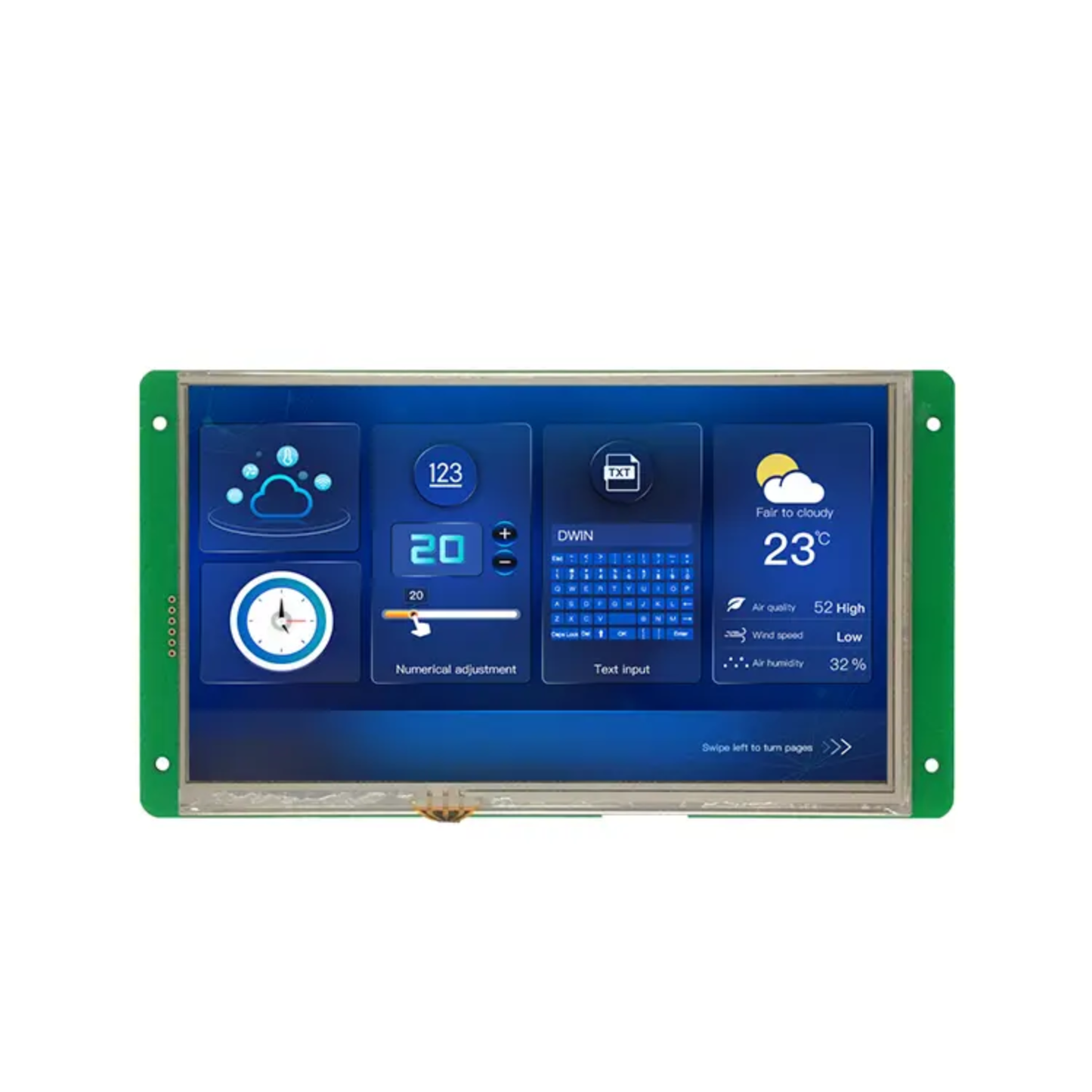

DWIN DMG10600C070-03WTC HMI LCD Display With Capacitive Touch 7 Inch IPS LCD HMI Display For Intuitive Control and Visual Clarity

DWIN DMG10600C070-03WTC HMI LCD Display With Capacitive Touch 7 Inch IPS LCD HMI Display For Intuitive Control and Visual Clarity

In stock

Rs. 3,671.00
Rs. 3,671.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Elevate your projects with the DWIN HMI 7-inch SMART Display. This vibrant IPS LCD capacitive touch screen offers a world of possibilities with its included UI development software. Design custom interfaces brimming with buttons, sliders, graphs, and text using the intuitive TA/DGUS II software.

Enjoy rich visuals with RGB color and 16.7 million displayable colors, all presented with excellent daylight visibility thanks to its 300-nit brightness. Effortlessly integrate this versatile display with Arduino, Raspberry Pi, and other microcontrollers via I2C communication, making it the perfect interface for your innovative creations.

Specifications:

  • Model Type: DWIN HMI Display
  • aTouch Type: Capacitive
  • Model No.: DMG10600C070
  • Display Resolution: 1024 × 600
  • Size: 7 inch
  • Colour: 24-bit colour 8R8G8B
  • Operating Voltage: 4.5 ~ 5.5V
  • Flash Memory: 16MB
  • Interface: UART, I2C
  • LED Brightness: 300-nit
  • RAM: 128KB
  • Panel Type: IPS

Features:

  • Integrated smart screen simplifies development and deployment.
  • Features built-in DGUS II intelligent software for easy interface creation.
  • Powerful data management capabilities for streamlined operation.
  • Active Area of 154.1mm x 85.9mm.
  • Operates at a typical 5V (4.5V-5.5V range).
  • Dimensions of 190.5mm x 105.4mm x 13.4mm, includes capacitive touch and buzzer.
  • Equipped with a capacitive touch panel and integrated buzzer.
  • Features a built-in WIFI 10 module for wireless capabilities.

Useful Link:

DWIN DMG10600C070-03WTC HMI LCD Display

Package Included:

1 x DWIN DMG10600C070-03WTC HMI LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
