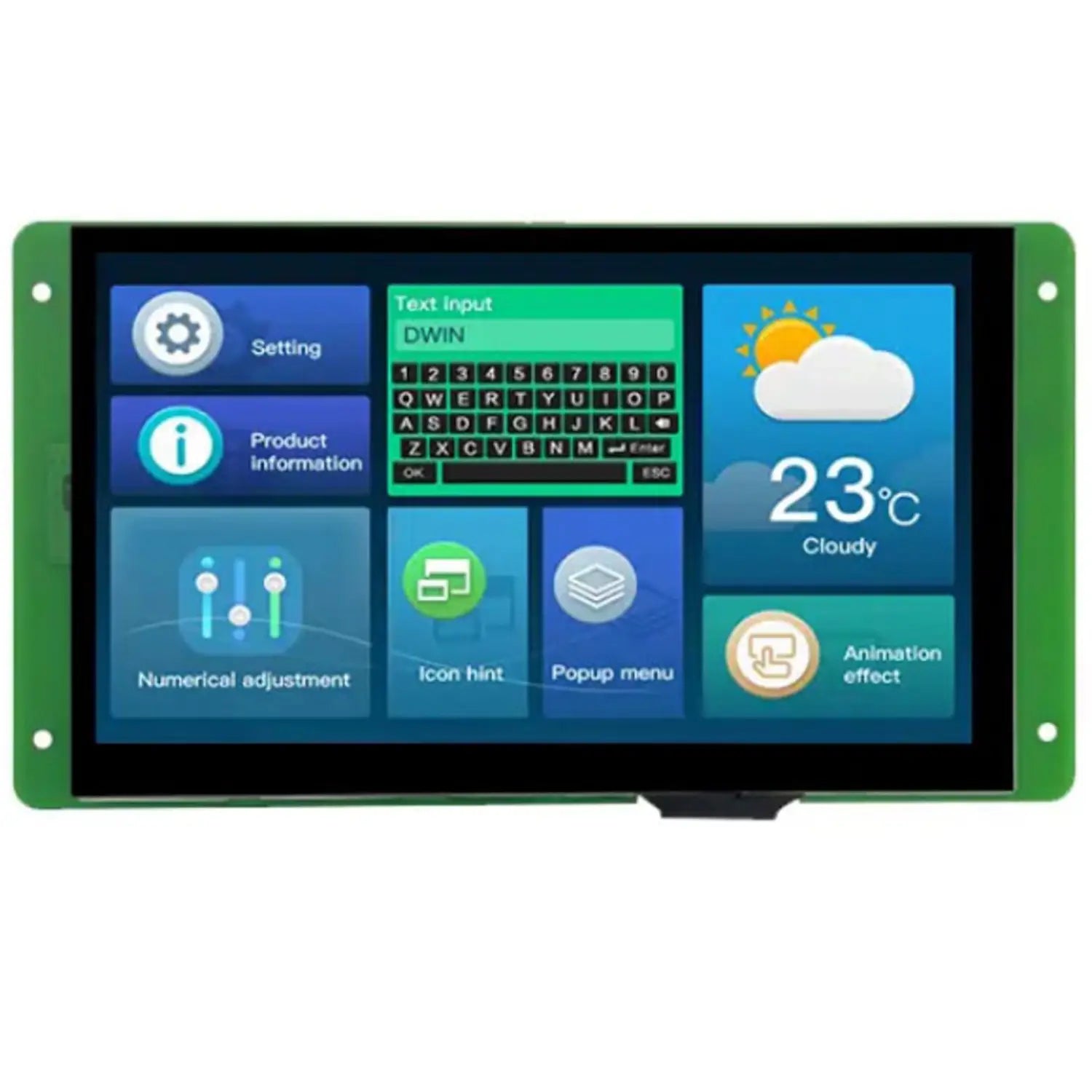

• DWIN DMG80480T070_09WTC 7.0-inch 800x480 IPS LCD

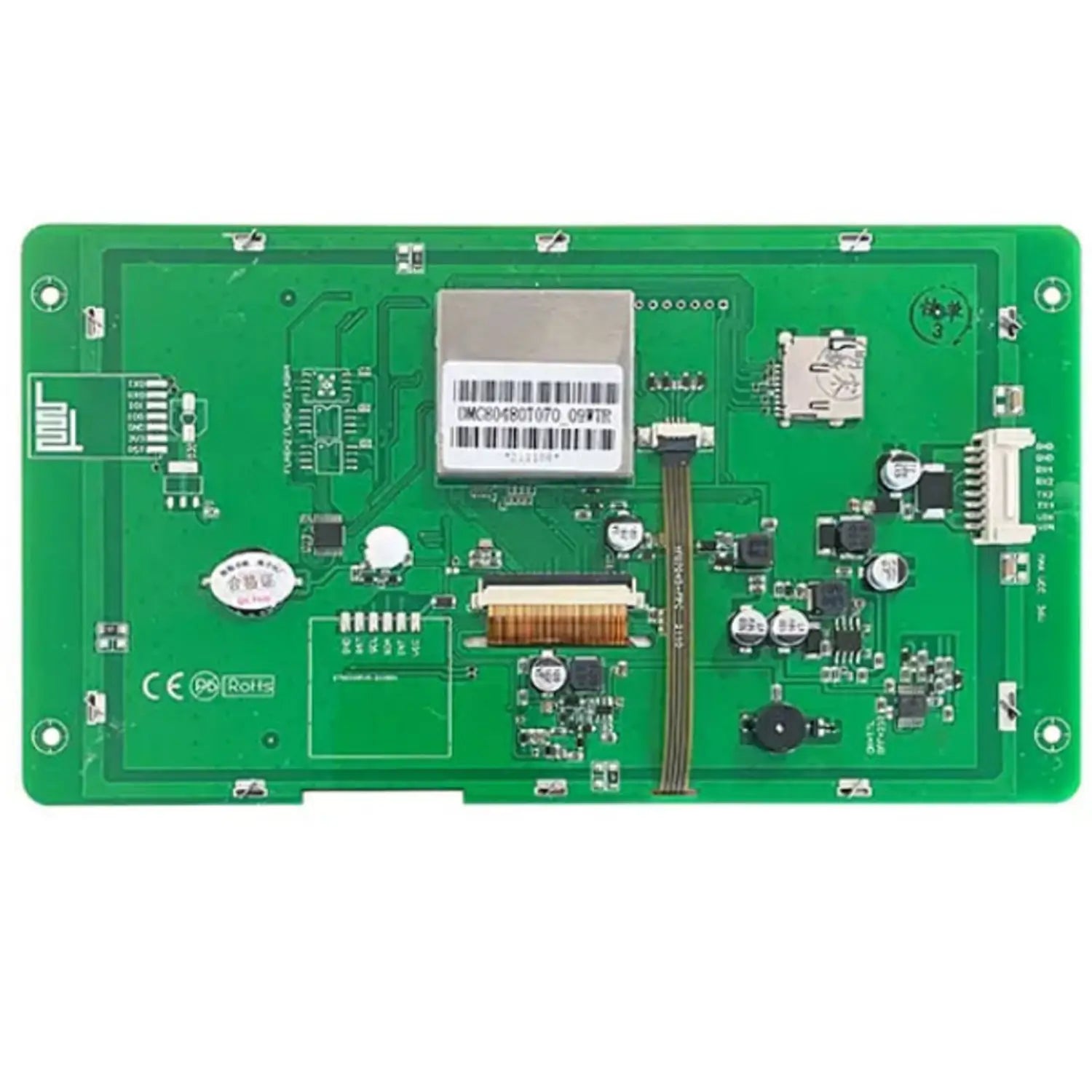

  • DWIN 7 inch HMI Display
1 2

DWIN

DWIN 7-Inch DMG80480T070_09WTC 800x480 Capacitive Touch HMI Display with UART TTL/RS232, 16MB Flash, Buzzer & RTC For Industrials Use

DWIN 7-Inch DMG80480T070_09WTC 800x480 Capacitive Touch HMI Display with UART TTL/RS232, 16MB Flash, Buzzer & RTC For Industrials Use

In stock

Rs. 4,395.00
Rs. 4,395.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details



Description:

The DWIN DMG80480T070_09WTC is a 7.0-inch 800x480 IPS HMI LCD Display featuring a capacitive touchscreen, 16MB Flash memory, buzzer, RTC, and SD interface, designed for advanced human-machine interface (HMI) applications. Developed by DWIN Technology, this display offers vibrant color performance, wide viewing angles, and reliable communication through UART TTL/RS232x2 ports.

Powered by DWIN’s T5L1 ASIC processor, a low-power dual-core 8051 system-on-chip, the display runs on the DGUS II operating system—a professional GUI development platform that allows easy customization of interactive user interfaces. Users can create custom layouts with buttons, text fields, graphs, sliders, and other visual elements without complex programming.

The built-in 16MB NOR Flash memory provides ample space for storing user databases, graphical resources, and configuration files. With its intuitive development environment and robust hardware, the DMG80480T070_09WTC is ideal for AIoT applications, industrial automation, smart control panels, and embedded system interfaces requiring smooth touch interaction and rich visual performance.

Specification:

  • Display Size: 7.0 inch
  • Resolution: 800x480
  • Display Panel: IPS
  • Touch Type: Capacitive
  • View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
  • Color: 18-bit 6R6G6B
  • Display Area: 154.08mm (W)x 85.92mm (H)
  • Power Supply: 12V 1A DC
  • LCM interface: FPC50_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • PGT05 Interface: When the product crashes by accident, you can use PGT05 to update
  • DGUS kernel and make the product return to normal
  • Brightness: 810nit
  • RTC: Super-capacitor for power supply. Accuracy: 1s/24h. It can work normally for 30 days after a power failure
  • User Interface: 8Pin_2.0mm socket for power supply and serial communication
  • Interface: TTL/RS232

Features:

  • 7.0 Inch, 800xRGBx480, 262K Colors, TN Display, High brightness 750 nit
  • Anti-UV, with conformal coating, Capacitive touch screen
  • TTL/RS232 User interface, 8Pin_2.0mm cable
  • Download via SD card or online, UART serial port, or optional USB and Wifi
  • Developed by DWIN DGUS V7.624 GUIs Development, no code required
  • DGUSⅡ/TA(Instruction set) two development mode available
  • View Angle: 70/70/50/70(L/R/U/D)
  • Fast running dual core, GUI & OS core of the 8051 processor

Product Interface:

Applications:

Useful Link:

DWIN 7-Inch DMG80480T070_09WTC 800x480 Capacitive Touch HMI Display

Package Included:

1 x DWIN 7-Inch DMG80480T070_09WTC 800x480 Capacitive Touch HMI Display

DWIN Smart LCD Display Accessories (Need to purchase separately)

DWIN HDL662B USB To Serial FFC Adapter

DWIN HDLUSB USB Male A-A Cable

Dwin SD00116GB Micro SD Card with Adapter

Dwin FCC1015A Cable 10Pin 1.0mm Pitch 150mm Opposite Side Contact FFC Cable
