Description:

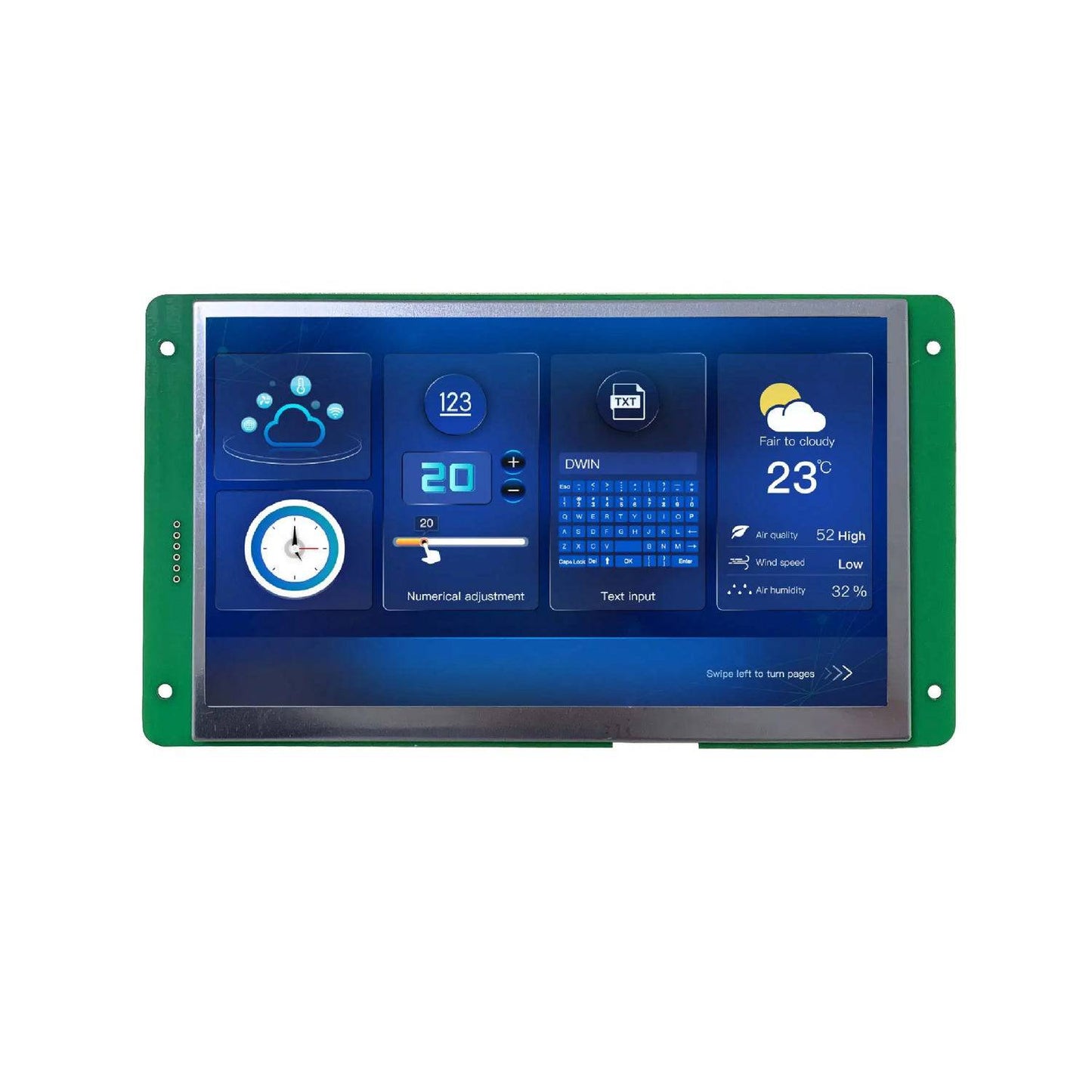

The DWIN 7.0-inch LCD Display is developed by DWIN. The NOR Flash memory in the display is available to store the user database.
The DWIN 7.0-inch LCD Display is integrated with a running DGUS II system and a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.
Specifications:
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
- Colour: 24-bit 8R8G8B
- Active Area: 154.20mm(W) × 85.90mm(H)
- Visual Area: 156.00mm(W) × 88.20mm(H)
- Backlight: LED
- Brightness: 250nit
Features:
- Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 800x480 Pixel
- 7.0-inch LCD Display has a resistive touchscreen
- Download via SD card or online serial port
- Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
- Dual Development System: DGUS II/ TA(Instruction set)
- DWIN 7.0-inch LCD Display has RS232 Interface, 10Pin1.0 mm socket
Useful Link:

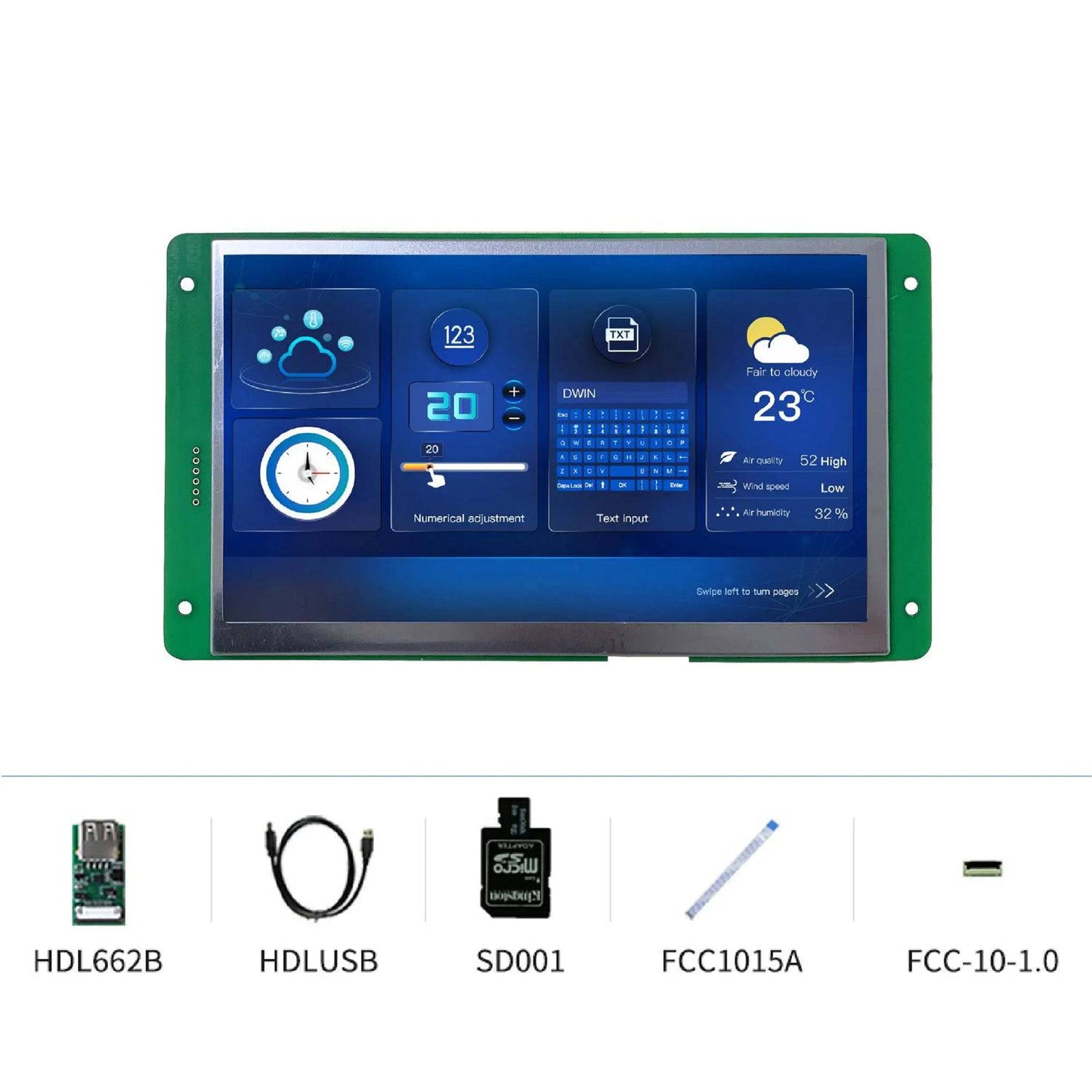

Package Included:
1 x DWIN 7.0-inch LCD Display 7.0" 1024x600 RS232 HMI LCD Display Resistive Touch 16MB Flash SD interface Buzzer
