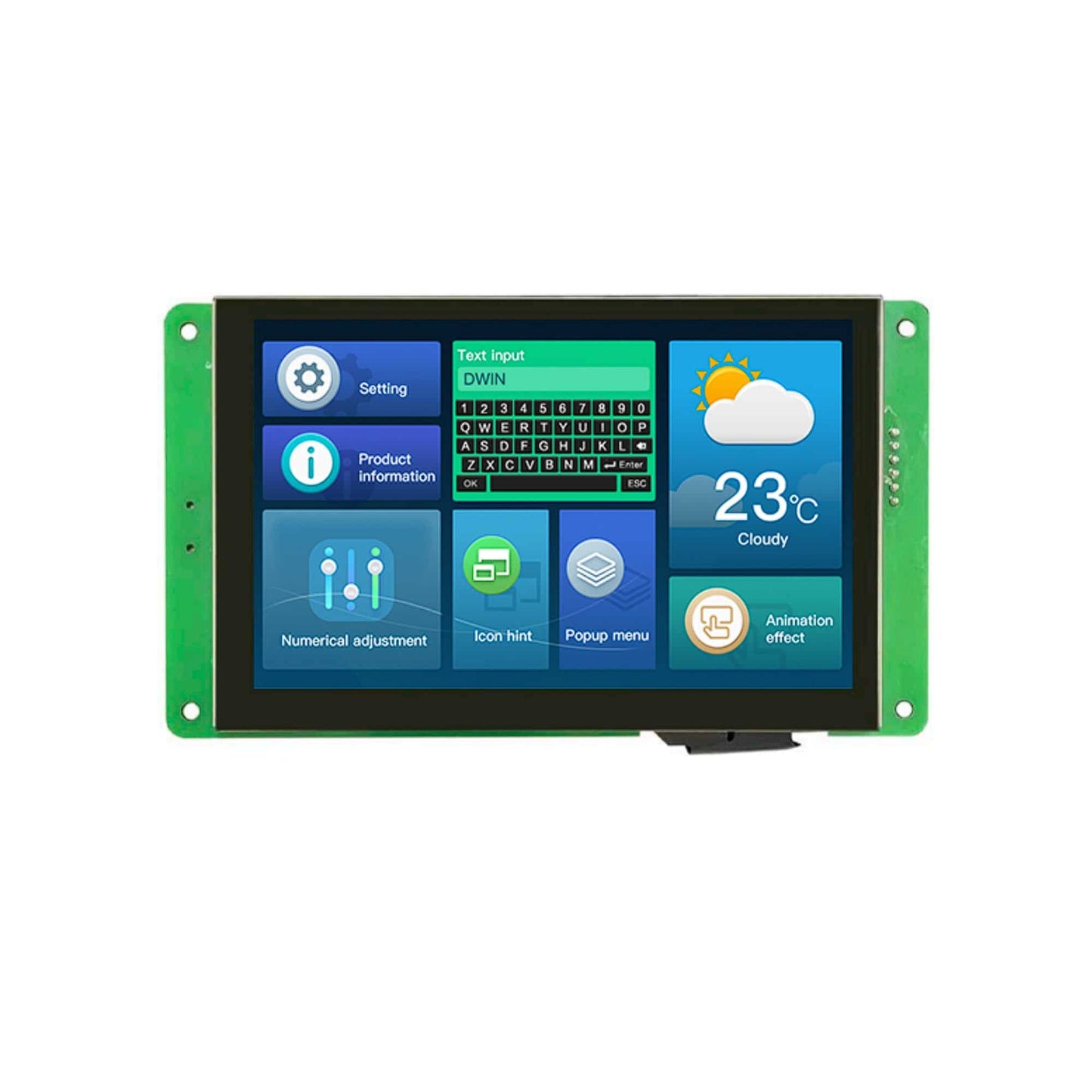

DWIN DMG80480C050_04WTC 5" HMI LCD Display 800x480 Capacitive Touchscreen Panel for Industrial Control - RS5593

DWIN DMG80480C050_04WTC 5" HMI LCD Display 800x480 Capacitive Touchscreen Panel for Industrial Control - RS5593

SKU:RS5593

Low stock: 5 left

Regular price Rs. 3,059.00
Sale price Rs. 3,059.00 Regular price
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

The DWIN DMG80480C050_04W is a versatile 5-inch HMI Smart LCD module designed for commercial applications requiring high-quality visuals and responsive touch. It's 800x480 resolution and 16.7M color depth deliver vivid and detailed graphics, powered by the efficient T5L0 ASIC and the intuitive DGUS II development environment.

The G+G capacitive touch screen supports accurate point touch and fluid drag gestures for a seamless user experience. Communication is reliable through the TTL Interface UART connection via a 10-pin 1.0mm FCC cable.

The integrated SD interface simplifies file downloads for dynamic display updates and statistical presentations. Featuring a premium IPS TFT LCD panel, this display offers ultra-wide 85-degree viewing angles in all directions, ensuring consistent and clear visibility.

Specifications:

  • Model: DMG80480C050_04W
  • LCD Type: IPS TFT
  • Touch Panel: Capacitive Touch Panel
  • Resolution: 800*480
  • Display Size: 5 inches
  • Brightness: 280 nit
  • Interface: UART/TTL/CMOS
  • Operational Voltage: 4.5V to 5.5V
  • Typical Current: 70mA to 240mA
  • Dimensions: 143.5 x 80.9 x 15.8 (in mm)

Features:

  • DWIN 5.0 Inch Display is based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 800x480 Pixel
  • 5.0-inch 800x480, 18-bit Colors, UART Serial TFT LCD module.
  • Dual Development System: DGUS II/ TA(Instruction set)
  • LCD:IPS View Angle:85/85/85/85(L/R/U/D)
  • DWIN 5.0 Inch Display has a Capacitive touch screen, G+G structure, support point touch, and drag
  • Download via SD card or online serial port
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
  • DWIN 5.0 Inch Display comes with GUI & OS, a GUI with rich controls. DWIN OS kernel is open to the user for the second development, via DWIN OS language or KEIL C51

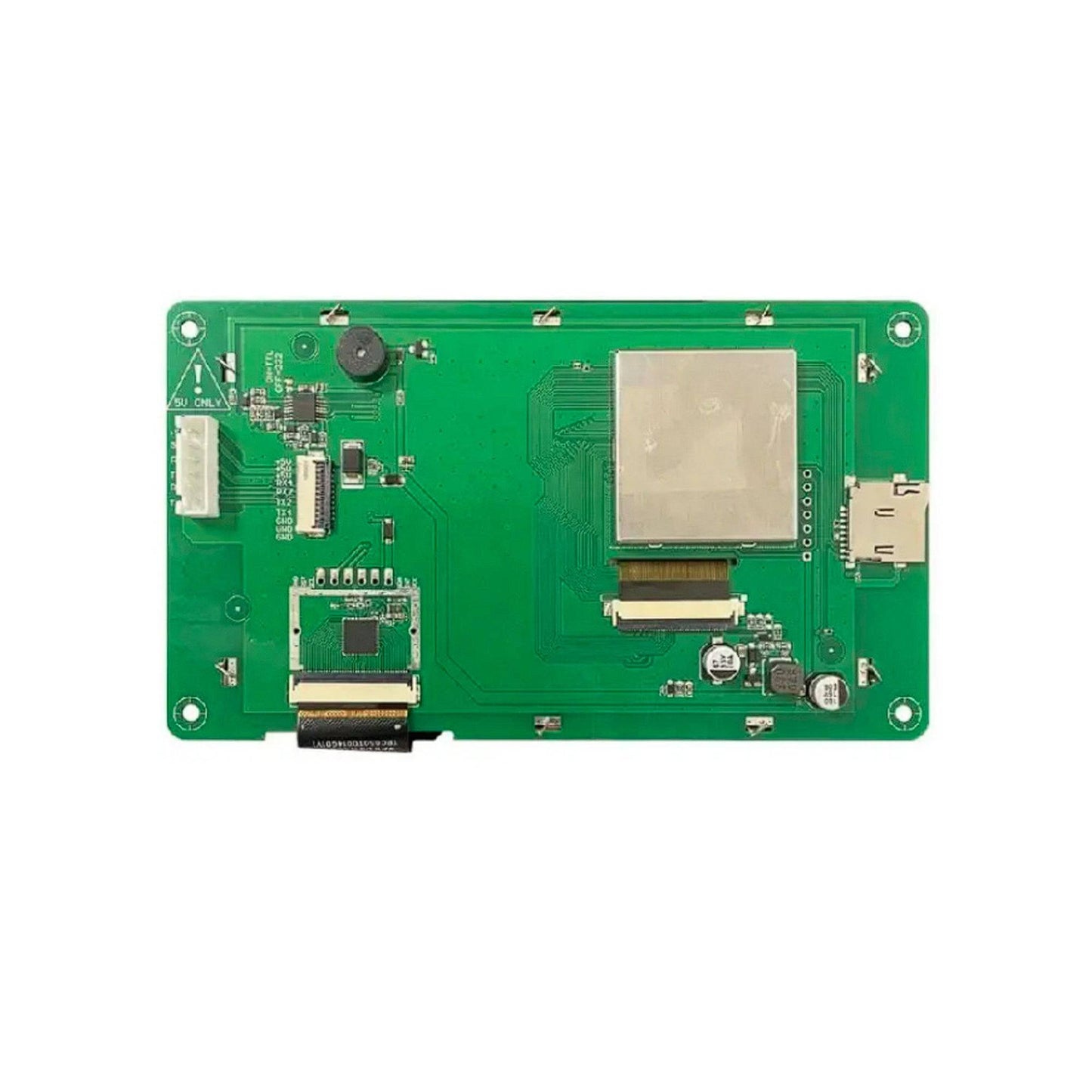

Product Interface:

Package Included:

1 x DWIN DMG80480C050_04WTC 5" HMI LCD Display
