DWIN DMG80480F043_01WTC 4.3 Inch 480x800 COF TTL LCD Display Capacitive Touch 8MB Flash - RS5596

DWIN DMG80480F043_01WTC 4.3 Inch 480x800 COF TTL LCD Display Capacitive Touch 8MB Flash - RS5596

RS5596

In stock

Rs. 1,400.00
Rs. 1,400.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

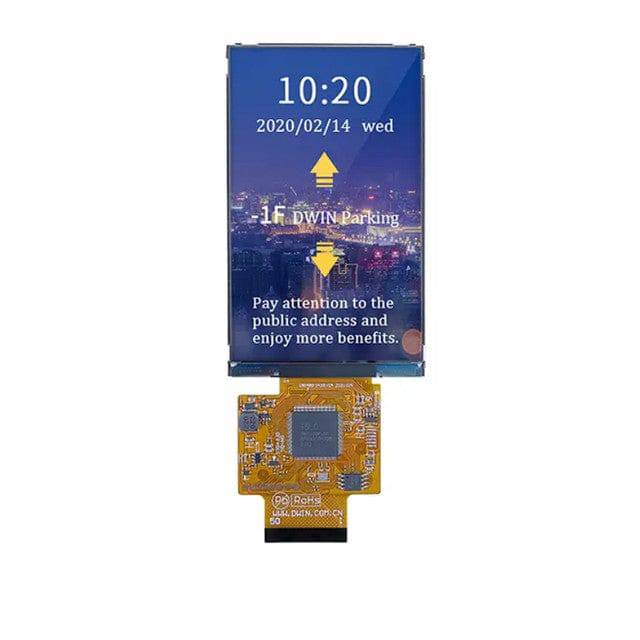

The 4.3-inch 480x800 COF TTL LCD Display is an ultra-thin, ultra-light, and low-cost COF LCD monitor. 4.3 Inch 480x800 COF TTL LCD Display features a 480x800 pixels resolution, 262K colours, IPS-TFT-LCD, and a wide viewing angle. 4.3-Inch 480x800 COF TTL LCD Display is available with or without a touch panel, providing a cost-effective solution.

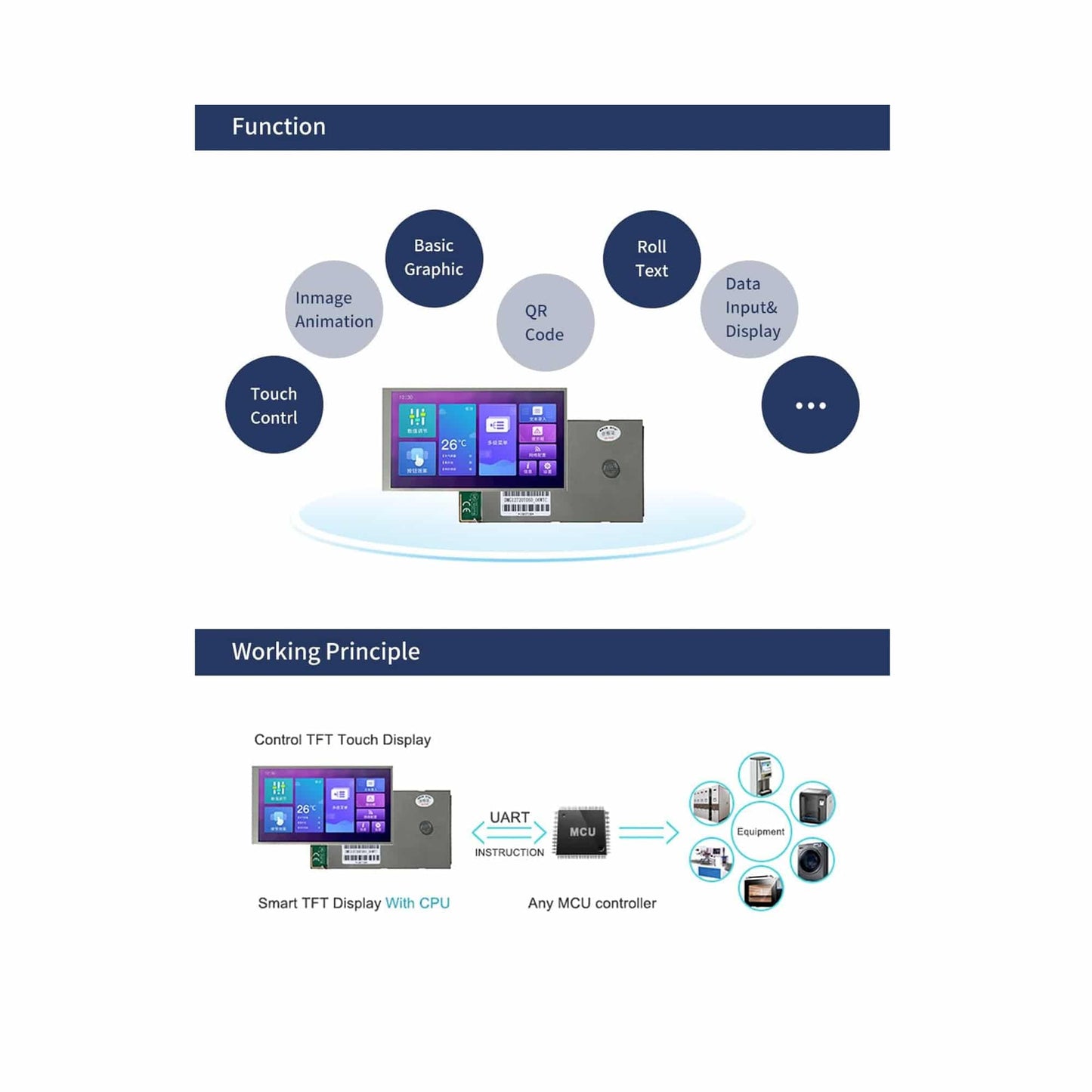

The COF structure allows the entire core circuit of the smart screen to be fixed on the FPC of LCM, resulting in a light and thin design, low production cost, and easy production. The smart screen comes with 50-pin interfaces, including IO, UART, CAN, AD, and PWM from the user CPU core, making it ideal for easy secondary development. Thickness 2.8mm.

Specifications:

  • LCD Type: IPS-TFT-LCD
  • Power Voltage: 3.6~5.5V, typical value of 5V
  • Working Temperature: -10℃~60℃
  • Storage Temperature: -20℃~70℃
  • Working Humidity: 10%~90%RH, typical value of 60% RH
  • Operation Current: 230mA, VCC=5V, max backlight 100mA, VCC=5V, backlight off,

Features:

  • Ultra-thin, Ultra-light, and Low-cost COF LCD screen
  • 4.3-inch display with 480x800 pixels resolution
  • 262K colours with IPS-TFT-LCD technology for a wide viewing angle
  • 4.3 Inch 480x800 COF TTL LCD Display available with/without TP (Touch Panel)
  • COF structure for lightweight, slim design, low cost, and easy production
  • 50-pin interfaces, including IO, UART, CAN, AD, and PWM from the user CPU core for easy secondary development

    Product Interface:

    Package Included:

    1 x DWIN 4.3 Inch 480x800 COF TTL LCD Display

    DWIN Smart LCD Display Accessories (Need to purchase separately)
