Dual VNH2SP30 Monster Moto Shield Module Stepper Motor Driver 30A16V For Arduino - NA270

Dual VNH2SP30 Monster Moto Shield Module Stepper Motor Driver 30A16V For Arduino - NA270

SKU:NA270

In stock

Regular price Rs. 900.00
Regular price Sale price Rs. 900.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

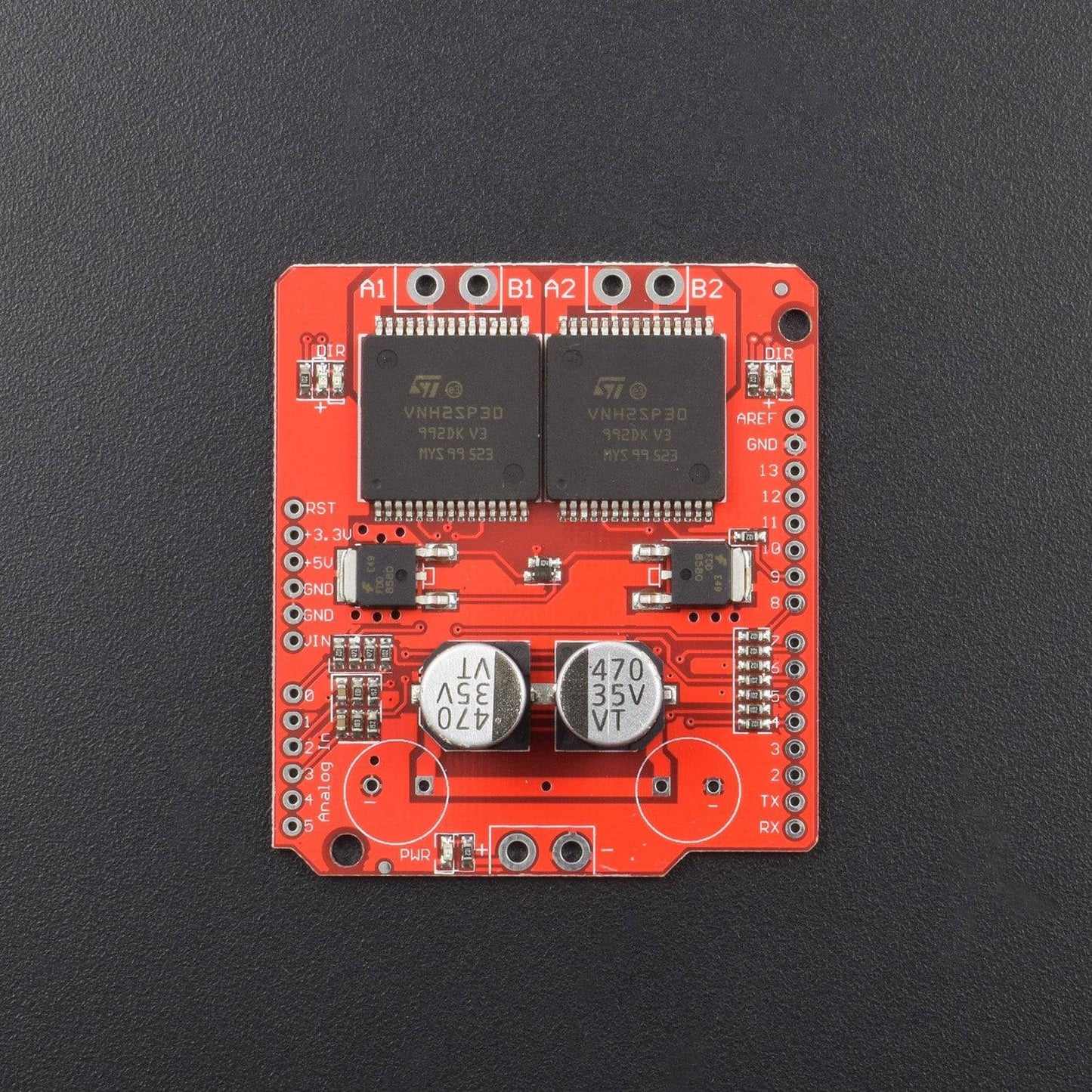

This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield, we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.


Specifications:

  • Power supply: Max 16V.
  • Maximum current rating: 30 A.
  • Practical Continuous Current: 14 A.
  • MOSFET on-resistance: 19 mΩ (per leg).
  • Maximum PWM frequency: 20 kHz.

Features:

  • Over temperature protection, over-voltage and under-voltage protection.
  • Current sensing available to Arduino analog pin.

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However,when using the board at currents up to 6A the chips will barely become noticeably warm.

Package Included:

1 x Dual VNH2SP30 Monster Moto Shield Module
