- DC 0-100V/0-50A measuring range; DC4.5V - 30V power source
- 48x29x21mm dimensions, small size, easy to mount

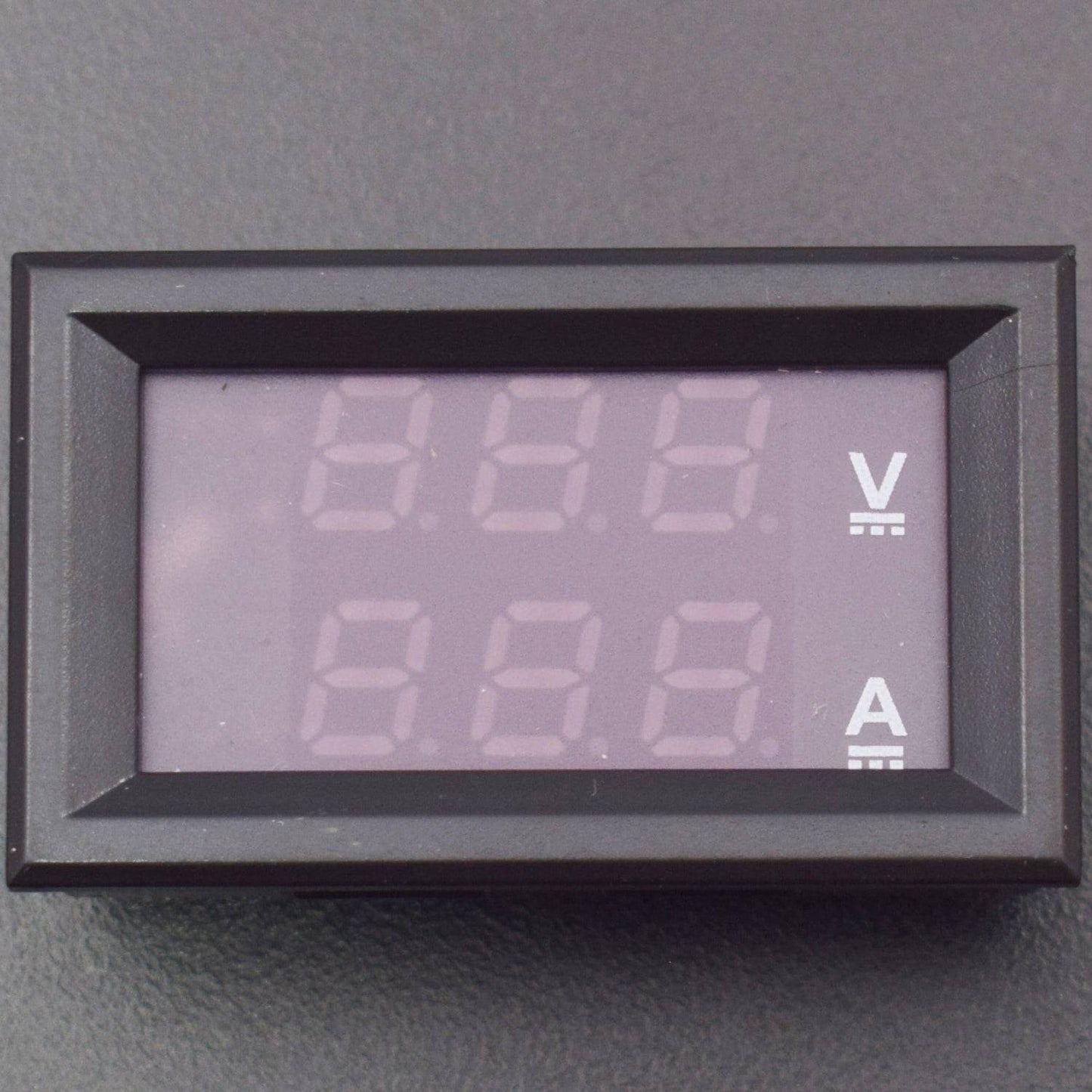

- 0.28" Digital Tube with clarity and brightness LED display
- Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 ms.
Features:
- Work Current：<60mA
- display：0.28"LED，red +blue color
- size：48×29×21 mm
- Refresh rate：≥500mS/times
- Permissible Error：1%（1）
- power supply: 4.5V - 30V
- Measure range: DC0-100V
- Operating temperature：-10～+65
- operating humidity：10～80%
- working air pressure：80～106kPa

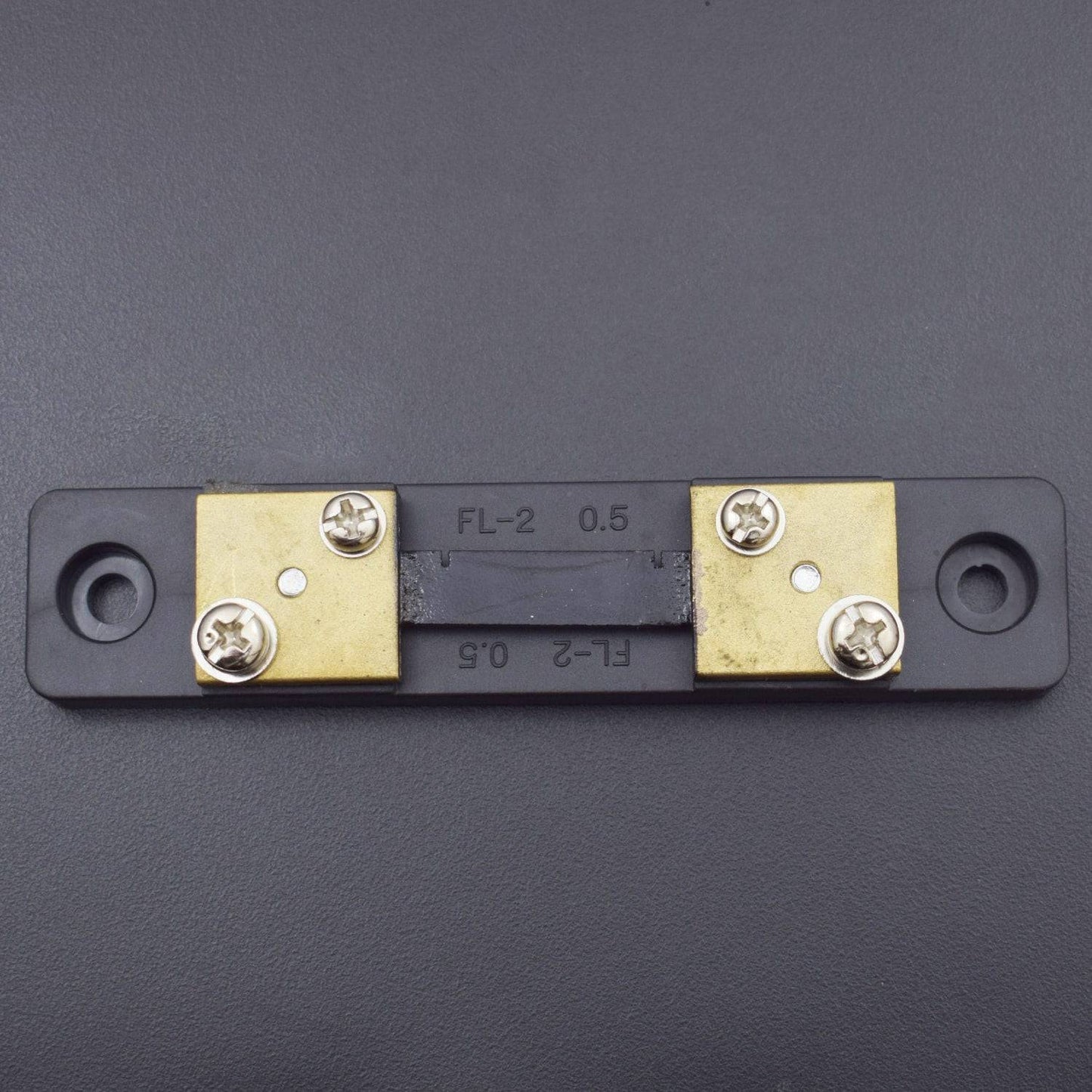

- Testing current:0-50A

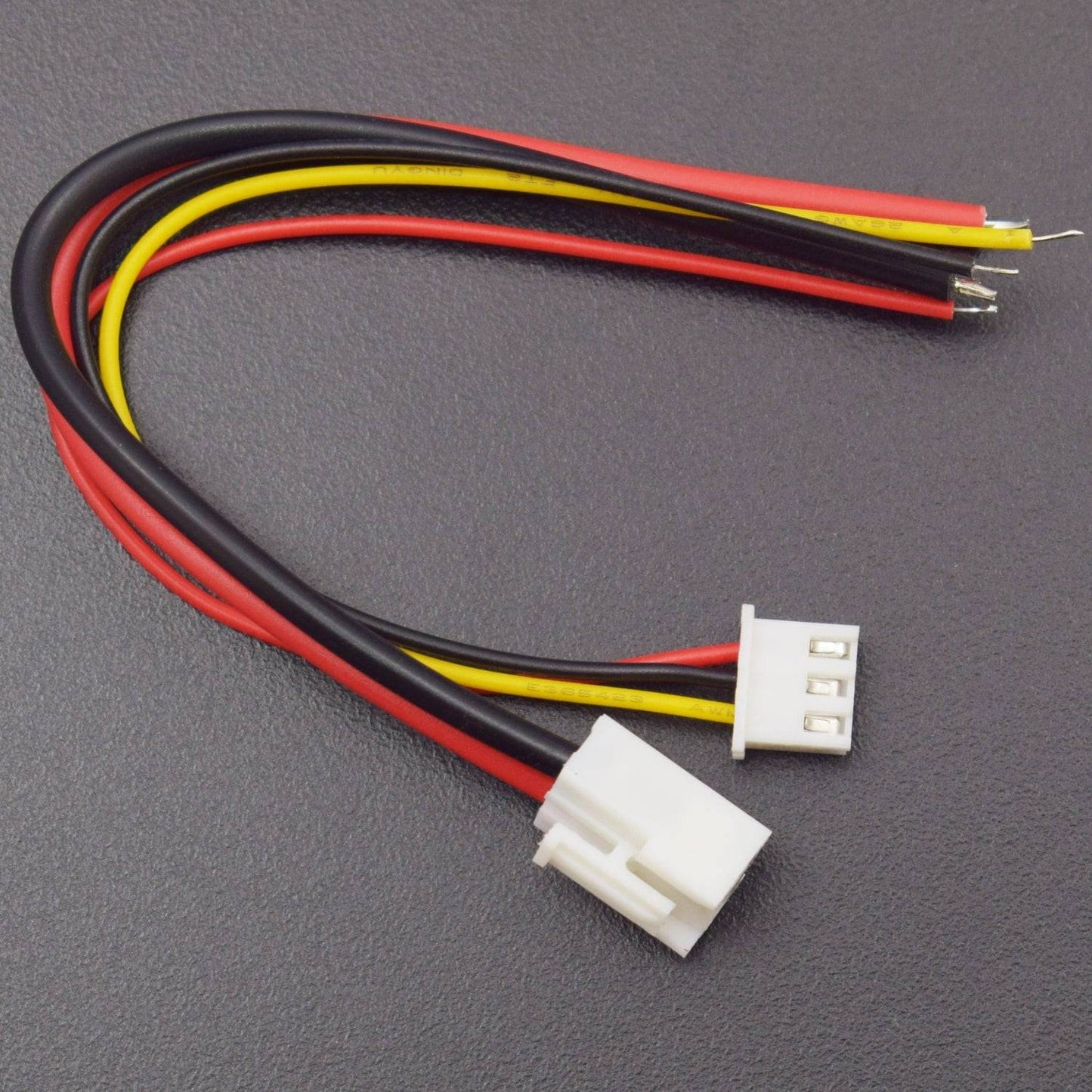

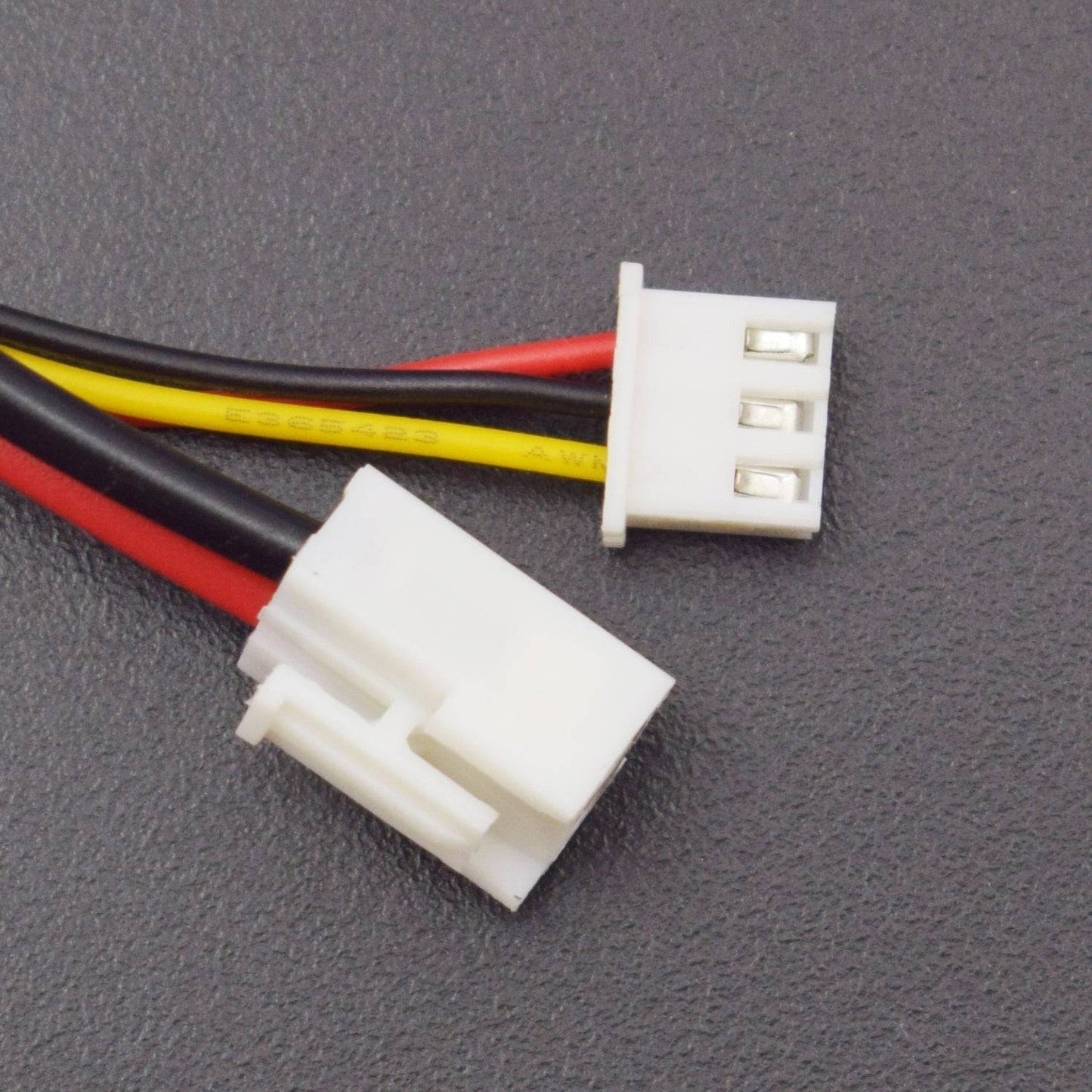

- Wiring: thick cable
- Black line: COM, common measuring
- Redline: power supply+
- Yellow line: IN+, current input+ thin cable (4.5V - 30V)
- Black line: DC Input - Redline: DC input
Package Included :

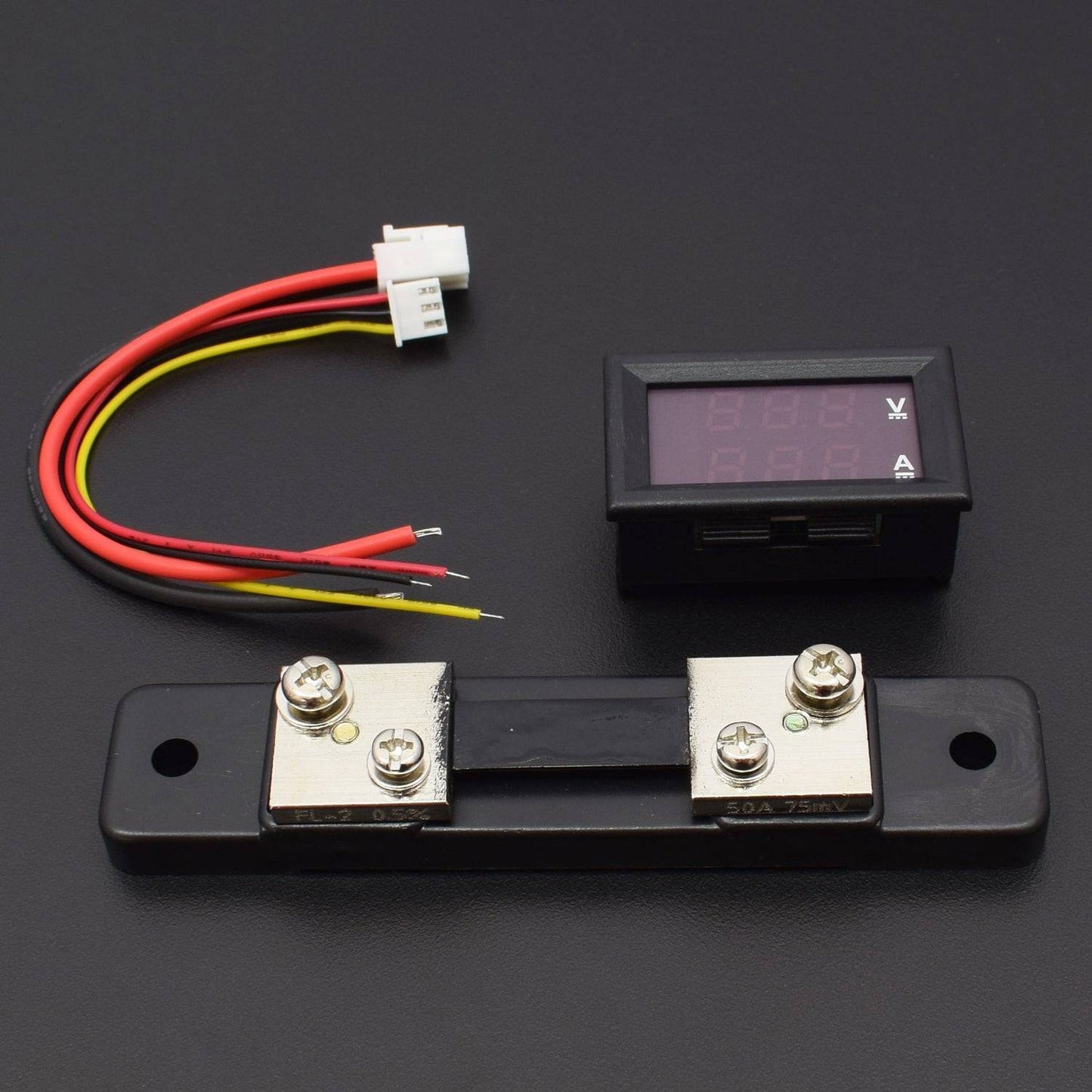

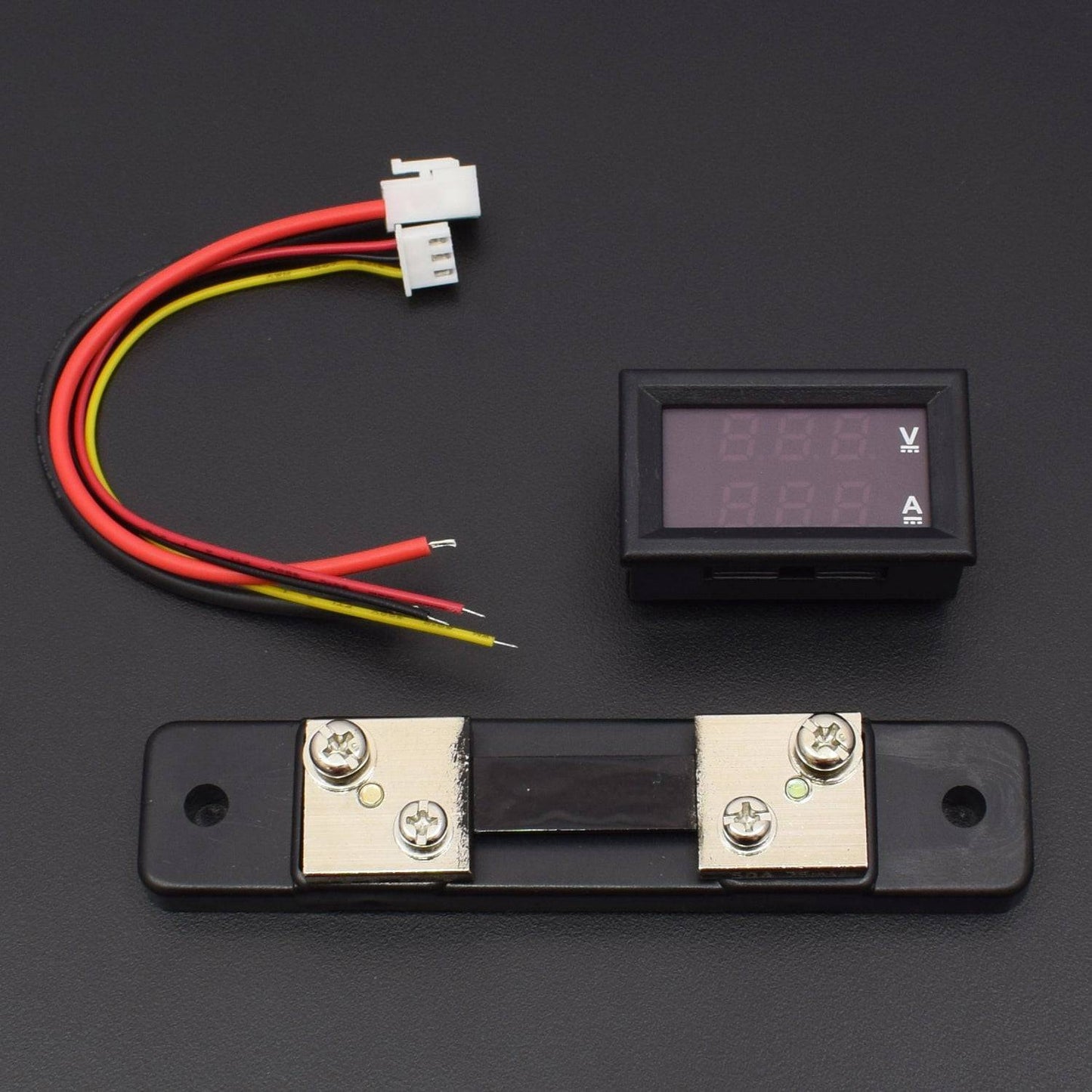

1 x Dual Display Volt Amp Voltmeter Ammeter 0.28" LED Digital DC 0-100V/50A Voltage Current Measurement Meter
