Description:

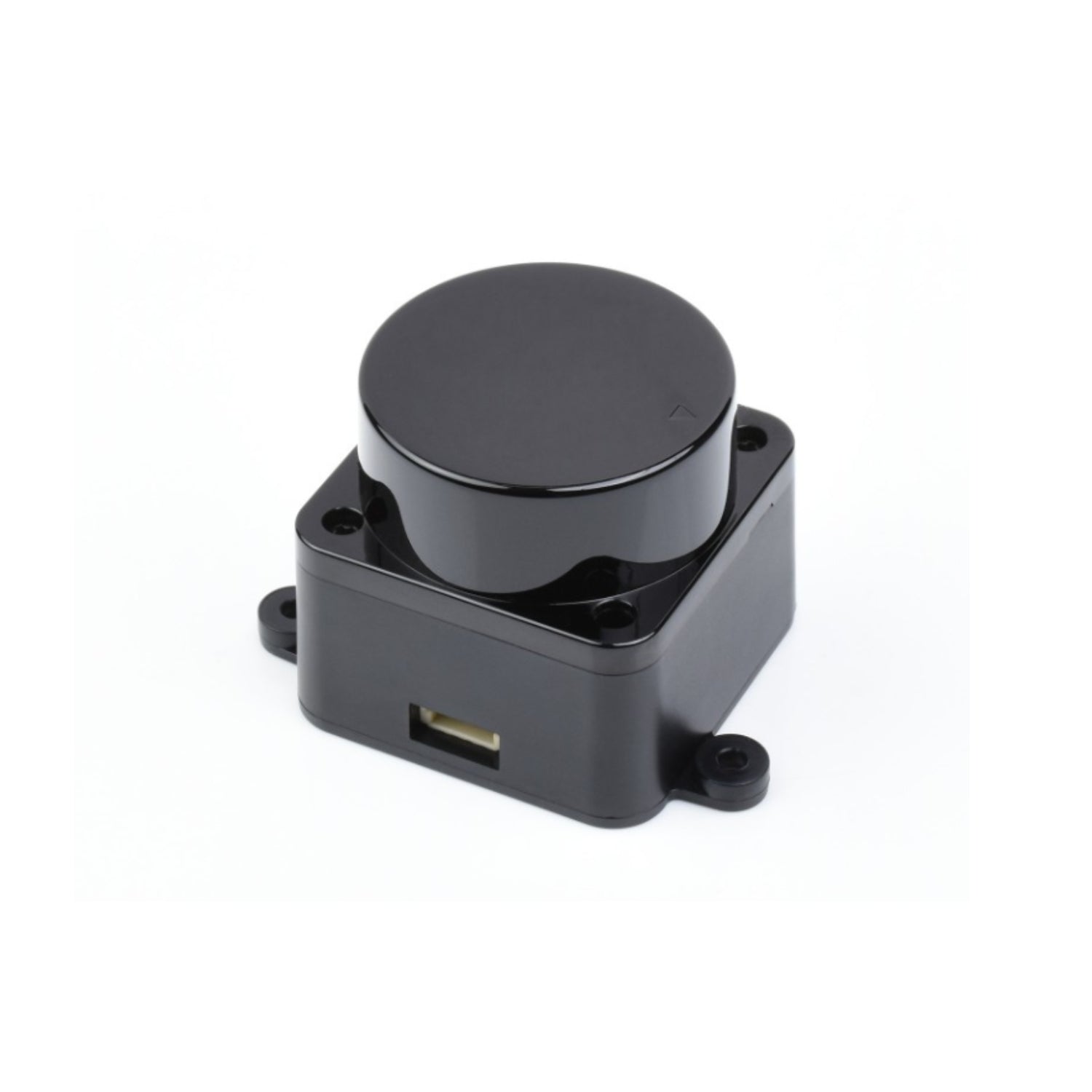

LD19 is an Adopting TOF (Time of Fight) ranging technology, measuring distance according to the time-of-flight of the laser pulse, within the effective detection distance of 12m, the radar ranging accuracy will not change with the distance, and can reach the measurement accuracy of ±45 mm. With efficient algorithm logic to achieve 360-degree detection of a robot, autonomous mapping, and obstacle detection.
Brushless Motor, Quiet Without Friction, The Lifetime Can Reach 10000+ Hours; It adopts a compact structure design, stylish appearance, smaller size, lower power consumption, and can be embedded inside the robot to reduce its size and improve its passability.

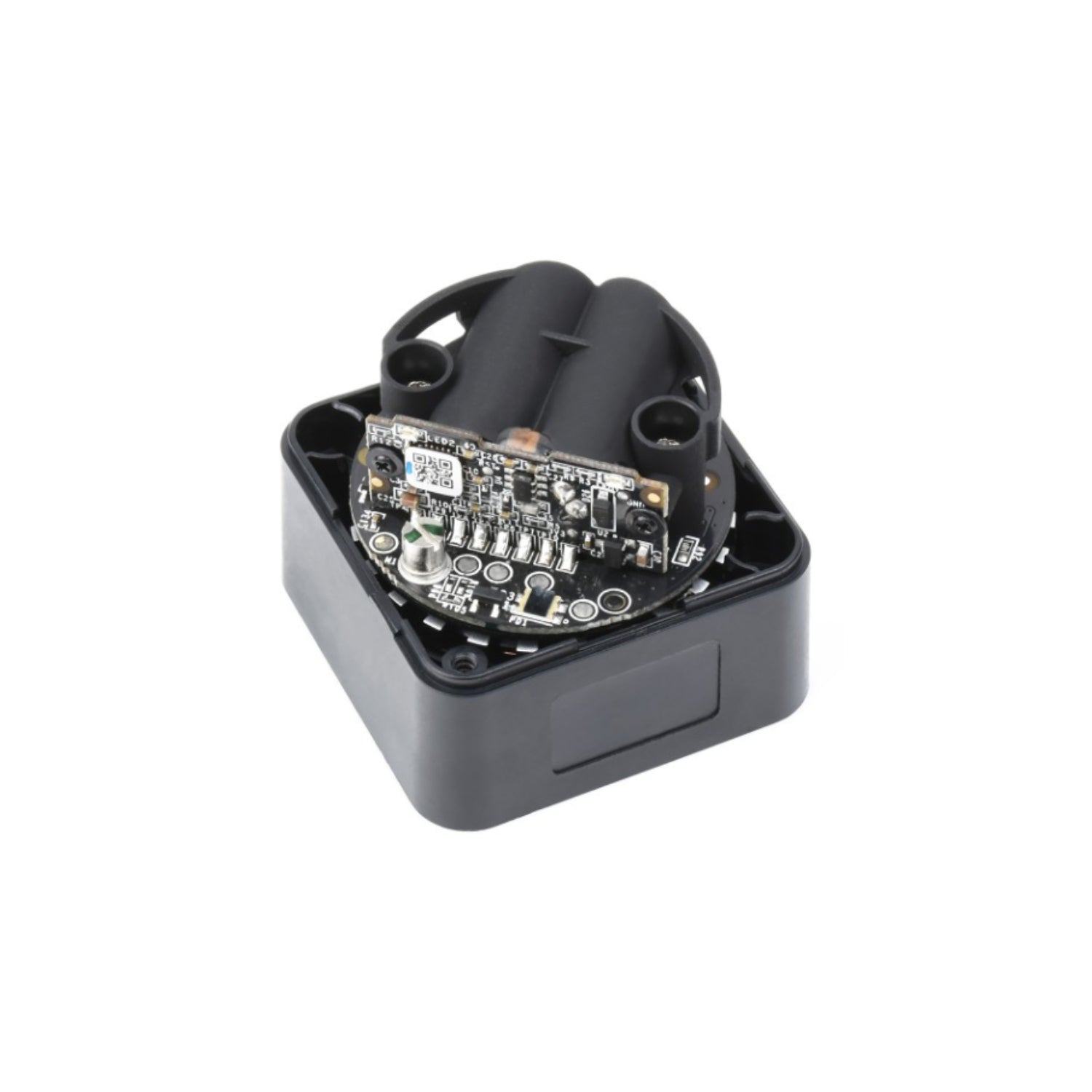

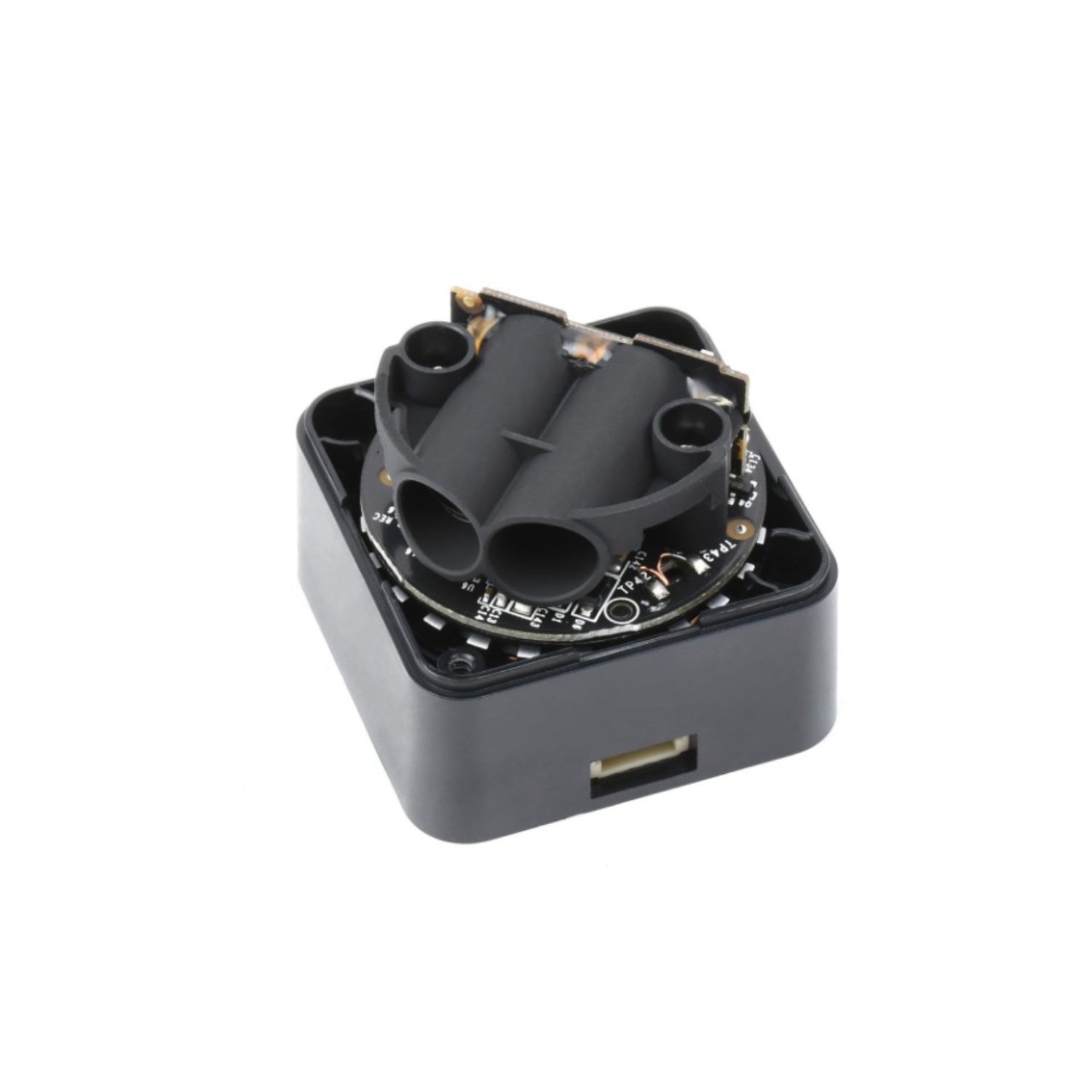

Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the surrounding environment and the point cloud information of the location of obstacles.
Rigorous optical design and powerful chip can effectively avoid strong light interference, and can resist the strong light environment of 30000 lux, which can achieve indoors and outdoors high-frequency and high-precision distance measurement and accurate mapping.
Specifications:
- Typical Measuring Range(m): 0.02 to 12
- Sampling Frequency(Hz): 4500
- Sweep Frequency(Hz): 10
- Angular Resolution (°): ≤1
- Mechanical Size(mm): 38.59*38.59*33.50
- Communication Interface(bps): UART @ 230400
- Supply Voltage (V): 5
- Working Current (mA): 180
- Power Consumption (W): 0.9
- Operating Temperature (°C): -10 to 40
Features:
- 360° scanning range.
- compact appearance.
- Measuring radius 12m.
- 10000+ hours of service life.
- Support UART communication.
- 30K Lux anti-glare interference.
- 4500Hz measurement frequency.
- Laser Safety Meets FDA Class 1 Standards.
- Based on TOF (Time of Flight) laser ranging technology.
Package Included:
1 x DTOF Laser Ranging Sensor High-Precision 360° Omni-Directional Lidar Sensor With UART Bus For Autonomous Robotics Applications
