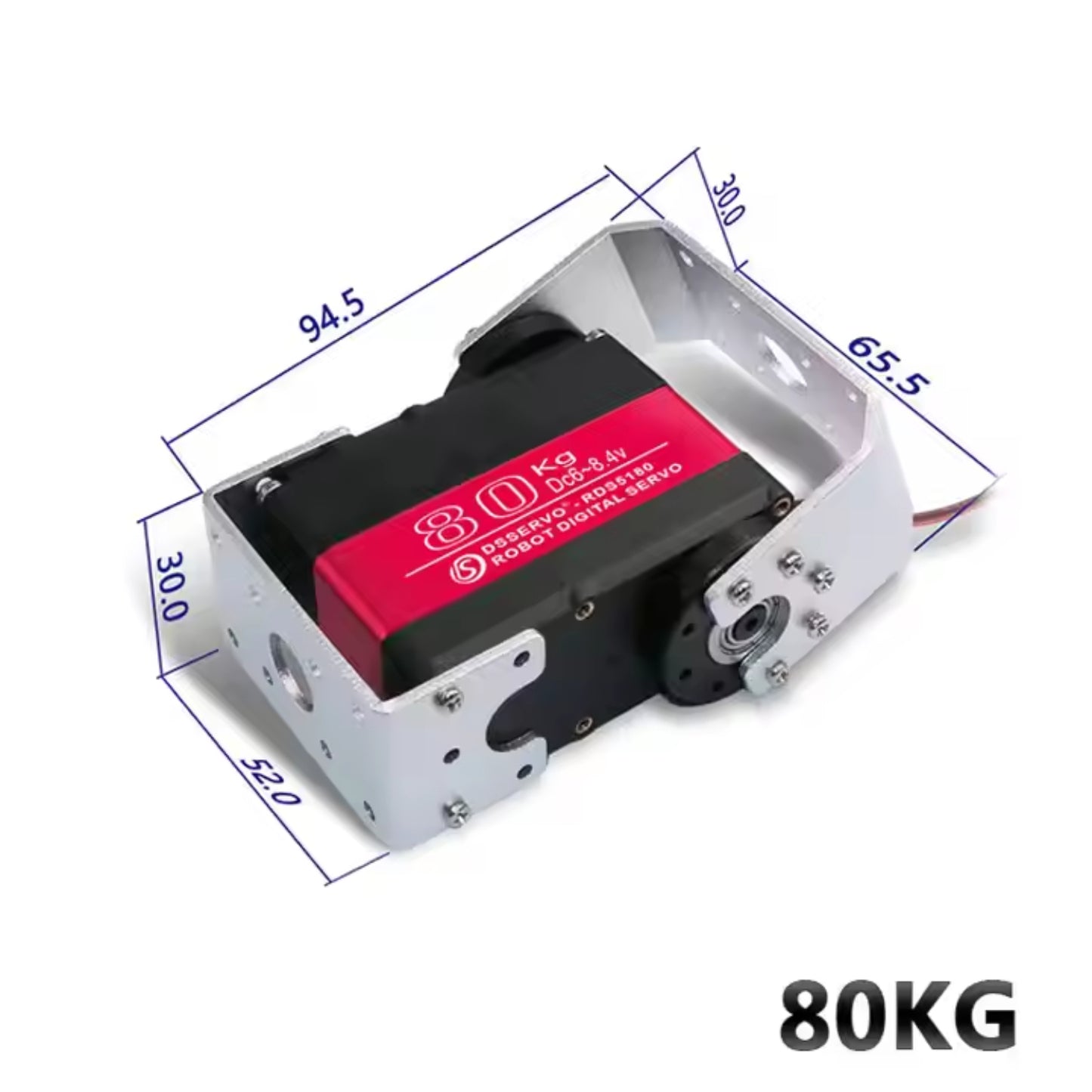

DSServo RDS5180 80KG Metal Gear Digital Servo High Torque Dual Shaft RC Servo 180°, 270° (Optional) Degree Rotation Stainless Steel Gear Servo With U Mount Bracket For RC Car & DIY Robot

DSServo RDS5180 80KG Metal Gear Digital Servo High Torque Dual Shaft RC Servo 180°, 270° (Optional) Degree Rotation Stainless Steel Gear Servo With U Mount Bracket For RC Car & DIY Robot

RS8273

In stock

Rs. 2,800.00
Rs. 2,800.00
Sale Sold out
Shipping calculated at checkout.
Degree

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

DSServo RDS5180 80KG Metal Gear Digital Servo is high-precision stainless steel gear and potentiometers, dual ball bearings, high-resolution digital chip, waterproof rubber seals screws, first-grade material, and CNC aluminum middle shell ensure stable performance and long working life.

High Torque Dual Shaft RC Servo has High response speed, smooth operating, high-precision control, fast heat dissipation, lightweight, and low noise. Stainless Steel Gear Servo is perfect for industry, robot arms, aircraft, boats, and for 1/5 baja RC cars, crawlers, buggies, truggy, etc.

Specifications:

Model RDS5180
Material Metal
Voltage 6V-8.4V
Angle: 180°, 270°
Neutral Position 1500μsec
Operating Frequency 50-330Hz
System   PWM (Pulse Width Modulation)
Rotation Direction  Counterclockwise (when 500~2500μsec)
Dead Band Width  3μsec
Speed 0.24sec/60 degree at(6v)
0.21sec/60 degree at(7.4v)
0.19sec/60 degree at(8.4v)
Torque 85kg.cm.at(6v)
98kg.cm.at(7.4v)
105kg.cm.at(8.4v)

Features:

  • Dual Ball Bearing.
  • Durable Metal Gear.
  • Original factory product.
  • Bottom Side Axial Mount Hole.
  • Programmable Digital Amplifier with Mosft Drive.

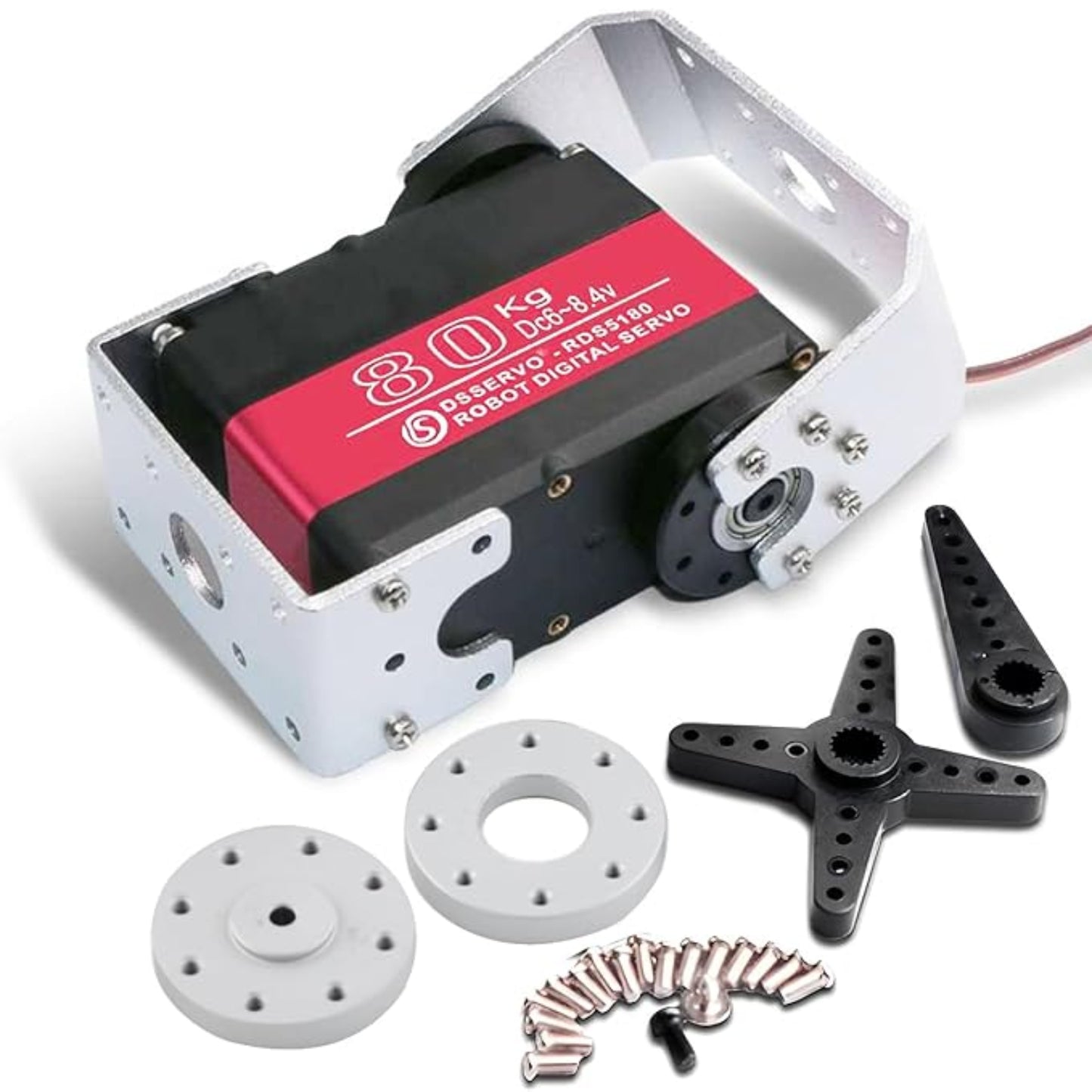

Package Included:

  • 1 x RDS5180 80KG Digital Metal Gear Servo
  • 1 x Long U metal brackets
  • 1 x Short U metal brackets
  • 1 x Metal servo arm 25T
  • 1 x Metal servo arm driven
  • One set of screws (see the picture)
